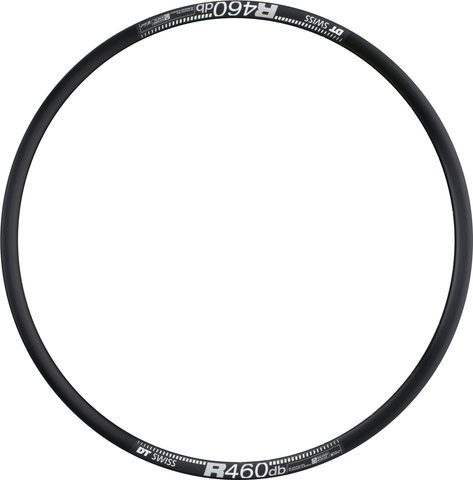

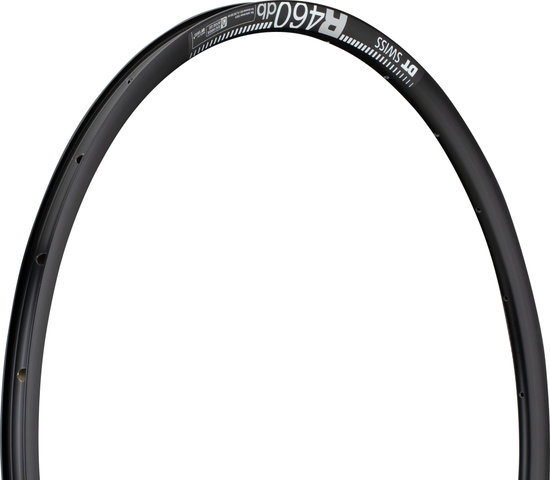

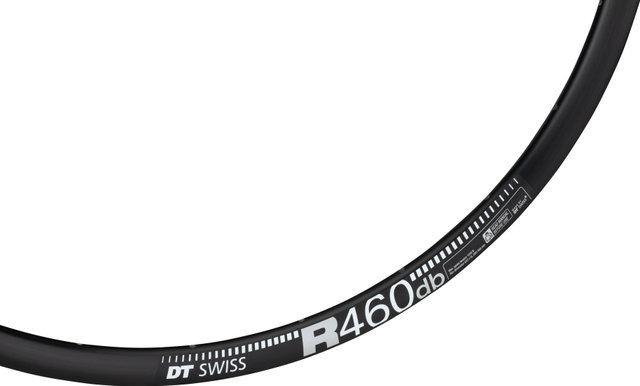

DT Swiss R 460 Disc Road Rim

The all-rounder among road bike rims: lightweight, wide and with a very good price-to-performance ratio. The R 460 DB works ideally with wide tyres and ensures many carefree kilometres with its reliability. Individually spoked, it can be used to build a comfortable wheelset for long-distance riders or cyclo-cross pilots.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24, 28, 32

Brake Type:

disc

Tubeless System:

tubeless ready

Technical Information:

Dimensions (ETRTO):

18-622

Inner Width:

18.0 mm

Outer Width:

22.0 mm

Depth:

23.0 mm

ERD:

596 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

110 kg (system weight)

Air Pressure (max.):

9.0 bars

Recommended Tyre Width:

0.9 - 2.35" / 23 - 60 mm

Features:

• no eyelets
• 1200 N max. spoke tension
• rim tape: 622x mm
• Spokes: DT Competition®, DT Aerolite®, DT Aero Comp®

Technology:

Sleeve Joint:
In this process a shaped part (sleeve) is pressed evenly into both ends of the profile. The sleeve joint is the best alternative to SBWT® welded rims.

Models:

28" / 24 hole:

• Wheel Size: 28"
• Number of Spokes: 24
• Manufacturer Number: RTR046DPN24S011340

28" / 28 hole:

• Wheel Size: 28"
• Number of Spokes: 28
• Manufacturer Number: RTR046DPN28S011341

28" / 32 hole:

• Wheel Size: 28"
• Number of Spokes: 32
• Manufacturer Number: RTR046DPN32S011342

Contents:

• 1 x DT Swiss R 460 DB rim
