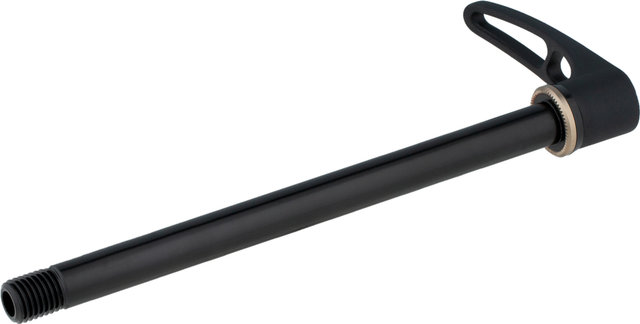

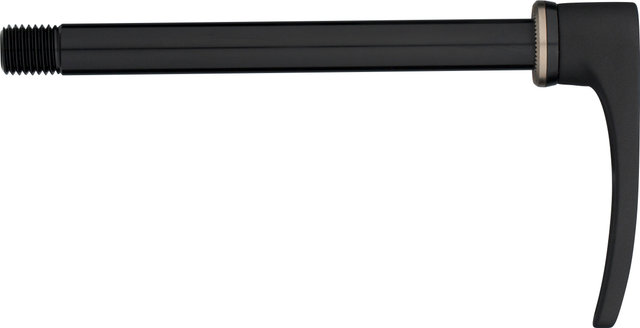

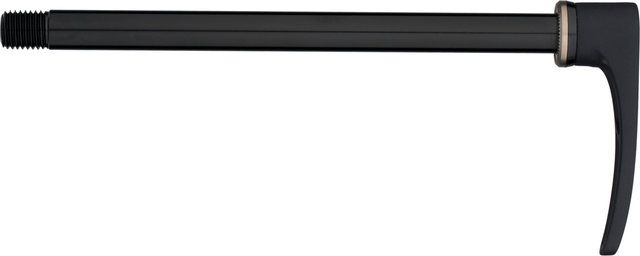

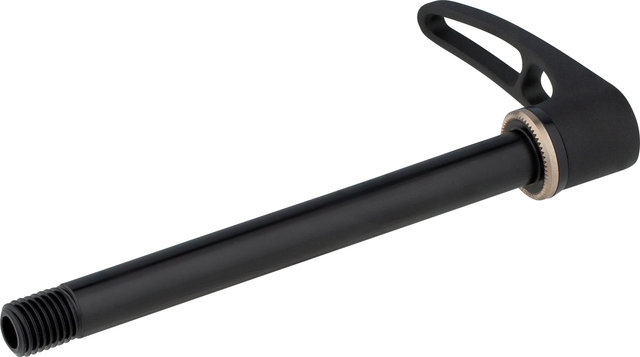

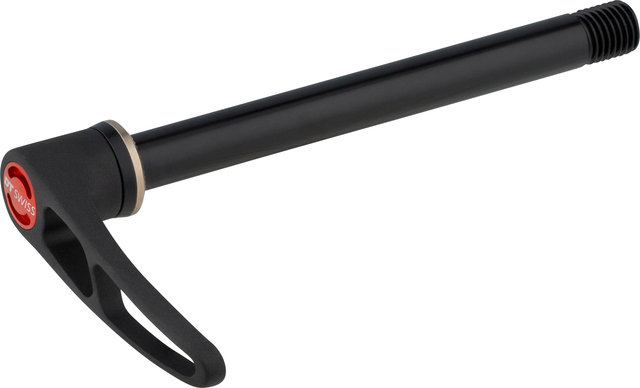

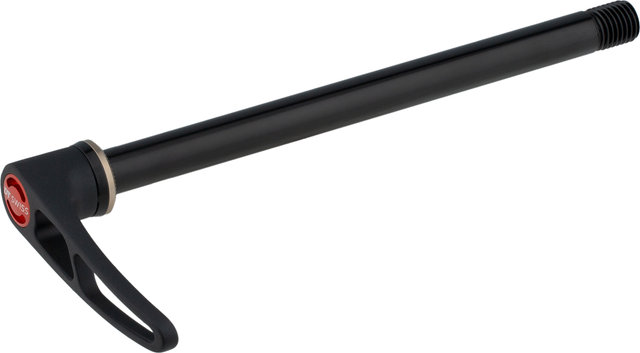

DT Swiss RWS Road Thru Axle with Quick-Release Lever

DT Swiss RWS Road thru axle with quick-release lever - tool-free assembly for road bikes

The RWS thru axle from DT Swiss allows you to attach the wheels to your road bike without tools. To make this possible, the axle is equipped with a quick-release lever.

Specifications:

Over Locknut Dimension:

100 mm, 142 mm

Axle Diameter:

12 mm

Technical Information:

Use:

12 x 100 mm, 12 x 142 mm

Type:

thru-axle with quick release lever

Axle Material:

aluminium

Lever Material:

aluminium

Axle Length:

121 mm, 163 mm

Nominal Diameter:

M12

Thread Pitch:

1.5 mm

Thread Length:

13 mm

Features:

• tool-free assembly
• made of full metal

Technology:

RWS:
The Ratchet Wheelmounting System is a system for tool-free wheel mounting for all disciplines of cycling. In the style of quick-release levers, wheels with RWS axles can be quickly attached. However, they can withstand stronger forces caused by higher speeds and increased track requirements. The axles are as stable as thru axles, And thanks to the lever, the axle can be released or clamped as easily as a quick-release axle. The lever is lifted for this reason, and is operated by turning it.

Models:

12 x 100 mm:

Over Locknut Dimensions:

12 x 100 mm

Axle Length:

121 mm

Nominal Diameter:

M12

Thread Pitch:

1.5 mm

Thread Length:

13 mm

Manufacturer Number:

HWQASM00S2023S

12 x 142 mm:

Over Locknut Dimensions:

12 x 142 mm

Axle Length:

163 mm

Nominal Diameter:

M12

Thread Pitch:

1.5 mm

Thread Length:

13 mm

Manufacturer Number:

HWQASM00S2016S

Contents:

• 1 x DT Swiss RWS Road thru-axle

• black/12 x 100 mm: 54 g
• black/12 x 142 mm: 63 g
