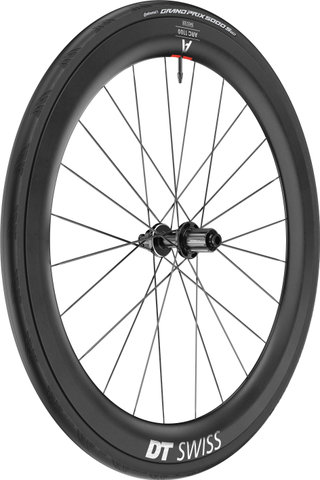

DT Swiss WTS ARC 1100 DICUT 55 Carbon Disc Center Lock 28" Wheelset
Elevate your road cycling experience with the DT Swiss WTS ARC 1100 DICUT 55 Carbon Disc Center Lock 28" wheelset. Crafted with precision, the rims are made from high-quality carbon, ensuring a lightweight yet sturdy ride. Both the front and rear rims boast a 55 mm height, paired with an inner width of 22 mm and an outer width of 29 mm. This wheelset is tubeless ready, allowing for a smoother ride and better puncture resistance. The spoke configuration features a 2-cross pattern on both the front and rear, using DT Aerolite II straightpull spokes made from stainless steel for maximum strength and aerodynamics. The aluminum nipples are equipped with DT Pro Lock technology to ensure a secure and durable build. The wheelset spins on DT Swiss 180 hubs, known for their reliability and performance, with the rear hub incorporating the Ratchet EXP 36 freehub system for efficient power transfer. Both hubs are encased in aluminum shells and utilize ceramic bearings for an ultra-smooth rotation with reduced friction. The brake system is compatible with disc center lock, offering superior stopping power in all conditions.
Specifications:
- Application:
- Road
- Rim height front:
- 55 mm
- Rim height rear:
- 55 mm
- Inner rim width:
- 22 - 22 mm
- Outer rim width:
- 29 - 29 mm
- Brake system:
- Disc Center Lock
- Number of spokes:
- 20 (front), 24 (rear)
- Rim flange:
- With hook
- Rim material:
- Carbon
- Valve hole (diameter):
- SV (6.5 mm)
- Tubeless system:
- Tubeless Ready
- Tire type:
- Clincher tire/folding tire
Technical Information:
- Rear hub type:
- DT Swiss 180
- Spoke type/construction:
- DT Aerolite II / Straightpull
- Rear hub shell material:
- Aluminum
- Freehub type:
- Ratchet EXP 36
- Nipple type/construction:
- DT Pro Lock
- Front hub type:
- DT Swiss 180
- Spoke material:
- Stainless steel
- Rear spoke pattern:
- 2-cross
- Rear hub bearings:
- Ceramic bearings
- Rear freehub body material:
- Aluminum
- Nipple material:
- Aluminum
- Front hub shell material:
- Aluminum
- Front hub bearings:
- Ceramic bearings
- Front spoke pattern:
- 2-cross
Approved For:
- Weight Limit:
- 110 kg
- System
Features:
- Premium carbon wheelset designed for road cycling, featuring DT Swiss 180 hubs and Aerolite II spokes for optimal performance.
- Constructed with a 55mm rim height front and rear for aerodynamic efficiency and stability in crosswinds.
- Utilizes DT Pro Lock aluminum nipples and a 2-cross spoke pattern on both front and rear for enhanced durability and strength.
- Equipped with ceramic bearings in both front and rear hubs for reduced friction and smoother rolling.
- Features a tubeless-ready design with a rim flange with hook, allowing for easy setup and improved puncture resistance.
- Compatible with disc center lock brake systems, ensuring reliable stopping power in all conditions.
- WTS (Wheel Tire System): comes with mounted tires (Continental Aero 111 29 mm front, Continental Grand Prix 5000 S TR 30 mm rear) and tubes (Continental TPU)
Contents:
1 x DT Swiss WTS ARC 1100 DICUT 55 Carbon Disc Center Lock 28" wheelset
1 x Continental Aero 111 folding tire, 29 mm (mounted)
1 x Continental Grand Prix 5000 S TR folding tire, 30 mm (mounted)
2 x Continental TPU tubes (mounted)
- 1 x DT Swiss Tubeless Tape 25 mm
1 x DT Swiss Tubeless Valve Aluminum 49–65 mm
1 x SRAM XDR Road freehub body set
1 x DT Swiss valve protection sticker
1 x DT Swiss wheel bag
