FOCUS AVENTURA² 6.8 Wave 29" E-Touring Bike - toronto grey/XL

FOCUS AVENTURA² 6.8 Wave 29" E-Touring Bike

Item number: 89831

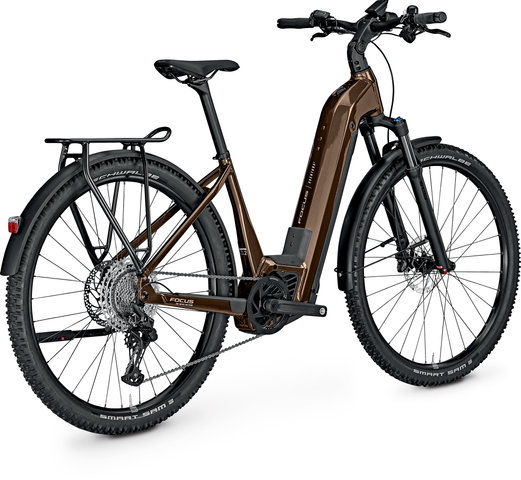

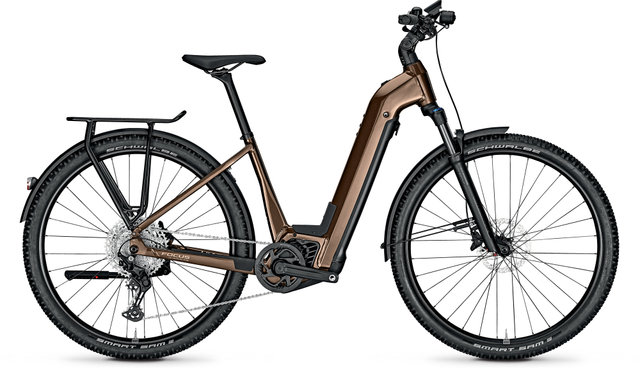

The FOCUS AVENTURA² 6.8 e-bike with wave frame shape for comfortable mounting and dismounting


The FOCUS AVENTURA² 6.8 Wave is a 29" e-touring bike with Shimano Deore M5100 11-speed gears and has a low step-in frame for more comfort in everyday use. It is equipped with a Shimano MT410 2-piston disc brake and a 100 mm suspension fork from Suntour. Its Bosch Performance CX Smart motor with 750 Wh battery (625 Wh for size S) supports you on rides in the city as well as in the countryside. Thanks to a lighting system with 110-lux front lamp, rear pannier rack and fenders, the AVENTURA² 6.8 is equipped for shopping trips, excursions and commuting, even in bad weather. Charge your smartphone or navigation device while riding via the integrated USB-C port.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:
City & Touring
Wheel Size:
29"
Sizes:
S, M, XL
Frame Material:
aluminium (7005)
Fork Material:
aluminium, magnesium

E-Motor:

Type:
mid-drive motor
Motor Type:
Bosch Performance CX Smart, 85 Nm
Pedal Assist (max.):
25 km/h
Power:
250 W
Battery Type:
Bosch Powertube, 36 V, removable, lockable
Capacity:
750 Wh (20.8 Ah / M, L, XL), 625 Wh (17.4 Ah / S)
Display:
Bosch LED Remote + Kiox 300

Components:

Frame:
FOCUS AVENTURA², Wave Frame Type, hydroformed aluminium, 3D forged, USB-C port, post mount 180 mm, 12 x 148 mm thru-axle (Boost)
Fork:
SR Suntour XCR 34 LO Air, 100 mm travel, 515 mm length, 51 mm offset, 15 x 110 mm (Boost)
Stem:
FOCUS C.I.S. integrated, 60 mm 30°, 35 mm handlebar clamp, aluminium
Handlebars:
FOCUS, aluminium, 760 mm, flat bar, 9° backsweep, 35 mm
Headset:
Acros ZS56/ZS56 (ICR), FOCUS C.I.S. integrated
Seatpost:
FOCUS, aluminium, 31.6 mm, 350 mm
Saddle:
Selle Royal Vivo
Crank:
FSA CK-320, aluminium, 170.0 mm, 36 T, bottom bracket integrated in motor unit
Pedals:
MTB, with reflectors
Brakes/Brake Levers:
Shimano MT410, 2 piston, hydraulic disc brake, 180 mm/180 mm
Shift Lever:
Shimano Deore M5100, 11-speed
Rear Derailleur:
Shimano Deore RD-M5100, 11-speed
Cassette:
Shimano Deore CS-M5100, 11-speed, 11-51 T
Chain:
Shimano CN-HG601, 11-speed
Fenders:
Büchel, aluminium, 60 mm, powder-coated
Front Light:
Litemove SE110 LED, 110 Lux
Rear Light:
Herrmans H-Trace Mini
Kickstand:
Rear kickstand, adjustable, 40 mm direct mount
Rims:
RODI TRYP25, 25-622
Spokes:
Steel, galvanised, black
Front Hub:
Shimano Alivio MT400, 15 x 110 mm
Rear Hub:
Shimano Alivio MT400, 12 x 148 mm
Tyres:
Schwalbe Smart Sam, 29 x 2.25" , 57-622

Approved For:

Weight Limit:
150 kg (system weight)
Rotor Size (max.):
203 mm (rear)
Tyre Size (max.):
57-622 (with fenders)
Chainrings:
1x
Chainring Size (max.):
1x, 36 T

Features:

  • fully equipped e-bike for everyday, urban and leisure use
  • wave frame shape with low entry for comfortable and fast mounting and dismounting
  • Bosch Smart System with Performance CX drivetrain, Kiox 300 display and 750 Wh battery (size S: 625 Wh)
  • battery elegantly integrated in the down tube, removable for charging
  • suspension fork with 100 mm travel and 57 mm wide MTB tyres for more comfort
  • reliable Shimano Deore 11-speed gears
  • sturdy metal fenders, rear stand and lighting system
  • Racktime Snap-It pannier rack, 2-legged, with 25 kg maximum payload
  • comfortable cockpit with C.I.S. stem with integrated cable routing
  • USB-C port for charging the smartphone or navigation system
  • EN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/h

Technology:

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

Geometry:

(based on a fork axle to crown length of 515 mm)
S:
Frame Size:
40 cm
Stack:
642 mm
Reach:
410 mm
Seat Tube Length:
400 mm
Head Tube Length:
135 mm
Chainstay Length:
470 mm
Wheelbase:
1152 mm
BB Drop:
65 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
68°

M:
Frame Size:
44 cm
Stack:
650 mm
Reach:
420 mm
Seat Tube Length:
440 mm
Head Tube Length:
135 mm
Chainstay Length:
470 mm
Wheelbase:
1172 mm
BB Drop:
65 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
68°

XL:
Frame Size:
52 cm
Stack:
675 mm
Reach:
460 mm
Seat Tube Length:
520 mm
Head Tube Length:
160 mm
Chainstay Length:
470 mm
Wheelbase:
1217 mm
BB Drop:
65 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
68°

Manufacturer Numbers:

gold brown / S:
663512425
gold brown / M:
663513426
toronto grey / XL:
663513418

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

  • 1 x FOCUS AVENTURA² 6.8 Wave 29" e-touring bike
  • 1 x charger
  • 1 x power cable
  • 4 x spoke reflectors
  • 1 x reflector, red
  • 2 x keys


Weight:

  • gold brown/S: 26,4 kg
