Factor OSTRO V.A.M. Disc T47a Shimano Tint over Chrome Carbon Frame Kit

Item number: 94532

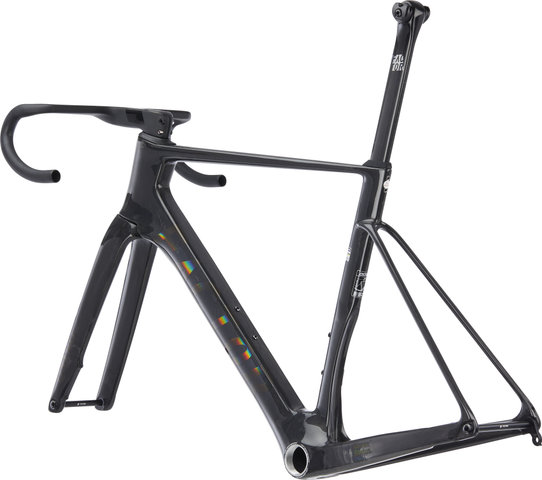

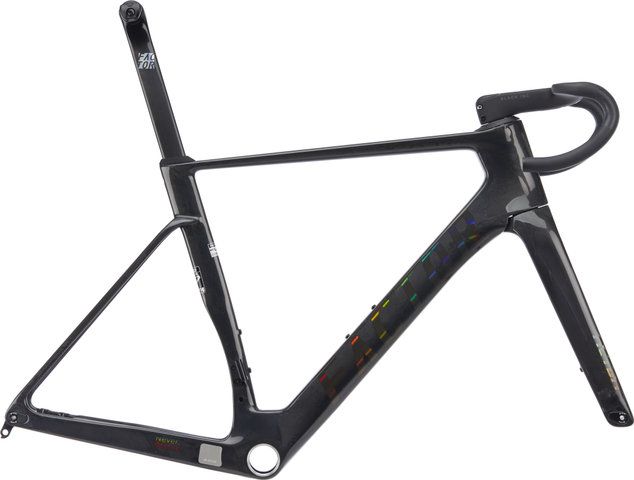

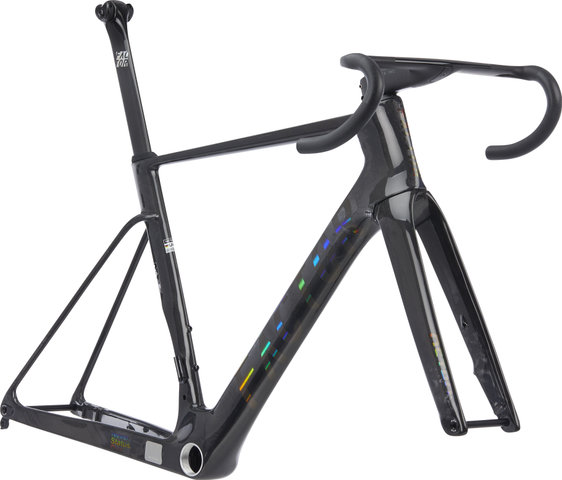

The Factor OSTRO V.A.M. Disc T47a Shimano Frame Kit in Tint over Chrome


The unique design of the OSTRO V.A.M. T74a Shimano Frame Kit has been further developed for high performance. It is now even lighter, stiffer, and more aerodynamic than its predecessor.
The OSTRO V.A.M. represents unmatched precision and quality from Factor, allowing you to build a super-light, aerodynamic road bike with disc brakes. Both the frame and the fork, as well as the seatpost, have been optimized for the best aerodynamics. The lightweight frame kit impresses with outstanding stiffness, thanks to the use of TeXtreme carbon fibers. TeXtreme consists of flat fibers that can be widely laid out, leading to an efficient use of material. These fibers are supported by pitch-based carbon fibers. The frame offers tire clearance of up to 32 mm, while the specially developed fork can also accommodate tires up to 32 mm wide.
You can easily mount wide tires for more riding comfort. With a high-end headset and bottom bracket from CeramicSpeed, you will experience minimal friction losses during your ride. The Aero handlebar-stem unit from Black Inc helps ensure that the frame kit lives up to its name. After all, OSTRO is one of the Mediterranean's principal winds.

Comfortable, fast, hunting for classics, and a style icon – the Factor OSTRO V.A.M. is all in one and will thrill you on every ride.

Specifications:

Application:
Road
Wheel Size:
28"
Size:
49 cm, 52 cm, 54 cm, 56 cm, 58 cm, 61 cm
Frame Material:
carbon
Fork Material:
carbon

Technical Information - Frame:

Wheel Standard:
12 x 142 mm (standard)
Axle Type:
12 mm thru-axle
Headset:
IS41/28.6 – IS49/37(36) (top to bottom)

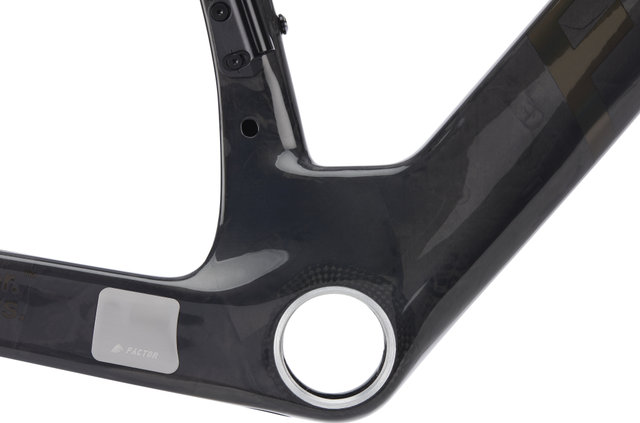

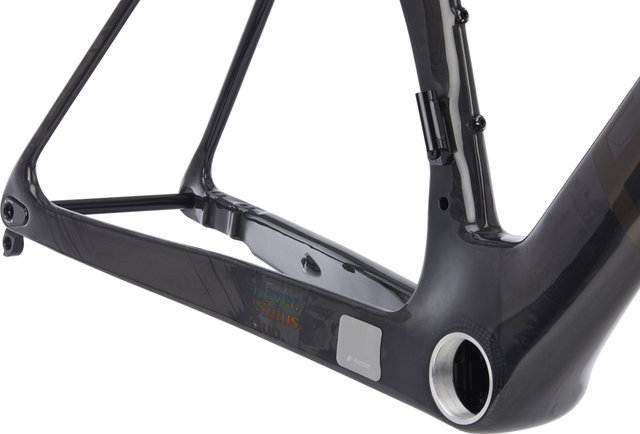

Bottom Bracket Standard:
T47a
Shell Width:
77 mm
Brake Mount:
flat mount
Chainstay Thickness:
Front Derailleur Mount:
Direct Mount (High Direct)
Cable Routing:
internal electronic
Bottle Cage Mounts:

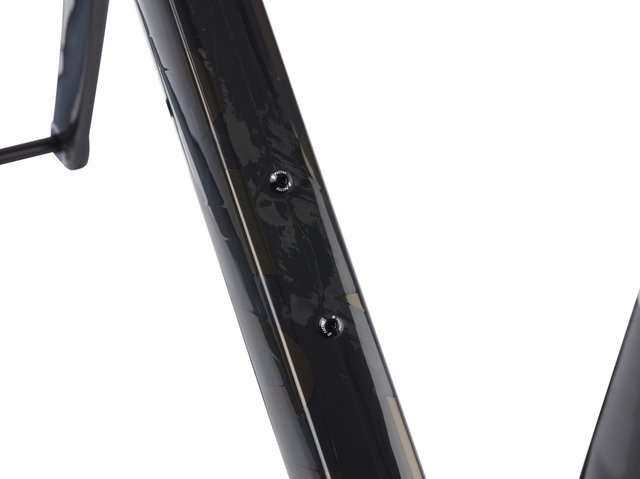

2

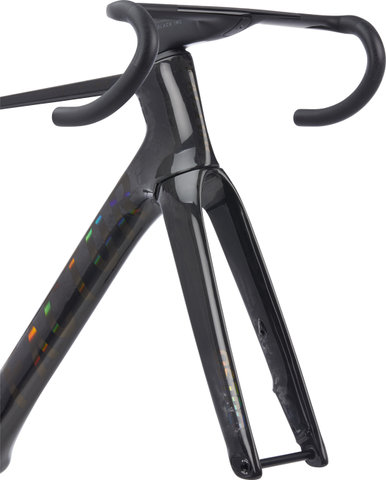

Technical Information - Fork:

Steerer Tube:
1 1/8" - 1 3/8" tapered
Wheel Standard:
12 x 100 mm (Standard)
Axle Type:
12 mm thru-axle
Brake Mount:
flat mount
Offset:
58 mm, 58.6 mm
Trail:
43mm, 48 mm, 53 mm
Over Locknut Dimension:
100 mm
Material Steerer Tube:
carbon
Crown Material:
carbon
Blade Material:
carbon
Dropout Material:
carbon

Approved For:

Weight Limit:
110 kg (system weight)
Rotor Size (max.):
160 mm
Tyre Size (max.):
32-622 (700x32c)
Chainrings:
1x, 2x
Chainring Size (max.):
55 teeth

Features:

  • Lightweight, aerodynamic frame-fork kit for high-performance road cycling
  • With tint over chrome painting
  • Even stiffer, lighter, and more aerodynamic than its predecessor
  • Wind-optimized frame with a tapered head tube
  • High stiffness with minimal material usage through a special carbon fiber setup

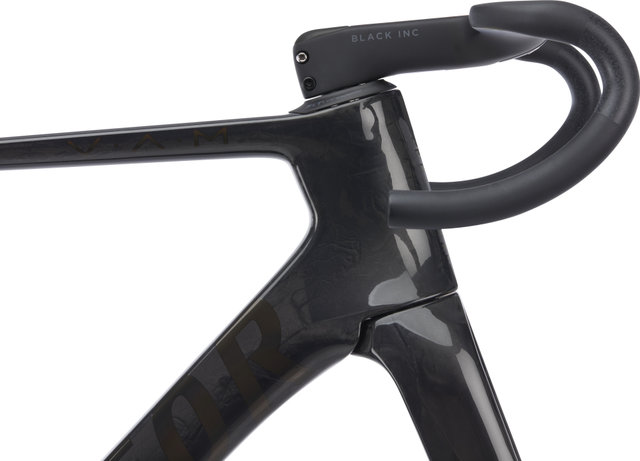

  • Aerodynamic handlebar stem unit (120 mm drop, 80 mm reach, -6° angle)
  • Friction-reducing headset and smooth-running bottom bracket from CeramicSpeed
  • Generous tire clearance for more comfort

Geometry:

49 cm:
Stack:
503 mm
Reach:
370 mm
Seat Tube Length:
425 mm
Chainstay Length:
405 mm
Wheelbase:
970 mm
BB Drop:
72 mm
Seat Tube Angle:
74.5°
Head Tube Angle:
71.7°
Standover Height:
737 mm
Fork Offset: 58 mm
Fork Trail:
53 mm

52 cm:
Stack:
523 mm
Reach:
376 mm
Seat Tube Length:
465 mm
Chainstay Length:
405 mm
Wheelbase:
971 mm
BB Drop:
72 mm
Seat Tube Angle:
74°
Head Tube Angle:
72.5°
Standover Height:
762 mm
Fork Offset: 58 mm
Fork Trail:
48 mm

54 cm:
Stack:
542 mm
Reach:
384 mm
Seat Tube Length:
495 mm
Chainstay Length:
405 mm
Wheelbase:
985 mm
BB Drop:
70 mm
Seat Tube Angle:
74°
Head Tube Angle:
72.5°
Standover Height:
781 mm
Fork Offset: 58 mm
Fork Trail:
48 mm

56 cm:
Stack:
565 mm
Reach:
392 mm
Seat Tube Length:
525 mm
Chainstay Length:
405 mm
Wheelbase:
987 mm
BB Drop:
70 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
73.3°
Standover Height:
804 mm
Fork Offset: 58.6 mm
Fork Trail:
43 mm

58 cm:
Stack:
587 mm
Reach:
401 mm
Seat Tube Length:
545 mm
Chainstay Length:
408 mm
Wheelbase:
1006 mm
BB Drop:
70 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
73.3°
Standover Height:
817 mm
Fork Offset: 58.6 mm
Fork Trail:
43 mm

61 cm:
Stack:
611 mm
Reach:
409 mm
Seat Tube Length:
570 mm
Chainstay Length:
410 mm
Wheelbase:
1022 mm
BB Drop:
70 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
73.3°
Standover Height:
840 mm
Fork Offset: 58.6 mm
Fork Trail:
43 mm


Models:

The frameset comes with a bottom bracket (T47a Shimano), handlebar/stem unit, and a 350 mm seatpost. So, when you pick a size, you're choosing the frame size, stem length x handlebar width, and setback (always 25 mm).
For example, 49 cm, 90 mm x 40 cm, SB 25 mm means: frame size 49 cm, stem length 90 mm, handlebar width 40 cm, seatpost setback 25 mm.

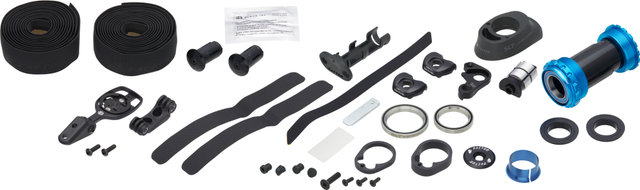

Contents:

  • 1 x Factor OSTRO V.A.M. frame, tint over chrome
  • 1 x Factor OSTRO V.A.M. fork

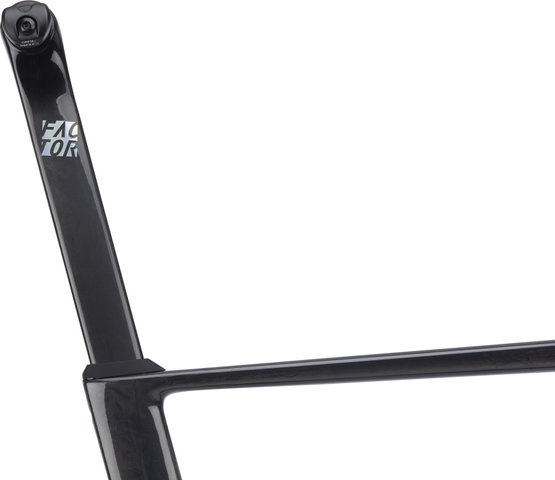

  • 1 x Factor OSTRO V.A.M. seatpost
  • 1 x Black Inc Aero Integrated handlebar stem unit

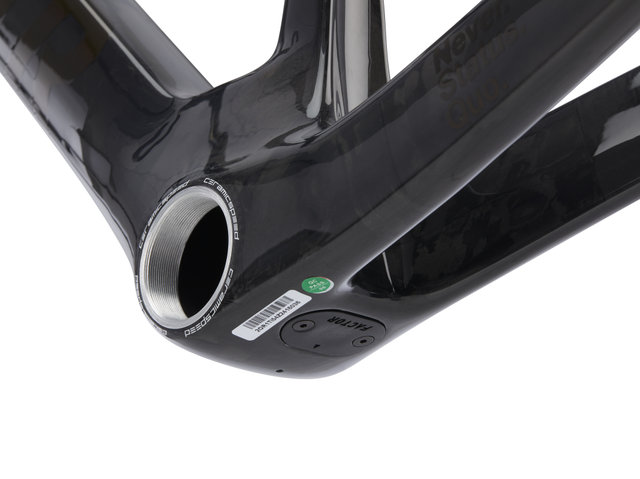

  • 1 x CeramicSpeed Shimano T47a bottom bracket
  • 1 x CeramicSpeed headset
  • 1 x bottom bracket spacer kit
  • 2 x dust caps
  • 2 x Black Inc OSTRO V.A.M. bottle cages
  • 1 x pair of handlebar tape
  • 1 x pair of bar end plugs
  • 1 x 5 mm headset cover
  • 1 x 20 mm headset cover
  • 1 x Factor spacer 2.5 mm
  • 1 x Factor spacer 5 mm
  • 1 x Factor spacer 10 mm
  • 1 x derailleur hanger
  • 1 x assembly paste
