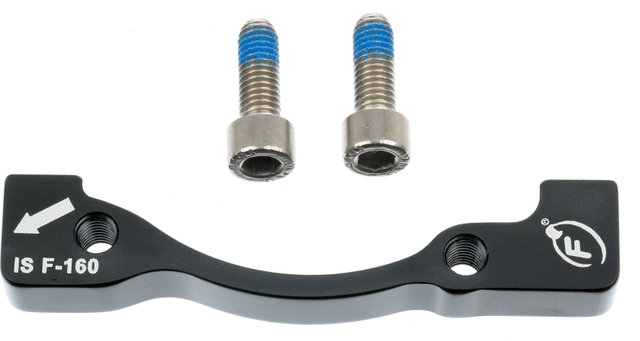

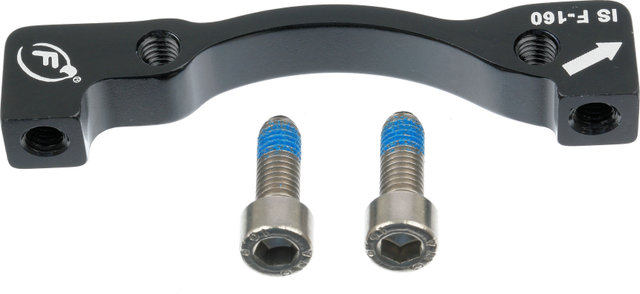

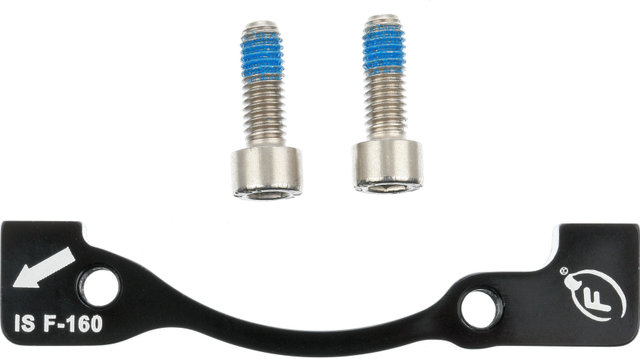

Formula Disc Brake Adapter for All Models

Adapter for all Formula brakes. The brake calipers of the Formula brakes have a post mount. In order to mount the brake on forks or frames, certain adapters are required.

Models:

Front IS 160 mm:

• Brake Caliper: post mount (PM 6" )
• Brake Mount (Fork): international standard (IS)
• Front Rotor Size: 160 mm
• Manufacturer Number: FD40140-10

Front IS 180 mm / Rear 160 mm:

• Brake Caliper: post mount (PM 6" )
• Brake Mount (Fork / Frame): international standard (IS)
• Front Rotor Size: 180 mm
• Rear Rotor Size: 160 mm
• Manufacturer Number: FD40141-10

Front IS 200 mm / Rear 180 mm:

• Brake Caliper: post mount (PM 6" )
• Brake Mount (Fork / Frame): international standard (IS)
• Front Rotor Size: 200 mm
• Rear Rotor Size: 180 mm
• Manufacturer Number: FD40145-10

Front IS 203 mm:

• Brake Caliper: post mount (PM 6" )
• Brake Mount (Fork): international standard (IS)
• Front Rotor Size: 203 mm
• Manufacturer Number: FD40164-10

front 6" PM 180 mm:

• Brake Caliper: post mount (PM 6" )
• Brake Mount (Fork / Frame): post mount (PM 6" )
• Front Rotor Size: 180 mm
• Rear Rotor Size: 180 mm
• Manufacturer Number: FD40148-10

front 6" PM 203 mm:

• Brake Caliper: post mount (PM 6" )
• Brake Mount (Fork / Frame): post mount (PM 6" )
• Front Rotor Size: 203 mm
• Rear Rotor Size: 203 mm
• Manufacturer Number: FD40150-10

Rear IS 160 mm:

• Brake Caliper: post mount (PM 6" )
• Brake Mount (Frame): international standard (IS)
• Rear Rotor Size: 160 mm
• Manufacturer Number: FD40144-10

Rear IS 203 mm:
- Brake Caliper: post mount (PM 6" )
- Brake Mount (Frame): international standard (IS)

• Rear Rotor Size: 203 mm

- Manufacturer Number: FD40146-10

Rear IS 220 mm:

• Brake Caliper: post mount (PM 6" )
• Brake Mount (Frame): international standard (IS)
• Rear Rotor Size: 220 mm
• Manufacturer Number: FD40086-10

Rear 7" PM 203 mm:

• Brake Caliper: post mount (PM 7" )
• Brake Mount (Fork / Frame): post mount (PM 7" )
• Front Rotor Size: 203 mm
• Rear Rotor Size: 203 mm
• Manufacturer Number: FD40154-10

Contents:

• 1 x Formula adapter
• incl. bolts
