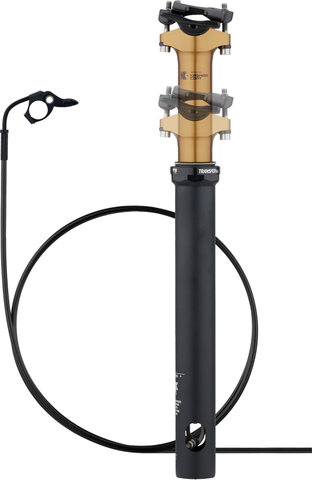

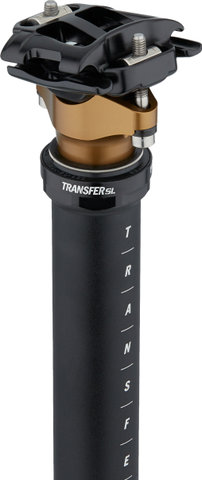

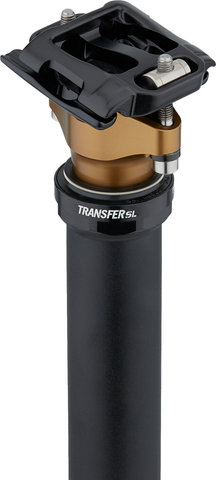

Fox Racing Shox Transfer SL Factory 75 mm Seatpost - 2022 Model

Specifications:

Application:

Cross Country

Stroke:

75 mm

Diameter:

30.9 mm, 31.6 mm

Length:

355 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard) made of steel or titanium, 7 x 9 mm (high oval) made of carbon

Material:

aluminium

Approved For:

Insertion Depth (max.):

225 mm

Insertion Depth (min.):

80 mm

Features:

• extremely lightweight
• mechanical, permanent locking
• tension clamp on seatpost or remote possible
• Factory Series model with Genuine Kashima Coat

Models:

Diameter:

30.9 mm

Manufacturer Number:

925-01-206

Diameter:

30.9 mm

Remote Mount:

Clamp (split), Matchmaker, I-Spec EV

Remote Position:

left below the handlebars, instead of a shift lever

Manufacturer Numbers:

925-01-206 + 925-06-004

Diameter:

30.9 mm

Remote Mount:

clamp (closed)

Remote Position:

Mount left/right above the handlebars

Manufacturer Numbers:

925-01-206 + 925-06-002

Diameter:

31.6 mm

Manufacturer Number:

925-01-207

Diameter:

31.6 mm

Remote Mount:

Clamp (split), Matchmaker, I-Spec EV

Remote Position:

left below the handlebars, instead of a shift lever

Manufacturer Numbers:

925-01-207 + 925-06-004

Diameter:

31.6 mm

Remote Mount:

clamp (closed)

Remote Position:

Mount left/right above the handlebars

Manufacturer Numbers:

925-01-207 + 925-06-002

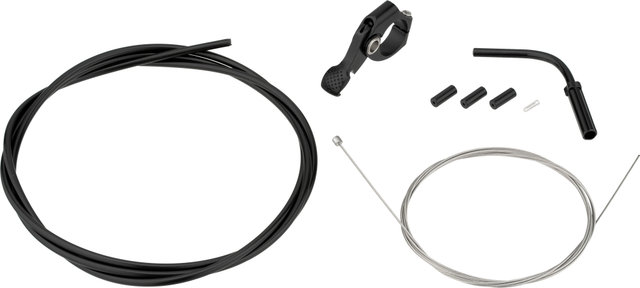

Contents:

• 1 x Fox Racing Shox Transfer SL Factory seatpost

• 1 x Fox Racing Shox Transfer SL Factory seatpost
• 1 x Fox Racing Shox Transfer handlebar remote
• 1 x Fox Racing Shox clamp
• 1 x Fox Racing Shox Adapter for Matchmaker / I-Spec EV
• 1 x cable
• 1 x cable housing
• 3 x open end caps
• 1 x ferrules

• 1 x Fox Racing Shox Transfer SL Factory seatpost
• 1 x Fox Racing Shox Transfer handlebar remote
• 1 x cable pull
• 1 x cable
• 1 x cable housing
• 3 x open end caps
• 1 x ferrules
