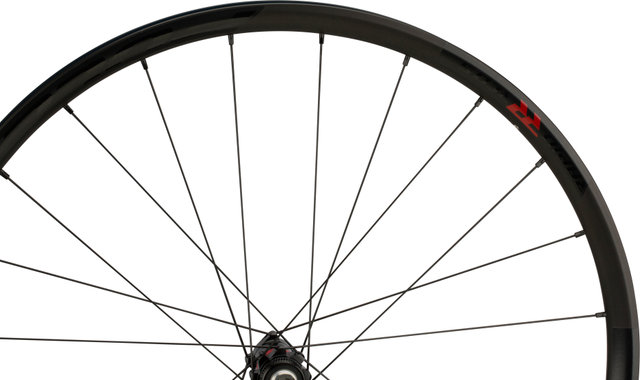

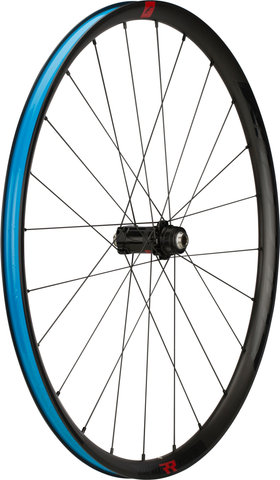

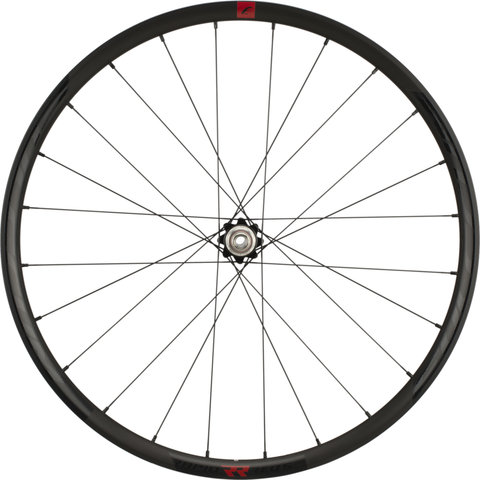

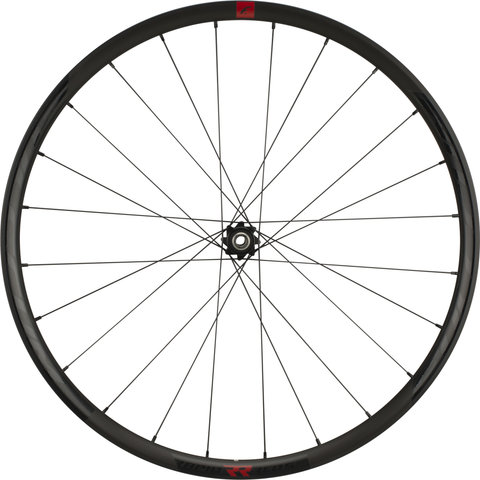

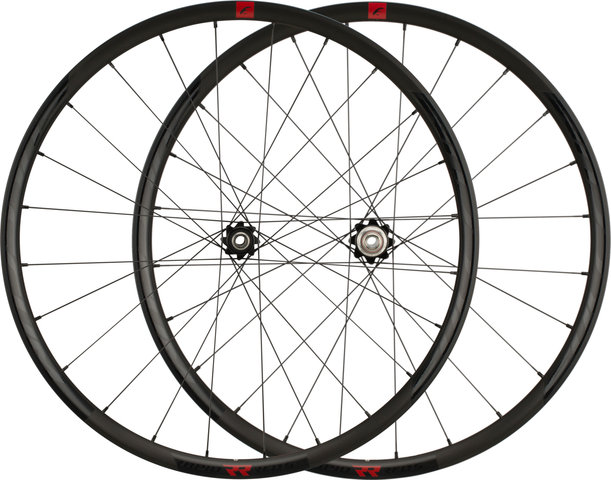

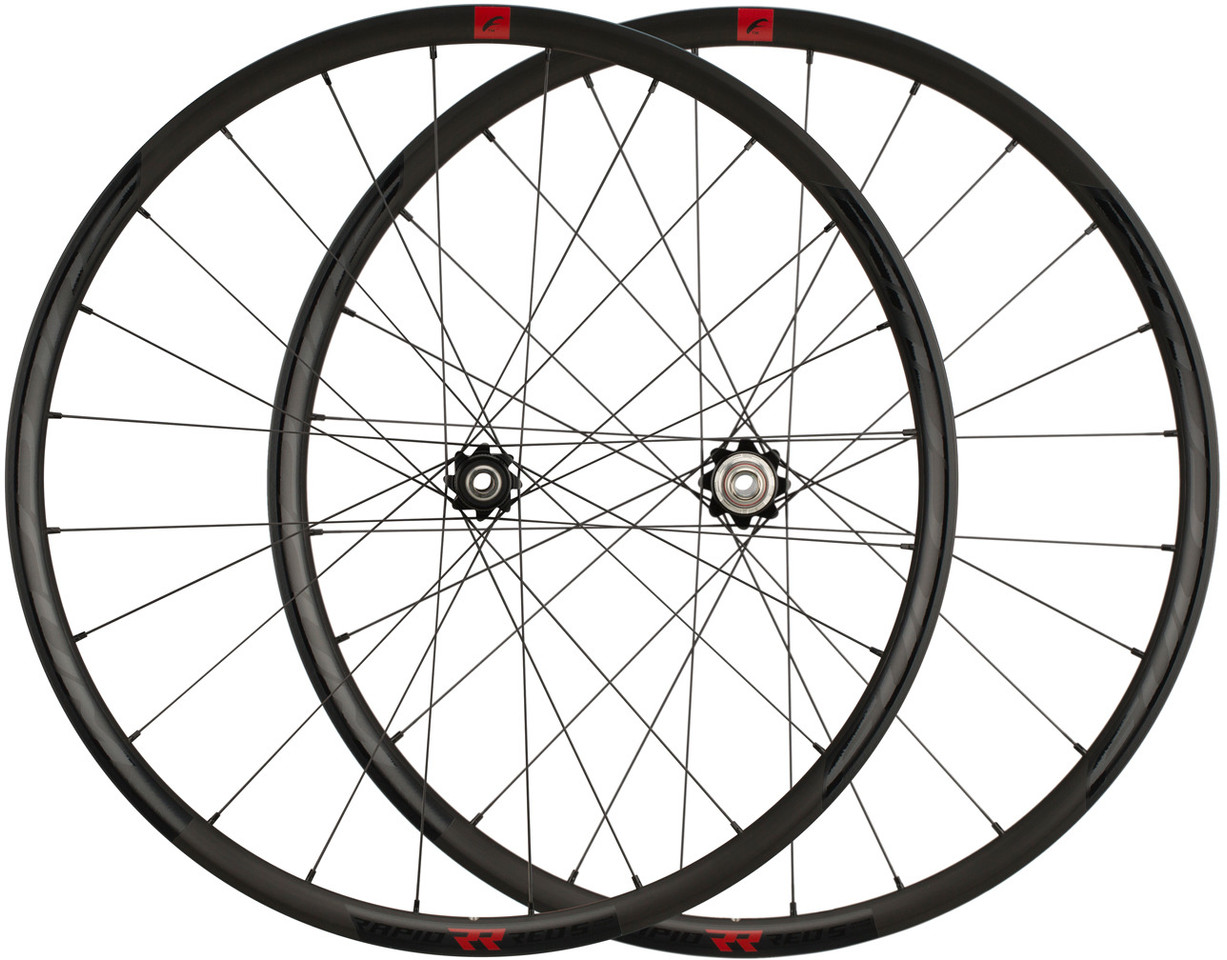

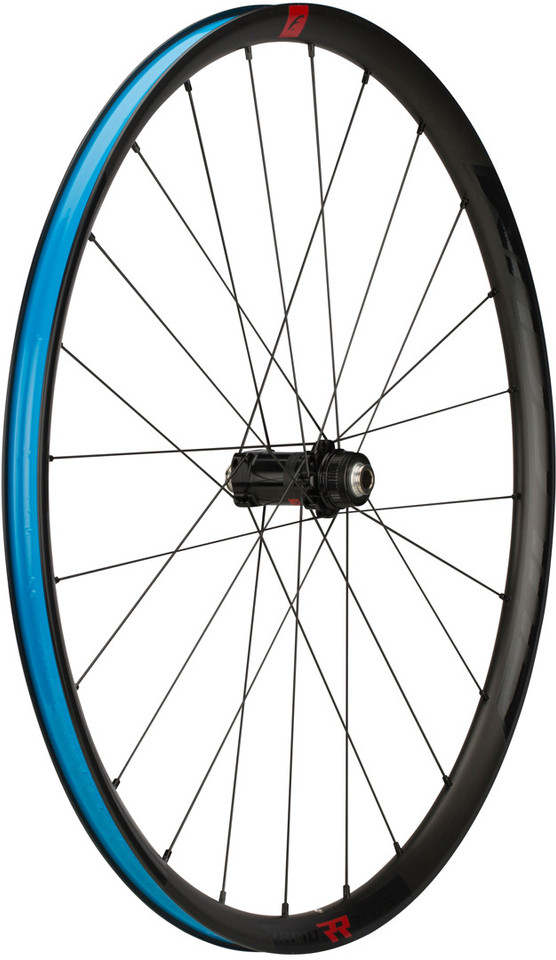

Fulcrum Rapid Red 5 DB Disc Center Lock 27.5" Wheelset

Versatility and freedom: the Rapid Red 5 DB wheelset from Fulcrum

There are many ways of interpreting a popular new trend that represents something different to every participant. For some, it offers a new way to further test their limits; for others, it is a new opportunity to completely revamp their approach to cycling. B-Road, or " Gravel" , encompasses all of these aspects, and the Rapid Red 5 DB has been designed and produced by Fulcrum to accommodate this trend from a holistic perspective. In developing the Rapid Red 5 DB, Fulcrum's R&D department used all the experience and technical solutions developed for road bike wheels and redesigned them for off-road applications.

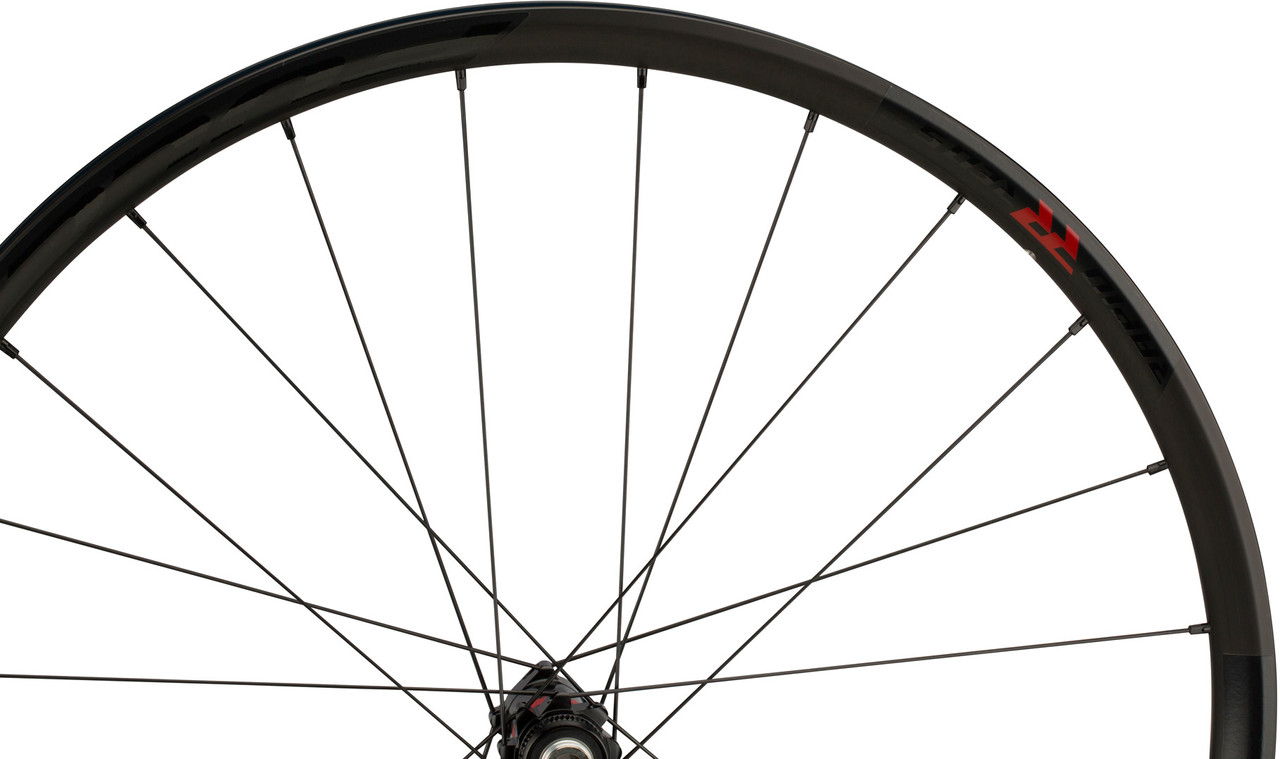

For dirt and gravel roads, one needs a wide rim width, which measures 23 mm for this wheel, with low and extremely tough 24 mm rims to absorb shocks and guarantee excellent riding comfort regardless of the vibrations. The tread pattern allows the mounting of tyres between 33 and 46 mm Tubeless Ready, with many possibilities of adjustment according to the distance to be covered. The 24 straight pull spokes, supported by a strong aluminium hub, guarantee ideal support for rough terrain as well as a slightly-increased wheel weight that is ready for travel.

Specifications:

Application:

Gravel

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc (AFS Axle System™)

Tubeless System:

2-Way Fit™

Technical Information - Rim:

Dimensions (ETRTO):

23-584

Inner Width:

23 mm

Outer Width:

28 mm

Depth:

24 mm

Rim Material:

aluminium

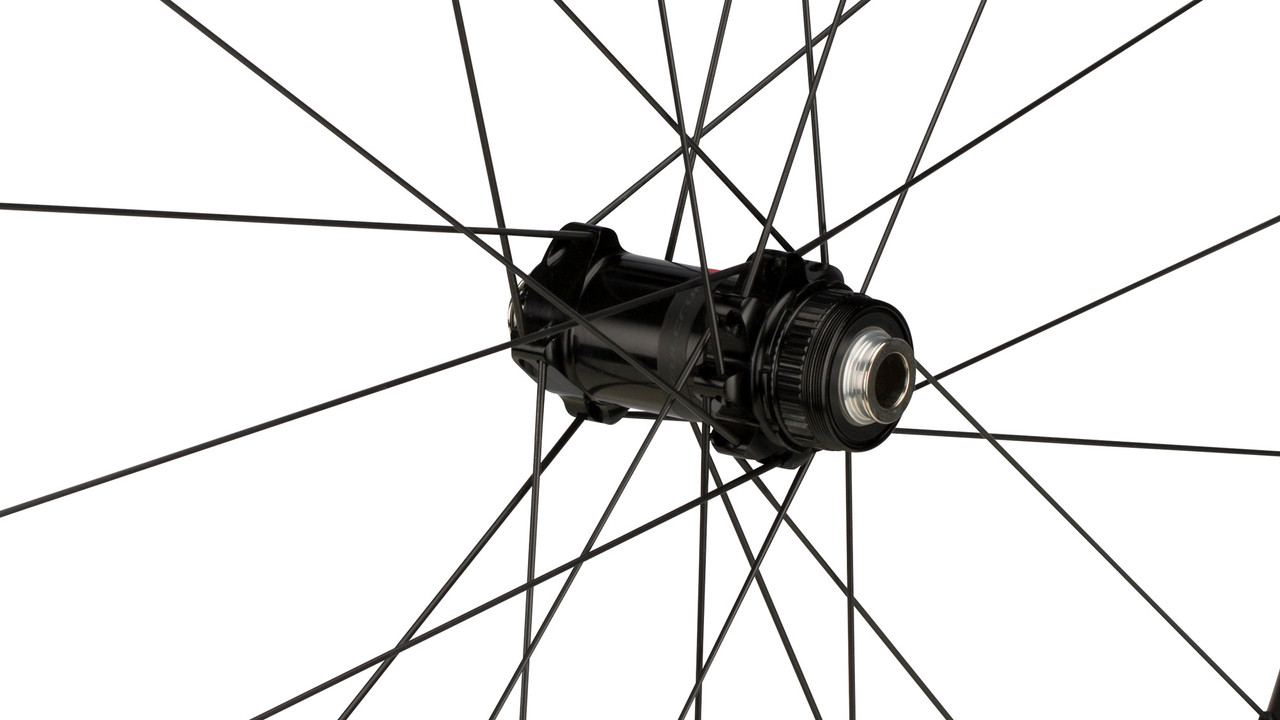

Technical Information - Front Hub:

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

cassette bearings, sealed

Body Material:

aluminium w/ aluminium flanges

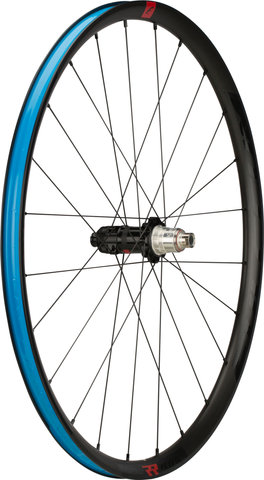

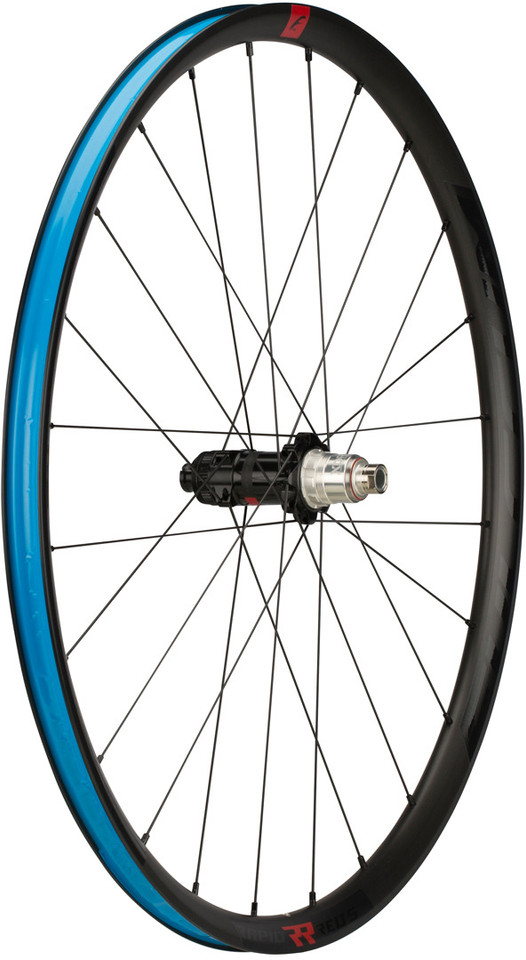

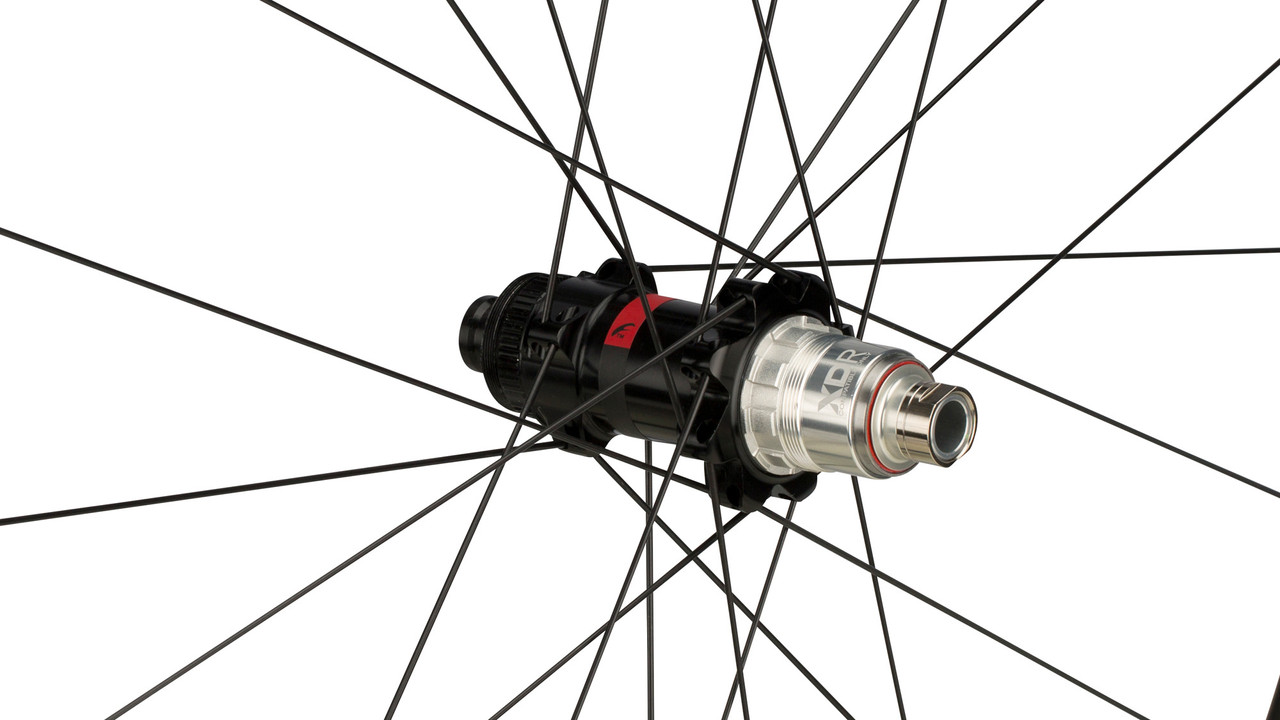

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

cassette bearings, sealed

Body Material:

aluminium w/ aluminium flanges

Technical Information - Lacing:

Spoke Type:

round, straight pull

Spoke Material:

stainless steel

Nipple Material:

aluminium

Approved For:

Weight Limit:

109 kg total weight*

Tyre Width (max.):

40 - 60 mm

* When weighing more than 82 kg (180 lb) shorter inspection intervals are recommended.

Features:

• ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm
• Kit for converting the front hub to 15 x 100 mm
• DRP (Dirt Road Protection) bearing protection

Technology:

2-Way Fit™
Tubeless technology was first used in the automotive sector, then in motorcycles and finally in bicycles. After entering the MTB world, the time has come for their use on the road: Fulcrum has developed the 2-Way Fit™ technology to guarantee the perfect compatibility of Fulcrum tubeless rims even with normal clincher tyres with tubes. 2-Way Fit™ wheels are particularly versatile and therefore perfectly suited to every situation. Thanks to a special marking in the valve area, inner tubes are installed with high precision and the tube remains firmly stabilized in the clincher tyre. The valve for tubeless tyres can also be used safely. This offers the undeniable advantage that air can never penetrate during assembly due to inaccurate positioning.
The advantages are undisputed: tests have shown an incomparably high increase in smoothness. The absence of an inner tube prevents friction with the tyre and the perfect adhesion of the tyre to the rim prevents energy loss. A tubeless tyre cannot lose air abruptly through a hole and suddenly become flat, which is a clear safety advantage. There is also no danger of snake bites, as there is no inner tube that can be punctured.
What about a flat tyre? Don't worry! One of the advantages of the Fulcrum 2-Way Fit™ system is the possibility of removing the tubeless valve and inserting a normal inner tube to get you home.

AFS Axle System™
The Axial Fixing System is the solution developed by Fulcrum to mount the disc rotor to the hub. The connection provided by the stop surface of the mount is greater than that of the already known standards, allowing greater structural rigidity and therefore more precise and efficient braking.

Models:

27.5" set (front 12x100 + rear 12x142) Shimano:

• Freehub: Shimano Road
• Gearing: 8-/9-/10-/11-speed
• Manufacturer Number: RR5-20DFR227AS

27.5" set (front 12x100 + rear 12x142) SRAM XDR:

• Freehub: SRAM XDR
• Gearing: 11-/12-speed
• Manufacturer Number: RR5-20DFR227AX

Contents:

• 1 x Fulcrum Rapid Red 5 DB wheelset (front & rear)
• 2 x Fulcrum 2-Way Fit valves
• 2 x rolls of rim tape
