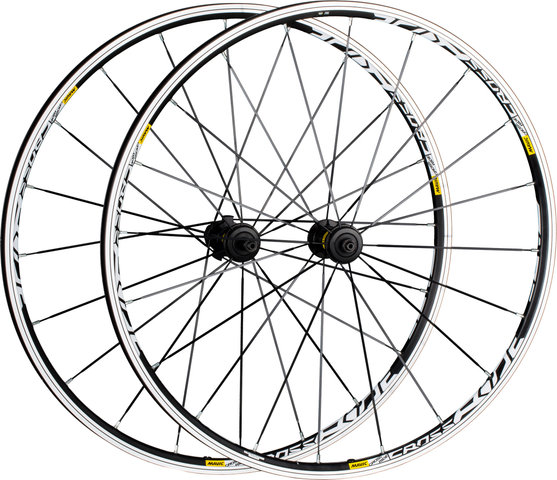

Mavic Crossride UB 26" Wheelset - black-white/26" set (front 9x100 + rear 10x135) Shimano

Mavic Crossride UB 26" Wheelset

Item number: 46929
6
6

The introduction to MTB performance by Mavic - for rim brakes: the Crossride UB wheel


You just don't want to send your rim brake bike into retirement? No problem, because Mavic has reintroduced the Crossride UB to its model range.
Its tried-and-tested construction with FTS-X freewheel, 20 aero spokes at the front and the rear and an optimized lacing system makes the Crossride UB as stiff as it is light. Its rim, specially designed for rim brakes, has rim holes with H2 reinforcement for maximum strength and durability. And at 1700 grams, there is no performance restriction - but instead a lightweight rim that delivers fast acceleration and high braking efficiency.
The Crossride UB is only suitable for rim brakes, and for frames and forks with quick release dropouts.

Specifications:

Application:
All Mountain
Wheel Size:
26"
Tyre Type:
clincher tyre
Number of Spokes:
20
Brake Type:
rim brake
Tubeless System:
none

Technical Information - Rim:

Dimensions (ETRTO):
17-559
Inner Width:
17 mm
Outer Width:
22 mm
Depth:
19 mm
Valve Hole Diameter:
AV (Auto/Schrader) 8.5 mm
Rim Material:
aluminium (S6000)

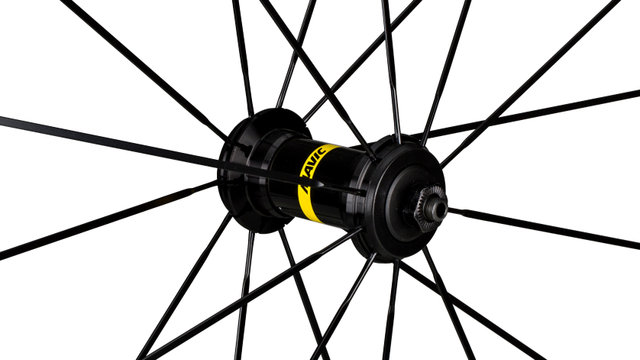

Technical Information - Front Hub:

Over Locknut Dimension:
9 x 100 mm quick release
Bearings:
cartridge bearings (sealed)
Body Material:
aluminium

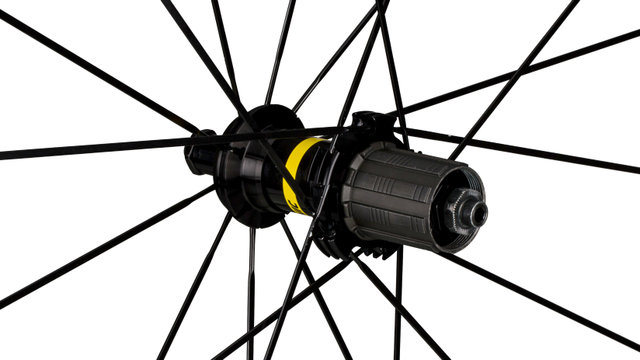

Technical Information - Rear Hub:

Over Locknut Dimension:
10 x 135 mm quick release
Bearings:
cartridge bearings (sealed)
Body Material:
aluminium
Freehub Body Material:
steel
Freehub Body:
FTS-X (FTS-L with MTB pawls)

Technical Information - Lacing:

Front Lacing Pattern:
radial
Rear Lacing Pattern:
2-cross (right), radial (left)
Spoke Type:
straight / aero
Spoke Size:
253 mm (front), 253 mm/276 mm (rear l/r)
Spoke Material:
steel
Nipple Type:
self-locking
Nipple Material:
steel

Approved For:

Weight Limit:
120 kg total weight* (rider, gear & bike)
Recommended Tyre Width:
1" - 2.05"

* recommended for increased durability

Features:

  • the entry into Mavic quality and Mavic efficiency
  • big eye-catching decor
  • conventional rim drilling
  • sleeved rim joint
  • aluminium axles
  • UB Control brake flanks
  • ASTM category 3: for off-road use with jumps up to 61 cm in height

Technology:

UB Control
Usiné Brut Control. Brake tracks that are stripped afterwards ensure better braking efficiency and prevent unpleasant brake jerking.

H2
Hammer Hardening: special cold hardening in the critical spoke hole area where the strain is highest. Extends the life of the rim. Reduces the formation of micro-cracks.

QRM
Qualité de Roulements Mavic. Cartridge bearings of this quality are only available in Mavic hubs. Thanks to double seals (type 2RS or LLU) they are extremely durable. Minimum bearing clearance and extreme dimensional accuracy ensure maximum efficiency.

FTS-X
Force Transfer System X. Further improved freehub system, especially for the toughest MTB applications, when a more robust freehub is required. Reinforced pawls, self-locking kingpin mount, new type of lip seal with half the friction.

Models:

26" set (front 9x100 + rear 10x135) Shimano:
Freehub:
Shimano Road
Gearing:
8-/9-/10-/11-/12-speed
Note:
A spacer ring is required for an MTB cassette (incl.).
Manufacturer Number:
F5690101 (front) + R8370101 (rear)

Contents:

  • 1 x Mavic Crossride UB wheelset (front and rear)
  • 2 x Mavic BR101 quick release
  • 2 x rolls of rim tape
  • 1 x cassette spacer (rear)


Weight:

  • black-white/26" set (front 9x100 + rear 10x135) Shimano: 1700 g (Satz)
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.84 / 5.00

Models:

  • black-white/26" set (front 9x100 + rear 10x135) Shimano, in stock
    216.38€
