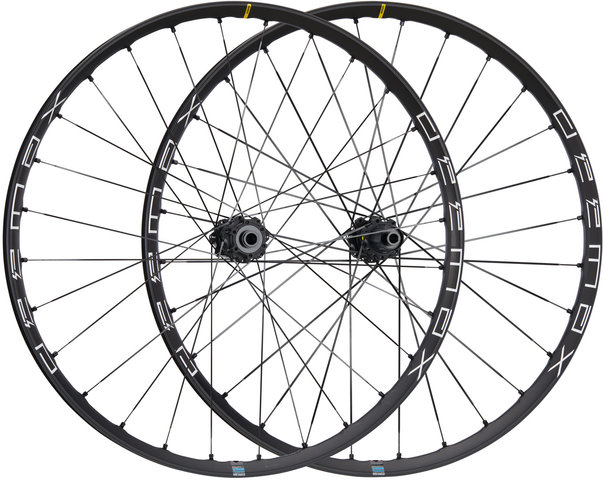

Mavic E-Deemax S30 6-Bolt Disc 29" Boost Wheelset - black/29" set (front 15x110 Boost + rear 12x148 Boost) Shimano

Mavic E-Deemax S30 6-Bolt Disc 29" Boost Wheelset

Item number: 81957
1
1

The Mavic E-Deemax S30 Disc 6-Bolt Wheelset - Specially designed for enduro bikes with motors


The E-Deemax S30 is a wheelset designed by Mavic specifically for 29" electric enduro bikes with 6-bolt disc brakes, featuring 30 mm wide, weight-optimised aluminium rims. These are characterised by durability and contribute to a puncture-free ride thanks to their design. Innovative rim bed technology eliminates the need for tubeless rim tape. The wheels rotate around Boost hubs with self-aligning bearings and were each laced with 28 double butted straight pull spokes. The E-Deemax lets you increase performance and have even more fun when you are motorized on trails.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:
Enduro
Wheel Size:
29"
Tyre Type:
clincher tyre
Number of Spokes:
28
Brake Type:
6-bolt disc
Wheel Standard:
Boost
Tubeless System:
UST Tubeless Ready

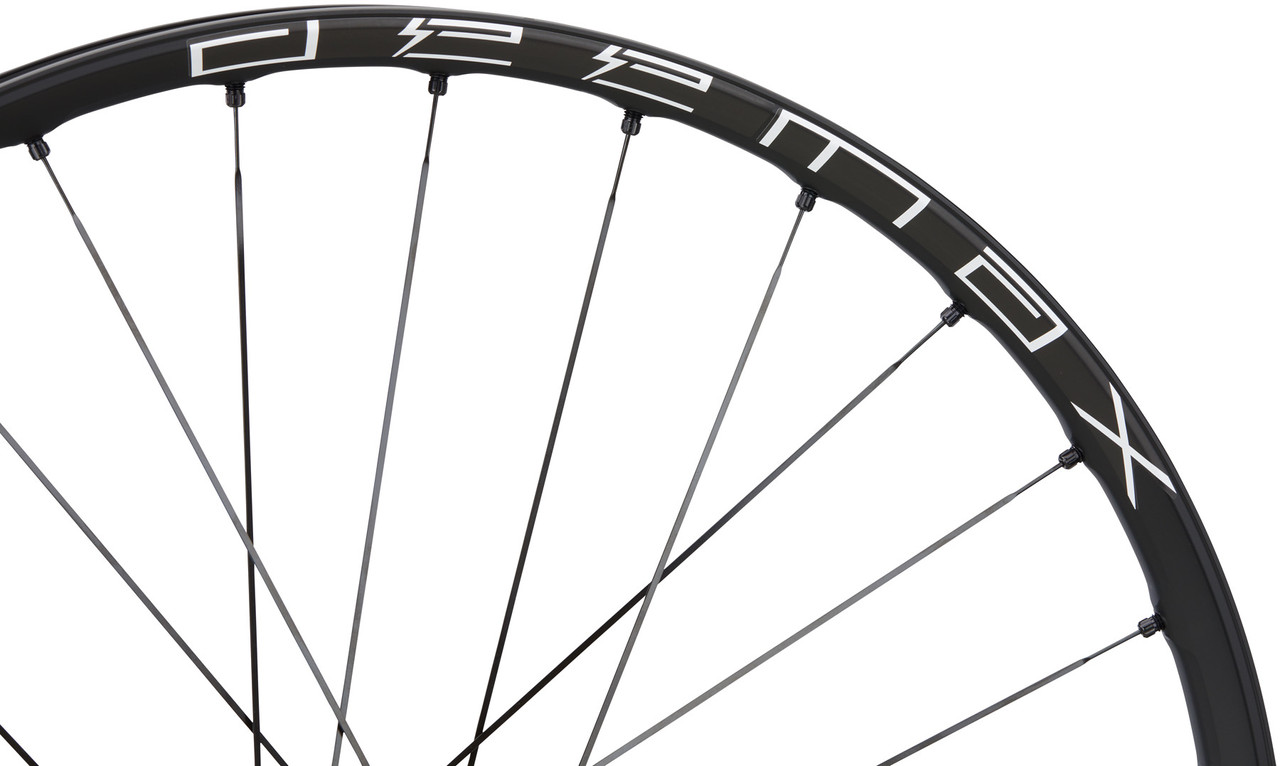

Technical Information - Rim:

Rim Flange:
with hook
Dimensions (ETRTO):
30-622
Inner Width:
30 mm
Outer Width:
36 mm
Depth:
21 mm
Valve Hole Diameter:
SV/Presta (6.5 mm)
Rim Material:
Aluminium (S6000, Maxtal)

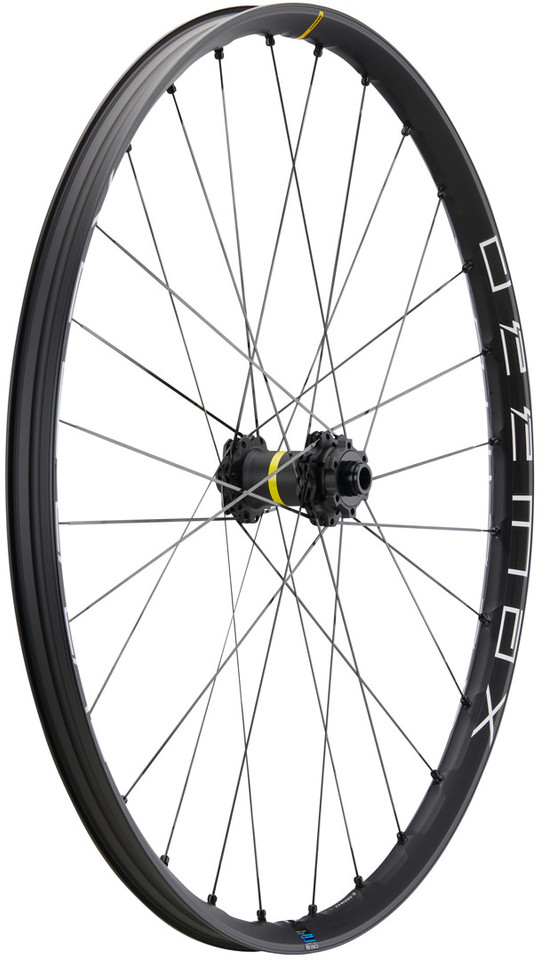

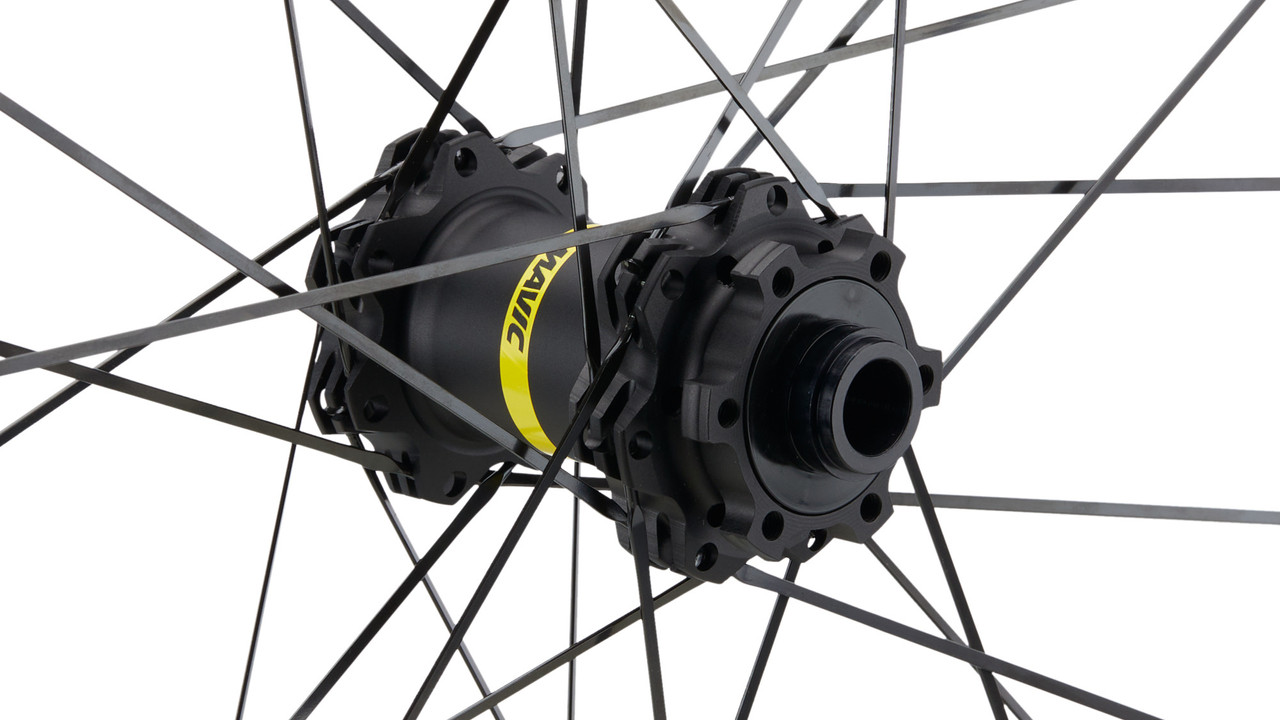

Technical Information - Front Hub:

Over Locknut Dimension:
15 x 110 mm thru-axle
Bearings:
self-aligning sealed cartridge bearings
Body Material:
Aluminium

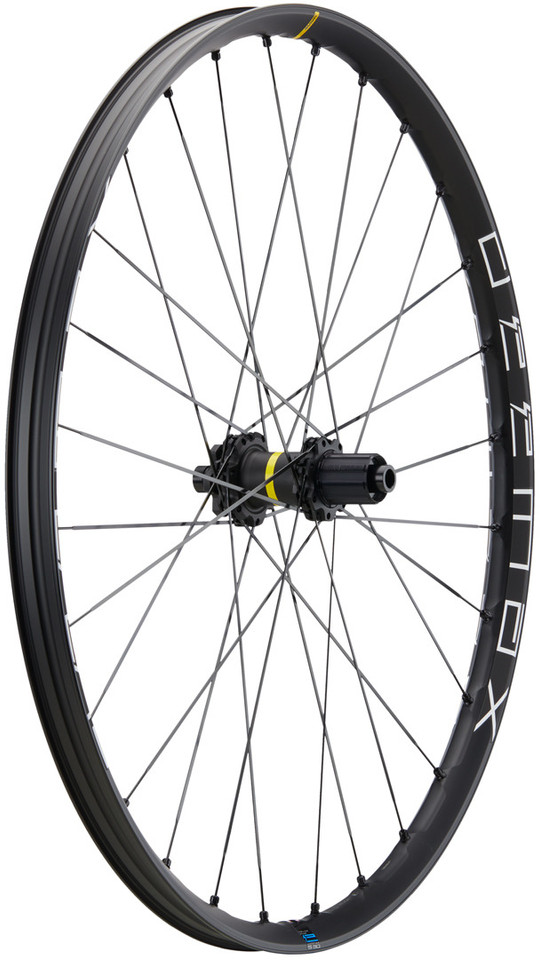

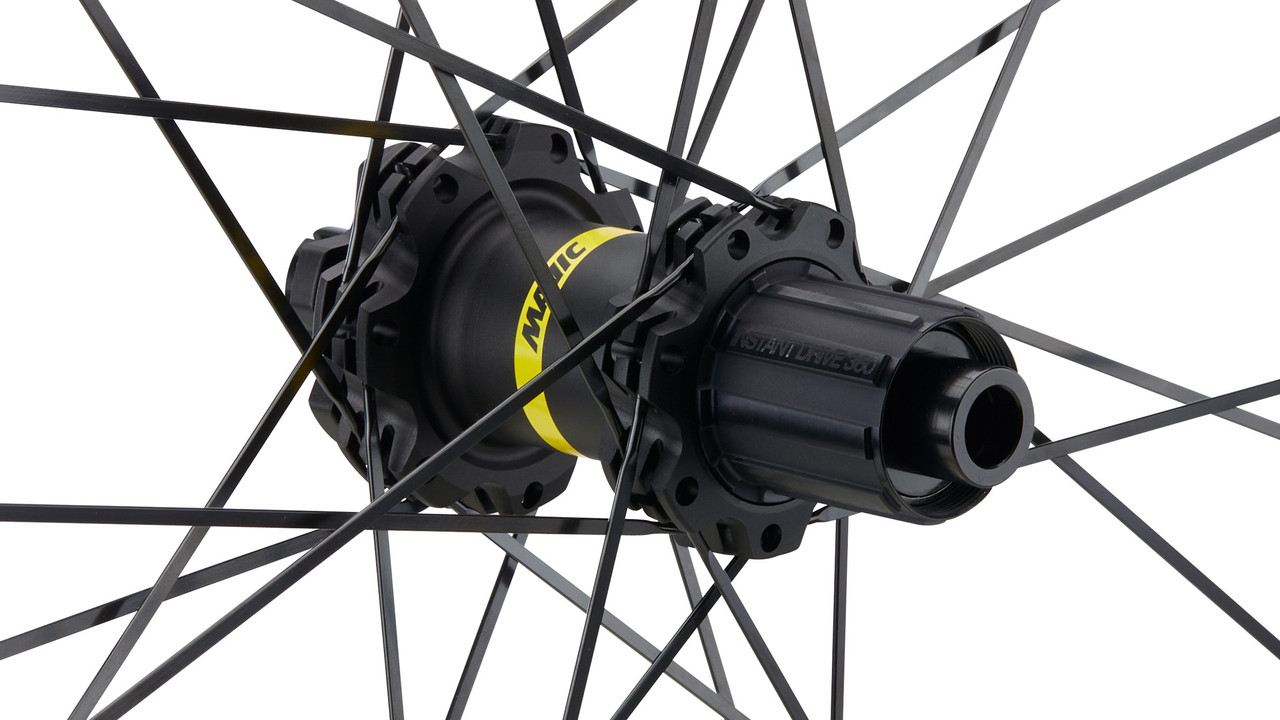

Technical Information - Rear Hub:

Over Locknut Dimension:
12 x 148 mm thru-axle
Bearings:
self-aligning sealed cartridge bearings
Body Material:
Aluminium
Freehub Body Material:
Aluminium
Freehub Body:
Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern:
3-cross
Rear Lacing Pattern:
3-cross
Spoke Type:
straight pull / double-butted
Spoke Size:
306 mm (front), 306 mm/304 mm (rear l/r)
Spoke Material:
steel
Nipple Type:
Fore, integrated
Nipple Material:
Aluminium

Approved For:

Weight Limit:
150 kg total weight* (rider, gear & bike)
Recommended Tyre Width:
2.35 - 3.0" (60 - 76 mm)

* recommended for increased durability

Features:

  • specifically developed for off-road E-Bikes
  • lower risk of punctures on rough surfaces thanks to special rim flanges
  • user-friendly tubeless system
  • special rim treatment for more durability
  • asymmetric rim design
  • weight reducing milling process
  • rim joint welded (SUP)
  • front convertible to 20 x 110 mm thru-axle (Boost) with optionally available adapters
  • no rim tape required thanks to Fore technology
  • ASTM category 5: for extreme terrain

Technology:

Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.

Black Shield Treatment
This innovative surface treatment of MTB rims makes them twice more resistant to stone impacts and scratches.

SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.

ISM
ISM stands for Inter Spoke Milling. This milling process results in a lighter rim with no loss of stiffness, which is ideal for significantly improving acceleration and climbing characteristics simultaneously.

Pinch Flat Protection
Rims with PFP technology have a larger contact area at the top of the sidewall, which reduces the risk of tyre punctures and blowouts by about 20%. It is an innovation used exclusively on e-bike wheels.

QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures fast power transfer with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.

Fore Tapeless Tubeless
Instead of drilling a conventional rim hole, the inner rim base is pressed inwards in one operation and provided with a thread into which the nipples are screwed directly. The outer rim base remains intact. This results in a stiffer and stronger wheel that means rim tape can be omitted, which also translates to weight savings.

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:
Freehub:
Shimano MTB
Gearing:
8-/9-/10-/11-speed
Manufacturer Number:
P1634110
Conversion Options:
To convert to Shimano Micro Spline a separate Micro Spline freehub is required.

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:
Freehub:
SRAM XD
Gearing:
11-/12-speed
Manufacturer Number:
P1632110
Conversion Options:
To convert to Shimano Micro Spline a separate Micro Spline freehub is required.

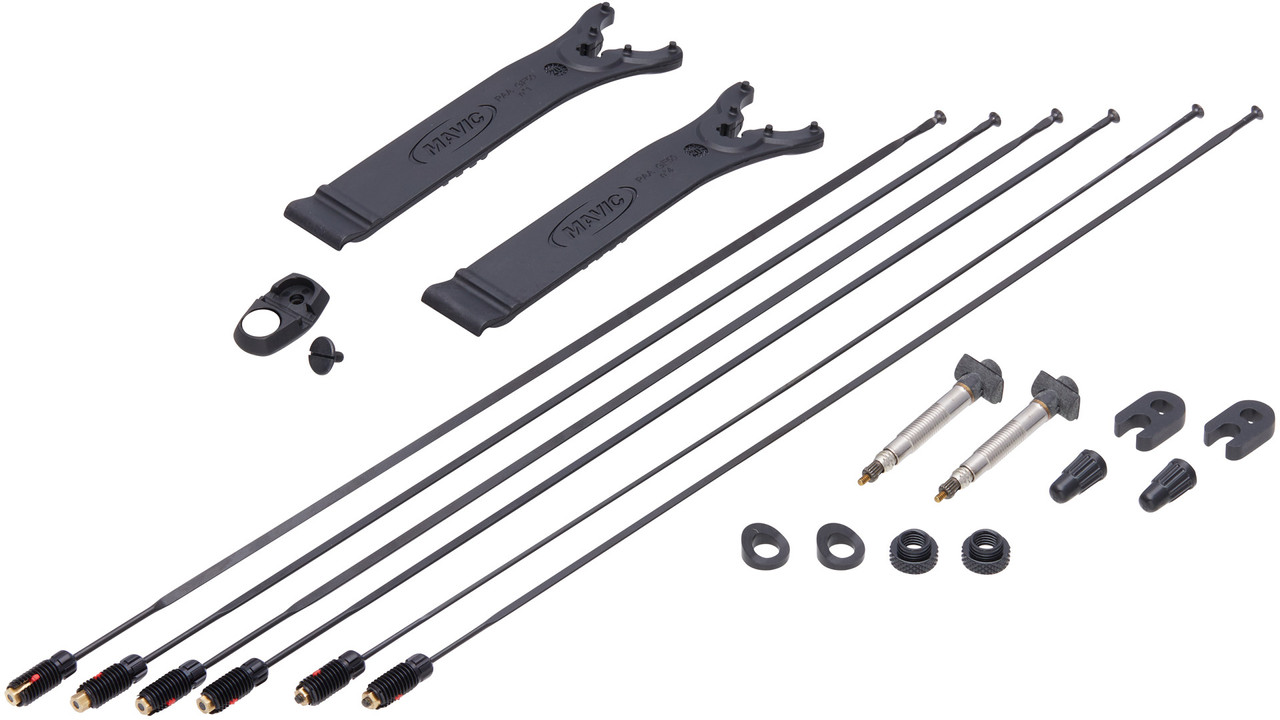

Contents:

  • 1 x Mavic E-Deemax S30 Disc 6-Bolt 29" Boost wheelset (front and rear wheel)
  • 2 x UST valves with accessories
  • 2 x tool
  • 6 x spare spokes
  • 1 x E-Bike spoke magnet


Weight:

  • black/29" set (front 15x110 Boost + rear 12x148 Boost) Shimano: 2070 g (Satz)
