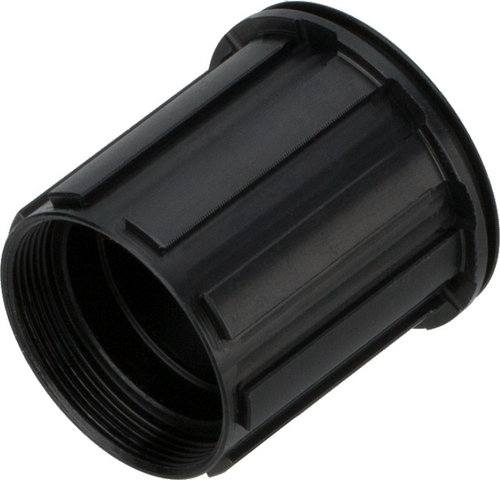

NEWMEN Aluminium Shimano/SRAM 9-/10-/11-speed Freehub Body

NEWMEN aluminium Shimano/SRAM 9-/10-/11-speed freehub body - with well preforming deep groove ball bearings

The NEWMEN aluminium freehub body for Shimano and SRAM 9-, 10-, 11-speed is a high quality 36 tooth aluminium disc freehub. It is particularly durable thanks to its specially sealed deep groove ball bearing.

Specifications:

Series:

Gen1

Application:

All Mountain

Freehub:

Shimano/SRAM, Shimano MTB, SRAM NX (PG-1130)

Gearing:

9-/10-speed, 11-speed

Freehub Body Type:

36 t ratchet

Technical Information:

Freehub Body Material:

aluminium (7075)

Bearings:

ball bearings

Compatibility:

• NEWMEN MTB 12 x 142 mm, J-Bend, 6-bolt Disc, Gen 1, 28 / 32 hole hubs
• NEWMEN MTB 12 x 148 mm, J-Bend, 6-bolt Disc, Gen 1, 28 / 32 hole hubs
• NEWMEN MTB 12 x 142 mm, straight pull, 6-bolt Disc, Gen 1, 28 hole hubs
• NEWMEN MTB 12 x 148 mm, straight pull, 6-bolt Disc, Gen 1, 28 hole hubs
• NEWMEN MTB wheels with Gen 1 hubs

Technology:

High Quality Deep Groove Ball Bearings:
The bearing clearance has been reduced, which means that the balls still run in their specified race even with an increased axial load. Close-fitting seals on the outside ensure better protection against water and dirt ingress. The grease contains additional solid lubricants. As a result, the bearings run tougher when new, but this normalises after a breaking-in period of several hundred kilometres.

Ratchet Freehub vs. Pawl Freehub:
With NEWMEN ratchet freehubs, all teeth are always in use. In the worst case, it can happen that only one pawl is in use with a pawl freehub. NEWMEN ratchets are made of high-strength tool steel made in Germany.

Manufacturer Number:

90009

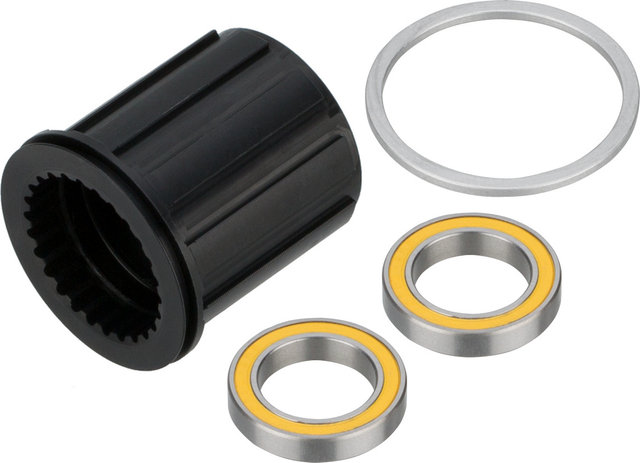

Contents:

• 1 x NEWMEN freehub body
• 2 x NEWMEN bearings
• 1 x NEWMEN spacer
