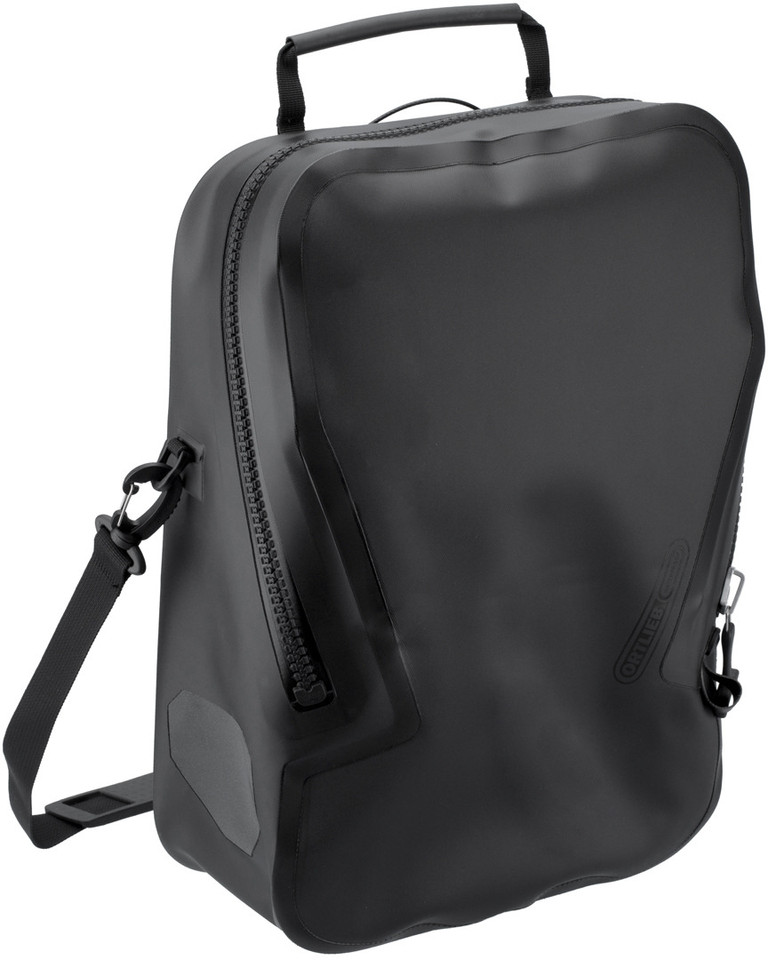

The QL3.1 Single-Bag by ORTLIEB - the choice for purists

The ORTLIEB QL3.1 Single-Bag has a minimalist design with a simple look and is absolutely suitable for everyday use. It is designed for DIN A4 documents and swallows a 13" notebook as well as other equipment for everyday work. An inside pocket helps you organize your belongings. With the all-round waterproof TIZIP zipper and the coated, resistant polyester fabric, the bag is waterproof and robust all around. The QL3.1 mounting system is attached to the rack, but the mounting elements on the bag are very unobtrusive. With one hand movement you have attached or detached them. The dark reflectors ensure better visibility in the dark.

Note:
To achieve protection class IP 67 (dust proof, protected against ingress of water when temporarily submerged), the zipper must be completely closed.

Specifications:

Application:

City & Touring

Type:

rear wheel

Compatibility:

for pannier racks with a diameter of up to 10 mm

Material:

polyester fabric, PVC coated (PD620)

Protection Rating:

IP 67

Dimensions (HxWxD):

42 cm x 31 cm x 13 cm

Volume:

12 litres

Approved For:

Load Capacity (max.):

9 kg

Features:

• with Quick-Lock3.1 mounting system

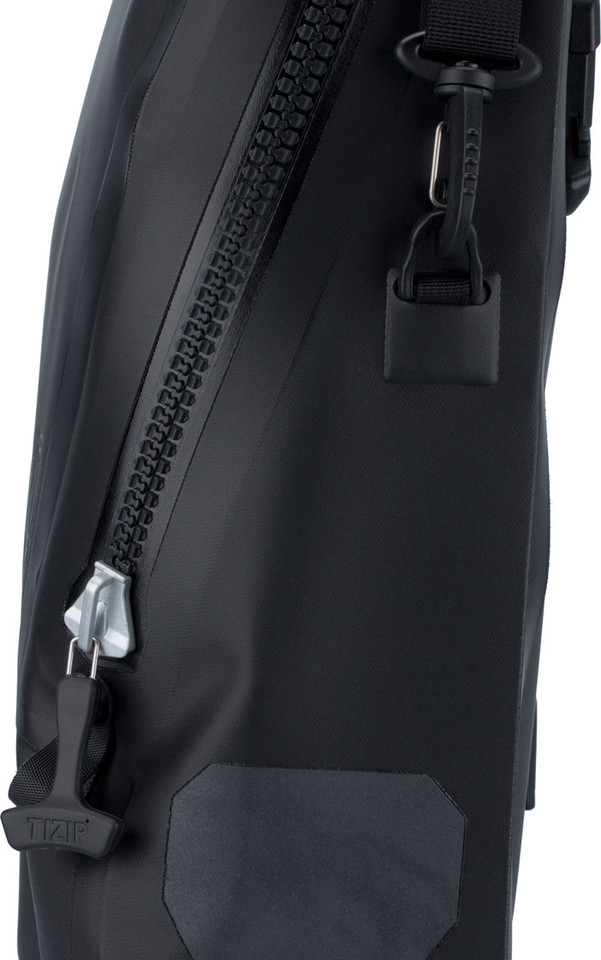

• waterproof TIZIP zip

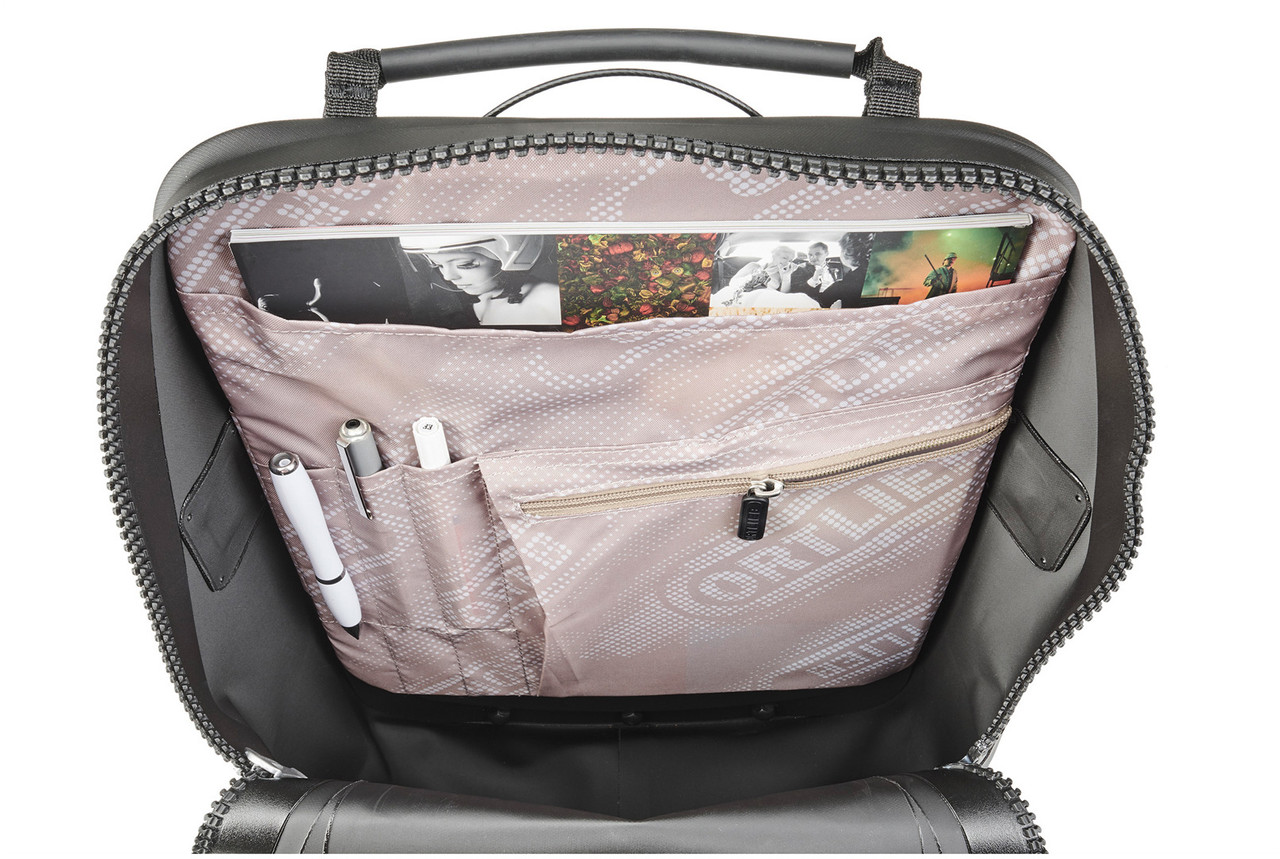

• inner pocket with organizer
• suitable for DIN A4 documents
• flat back of pocket
• removal and attachment possible with one hand

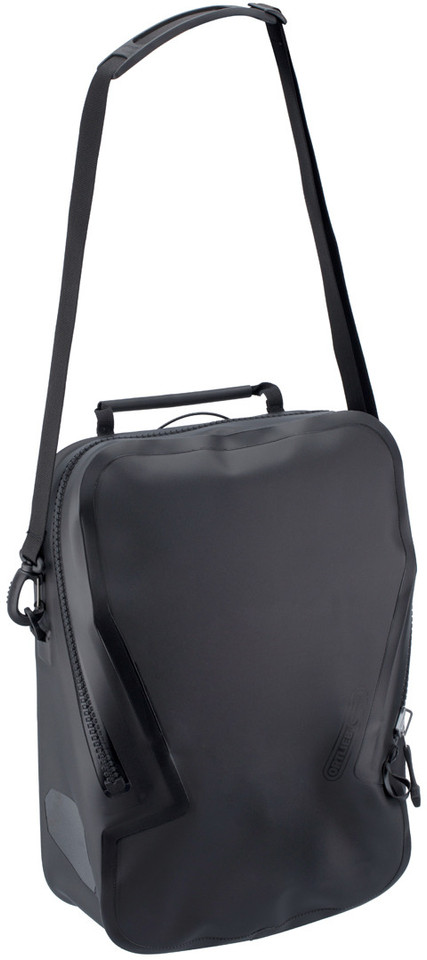

• adjustable, removable shoulder strap for comfortable carrying
• unobtrusive reflectors made of 3M Scotchlite reflective material on both sides
• mounting set suitable for rack diameters 5 - 10 mm
• QL3.1 mounting clamps for 11 - 14 mm tube diameters sold separately
• made in Germany
• IP 67 = dust-tight, no dust ingress, protected against water penetration during temporary submersion (depth of product bottom edge 1 m, duration 30 min)

Technology:

Quick-Lock3.1 Mount System

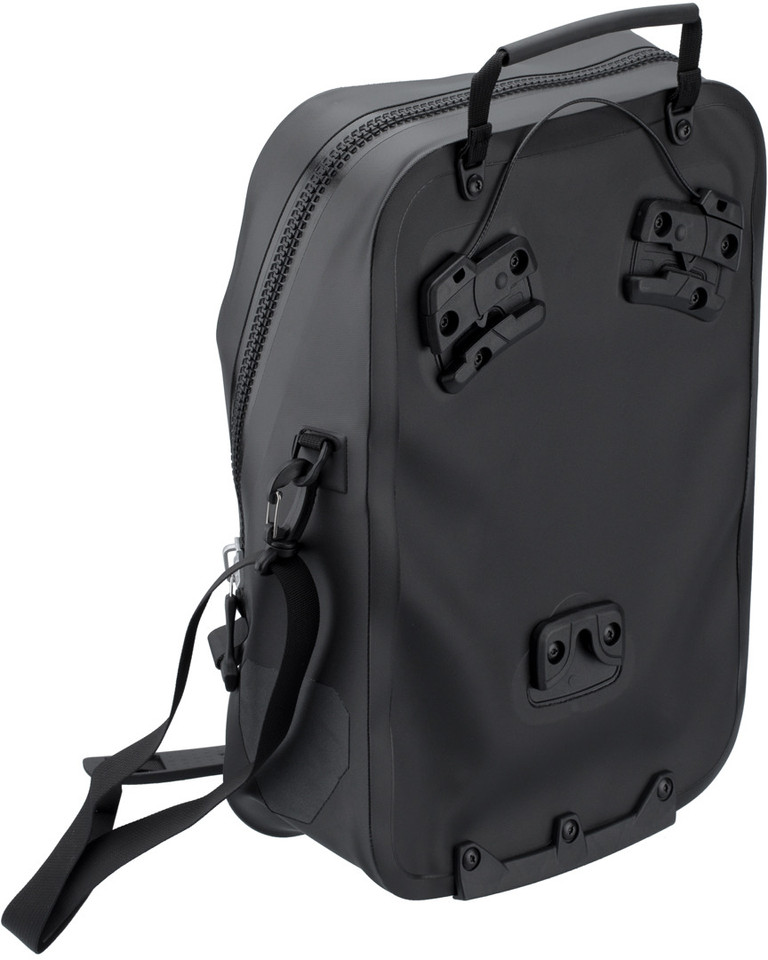

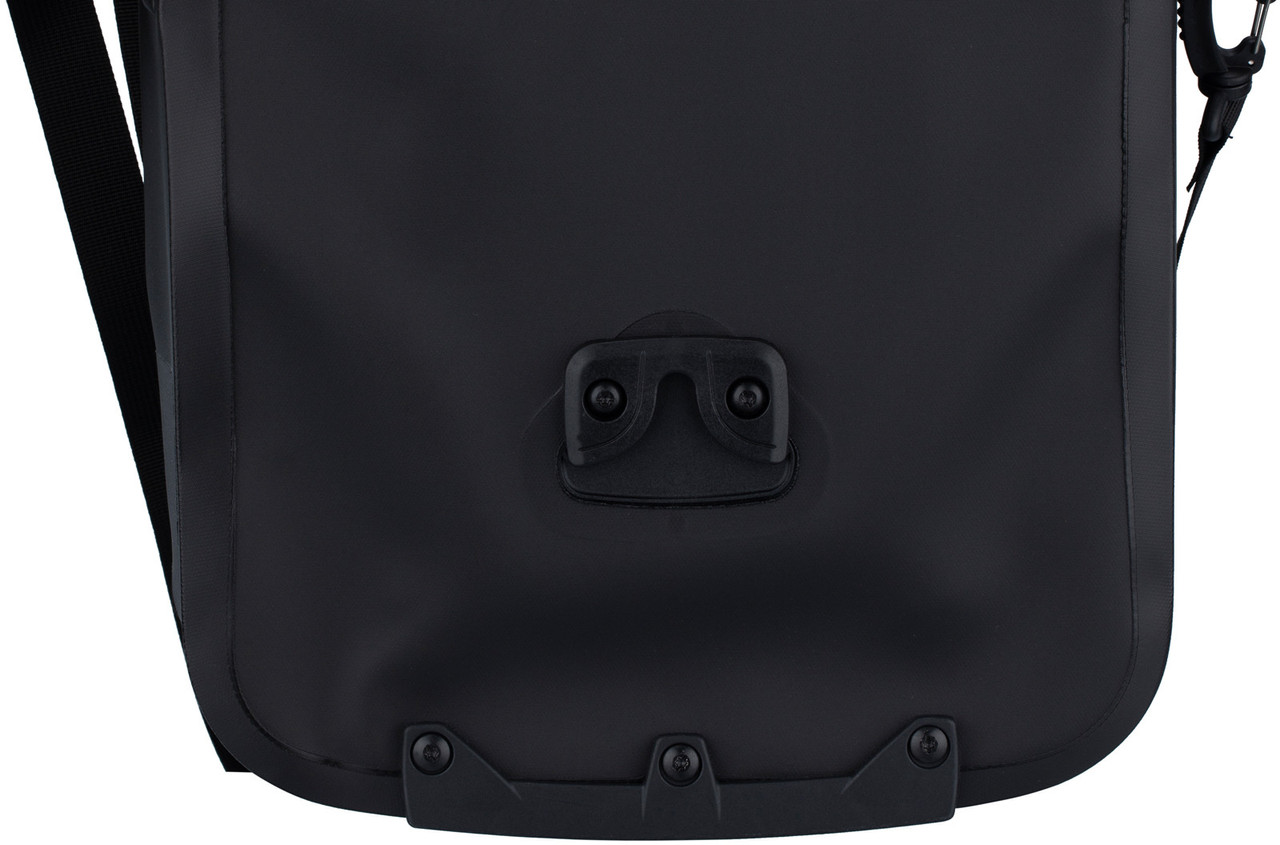

The Quick-Lock3.1 mounting system is characterised by the fact that a large part of the mounting elements are attached to the rack. There are no hooks on the back of the bag, but flat retaining plates, which makes it inconspicuous and comfortable to wear in everyday life. No wonder that the system is used especially for office and city bags. The bag can be attached or detached with one hand, the simple handle serves to lock and unlock the bag. The mounting set is adjustable in height and angle and the lower hook can also be rotated in 15-degree increments, so that it fits on a wide variety of racks and pedalling freedom is guaranteed. The mounting rail of the mounting set also carries bags with QL1, QL2, QL2.1 and QL3 systems. Another advantage of the QL3.1 mount system: the support surface of the pannier rack remains free for items such as a bicycle basket.

Manufacturer Number:

F7822

Contents:

• 1 x ORTLIEB QL3.1 Single-Bag

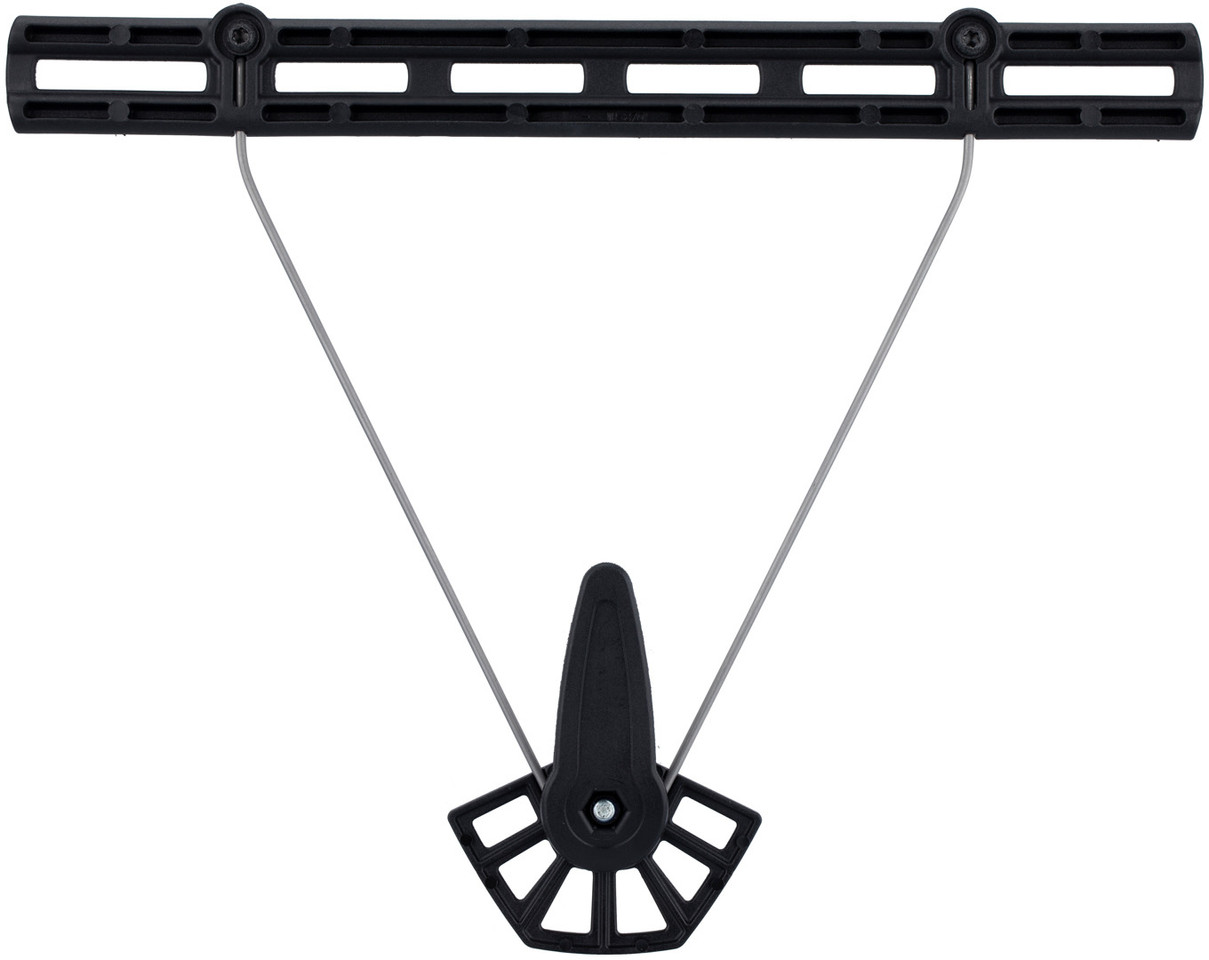

• 1 x ORTLIEB QL3.1 mounting set
• 2 x ORTLIEB clamps
• 2 x rubber pads for rack diameters 5 - 8 mm
• 2 x rubber pads for rack diameters 9 - 10 mm
• 2 x ORTLIEB front side backing plates
• 2 x ORTLIEB back side backing plates
• 2 x ORTLIEB bolts
• 1 x ORTLIEB hex tool
