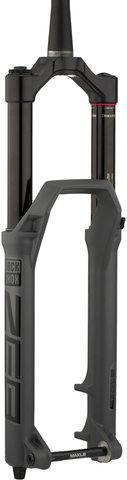

RockShox ZEB Ultimate RC2 DebonAir Boost 27.5" Suspension Fork

The RockShox ZEB Ultimate RC2 DebonAir Boost 27.5" suspension fork in 38 mm with maximum adjustment options

The ZEB Ultimate DebonAir Boost suspension fork by RockShox for 27.5" wheels with a new 38mm chassis offers best adjustment options thanks to Charger 2.1 RC2 shocks. The Charger 2.1 RC2 shock allows you to independently adjust high speed and low speed compression stages. With a stanchion tube diameter of 38 mm, the suspension fork delivers better performance and increased stiffness and safety. The optimised DebonAir suspension responds really softly, is adjustable using bottomless tokens and won't let you down on rough terrain. The ZEB carries the same genes as the Lyrik and BoXXer and is perfectly suited for enduro use with its large travel.

Specifications:

Application:

Enduro

Wheel Size:

27.5" (650B)

Suspension Type:

air

Travel:

160 mm, 170 mm, 180 mm, 190 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM8 (direct mount 200 mm)

Technical Information:

Offset:

38 mm, 44 mm

Steerer Tube Length:

265 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

557 mm (160 mm), 567 mm (170 mm), 577 mm (180 mm), 587 mm (190 mm)

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

38 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

low-speed, high-speed

Rebound:

yes (20 levels)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

27.5 x 3.2"

Note:

For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.

Rotor Size (max.):

220 mm

Features:

• 38 mm stanchion tube diameter for more stiffness and safety
• adjustable DebonAir air suspension for smooth response
• little diving away even in steep terrain
• low friction SKF seals for high durability and good suspension behaviour
• Maxima-Plush damping oil for low friction and quiet performance
• Charger 2.1 RC2 shock with independent adjustment of high and low speed compression
• crown adjust
• 3-point mounting suitable for short fenders

Models:

160 mm / 1.5 tapered / 15 x 110 mm / 38 mm:

Travel:

160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

38 mm

Brake Mount:

disc PM8 (direct mount 200 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-ZEB-ULT-A1

Manufacturer Numbers:

00.4020.570.008 (gloss black), 00.4020.570.011 (grey)

160 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

160 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

44 mm

Brake Mount:

disc PM8 (direct mount 200 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-ZEB-ULT-A1

Manufacturer Numbers:

00.4020.570.002 (gloss black), 00.4020.570.005 (grey)

170 mm / 1.5 tapered / 15 x 110 mm / 38 mm:

Travel:

170 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

38 mm

Brake Mount:

disc PM8 (direct mount 200 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-ZEB-ULT-A1

Manufacturer Number:

00.4020.570.007 (gloss black), 00.4020.570.010 (grey)

170 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

170 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

44 mm

Brake Mount:

disc PM8 (direct mount 200 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-ZEB-ULT-A1

Manufacturer Numbers:

00.4020.570.001 (gloss black), 00.4020.570.004 (grey)

180 mm / 1.5 tapered / 15 x 110 mm / 38 mm:

Travel:

180 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

38 mm

Brake Mount:

disc PM8 (direct mount 200 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-ZEB-ULT-A1

Manufacturer Numbers:

00.4020.570.006 (gloss black), 00.4020.570.009 (grey)

180 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

180 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

44 mm

Brake Mount:

disc PM8 (direct mount 200 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-ZEB-ULT-A1

Manufacturer Numbers:

00.4020.570.000 (gloss black), 00.4020.570.003 (grey)

190 mm / 1.5 tapered / 15 x 110 mm / 38 mm:

Travel:

190 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

38 mm

Brake Mount:

disc PM8 (direct mount 200 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-ZEB-ULT-A1

Manufacturer Numbers:

00.4020.570.020 (gloss black), 00.4020.570.021 (grey)

190 mm / 1.5 tapered / 15 x 110 mm / 44 mm:

Travel:

190 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Steerer Tube Diameter (Stem):

28.6 mm

Offset:

44 mm

Brake Mount:

disc PM8 (direct mount 200 mm)

Axle Type:

thru-axle (15 x 110 mm)

Model ID:

FS-ZEB-ULT-A1

Manufacturer Numbers:

00.4020.570.018 (gloss black), 00.4020.570.019 (grey)

Contents:

• 1 x RockShox ZEB Ultimate RC2 DebonAir suspension fork
• 1 x RockShox Maxle Stealth thru-axle
• 1 x RockShox fender
• 4 x cable ties
• 2 x RockShox bottomless tokens
• 1 x star nut
