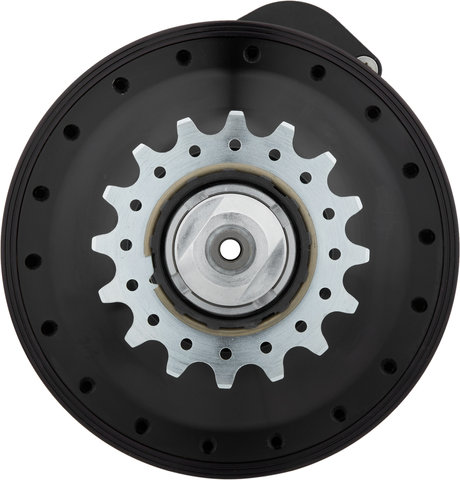

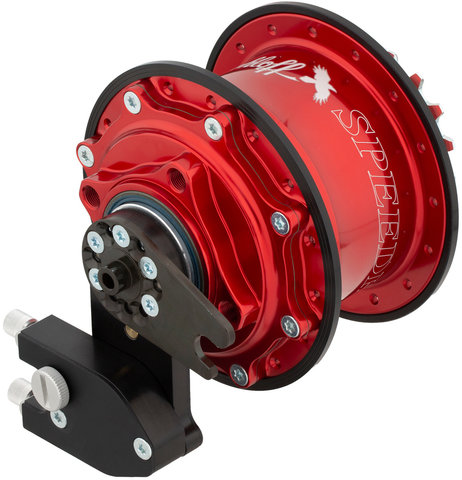

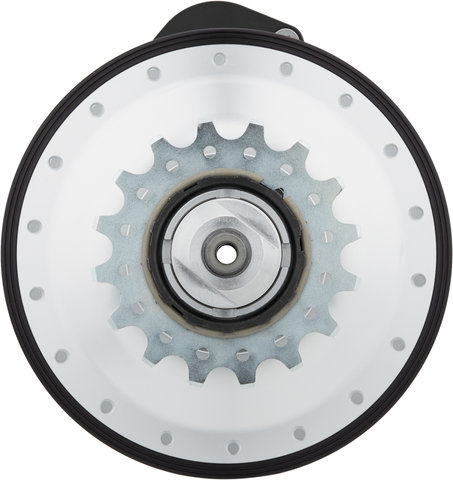

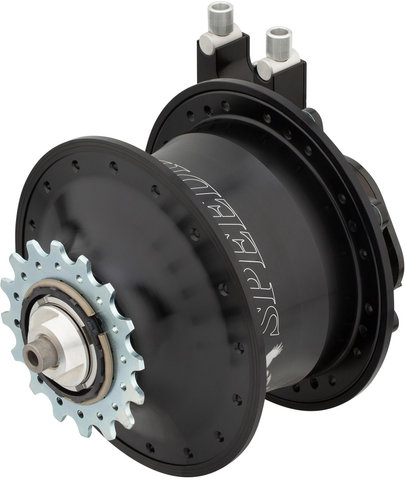

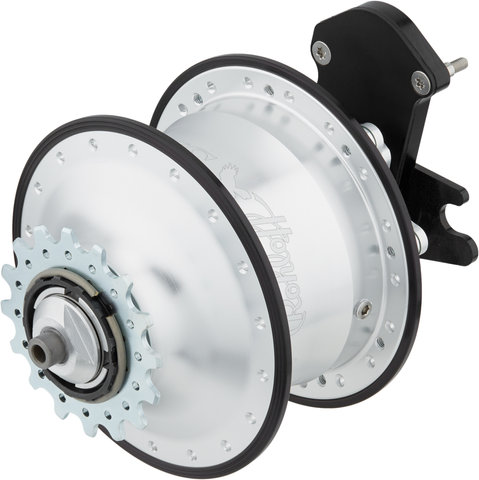

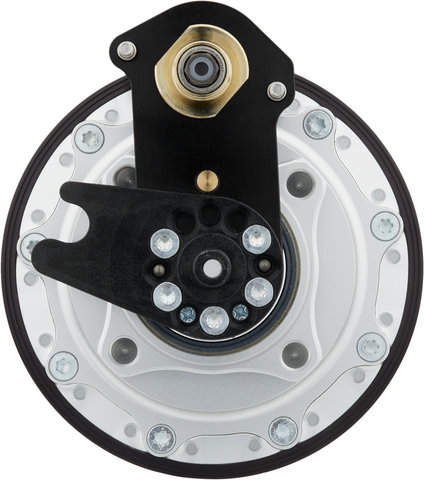

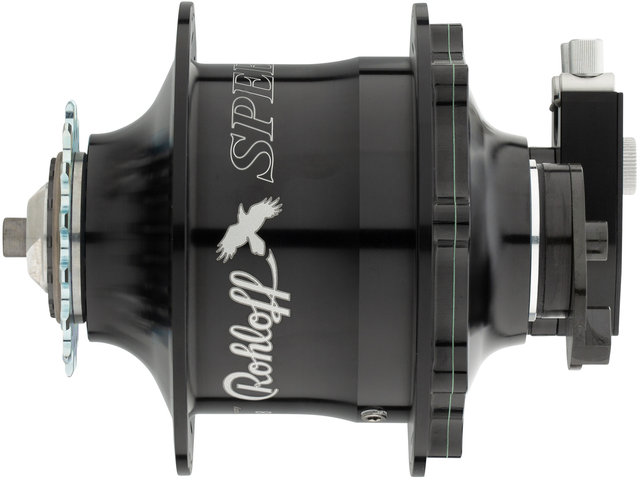

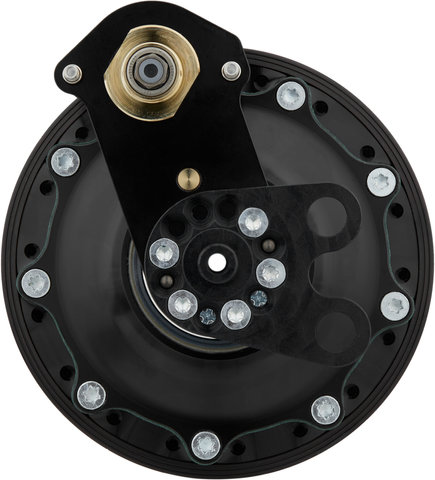

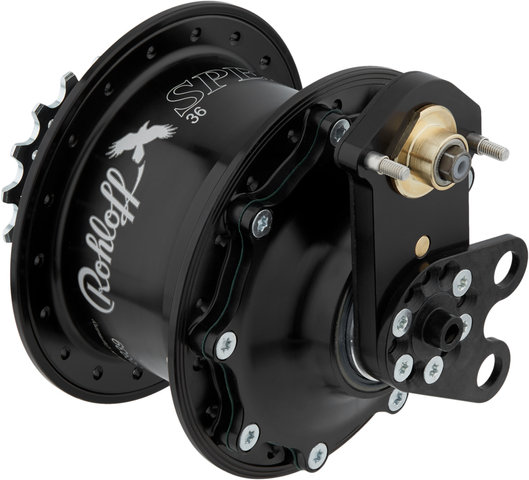

Rohloff Speedhub 500/14 CC Quick Release 135 mm Internally Geared Hub - black-anodised/type 2, 36 hole

Rohloff Speedhub 500/14 CC Quick Release 135 mm Internally Geared Hub

Item number: 57387
2
2

Experience the world - The Speedhub 500/14 gear hub by Rohloff


You love cycling. You love to escape from the stress and hectic goings-on of daily life. It's good that the Rohloff gears on your bike support you in this. This is because the Speedhub gearbox makes cycling very easy. Don't worry about whether the right gear is engaged, just turn the gear lever - even when stationary. With a twist, you can shift into any of the 14 gears.
In addition, the Speedhub is extremely low-maintenance. Experience gears that requires minimal maintenance. One quick oil change a year, that's all it takes. After that, it's just a matter of keeping an eye on the chain, chainring and rear sprocket. No comparison to conventional multiple derailleurs and their sensitive rear derailleurs. Rohloff wants you to ride, not wait.

The legendary Rohloff quality also includes the price-performance ratio of the gearbox. It is amazingly durable and also incurs minimal costs for its functionality. Enjoy an investment that pays off; because with every kilometre ridden, the cost balance improves compared to all other current derailleurs.
The Speedhub is so robust that it has even been certified to run more than 300,000 kilometres. One of the most important reasons why the best touring cyclists in the world swear by the Speedhub. There is hardly a spot on earth, no matter how exotic, where the Rohloff gear hub has not been seen.

Thanks to the Rohloff modular system, many different hub variants are created. For selecting the desired version, the
Online Configurator is very helpful.

Specifications:

Series:
Speedhub 500/14
Application:
Cross Country, Downhill
Gears:
14
Brake Type:
rim or disc
Axle Type:
10 mm quick release
Over Locknut Dimension:
135 mm
Spoke Hole Count:
32 hole, 36 hole

Technical Information:

Range:
526%
Material:
aluminium, steel
Axle Length:
147 mm
Spoke Size:
2.7 mm
Pitch Circle Diameter:
100 mm
Flange Width:
3.2 mm
Flange Distance:
58 mm (29 mm/29 mm)
Offset:
0 mm

Features:

  • extremely low maintenance and robust
  • perfect workmanship (99% Made in Germany)
  • smooth shifting (13.6%) with rotary shift lever, even when stationary
  • 95 - 99% efficiency, 14 effective gears, no overlaps
  • compatible with 1/2" x 3/32" bicycle derailleur chains
  • 57 mm chainline
  • compatible with Gates Carbon Drive belt drive
  • 25 ml maximum oil filling
  • maximum input torque 130 Nm
  • including 16-tooth plug-in sprocket (13-19 t and 21 t optionally available, screw-in sprocket only as remaining stock)
  • smallest permissible transmission factor for solo riders up to 100 kg = 1.9 (40/21, 36/19, 34/18, 32/17, 30/16, 28/15, 28/14, 26/13)
  • lowest permissible gear ratio for riders over 100 kg = 2.5 (53/21, 48/19, 45/18, 42/17, 40/16, 38/15, 36/14, 34/13)

Models:

Type 1: CC
Compatible Brake Type: rim
Compatible Frames: vertical dropouts
Axle Plate: standard CC
Torque Support: long torque arm on chainstay w/ quick release
Gear Mech: internal
Small Parts Bag Contents: 8 x ferrules, 1 x 6.5x10x5.5 spacer for cable stops, 1 x 13° cable stop w/ cable adjuster, 2 x jubilee clips, 5 x spacers for chainrings, 2 x bayonet connectors, 2 x M8x0.75 bolts, 2 x M8x0.75 nuts, 2 x washers, 1 x oil tube, 1 x quick release block w/ clevis fork joint
Manufacturer Numbers:
  • black-anodised, 32-hole: 8002
  • silver anodised, 32-hole: 8000
  • red-anodised, 32-hole: 8001
  • black-anodised, 36-hole: 68002
  • silver anodised, 36-hole: 68000
  • red-anodised, 36-hole: 68001

Type 2: CC EX
Compatible Brake Type: rim
Compatible Frames: vertical dropouts
Axle Plate: standard CC
Torque Support: long torque arm on chainstay w/ quick release
Gear Mech: external
Special Features: for very short (e.g. 20" ) or non-typical rear triangles and frequent riders (10,000 km/year) or Touring cyclists
Small Parts Bag Contents: 8 x ferrules, 2 x jubilee clips, 5 x spacers for chainrings, 2 x M8x0.75 bolts, 2 x M8x0.75 nuts, 2 x washers, 1 x oil tube, 1 x EX cable box, 1 x quick release block with clevis fork joint
Manufacturer Numbers:
  • black-anodised, 32-hole: 8012
  • silver anodised, 32-hole: 8010
  • red-anodised, 32-hole: 8011
  • black-anodised, 36-hole: 68012
  • silver anodised, 36-hole: 68010
  • red-anodised, 36-hole: 68011

Type 3: CC DB
Compatible Brake Type: disc IS
Compatible Frames: w/ rear disc brakes, vertical dropouts
Axle Plate: standard CC
Torque Support: long torque arm on chainstay w/ quick release
Gear Mech: external
Special Features: housing cover has mount for Rohloff brake rotors
Small Parts Bag Contents: 8 x ferrules, 2 x jubilee clips, 5 x spacers for chainrings, 6 x M8x0.75 bolts, 2 x M8x0.75 nuts, 2 x washers, 1 x oil tube, 1 x EX cable box, 1 x quick release block with clevis fork joint
Manufacturer Numbers:
  • black-anodised, 32-hole: 8022
  • silver anodised, 32-hole: 8020
  • red-anodised, 32-hole: 8021
  • black-anodised, 36-hole: 68022
  • silver anodised, 36-hole: 68020
  • red-anodised, 36-hole: 68021

Type 4: CC OEM
Compatible Brake Type: rim
Compatible Frames: Rohloff extended and reinforced vertical dropouts
Axle Plate: CC OEM
Torque Support: in dropouts
Gear Mech: internal
Small Parts Bag Contents: 8 x ferrules, 1 x 6.5x10x5.5 spacer for cable stops, 1 x 13° cable stop w/ cable adjuster, 5 x spacers for chainrings, 2 x bayonet connectors, 1 x oil tube
Manufacturer Numbers:
  • black-anodised, 32-hole: 8007
  • silver anodised, 32-hole: 8005
  • red-anodised, 32-hole: 8006
  • black-anodised, 36-hole: 68007
  • silver anodised, 36-hole: 68005
  • red-anodised, 36-hole: 68006

Type 5: CC EX OEM
Compatible Brake Type: rim
Compatible Frames: Rohloff extended and reinforced vertical dropouts
Axle Plate: CC OEM
Torque Support: in dropouts
Gear Mech: external
Small Parts Bag Contents: 8 x ferrules, 5 x spacers for chainrings, 1 x oil tube, 1 x EX cable box
Manufacturer Numbers:
  • black-anodised, 32-hole: 8017
  • silver anodised, 32-hole: 8015
  • red-anodised, 32-hole: 8016
  • black-anodised, 36-hole: 68017
  • silver anodised, 36-hole: 68015
  • red-anodised, 36-hole: 68016

Type 6: CC DB OEM
Compatible Brake Type: disc IS
Compatible Frames: Rohloff extended and reinforced vertical dropouts
Axle Plate: CC OEM
Torque Support: in dropouts
Gear Mech: external
Special Features: housing cover has mount for Rohloff brake rotors
Small Parts Bag Contents: 8 x ferrules, 5 x spacers for chainrings, 4 x M8x0.75 bolts, 1 x oil tube, 1 x EX cable box
Manufacturer Numbers:
  • black-anodised, 32-hole: 8027
  • silver anodised, 32-hole: 8025
  • red-anodised, 32-hole: 8026
  • black-anodised, 36-hole: 68027
  • silver anodised, 36-hole: 68025
  • red-anodised, 36-hole: 68026

Type 7: CC DB OEM2
Compatible Brake Type: disc IS or post mount
Compatible Frames: with IS2000 disc brake mount on seatstay
Axle Plate: CC OEM2
Torque Support: Speedbone (IS) or Monkey Bone (PM)
Gear Mech: external
Special Features: housing cover has mount for Rohloff brake rotors
Small Parts Bag Contents: 8 x ferrules, 5 x spacers for chainrings, 4 x M8x0.75 bolts, 1 x oil tube, 1 x EX cable box, 1 x OEM2 M6x16 bolt, M6 nut, 6.4 washer
Manufacturer Numbers:
  • black-anodised, 32-hole: 8027Z
  • silver anodised, 32-hole: 8025Z
  • red-anodised, 32-hole: 8026Z
  • black-anodised, 36-hole: 68027Z
  • silver anodised, 36-hole: 68025Z
  • red-anodised, 36-hole: 68026Z

Type 8: CC DB PM
Compatible Brake Type: disc post mount
Compatible Frames: w/ disc brake mount in the direct post mount standard
Axle Plate: CC PM
Torque support: PM Bone
Gear Mech: external
Small Parts Bag Contents: 8 x ferrules, 5 x spacers for chainrings, 4 x M8x0.75 bolts, 1 x oil tube, 1 x EX cable box
Manufacturer Numbers:
  • black-anodised, 32-hole: 8027PM
  • silver anodised, 32-hole: 8025PM
  • red-anodised, 32-hole: 8026PM
  • black-anodised, 36-hole: 68027PM
  • silver anodised, 36-hole: 68025PM
  • red-anodised, 36-hole: 68026PM

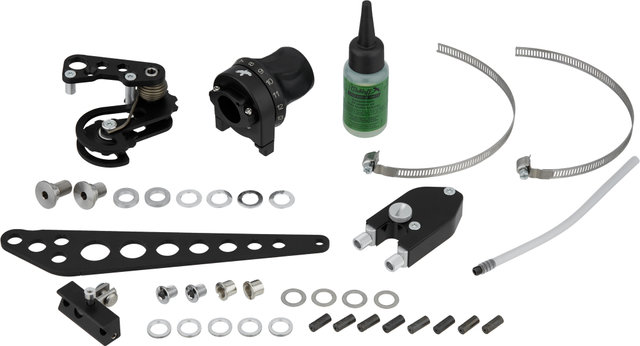

Contents:

  • 1 x Rohloff Speedhub 500/14 internally geared hub
  • 1 x Rohloff Speedhub 500/14 splined sprocket, 16 tooth, incl. Splined Carrier
  • 1 x Rohloff Speedhub complete twist shifter
  • 1 x Rohloff Speedhub Oil bottle
  • 1 x small parts bag

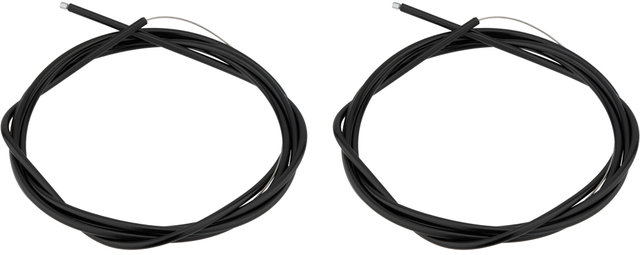

  • 2 x Rohloff shifter cables, incl. cable housings
  • 1 x axle plate
  • 1 x torque arm (only with Type 1, 2 & 3)
  • 1 x chain tensioner (only with Type 1, 2 & 3)
  • 2 x flange support rings
  • not incl. brake rotor


Weight:

  • silver-anodised/type 1, 32 hole: 1700 g
  • silver-anodised/type 2, 32 hole: 1800 g
  • silver-anodised/type 3, 32 hole: 1825 g
