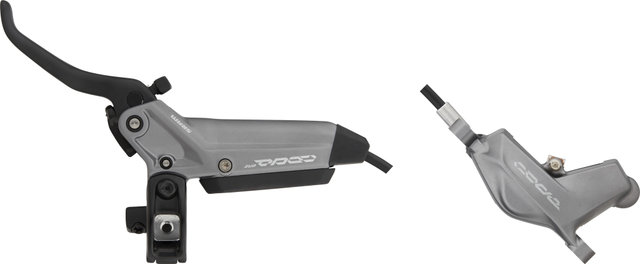

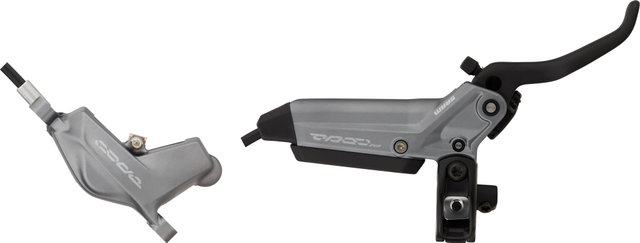

SRAM Code Bronze Stealth Disc Brake

The Code bronze disc brake by SRAM in Stealth Design

The Code Bronze disc brake by SRAM complements your AXS cockpit perfectly with its stealth design and, with four pistons and sintered brake pads, is particularly suitable for use in the all-mountain to downhill range. The brake lever housing has been optimised so that the hose runs closer to the handlebar. To adjust the brake to you and your habits, you set both the grip width and the pressure point. Thanks to SwingLink, you can control the power and tire out less quickly. A reliable plain bearing is used at the lever pivot point.

Specifications:

Series:

Code

Application:

Enduro, Downhill, All Mountain

Type:

hydraulic, 4 pistons

Actuation:

DOT 4

Hose Length (Front/Rear):

950 mm / 2000 mm

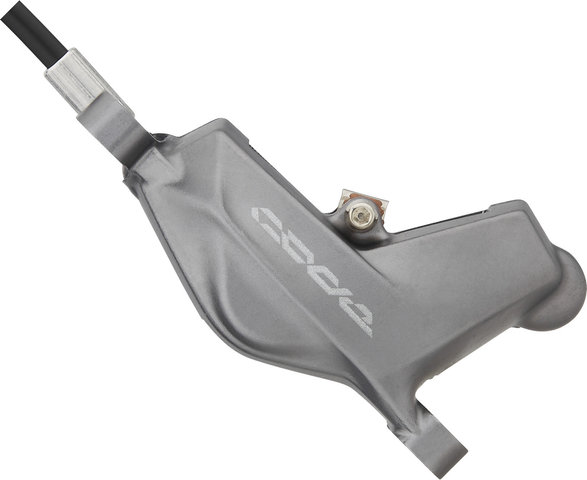

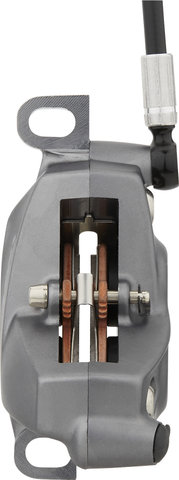

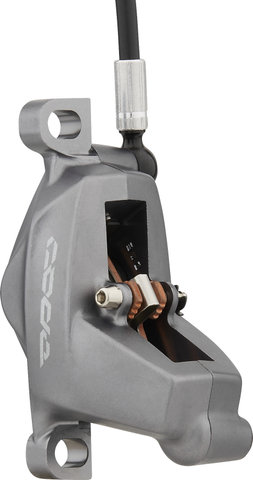

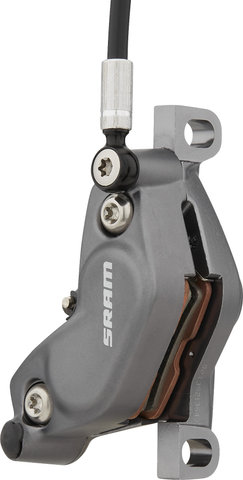

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

sintered metal

Design:

two-part

Calliper Material:

aluminium

Piston Material:

composite

Hose Connection:

banjo

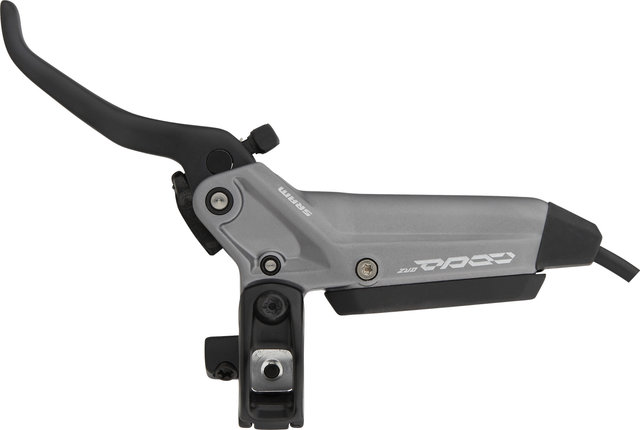

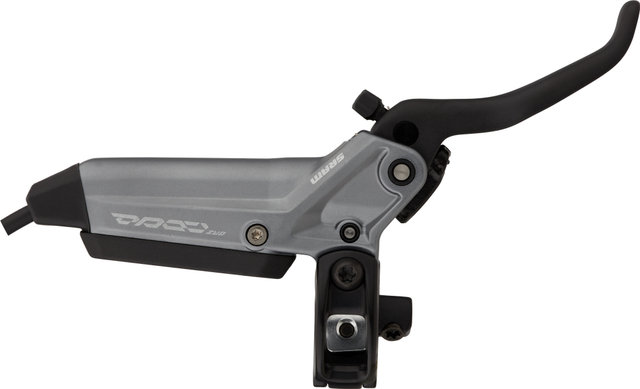

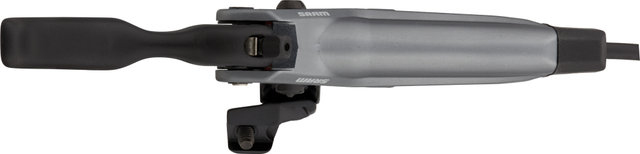

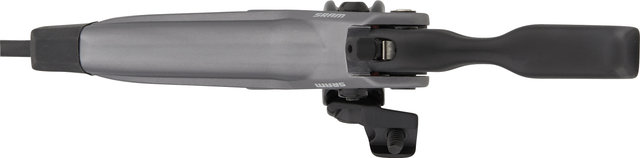

Technical Information - Lever:

Adjustment Options:

reach adjustment (without tools)

Mount:

Matchmaker X

Design:

Flip-Flop (without specific side)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Features:

• powerful four-piston brake for Enduro and Gravity use
• Stealth design to match AXS components
• with metallic brake pads for high braking force and durability
• tool-free grip adjustment
• easy bleeding thanks to Bleeding Edge
• plain bearing at the lever pivot point
• perfect dosage with SwingLink technology
• forged aluminium caliper and brake lever housing
• stainless steel brake caliper bolts
• recommended brake rotor 1-piece Centerline

Technology:

Reach Adjust
The fit and ergonomics of the brake lever is a very personal matter. Riders have individual position preferences as well as unique hand sizes and finger lengths. With the reach adjustment, the lever can be easily adjusted - for maximum control with just one finger.

SwingLink™
If you pull the SRAM brake lever, you will notice the difference immediately. A shorter idle travel and optimized brake pad actuation. Due to the cam design, a shorter lever travel is necessary to push the brake pads towards the brake rotor. It's nice, but for perfect braking performance, it takes more than just power. Because you need control. Many braking systems offer a shorter stroke - but at the expense of modulation. SwingLink solves this problem with its special cam shape. When the brake pads touch the brake rotor, the force is modulated, thus avoiding the " on-off" brake feeling. This creates the perfect balance between power and precision.

Bleeding Edge™
Bleeding Edge technology allows for quick and easy brake bleeding. Thanks to the special fluid channel and a specially designed bleed opening, the fluid can be pumped more easily through the brake caliper. A special adapter can be fitted to the bleed port and seals the system to prevent air ingress and fluid loss.

Manufacturer Numbers:

Front:

00.5018.229.000

Rear:

00.5018.229.001

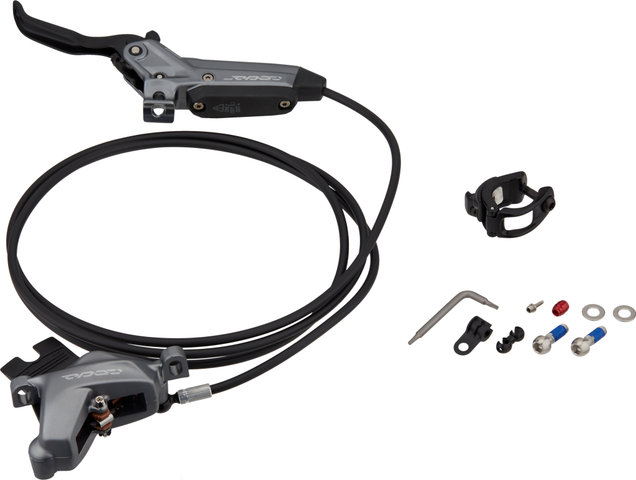

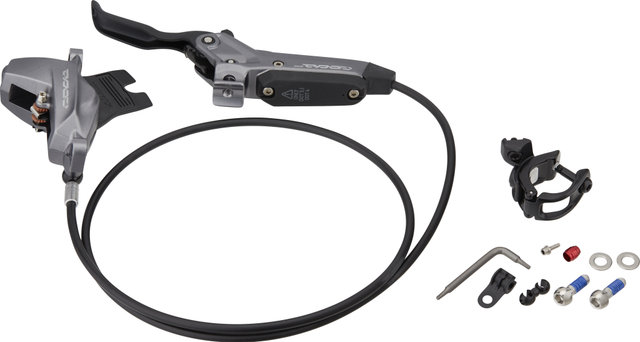

Contents:

• 1 x SRAM Code Bronze Stealth disc brake (front wheel or rear wheel)
• 1 x SRAM brake hose, 950 mm (front) or 2000 mm (rear)
• 1 x pair SRAM metal brake pads
• 1 x SRAM Matchmaker X clamps
• 1 x SRAM pad spacer
• 2 x bolts
• 2 x washer
• 1 x Torx key
• 1 x insert
• 1 x olive
• 1 x S-hook
• 1 x cable guide clip for stem mounting
