Force 1 D2 Wide XPLR AXS 1x12-speed Groupset - iridescent/175.0 mm 40 tooth, 10-44

SRAM Force 1 D2 Wide XPLR AXS 1x12-speed Groupset

Item number: 92314

The SRAM Force 1 D2 groupset with 1x12-speed shifting, Wide and XPLR components and electronic AXS equipment for gravel enthusiasts

This electronic SRAM Force 1 D2 AXS 1x12-speed groupset with gravel-specific Wide and XPLR set-up offers a sophisticated combination for your gravel bike. It includes a crankset with carbon arms, rear derailleur, disc brakes with carbon brake levers, cassette and chain. The elegant design of the D2 generation adds dazzling accents around the logos, attracting just the right amount of attention. The " Wide" chainline is shifted slightly to the outside, giving you a high degree of tyre clearance. The XPLR cassette with 10 to 44 teeth has the right gear for you even in difficult terrain. The hydraulic disc brakes are mounted via flat mount. To keep you in control even on bumpy surfaces, the shift/brake levers and the surface of the rubber grips are textured. The damped rear derailleur always ensures direct, smooth shifting. Its eTap shifting logic is intuitive: you shift up on one side, down on the other. With AXS, you save yourself the hassle of cable routing the rear derailleur and can use the app to adjust the shifting behaviour to your requirements if you wish.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.


Shifters & Derailleurs:
1x, 12-speed (wireless)
disc, hydraulic (flat mount)


170.0 mm, 172.5 mm, 175.0 mm (40 teeth)
Rear Derailleur:
medium cage (10-44)


  • cassette compatible with SRAM XDR


  • components with carbon parts for an electronic 1x gravel drivetrain
  • discreet design with iridescent elements
  • crank arms and brake levers made of carbon to lower the weight
  • cassette for SRAM XDR freewheel
  • thought out gear jumps with simultaneously high bandwidth with 10-44 teeth
  • optimised for gravel riding (XPLR = Explore)
  • largest sprocket of the cassette made of aluminium for low weight and high stiffness
  • large X-Sync derailleur pulleys with steel bearings for high durability and efficiency
  • rear derailleur with Orbit™ damping
  • easy personalisation with SRAM AXS
  • simple and intuitive eTap shifting logic
  • direct, precise shifting and secure chain hold
  • quiet operation thanks to narrow, efficient Flattop™ chain
  • shift/brake handles with textured shift paddles and rubber grips
  • adjustable grip width
  • Wide crankset with a lot of tyre clearance
  • Wide chainline: 47.5 mm
  • proven DUB technology

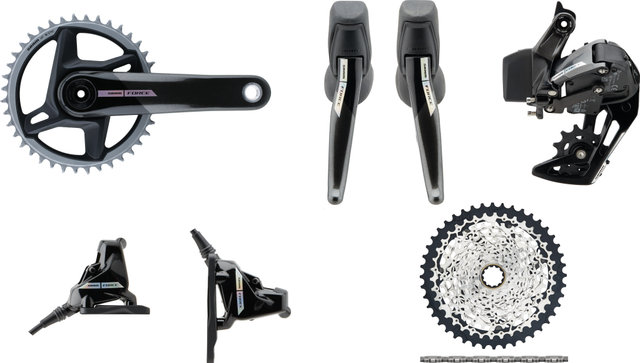

SRAM Force 1 D2 Wide XPLR AXS 1x12-speed 40 groupset, consisting of:

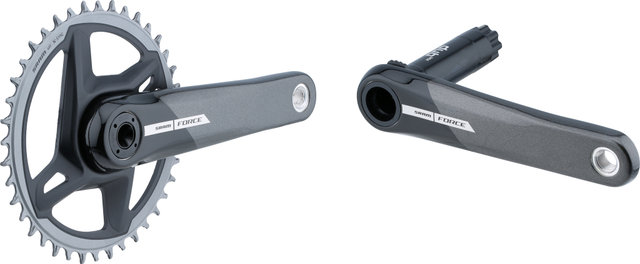

  • 1 x SRAM Force 1 D2 Wide DUB 1x12-speed crankset, 40 teeth

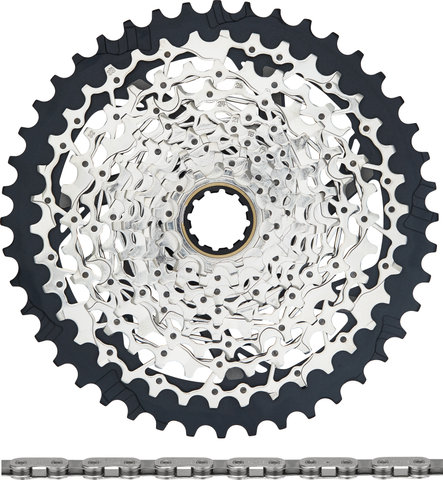

  • 1 x SRAM XG-1271 cassette
  • 1 x SRAM Force 12-speed chain
  • 1 x SRAM PowerLock master link

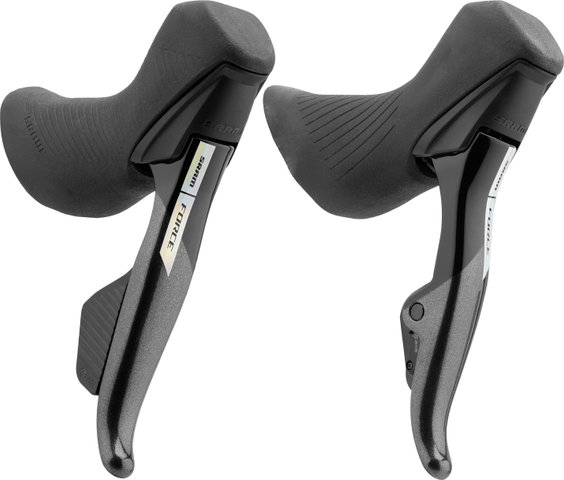

  • 1 pair of SRAM Force D2 eTap AXS HRD shift/brake levers

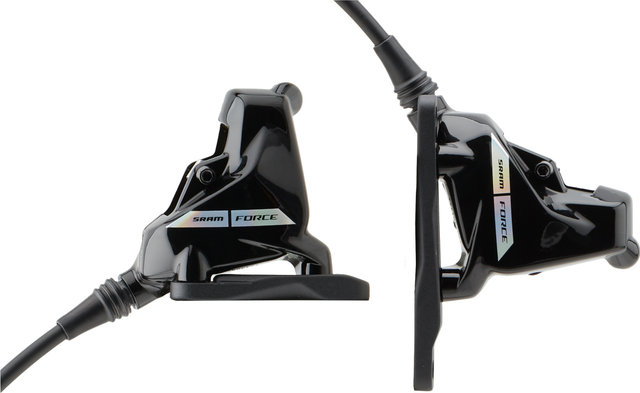

  • 1 pair of SRAM Force D2 eTap AXS disc brakes (Flat Mount), mount ready, filled & bled
  • 2 x pairs SRAM organic brake pads

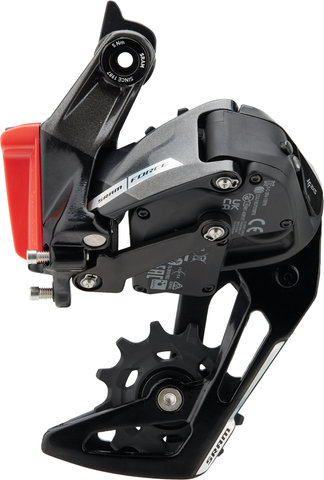

  • 1 x SRAM Force D2 XPLR eTap AXS rear derailleur

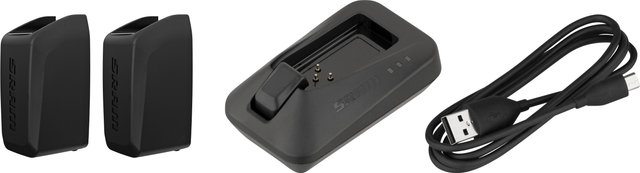

  • 1 x SRAM eTap / AXS battery
  • 1 x SRAM battery charger
  • 2 x SRAM pad spacers
  • 1 x SRAM brake hose, 1300 mm (front)
  • 1 x SRAM brake hose, 2000 mm (rear)
  • 2 x SRAM bleed block
  • 1 x SRAM chain gap adjustment gauge
  • 1 x SRAM battery cover
