SRAM GX Eagle 1x12-speed E-Bike Upgrade Kit with Cassette

The GX Eagle 1x12-speed E-Bike Upgrade Kit with Cassette by SRAM offers reliable shifting components for your E-MTB

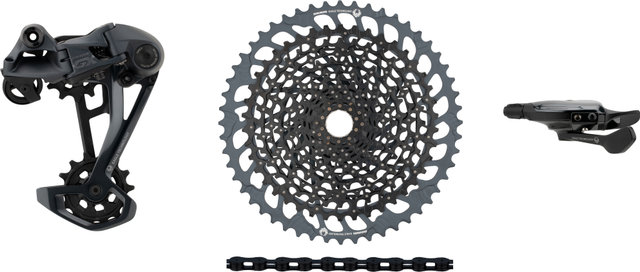

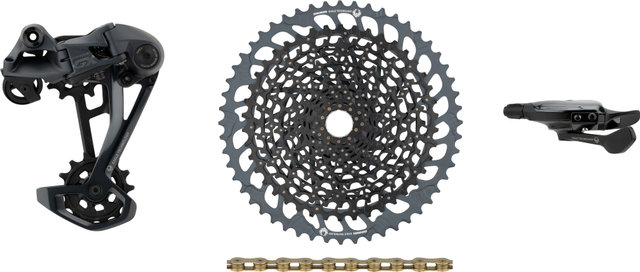

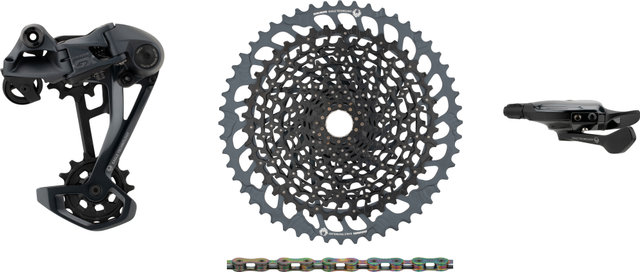

This SRAM GX Eagle series upgrade kit is designed for 1x12-speed drivetrains on off-road e-bikes and comes directly with cassette. It consists of a GX Eagle rear derailleur, a specific GX Eagle Trigger Single Click shifter for E-MTBs, an XG-1275 cassette and a PC XX1 Eagle or PC GX Eagle chain.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Series:

GX Eagle

Application:

Cross Country, All Mountain, Enduro

Shifters & Derailleurs:

12-speed (mechanical)

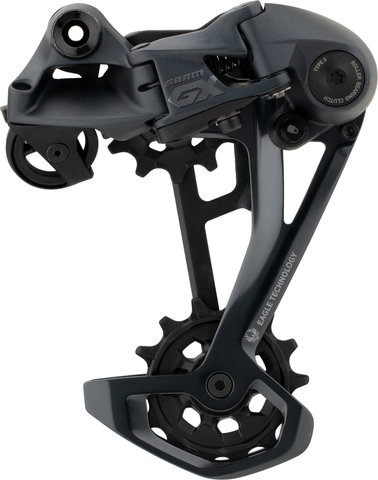

Technical Information - Rear Derailleur:

Mount:

standard

Cassette Teeth (max.):

52-tooth

Compatibility:

SRAM MTB 12-speed

Derailleur Pulleys:

14-tooth

Outer Cage Material:

Aluminium

Inner Cage Material:

Aluminium

Other Materials:

steel

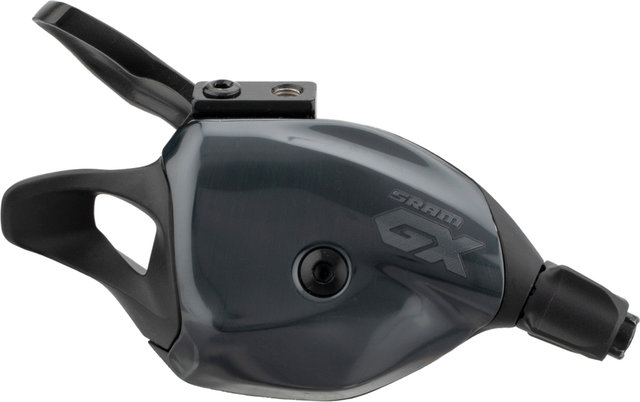

Technical Information - Shifter:

Mount:

clamp (closed), Matchmaker

Type:

trigger

Body Material:

Composite

Lever Material:

Aluminium

Clamp Diameter:

22.2 mm

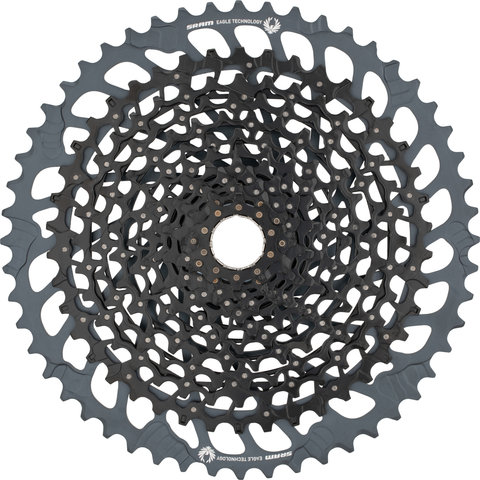

Technical Information - Cassette:

Gradation:

10-12-14-16-18-21-24-28-32-36-42-52 T

Sprocket Material:

steel (sprockets 1 - 11), aluminium (sprocket 12)

Freehub Compatibility:

SRAM XD

Technical Information - Chain:

Number of Links:

126

Closure Type:

PowerLock™

Pin Type:

XX1: hollow (Hollow Pins), GX: solid

Directional:

no (chain), yes (master link)

Material:

steel

Colour Info:

The colour designation consists of the colour of the cassette in the first place and series and colour of the chain in the second place.

Rear Derailleur:

lunar (dark grey)

Shifter:

lunar (dark grey)

Cassette:

black

Chain:

choice of XX1 rainbow (coloured), XX1 copper, XX1 gold, XX1 black, GX silver-black

Manufacturer Numbers:

• Rear Derailleur: 00.7518.137.000
• Shifter: 00.7018.432.000
• Cassette: 00.2418.109.000
• Chain: 00.2518.039.010 (XX1 rainbow), 00.2518.043.010 (XX1 copper), 00.2518.024.020 (XX1 gold), 00.2518.024.021 (XX1 black), 00.2518.030.011 (GX silver-black)

Contents:

• 1 x SRAM GX Eagle rear derailleur
• 1 x SRAM Trigger GX Eagle Single Click 12-speed shifter
• 1 x SRAM GX Eagle XG-1275 cassette
• 1 x SRAM PC XX1 Eagle chain or PC GX Eagle (only GX silver-black)
• 1 x SRAM PowerLock master link
• 1 x SRAM clamp
• 1 x SRAM shift cable, 2200 mm
• 1 x SRAM chain gap adjustment gauge

Order Together:

• Shifter Cable Housing
