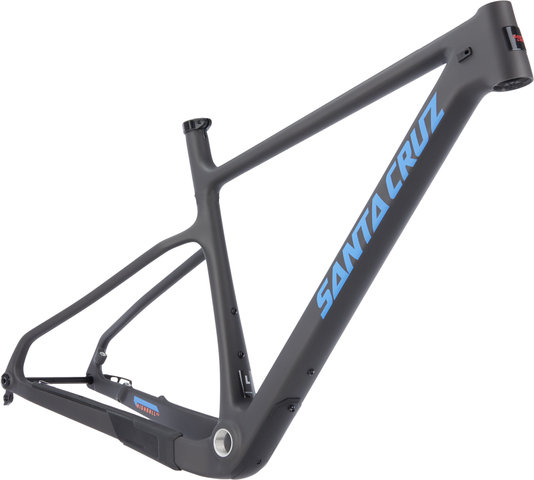

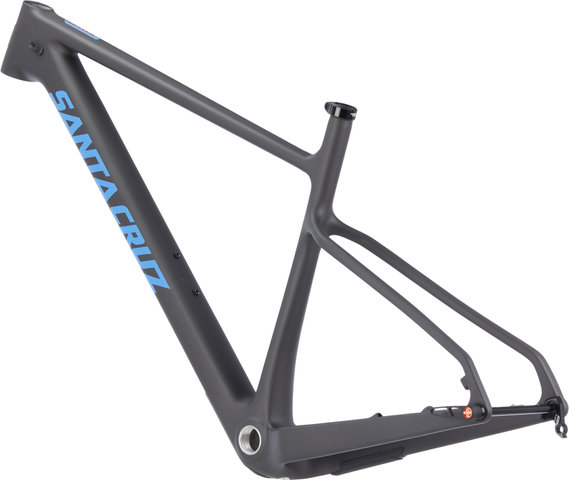

Santa Cruz Highball 3.0 CC 29" Frame

The Santa Cruz Highball 3.0 CC 29" carbon frame for a fast cross-country hardtail

The Santa Cruz Highball 3.0 frame for 29" wheels made of particularly light CC carbon is the perfect basis for a race-ready hardtail in cross-country use. It scores with loads of propulsion and comfort and offers space for a whole three bottle cages.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Size:

M, L, XL

Material:

carbon (CC)

Technical Information:

Wheel Standard:

12 x 148 mm (Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

27.2 mm

Seatpost Clamp(Ø):

31.8 mm

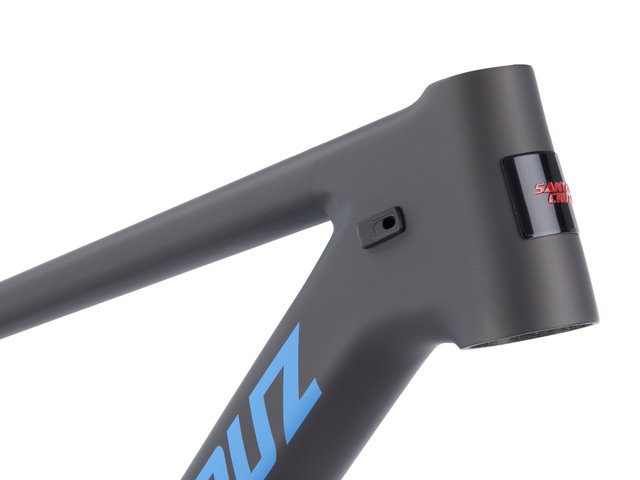

Headset:

IS41 - IS52 (top to bottom)

Steerer tube rec.:

1 1/8" - 1.5" tapered

Recommended Fork Axle to Crown:

506 mm

Recommended Fork Travel:

100 - 120 mm

Bottom Bracket Standard:

BSA

Shell Width:

73 mm

Chainline:

53 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Front Derailleur Mount:

no front derailleur attachment possible

Bottle Cage Mounts:

3

Approved For:

Rotor Size (max.):

180 mm

Tyre Size (max.):

29 x 2.4"

Chainrings:

1x

Chainring Size (max.):

1x 38-tooth

Features:

• carbon mountain bike frame as the basis for a cross-country race bike
• especially light thanks to CC carbon

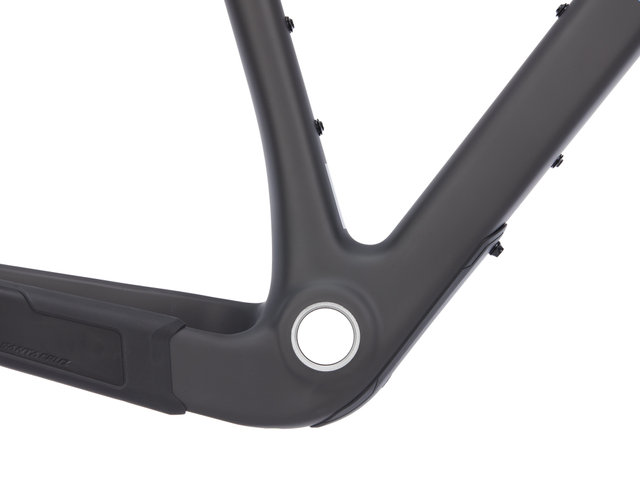

• threaded bottom bracket
• suitable for 27.2 mm Vario seat posts with internal cable guide

Geometry:

M:

Recommended Height:

165 - 175 cm

Stack:

606 mm

Reach:

430 mm

Seat Tube Length:

430 mm

Effective Top Tube Length:

615 mm

Head Tube Length:

100 mm

Chainstay Length:

426 mm

Wheelbase:

1116 mm

Bottom Bracket Height:

314 mm

BB Drop:

56 mm

Seat Tube Angle:

73.0°

Head Tube Angle:

69.5°

Standover Height:

715 mm

L:

Recommended Height:

175 - 185 cm

Stack:

615 mm

Reach:

450 mm

Seat Tube Length:

470 mm

Effective Top Tube Length:

638 mm

Head Tube Length:

110 mm

Chainstay Length:

426 mm

Wheelbase:

1140 mm

Bottom Bracket Height:

314 mm

BB Drop:

56 mm

Seat Tube Angle:

73.0°

Head Tube Angle:

69.5°

Standover Height:

740 mm

XL:

Recommended Height:

185 - 196 cm

Stack:

634 mm

Reach:

480 mm

Seat Tube Length:

530 mm

Effective Top Tube Length:

674 mm

Head Tube Length:

130 mm

Chainstay Length:

426 mm

Wheelbase:

1177 mm

Bottom Bracket Height:

314 mm

BB Drop:

56 mm

Seat Tube Angle:

73.0°

Head Tube Angle:

69.5°

Standover Height:

756 mm

Manufacturer Numbers:

M:

68-22151-3-740-0099

L:

68-22151-4-740-0099

XL:

68-22151-5-740-0099

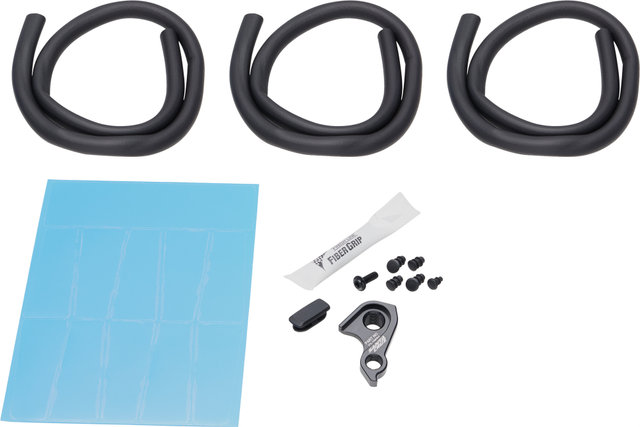

Contents:

• 1 x Santa Cruz Highball 3.0 CC 29" frame
