Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

47 cm, 49 cm, 52 cm

Frame Material:

carbon (HMF)

Fork Material:

carbon (HMF)

Components:

Frame:

Addict Disc, Carbon (HMF)

Fork:

Addict Disc, Carbon (HMF), 1 1/4" - 1.5"

Stem:

Syncros RR 2.0

Handlebars:

Syncros Creston 2.0 Compact, aluminium

Headset:

Acros AIF-1112, tapered 1 1/4" - 1.5"

Seatpost:

Syncros RR1.2, 27.2 mm, 350 mm

Saddle:

Syncros Celista 2.0 Cutout

Crank:

Shimano FC-R7000 Compact Hyperdrive, 34-50 teeth

Pedals:

none

Brakes:

Shimano BR-R7070, Flat Mount, hydraulic, 160 mm

Shift/Brake lever:

Shimano 105 ST-R7025, 2x11-speed

Rear Derailleur:

Shimano 105 RD-R7000-GS, 11-speed

Front Derailleur:

Shimano 105 FD-R7000, 2-speed

Cassette:

Shimano CS-R7000, 11-34 tooth

Chain:

KMC X11

Wheels:

Syncros RP2.0 Disc / Syncros Axle

Tyres:

Schwalbe One, 700x32C

Approved For:

Weight Limit:

120 kg (system weight)

Features:

• endurance carbon road bike for women
• replaceable derailleur hanger
• internal cable routing
• optimised tube structures and layer alignment in the frame using computer-based Evo-Lap technology

Geometry:

47 cm:

Stack:

517.8 mm

Reach:

376.3 mm

Seat Tube Length:

455 mm

Effective Top Tube Length:

515 mm

Head Tube Length:

95 mm

Chainstay Length:

420 mm

Wheelbase:

996.7 mm

Bottom Bracket Height:

275.3 mm

BB Drop:

70 mm

Standover Height:

732 mm

Seat Tube Angle:

75°

Head Tube Angle:

70.5°

Stem Length:

83 mm

49 cm:

Stack:

529.1 mm

Reach:

383.2 mm

Seat Tube Length:

475 mm

Effective Top Tube Length:

525 mm

Head Tube Length:

105 mm

Chainstay Length:

420 mm

Wheelbase:

1003 mm

Bottom Bracket Height:

275.3 mm

BB Drop:

70 mm

Standover Height:

747 mm

Seat Tube Angle:

75°

Head Tube Angle:

71°

Stem Length:

83 mm

52 cm:

Stack:

551.6 mm

Reach:

387 mm

Seat Tube Length:

505 mm

Effective Top Tube Length:

540 mm

Head Tube Length:

125 mm

Chainstay Length:

420 mm

Wheelbase:

1005 mm

Bottom Bracket Height:

275.3 mm

BB Drop:

70 mm

Standover Height:

775 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

72°

Stem Length:

93 mm

Manufacturer Number:

2864760

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

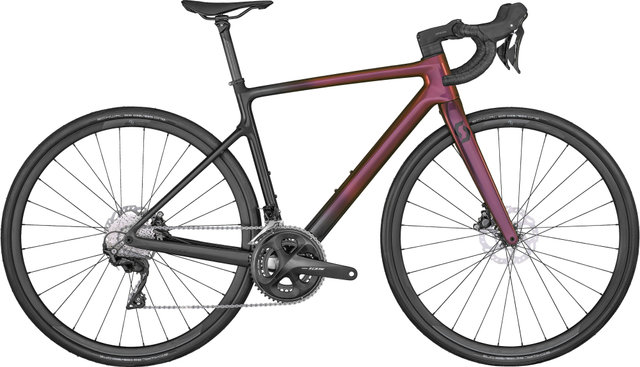

• 1 x Scott Contessa Addict 25 Carbon Road Bike
