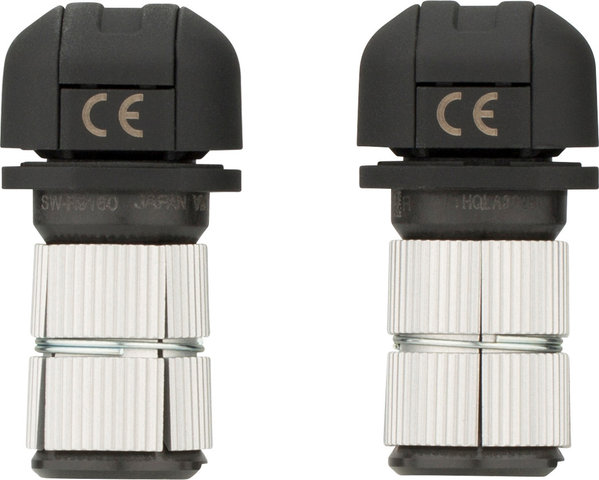

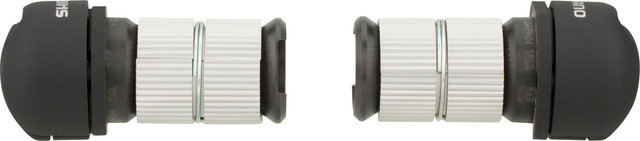

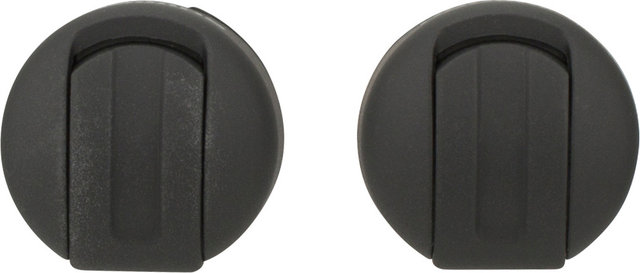

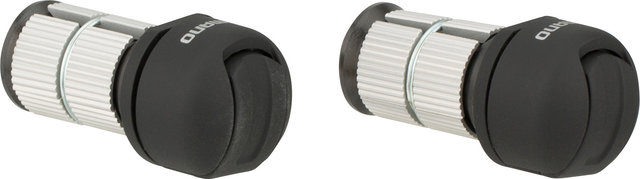

Shimano Dura-Ace Di2 SW-R9160 10-/11-speed Bar End Shifter

The Dura-Ace Di2 Bar End Shifter SW-R9160 by Shimano - Thumb operation

The Shimano Dura-Ace Di2 SW-R9160 bar end shifters feature a single thumb-operated button to control only the rear derailleur and shift the cassette up or down. Designed as an option for triathletes and time trialists, they are mounted on the extensions in addition to the STIs, making shifting in an aero position easier. Direct control of the front derailleur is not possible, but the Synchro-Shift function of newer rear derailleurs can be used. Compared to the SW-R671 bar end shifters, the SW-R9160 have the advantage of a great weight saving - the pair weighs only 40 grams. Firmware updates are ensured via the E-Tube connection.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Series:

Dura-Ace Di2 R9150

Application:

Triathlon & Time Trial

Gearing:

10-speed, 11-speed

Mount:

expander

Technical Information:

Type:

bar end shifter

Body Material:

Composite

Compatibility:

Shift/Brake Lever:

• ST-R9160
• ST-R9180
• ST-R8060

Extensions:

• Inner Diameter: 19.0 - 22.5 mm
• Outer Diameter: 22.2 - 24.0 mm
• Material: aluminium, carbon with aluminium inserts

Power Cable:

• EW-SD50 (EW-SD300-I only with conversion adapter EW-AD305)

Features:

• remote triathlon thumb shifter, easy to operate when gripping at the front of the extensions
• improved ergonomics and one-button operation for fast shifting at the handlebar attachments
• programmable shift increments and up or down shifting of the rear derailleur
• front derailleur not directly controllable, only mediated via Synchro Shift
• number of E-Tube ports: 2
• E-Tube project ensures firmware updates

Technology:

Digital Integrated Intelligence (Di2)
Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work.

Manufacturer Number:

I-SWR9160

Contents:

• 1 x pair Shimano Dura-Ace Di2 SW-R9160 bar end shifters
