Shimano RT-EM810 Center Lock Brake Rotor for STEPS w/ Internal Teeth

Item number: 74755
RT-EM810 Center Lock Brake Rotor for STEPS w/ Internal Teeth - silver-black/160 mm
RT-EM810 Center Lock Brake Rotor for STEPS w/ Internal Teeth - silver-black/160 mm
RT-EM810 Center Lock Brake Rotor for STEPS w/ Internal Teeth - silver-black/160 mm
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.91 / 5.00

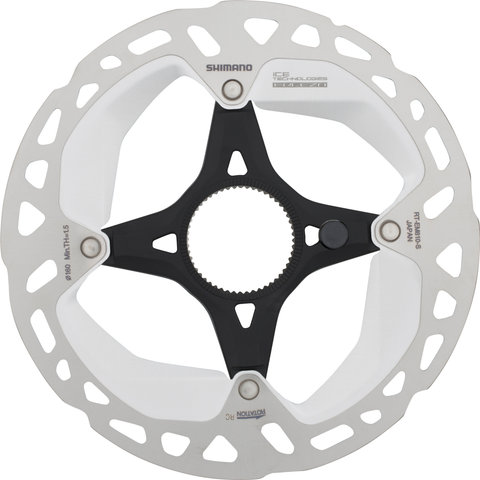

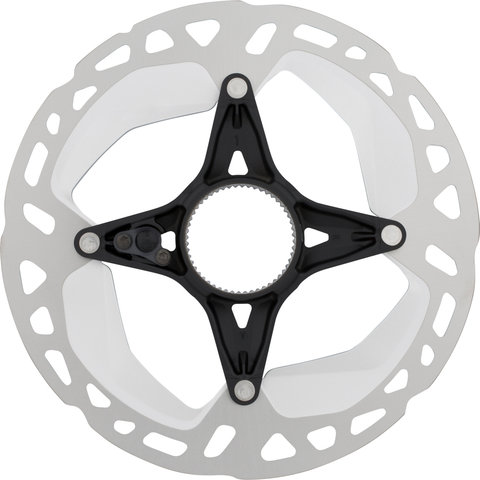

Shimano RT-EM810 Center Lock brake rotor - for E-Bikes with STEPS

Shimano has designed the RT-EM810 brake rotor especially for the use on e-bikes equipped with a STEPS motor. It comes with a magnet for the SM-DUE11 speed sensor for the rear wheel and a lock ring with classic internal teeth. The brake rotor is compatible with various disc brakes and with both sintered and organic pads. Due to the Ice Technology with sandwich structure, brake fade is obviated.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Technical Information:

Mount: Center Lock
Diameter: 160 mm
Design: 2-piece
Rotor Material: stainless steel outer and aluminium core sandwich construction
Spider Material: Aluminium

Approved For:

Brake Compatibility: BR-M9100, BR-M9120, BR-M9110-R, BR-M9000, BR-M9020, BR-M8100, BR-M8120, BR-M8110-R, BR-M8000, BR-M8020, BR-M7100, BR-M7120, BR-M7110-R, BR-M7000, BR-M6100, BR-M6120, BR-M6000, BR-MT520, BR-MT420, BR-M820, BR-M640, BR-S700, BR-S7000, BR-R9270, BR-R9170, BR-R8170, BR-R8070, BR-R7170, BR-R7070, BR-4770, BR-RS805, BR-R785, BR-RS785, BR-RS505, BR-RS405, BR-RX810, BR-RX400
Brake Pad Compatibility: sintered*, organic

* with BR-S700 and BR-S7000 only organic


- SM-DUE11 speed sensor
- DU-EP800 Motor
- DU-E8080 Motor
- DU-E7000 Motor
- DU-E6100 Motor
- DU-E6180 Motor
- DU-E5000 Motor
- DU-E5080 Motor
- for brake pads with narrow pad shape
- only for use on the rear wheel (in combination with e.g. RT-MT800 on the front wheel)


- including magnet for Shimano STEPS speed sensor SM-DUE11
- FREEZA Ice Technology and sandwich construction for even faster heat dissipation
- performance indicator: advanced (level 2 out of 3)
- painted spider, polished rotor

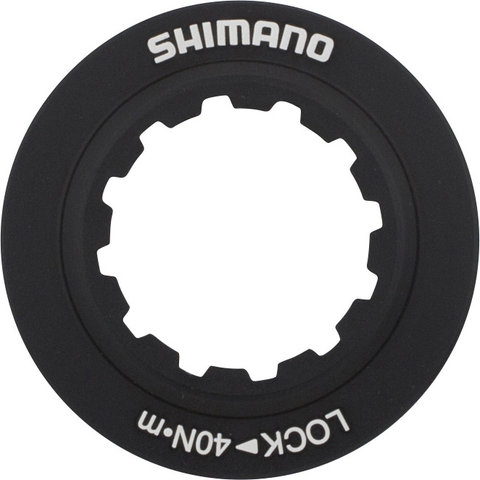

- lockring made of aluminium with internal toothing, anodised


Shimano Ice Technologies provide a fast heat dissipation at your disc brake. The brake pads are equipped with aluminium cooling fins. The brake rotor is constructed using a sandwich technique in which stainless steel encloses an aluminium core. The stainless steel on both flanks ensures long durability, the aluminium allows heat dissipation. FREEZA is the further development of the brake rotor, in which additional, specially coated ribs in the aluminium of the rotor ensure even better heat compensation. This cooling technology creates consistently high performance and longer brake pad durability while reducing fading and brake noise.

Manufacturer Number:



- 1 x Shimano RT-EM810 brake rotor with magnet for SM-DUE11
- 1 x Shimano lockring


  • silver-black/160 mm: 113 g


  • silver-black/160 mm, out of stock
