Shimano Chain guide

The SM-CD800 Chain Guide by Shimano - Increased safety for mountain biking

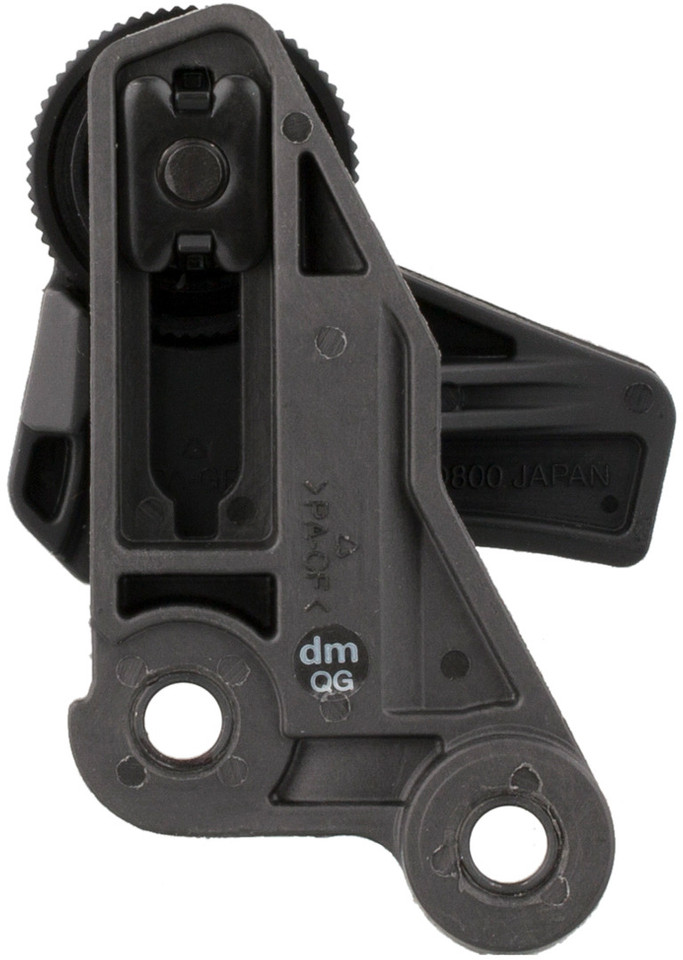

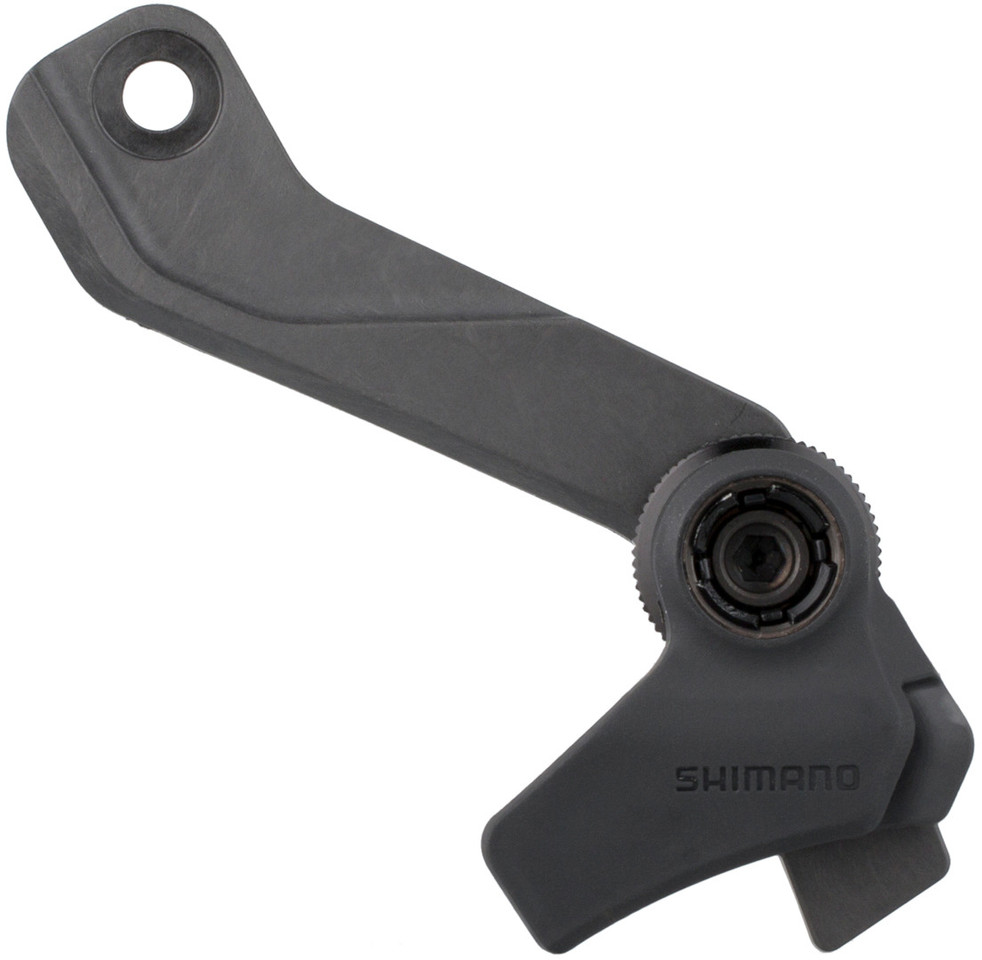

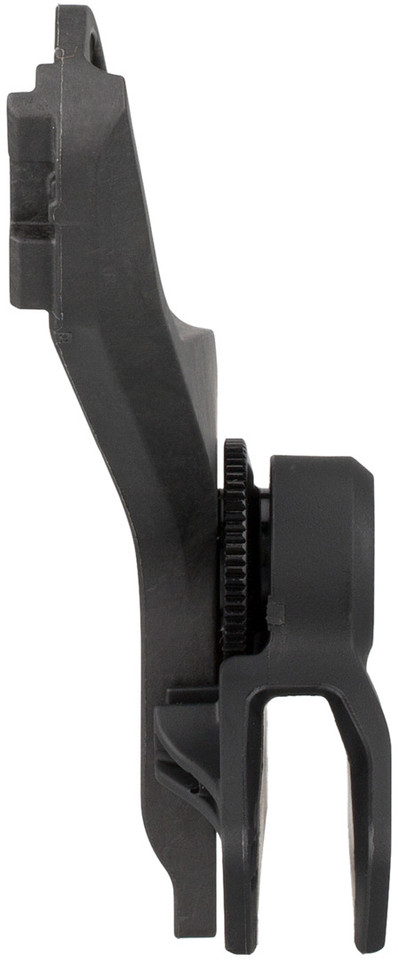

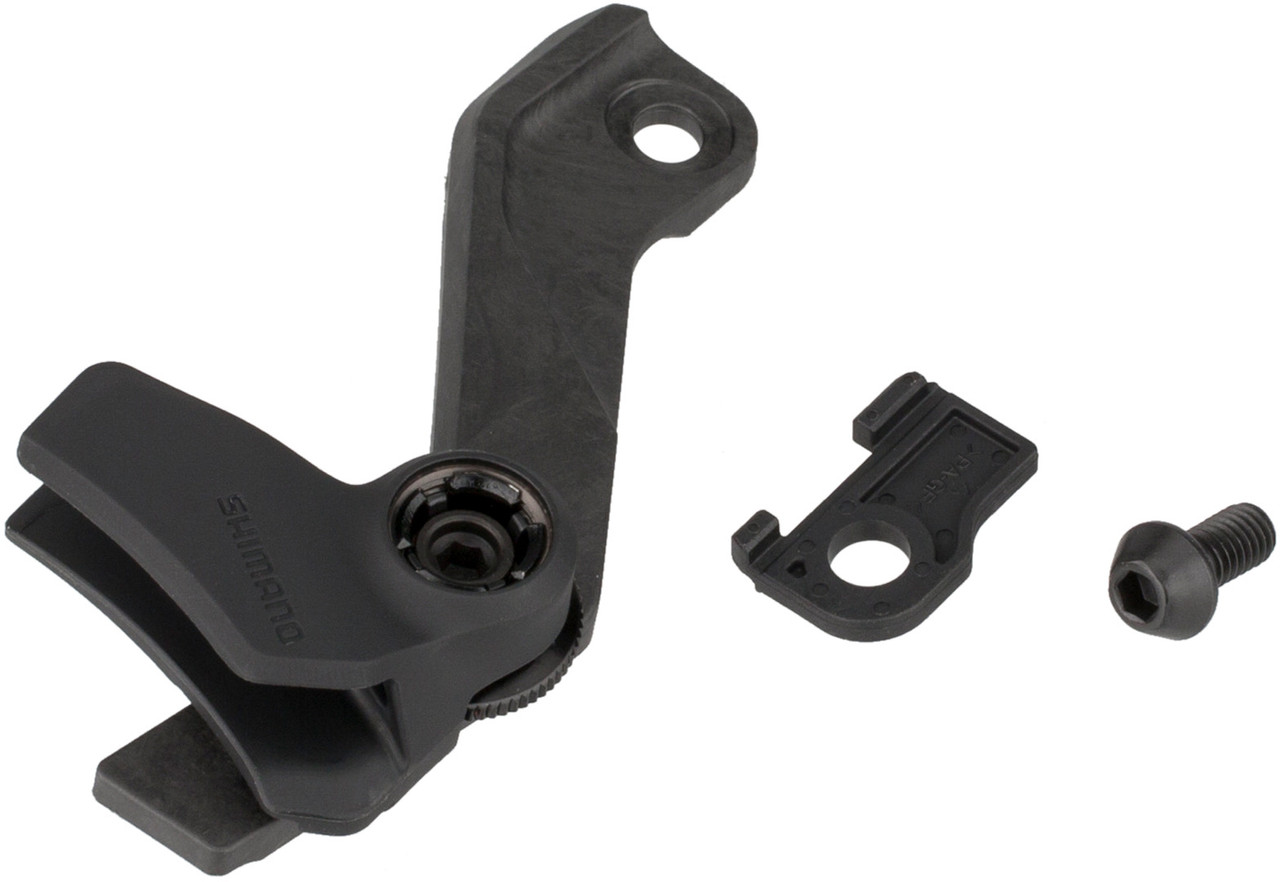

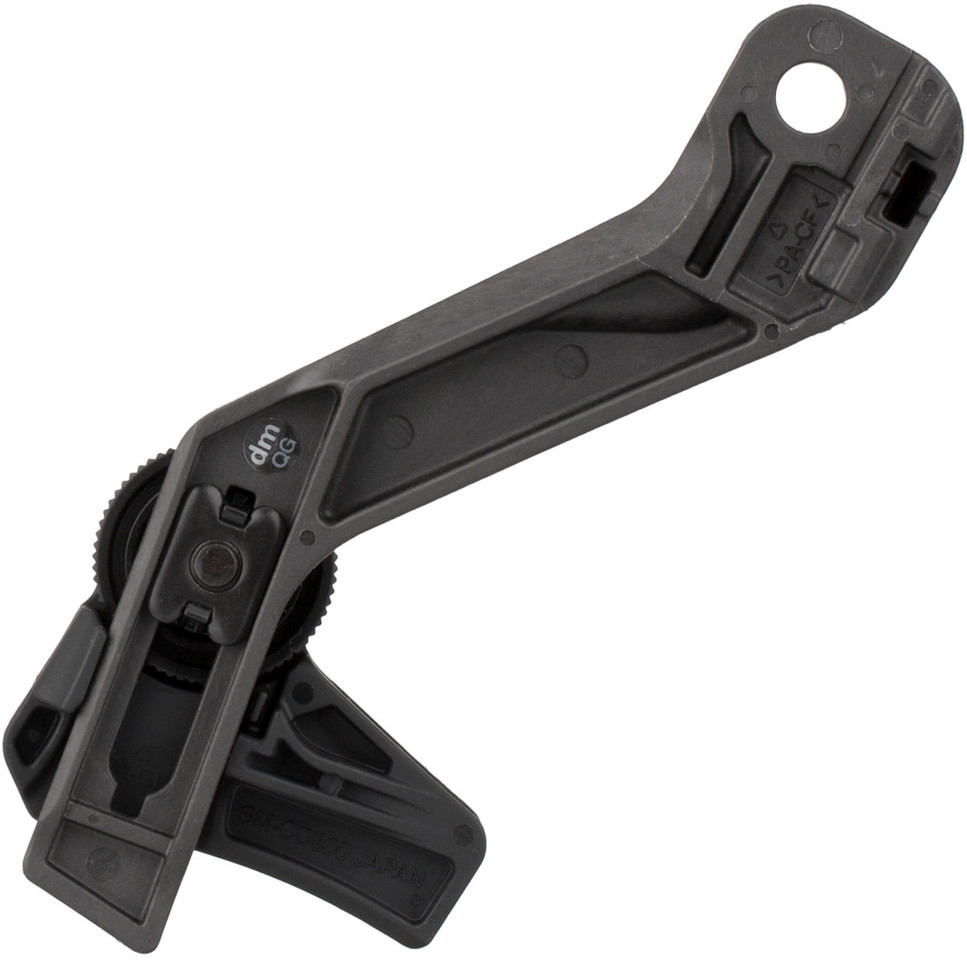

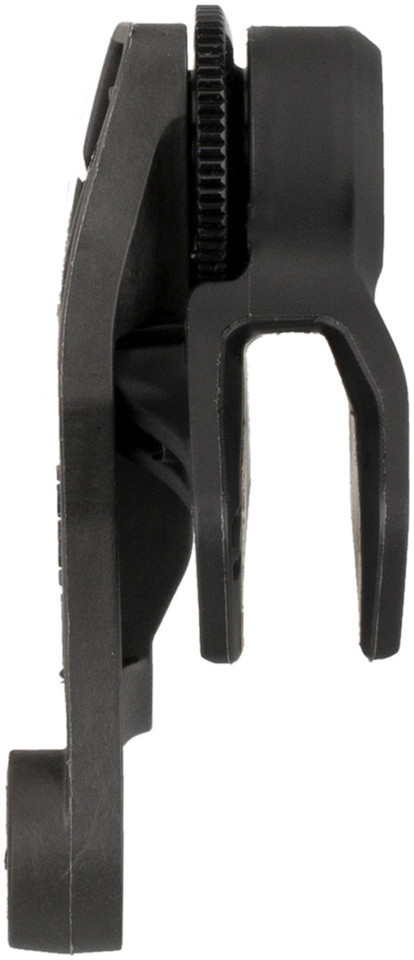

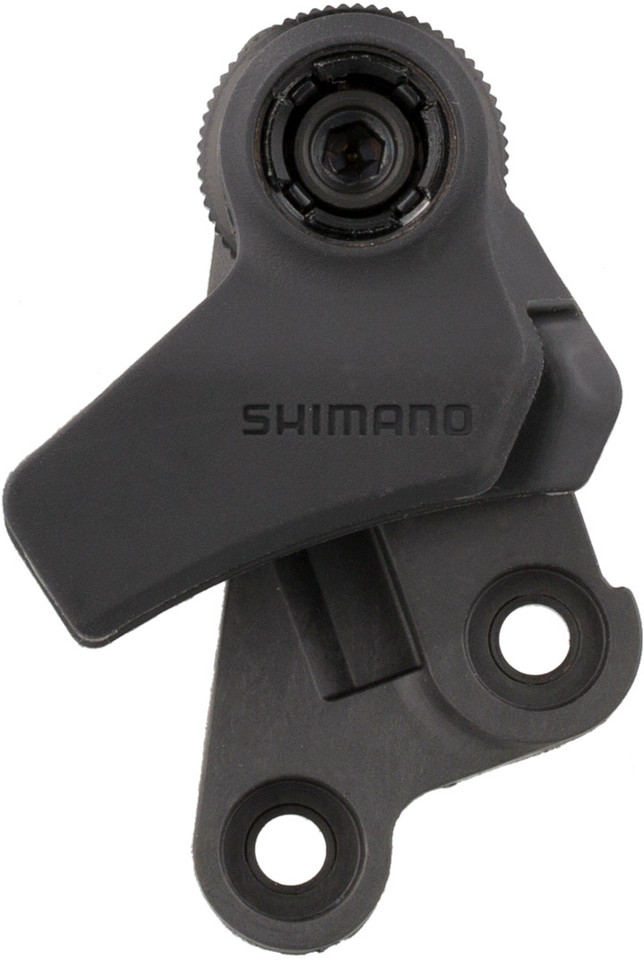

The Shimano SM-CD800 chain guide is available as E-Type, D-Type or for ISCG 05 installation. It is only compatible with MTB 12-speed cranks. Enduro riders who rely on 1-speed drivetrains can use it to supplement their set-up and further optimise the already excellent hold of 12-speed chains on the Dynamic Chain Engagement Plus chainrings. The chain guide is made of synthetic resin and can be easily adjusted with a screw.

Specifications:

Application:

Enduro, All Mountain

Material:

synthetic resin, aluminium (only w/ ISCG 05)

Mount:

ISCG 05, S3/E-type, high direct mount

Chain Guide Capacity:

30 T, 32 T, 34 T, 36 T, 38 T

Compatibility:

12-speed

Compatibility:

Crank:

• XTR FC-M9100-1, FC-M9120-1, FC-M9125-1 (ISCG 05 only), FC-M9130-1 (ISCG 05 only)
• XT FC-M8100-1, FC-M8120-1 (only ISCG 05), FC-M8130-1 (only ISCG 05)
• SLX FC-M7100-1, FC-M7120-1 (only ISCG 05), FC-M7130-1 (only ISCG 05)

Chainring:

• XTR SM-CRM95
• XT SM-CRM85
• SLX SM-CRM75

Chain:

• XTR CN-M9100
• XT CN-M8100
• SLX CN-M7100

Recommended Cassette Gradation:

• 10-45 T
• 10-51 T

Chainstay Angle:

• 63 - 75°

Features:

• for a stable drivetrain
• optimised plate design for new generation chains
• easy adjustment with screw
• lightweight

Models:

ISCG 05:

Mount:

ISCG 05

Chainline:

52 mm / 55 mm / 56.5 mm

Type:

SM-CD800-I

Manufacturer Number:

I-SMCD800I

S3/E-Type:

Mount:

E-Type, Low Direct Mount, S3, Direct Mount Low

Chainline:

52 mm

Type:

SM-CD800-E

Manufacturer Number:

I-SMCD800E

High Direct Mount:

Mount:

High Direct Mount

Chainline:

52 mm

Type:

SM-CD800-D

Manufacturer Number:

I-SMCD800D

Contents:

• 1 x Shimano SM-CD800 chain guide

• black/high direct mount: 28 g
• black/S3/E-Type: 25 g
