Shimano XT FC-M8000-2 11-speed Chainring

The Shimano XT 11-speed Chainring for the FC-M8000-2 crank

This Shimano chainring is a spare part for the XT FC-M8000 11-speed crank, also for the version with 3 mm further out chainline. It has four asymmetrical arms and a bolt circle diameter of 96 or 64 mm. The chainrings can be used for the 24-34, 26-36 and 28-38 2-speed combinations.

Specifications:

Application:

Cross Country, All Mountain

Mount:

96/64 mm bolt circle diameter, 4-arm asymmetrical

Teeth:

24 t, 26 t, 28 t, 34 t, 36 t, 38 t

Gearing:

2x11-speed

Technical Information:

Combinations:

24-34 t, 26-36 t, 28-38 t

Material:

aluminium (24 t to 28 t), aluminium/carbon (CFRP, 34 t to 38 t)

Compatibility:

• XT FC-M8000
• XT FC-M8000-B
• 24/26 t is also compatible with the FC-MT700(-B2)

Features:

• large chainring painted, small chainring plated

Models:

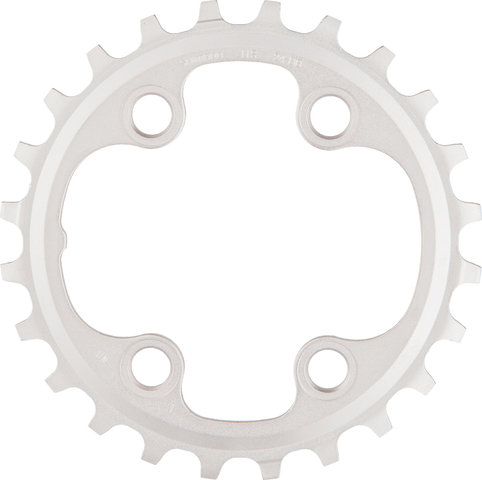

24 tooth:

Type:

BB

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1RL24000

26 tooth:

Type:

BC

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1RL26000

28 tooth:

Type:

BD

Bolt Circle Diameter:

64 mm

Manufacturer Number:

Y-1RL28000

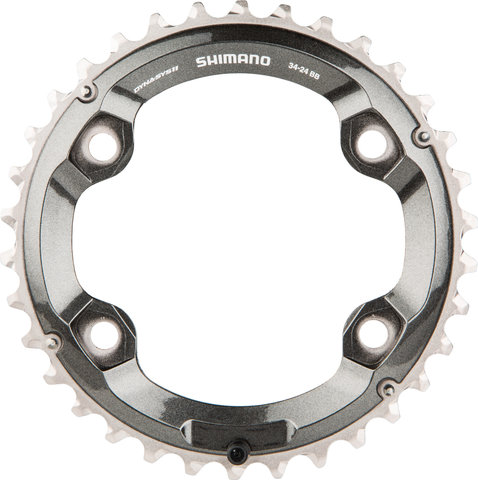

34 tooth:

Type:

BB

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1RL98070

36 tooth:

Type:

BC

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1RL98080

38 tooth:

Type:

BD

Bolt Circle Diameter:

96 mm

Manufacturer Number:

Y-1RL98090

Note to Type Designation:

The type designation (one or two characters) helps identify the compatibility of various chainrings with other chainrings. Because the larger chainrings have specially-formed teeth and upward shifting assistance, only particular smaller chainrings will match to ensure proper shifting performance. An XY chainring should only be combined with another XY chainring. This applies to all other types as well.

Contents:

• 1 x Shimano XT FC-M8000 chainring
