Shimano XT FC-M8000-B2 Hollowtech II Crankset

XT FC-M8000-B2 crankset by Shimano - chainline three millimetres further out

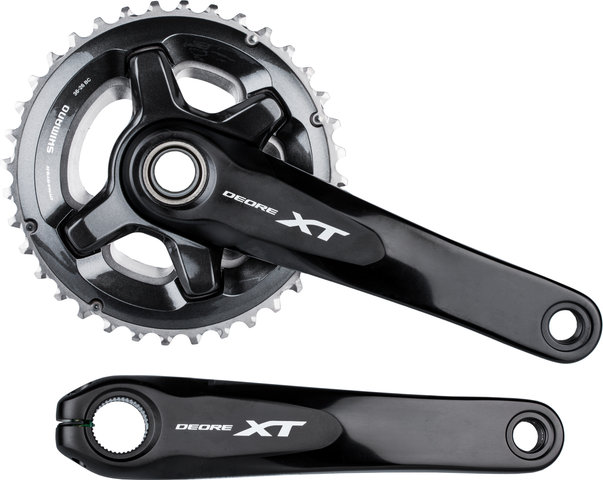

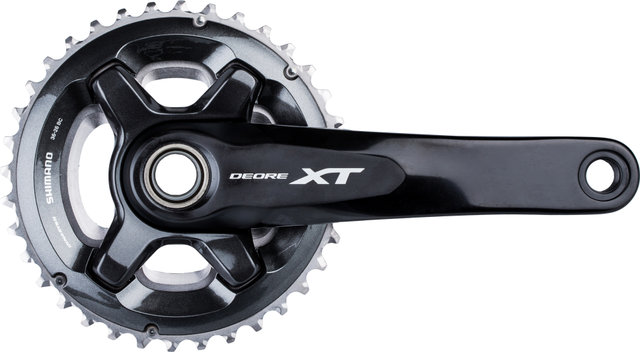

The Shimano XT FC-M8000-B2 crankset is a variant of the FC-M8000-2 with a chainline that is 3 mm further out. It can therefore only be used in frames with 148 mm rear over locknut dimension. The aluminium crank is equipped with two chainrings in 24-34 or 26-36 tooth increments. It has been optimally tuned with regard to gear ratio and even pedalling rhythm (Dyna-Sys11 technology), whereby the Hollowtech II design with fixed 24 mm axle, which has been tried and tested for many years, ensures a balanced ratio of stiffness and weight.

Note: A chainline 3 mm further out is intended only for hubs with 148 mm over locknut dimension. Shimano B cranks therefore require special frame dimensions with the corresponding cassette position and front derailleur mounting position. Such frames are only compatible with E-Type and Direct Mount derailleurs.

Specifications:

Application:

Cross Country, All Mountain

Compatibility:

Shimano 2x11-speed

Chainring Mount:

96/64 mm bolt circle diameter, 4-arm asymmetrical

Technical Information:

Series:

Deore XT M8000

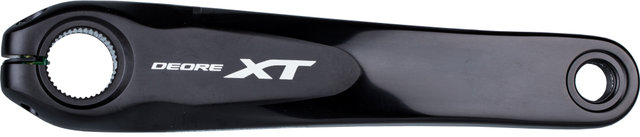

Crank Arm Material:

aluminium

Chainring Material:

aluminium-CF composite / aluminium

Axle Material:

steel

Gradation:

24-34, 26-36

Crank Arm Length:

170.0 mm, 175.0 mm, 180.0 mm

Chainline:

51.8 mm

Q-Factor:

176 mm

Axle Diameter:

24 mm

Compatible BSA Shell Width:

68 mm / 73 mm

Recommended Bottom Bracket:

BB-MT801 or BB-MT800-PA Press Fit Hollowtech II (not included)

Recommended Chain:

HG-X11 (e.g. CN-HG701-11)

Compatibility:

MTB 2x11-speed:
Rear Over Locknut Dimension:

• quick release: 141 mm
• thru-axle: 148 mm

Shifter:

SL-M9000, SL-M8000, SL-M7000-L, SL-M5100, SW-M9050, SW-M8050

Front Derailleur:

FD-M9020, FD-M9025, FD-M8020, FD-M8025, FD-M7020-11, FD-M7025-11, FD-M5100, FD-M9070, FD-M8070

Bottom Bracket:

SM-BB93, SM-BB80, BB-MT801, BB-MT800, SM-BB52, BB-MT501, BB-MT500, SM-BB94-41A, BB-MT800-PA, BB-MT500-PA

Chain:

CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500

Note:

With SM-CRM81 chainring also 1x rideable (chainline 53.4 mm)

Features:

• chainline 3 mm further out (2x11-speed)
• crank arms anodised, large chainring painted, small chainring plated
• aluminium and stainless steel chainring bolts

Technology:

Dyna-Sys11
Dyna-Sys11 is the name of the 11-speed shifting system for MTBs from Shimano. The focus lies on maintaining the pedalling rhythm both on flat ground and on uphill segments. The gear ratios are selected so that you make efficient progress in the most frequently used gear range and do not have to shift gears as much (" Rhythm Step" ).

Hollowtech II

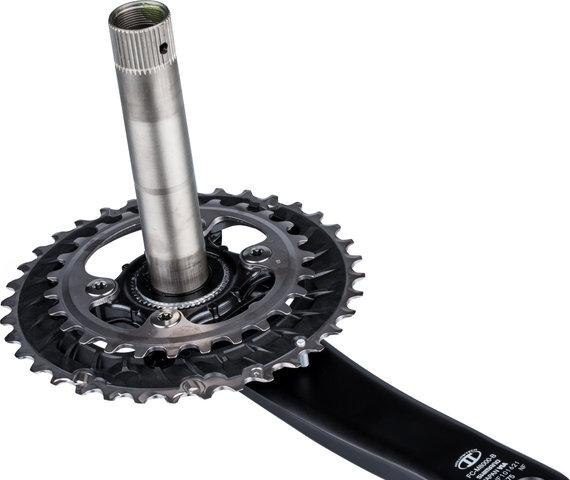

Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.

Manufacturer Numbers:

170.0 mm 24-34:

I-FCM8000BCX44

175.0 mm 24-34:

I-FCM8000BEX44

170.0 mm 26-36:

I-FCM8000BCX66

175.0 mm 26-36:

I-FCM8000BEX66

180.0 mm 26-36:

I-FCM8000BGX66

Contents:

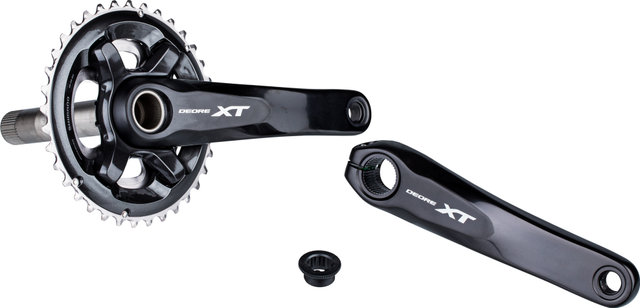

• 1 x Shimano XT FC-M8000-B2 crankset (24-34 or 26-36 tooth)
• 1 x Shimano crank bolt
