The XTR M9020 2x11 Trail Groupset by Shimano - Powerful

The Shimano XTR M9020 Trail 2x11 groupset offers top performance for performance-oriented enduro and all-mountain bikers. It includes a crank with two chainrings (24-34 T), an 11-speed cassette (11-40 T), two shifting grips (clamp or I-Spec II), Quick-Link chain, rear derailleur and front derailleur. Here you have the choice between Top Swing, Down Swing and Side Swing, between clamp, direct mount and E-type mounting. The M9020 stands for high-end technology that benefits from years of Shimano experience and has been perfected for the demands of modern MTB sport.

Specifications:

Series:

XTR M9000

Application:

All Mountain, Enduro

Shifters & Derailleurs:

2x, 11-speed (mechanical)

Components:

Crank:

175.0 mm (gradation 24-34)

Cassette:

11-40

Front Derailleur:
Top Swing, Down Pull, Low Clamp (clamp 34.9 mm, 28.6 mm/31.8 mm with adapter)
Down Swing, Dual Pull, High Clamp (clamp 34.9 mm, 28.6 mm/31.8 mm with adapter)
Top Swing, Down Pull, E-Type (bottom bracket or chainstay mounting)
Down Swing, Dual Pull, Direct Mount
Side Swing, Front Pull, Low Clamp (clamp 34.9 mm, 28.6 mm/31.8 mm with adapter)
Side Swing, Front Pull, High Clamp (clamp 34.9 mm, 28.6 mm/31.8 mm with adapter)
Side Swing, Front Pull, E-Type (bottom bracket or chainstay mounting)
Side Swing, Front Pull, Direct Mount

Rear Derailleur:

long cage (SGS)

Shift Levers:

clamp (closed), I-Spec II

Additional Components Needed:

The bottom bracket is not included. Shimano recommends SM-BB93 (BSA) or SM-BB94-41A Pressfit Hollowtech II.

Contents:

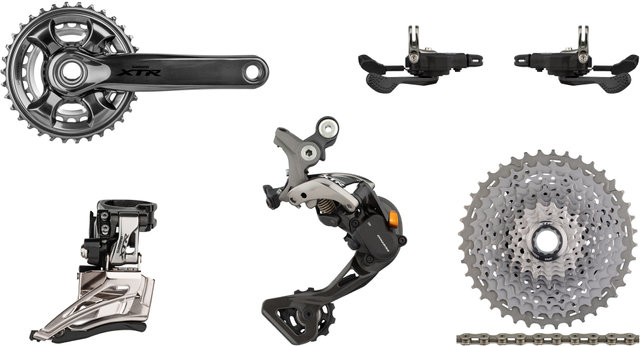

The Shimano XTR M9020 2x11 groupset includes:

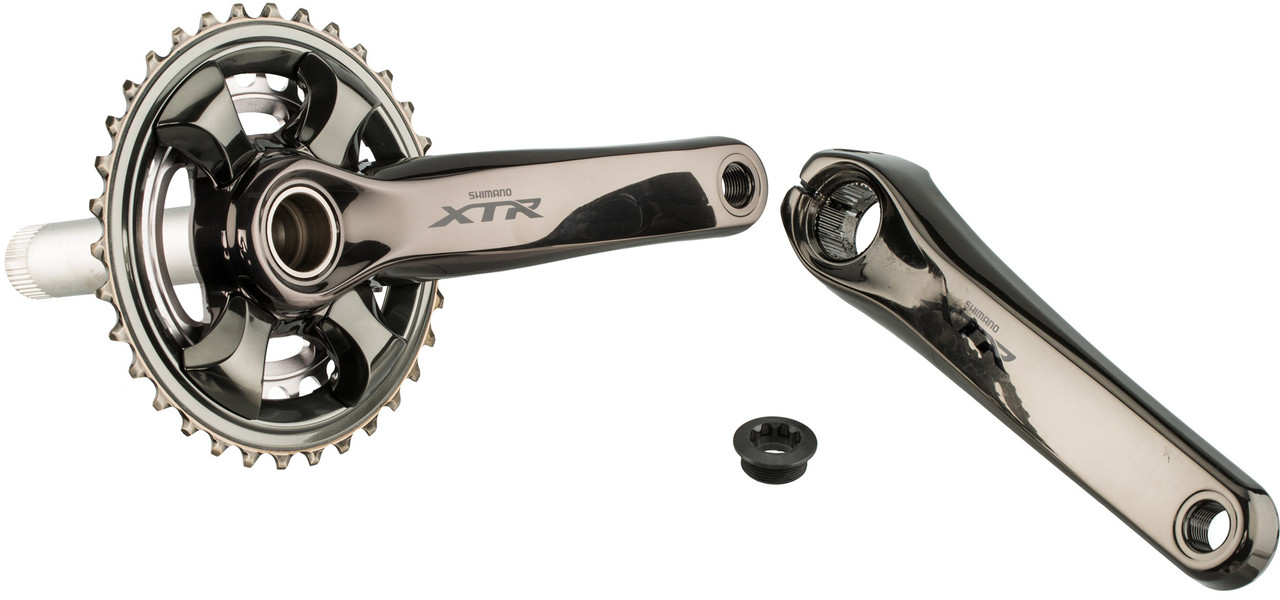

• 1 x Shimano XTR Trail crankset (FC-M9020-2)

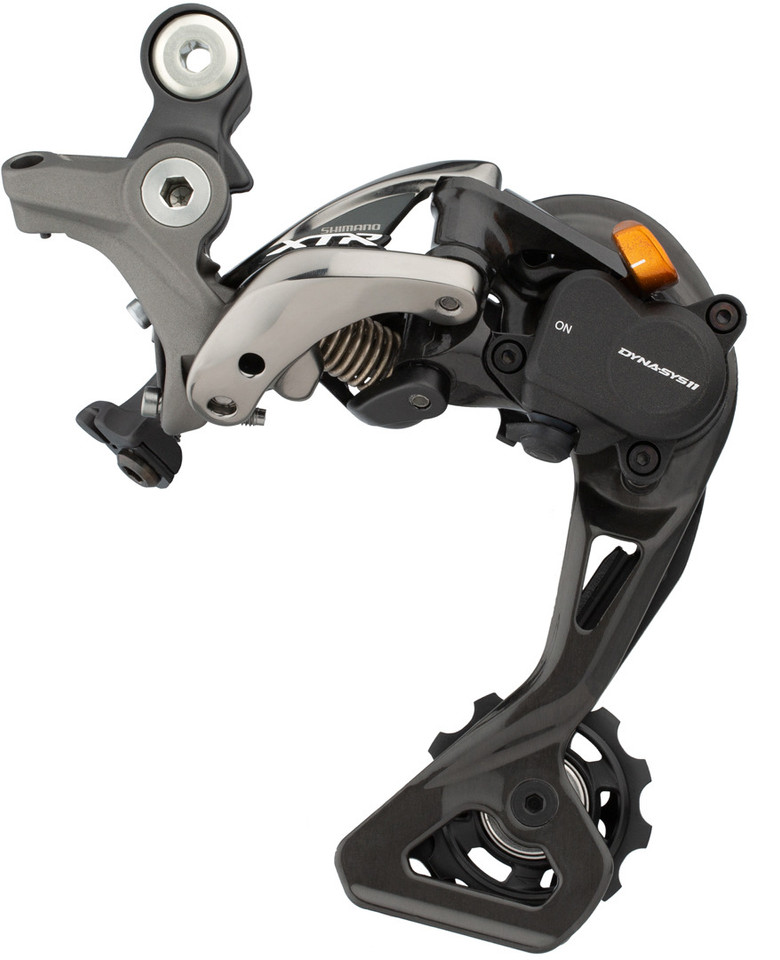

• 1 x Shimano XTR Shadow Plus rear derailleur (RD-M9000)

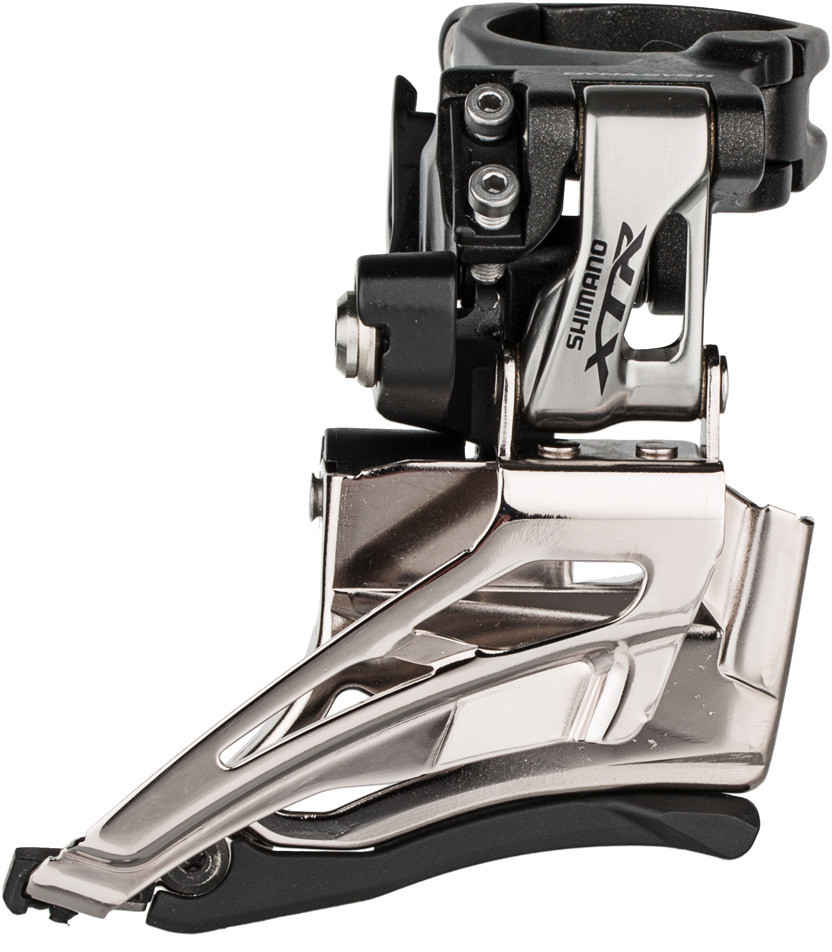

• 1 x Shimano XTR front derailleur (FD-M9020 or FD-M9025)

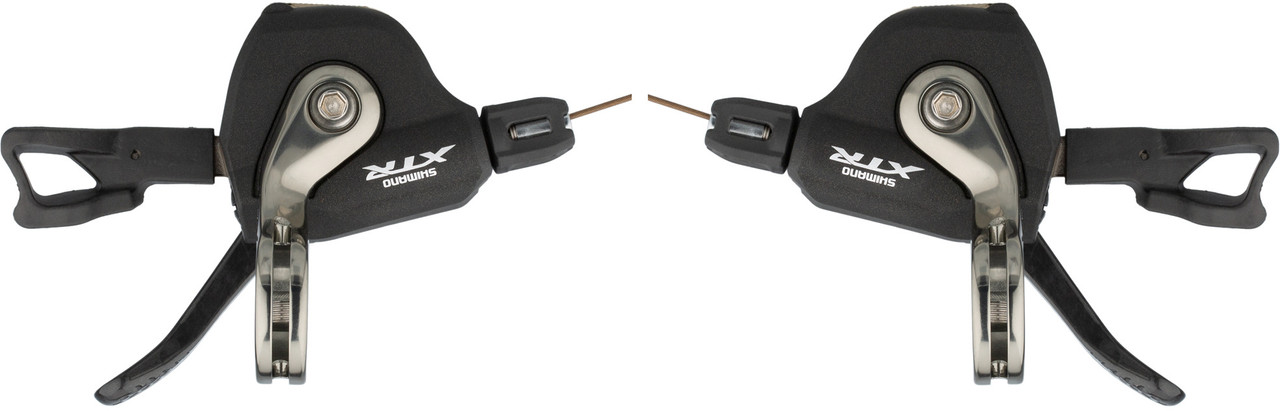

• 1 x pair Shimano XTR 2/3x11 shifters (SL-M9000 or SL-M9000-I)

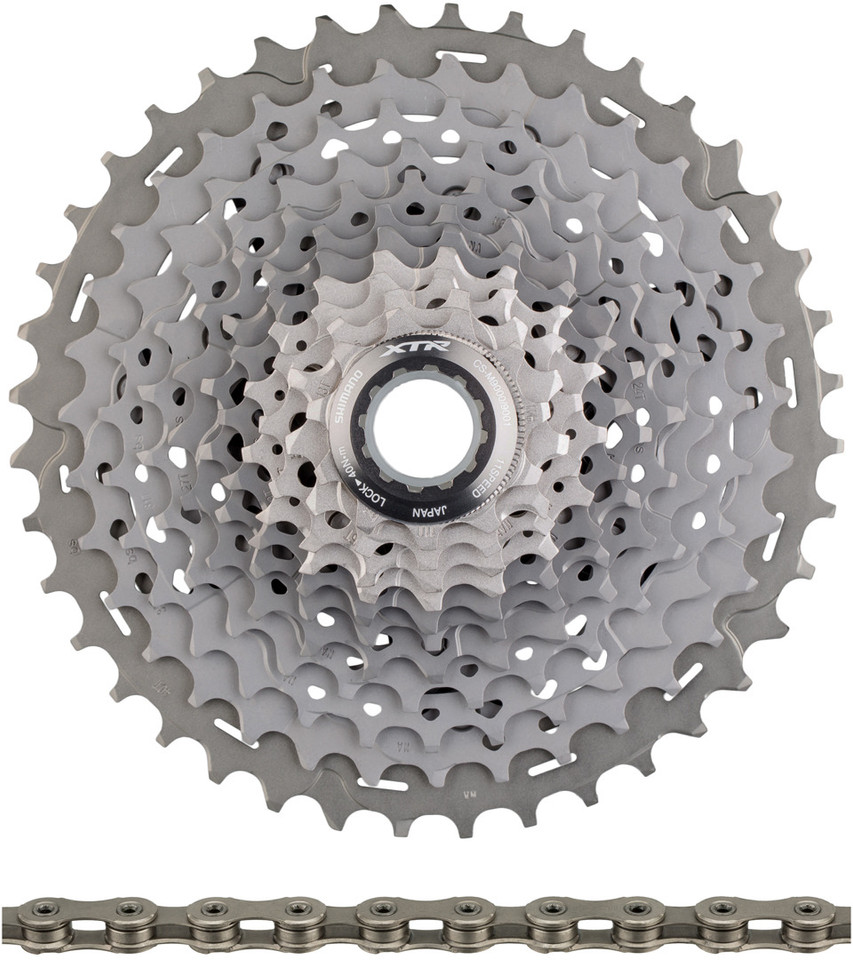

• 1 x Shimano XTR cassette (CS-M9001)
• 1 x Shimano XTR / Dura-Ace Quick-Link chain (CN-HG901-11)
• 1 x Shimano crank bolt
• 1 x front derailleur adapter, 28.6 mm (clamp only)
• 1 x front derailleur adapter, 31.8 mm (clamp only)
• 1 x Shimano cable, 1800 mm
• 1 x Shimano cable, 2050 mm
• 1 x Shimano 1200 mm cable housing
• 1 x Shimano 1800 mm cable housing
• 1 x Shimano aluminium cassette lockring
• 1 x Shimano SM-CN900-11 Quick-Link master link
