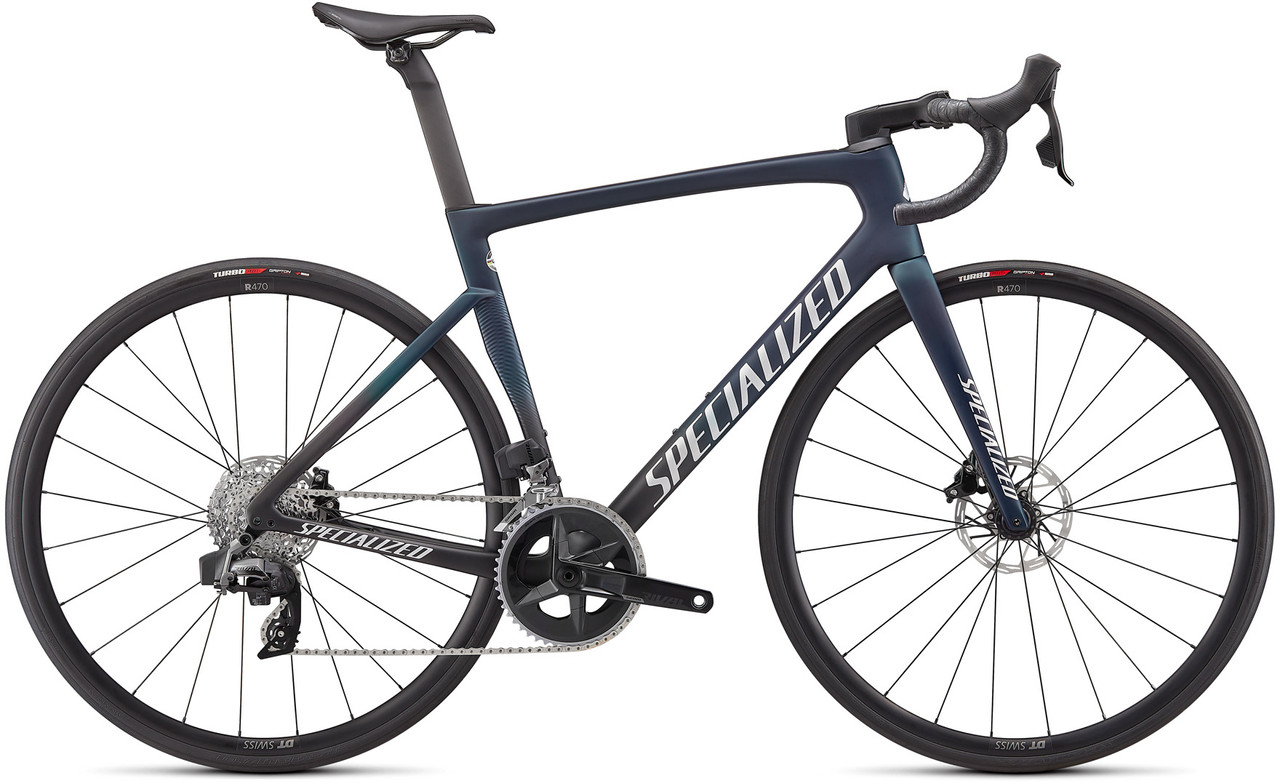

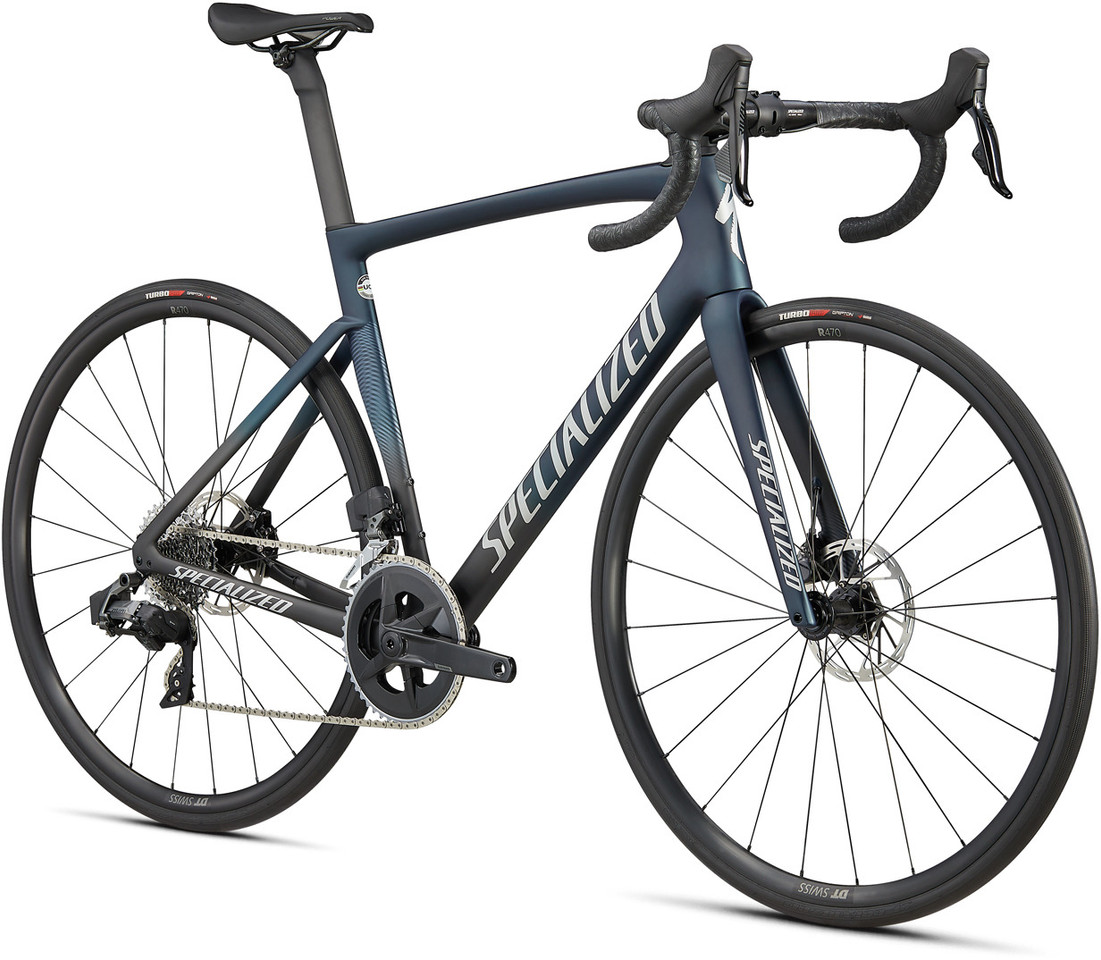

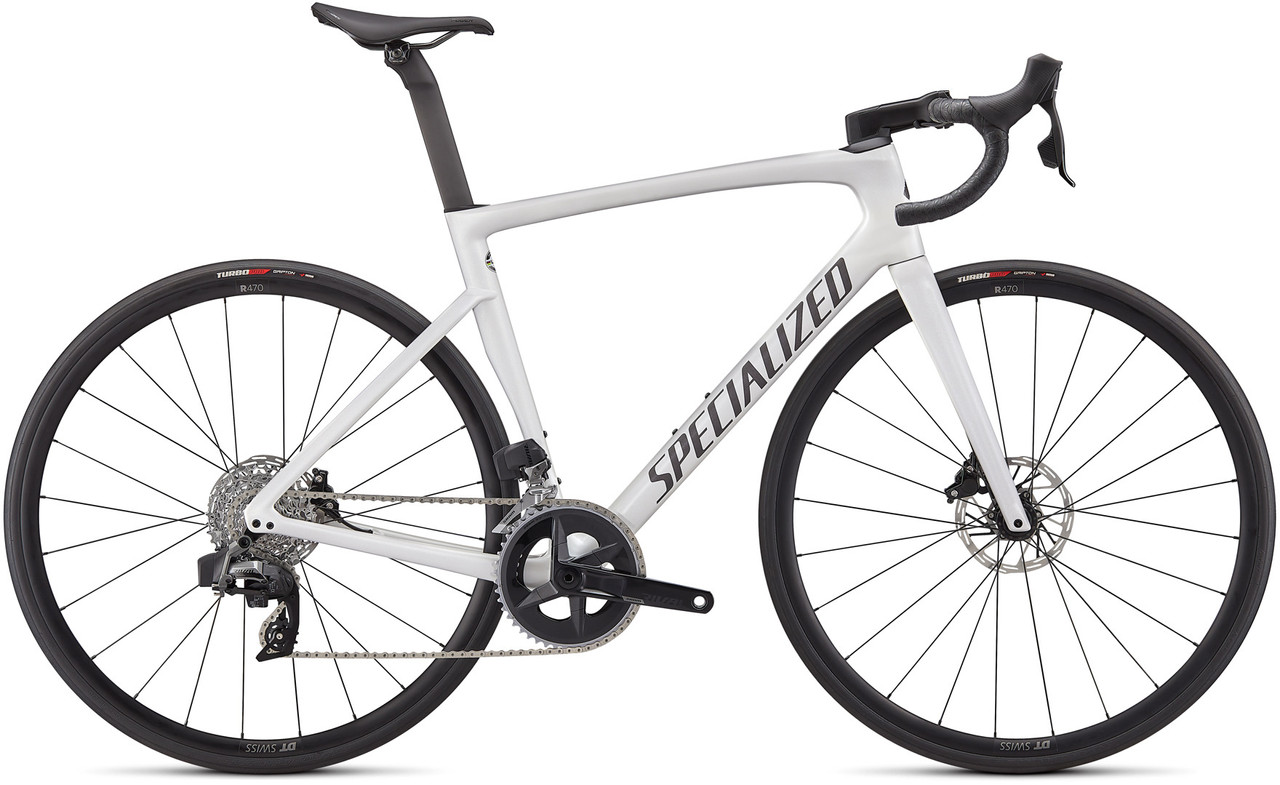

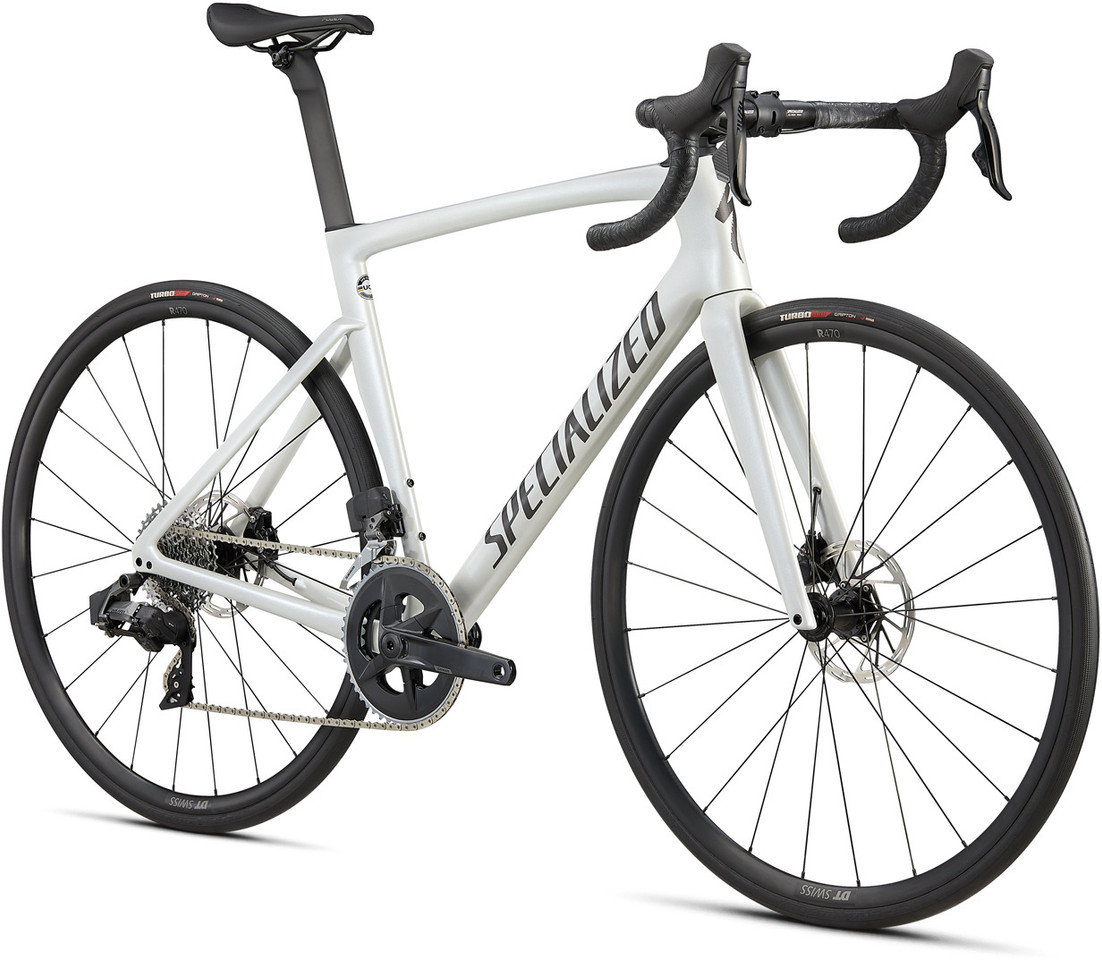

The Tarmac SL7 Comp Rival AXS Road Bike by Specialized - Reach your goals

The Specialized Tarmac SL7 Comp carbon road bike has been equipped with SRAM Rival eTap 2x12-speed electronic shifting and offers a perfect combination of aerodynamics and light weight. Wind tunnel tests, state-of-the-art analysis methods and feedback from professional riders helped to make this frame as fast and streamlined as possible. Still, it's so light that it comes close to the UCI weight limit. In keeping with the Specialized Rider First Engineered™ philosophy, attention was also paid to the optimal carbon layup for each individual frame size. The Tarmac SL7 Comp will push you toward achieving peak performance on your next ride or race.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Road

Wheel Size:

28"

Sizes:

44 cm, 49 cm, 52 cm, 54 cm, 56 cm, 58 cm, 61 cm

Frame Material:

carbon (10r)

Fork Material:

Carbon

Components:

Frame:

Specialized Tarmac SL7, FACT™ Carbon, Flat Mount Disc, 12 x 142 mm thru-axle

Fork:

Specialized Tarmac SL7, FACT carbon, Flat Mount Disc, 366 mm installation length, 12 x 100 mm thru-axle

Stem:

Specialized Tarmac integrated, 6°

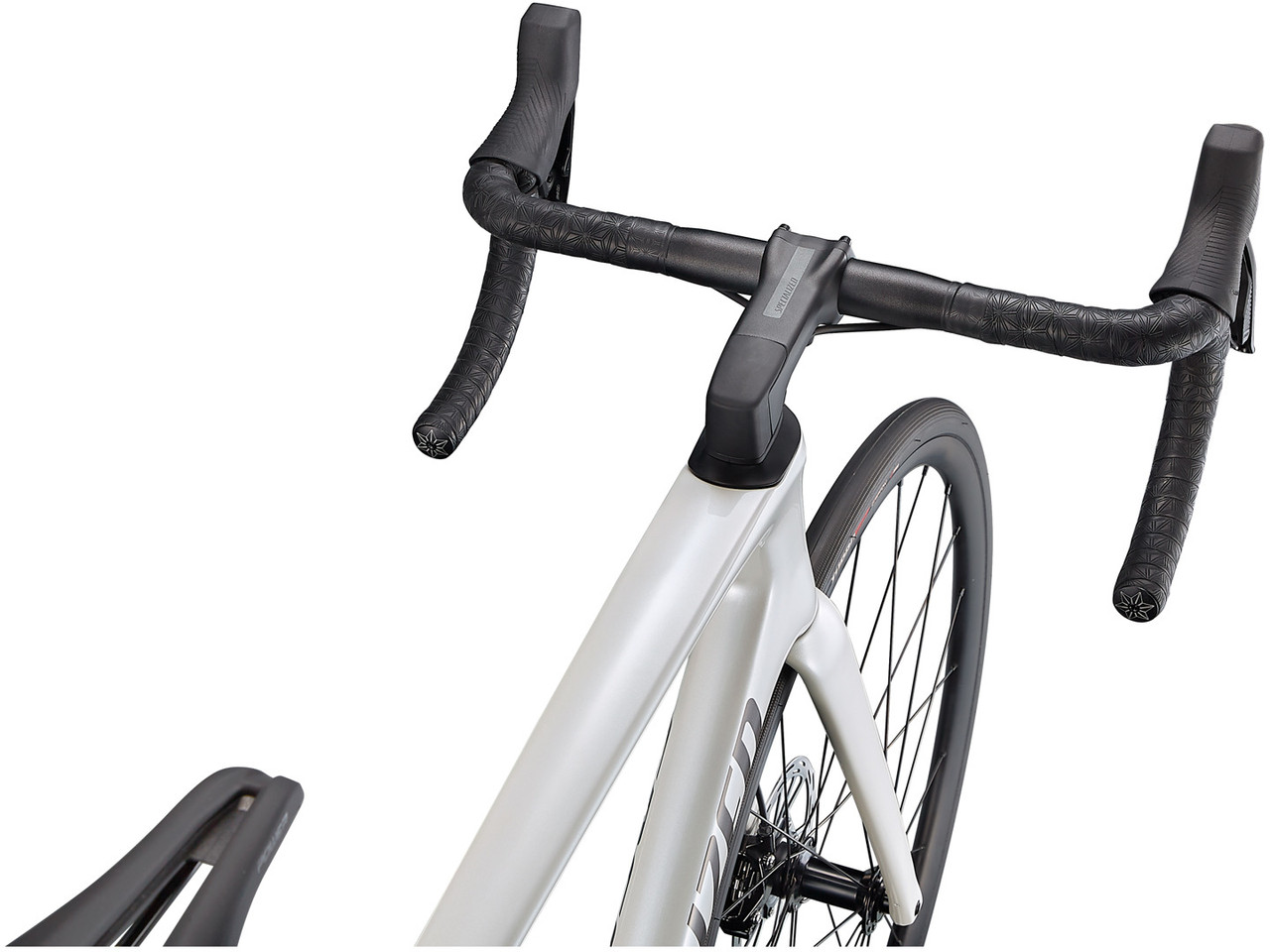

Handlebars:

Specialized Shallow Drop, aluminium 6061, 70 x 125 mm, 31.8 mm clamp

Seatpost:

Specialized 2021 S-Works Tarmac Carbon, FACT Carbon, 20 mm Setback

Saddle:

Specialized Body Geometry Power Comp

Crank:

SRAM Rival, 35-48 T, SRAM DUB BSA bottom bracket

Pedals:

none

Brakes:

SRAM Rival, hydraulic disc brake

Shift/Brake lever:

SRAM Rival eTap AXS

Rear Derailleur:

SRAM Rival eTap AXS, 12-speed

Front Derailleur:

SRAM Rival eTap AXS, braze-on

Cassette:

SRAM Rival XG-1250, 12-speed, 10-36 T

Chain:

SRAM Rival, 12-speed

Wheels:

DT Swiss R470, 20 mm jaw width, Tubeless Ready, 24 holes + Specialized Center Lock Disc thru-axle hubs, fully sealed, aluminium freehub + DT Swiss Champion 14 G stainless steel spokes + DT Swiss brass nipples

Tyres:

Specialized Turbo Pro folding tyre, 60 tpi, BlackBelt puncture protection, 700 x 26 mm

Approved For:

Weight Limit:

109 kg (rider + gear)

Rotor Size (max.):

160 mm

Tyre Size (max.):

32-622 (700x32c)

Chainrings:

2-speed

Features:

• developed based on the design of the Venge using the FreeFoil Shape Library, isotope FEA analysis, wind tunnel etc. for the best combination of aerodynamics and featherlight weight
• developed with feedback from professional riders on teams SD Worx, Deceuninck-Quick Step and Bora-Hansgrohe
• comfortable even on long journeys with perfect handling and racing speed
• unique layup plan for each frame size with different arrangements, alignments, and material quantities in certain areas
• easy integration for a clean and overall fast cockpit
• Supacaz Super Sticky Kush handlebar tape
• inner tubes with 48 mm Presta valve

Technology:

FACT™
FACT is an acronym for " Functional Advanced Composite Technology" and summarises all the know-how that Specialized has in the use of carbon fibre. It is a holistic approach, which primarily concerns the bike frames, but is found in many components such as handlebars, stems, saddles etc. The starting point is always the awareness for the needs of riders and the capability to fulfil them. Next, the selection of fibres, resins and fabric layers takes place; in this process the quality of the carbon and the arrangement of the fibre layers play an important role. It is important to find the right set-up for the project at hand and the intended location or rather the area of application. It is often necessary to differentiate from model to model at several points. In the final step, attention is paid to processing the material in a way that allows the desired advantages in terms of low weight, rigidity and stability to be achieved.

Rider-First Engineered™
Rider-First Engineered describes the design approach used by Specialized to precisely match each frame size to the target group. Simply put, smaller frames for smaller riders are built in a different way than larger frames for larger riders. This is done on the basis of performance parameters determined in practical tests, taking into account the forces acting on different areas of the bike when riders of different sizes ride it. Based on this analysis, the optimum tube dimensions and the appropriate carbon fibre covering for the respective frame size are determined. This way you can be sure that no matter what your height is, you will receive a bike that delivers optimal and controllable performance suited to your size.

Aerodynamic Expertise from Specialized
" Aero is everything" is not an empty slogan at Specialized. Their engineers rely on decades of experience in aero design, and use a variety of state-of-the-art methods in the developing top aero racing machines. Central to this is, of course, the wind tunnel (" Win Tunnel" ) at the company's headquarters in California, which is available around the clock. It is specially designed to meet the requirements of cyclists and typical situations in road cycling, such as team time trials or riding in a group. The development process always begins with the FreeFoil Shape Library, a collection of countless tube shapes and structures which helps engineers figure out the most interesting configurations for wind tunnel testing. But one does not always have to analyse actual objects. There is also Computational Fluid Dynamics (CFD), which uses computer simulations to experiment with aerodynamic properties. Specialized also makes use of the Data Acquisition System (DAQ), which collects data such as a rider's power, speed, riding position and wind angle of incidence during practical tests on the road or in the velodrome. In turn, conclusions can be drawn from all this information for use in bike fittings and fine tuning.

Geometry:

44 cm:

Recommended Height:

142 - 155 cm

Stack:

491 mm

Reach:

369 mm

Seat Tube Length:

435 mm

Top Tube Length:

496 mm

Head Tube Length:

93 mm

Chainstay Length:

410 mm

Wheelbase:

970 mm

Bottom Bracket Height:

266 mm

BB Drop:

74 mm

Seat Tube Angle:

75.5°

Head Tube Angle:

70.5°

Standover Height:

723 mm

Fork Offset:

47 mm

Trail:

71 mm

Stem Length:

70 mm

Handlebar Width:

38 cm

Crank Arm Length:

165.0 mm

Saddle width:

155 mm

Seatpost length:

300 mm

49 cm:

Recommended Height:

155 - 163 cm

Stack:

504 mm

Reach:

378 mm

Seat Tube Length:

447 mm

Top Tube Length:

509 mm

Head Tube Length:

102 mm

Chainstay Length:

410 mm

Wheelbase:

973 mm

Bottom Bracket Height:

266 mm

BB Drop:

74 mm

Seat Tube Angle:

75.5°

Head Tube Angle:

71.75°

Standover Height:

735 mm

Fork Offset:

47 mm

Trail:

63 mm

Stem Length:

80 mm

Handlebar Width:

38 cm

Crank Arm Length:

165.0 mm

Saddle width:

155 mm

Seatpost length:

300 mm

52 cm:

Recommended Height:

163 - 170 cm

Stack:

517 mm

Reach:

383 mm

Seat Tube Length:

458 mm

Top Tube Length:

531 mm

Head Tube Length:

113 mm

Chainstay Length:

410 mm

Wheelbase:

975 mm

Bottom Bracket Height:

266 mm

BB Drop:

74 mm

Seat Tube Angle:

74°

Head Tube Angle:

72.5°

Standover Height:

746 mm

Fork Offset:

47 mm

Trail:

58 mm

Stem Length:

90 mm

Handlebar Width:

40 cm

Crank Arm Length:

170.0 mm

Saddle width:

155 mm

Seatpost length:

300 mm

54 cm:

Recommended Height:

170 - 175 cm

Stack:

534 mm

Reach:

387 mm

Seat Tube Length:

475 mm

Top Tube Length:

541 mm

Head Tube Length:

131 mm

Chainstay Length:

410 mm

Wheelbase:

978 mm

Bottom Bracket Height:

268 mm

BB Drop:

72 mm

Seat Tube Angle:

74°

Head Tube Angle:

73°

Standover Height:

768 mm

Fork Offset:

44 mm

Trail:

58 mm

Stem Length:

100 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

Saddle width:

143 mm

Wheel Size:

28"

Seatpost length:

380 mm

56 cm:

Recommended Height:

175 - 180 cm

Stack:

555 mm

Reach:

398 mm

Seat Tube Length:

496 mm

Top Tube Length:

563 mm

Head Tube Length:

151 mm

Chainstay Length:

410 mm

Wheelbase:

991 mm

Bottom Bracket Height:

268 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

73.5°

Standover Height:

786 mm

Fork Offset:

44 mm

Trail:

55 mm

Stem Length:

100 mm

Handlebar Width:

42 cm

Crank Arm Length:

172.5 mm

Saddle width:

143 mm

Seatpost length:

380 mm

58 cm:

Recommended Height:

180 - 188 cm

Stack:

581 mm

Reach:

405 mm

Seat Tube Length:

517 mm

Top Tube Length:

577 mm

Head Tube Length:

178 mm

Chainstay Length:

410 mm

Wheelbase:

1006 mm

Bottom Bracket Height:

268 mm

BB Drop:

72 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

73.5°

Standover Height:

808 mm

Fork Offset:

44 mm

Trail:

55 mm

Stem Length:

110 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Saddle width:

143 mm

Seatpost length:

380 mm

61 cm:

Recommended Height:

188 - 196 cm

Stack:

602 mm

Reach:

411 mm

Seat Tube Length:

547 mm

Top Tube Length:

595 mm

Head Tube Length:

198 mm

Chainstay Length:

410 mm

Wheelbase:

1013 mm

Bottom Bracket Height:

268 mm

BB Drop:

72 mm

Seat Tube Angle:

73°

Head Tube Angle:

74°

Standover Height:

834 mm

Fork Offset:

44 mm

Trail:

52 mm

Stem Length:

110 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Saddle width:

143 mm

Seatpost length:

380 mm

Manufacturer Numbers:

gloss metallic white silver-smoke:

90622-51

satin teal tint-black-light silver:

90622-50

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Tarmac SL7 Comp SRAM Rival eTap AXS Disc Carbon Road Bike
