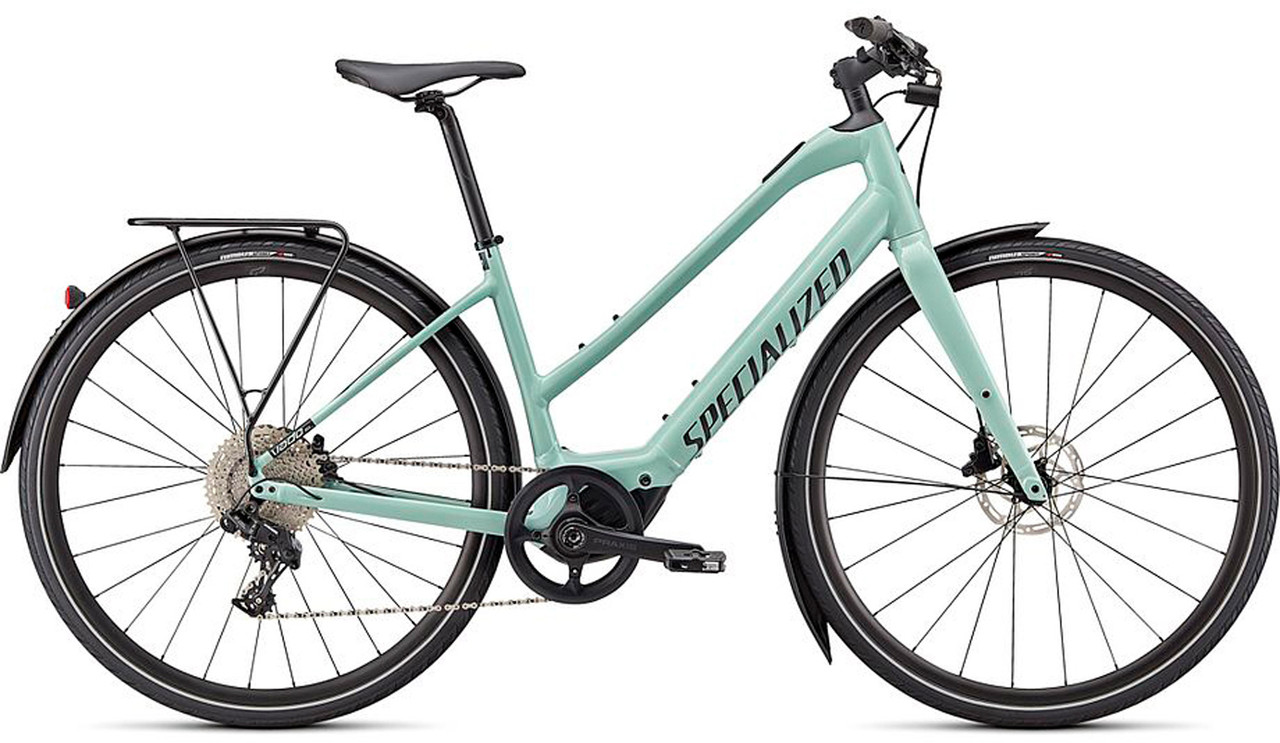

Specialized Turbo Vado SL 4.0 Step-Through EQ 28" - E-bike as an everyday hero

The Specialized Turbo Vado SL 4.0 Step-Through EQ is a fully equipped e-bike for commuters and urban riders that features a lowered top tube for easier climbing and descending. It was equipped with the super-light SL 1.1 engine and a 320 Wh battery, which provide a range of up to 130 kilometres. Front and rear lighting, pannier rack and fenders contribute to its suitability for everyday use, as do the robust 11-speed shifters from SRAM or the reliable Tektro disc brakes. With the Turbo Vado SL 4.0 you have a fast, efficient transfer and transport solution that also amazes with its low weight thanks to the lightweight frame and aluminium wheels. Tyres with extra puncture protection and reflective stripes round off the model.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

City

Wheel Size:

28"

Sizes:

S, M, L, XL

Frame Material:

aluminium (E5)

Fork Material:

aluminium

E-Motor:

Type:

mid-drive motor

Motor Type:

Specialized SL 1.1, 35 Nm (1.9 kg)

Pedal Assist (max.):

25 km/h

Power:

240 W

Battery Type:

Specialized SL1-320, fully integrated, 48 V*

Capacity:

320 Wh

Display:

Specialized TCU, 10-LED battery status, 3-LED riding mode, ANT+ / Bluetooth, with handlebar remote

* The battery is located in the down tube and is charged directly there, which is why a bicycle parking space with an electrical socket is advantageous. Removal is possible, but requires tools or a workshop and possibly in-depth technical knowledge.

Components:

Frame:

Specialized Turbo Vado SL, 12 x 148 mm

Fork:

Aluminium Disc rigid fork, 390 mm installation length, 50 mm Offset, 12 x 110 mm

Stem:

Specialized Stealth Aluminium, 14°, 31.8 mm, integrated TCD mount

Handlebars:

Specialized aluminium, 9° backsweep, 15 mm rise, 31.8 mm

Headset:

Specialized S202500002, 1 1/8" top (45.8 x 36.8 x 6.5 mm x 45°), 1.5" bottom (52 x 40 x 7 mm x 45°)

Seatpost:

Specialized, 27.2 mm, aluminium, 2-speed screw clamp, 25 mm setback, 350 mm

Saddle:

Specialized Bridge Sport, hollow steel rails

Crank:

Praxis Works M30 Custom Offset, forged aluminium, Praxis Works 44 T chainring, 110 BCD

Pedals:

Specialized Commuter with grip tape and reflectors

Brakes/Brake Levers:

Tektro HD-R290, hydraulic disc brake, 160 mm/160 mm

Shift Lever:

SRAM NX, 11-speed, multi-shift

Rear Derailleur:

SRAM NX 11-speed

Cassette:

SunRace CSMS7, 11-speed, 11-42 tooth

Chain:

KMC X11eT, 11-speed

Fenders:

Specialized DryTech, aluminium

Front Light:

Lezyne E-Bike Hecto STVZO E65, 210 lumen, 12 V

Rear Light:

Lezyne E-Bike rear wheel mudguard STVZO, 11 lumen, 12 V

Bell:

Simple Bell

Kickstand:

Specialized kickstand, 40 mm mounting

Rims:

700C Disc, 21 mm jaw width, 22 mm rim depth

Spokes:

DT Swiss Industry

Front Hub:

Specialized Aluminium Disc, sealed industrial bearings, Center Lock, 12 x 110 mm, 24 holes

Rear Hub:

Specialized Aluminium Disc, sealed industrial bearings, Center Lock, 12 x 148 mm, 28 holes

Tyres:

Nimbus II Sport Reflect, 700 x 38 mm

Approved For:

Weight Limit:

136 kg (rider + gear)

Chainrings:

1x

Features:

• step-through frame construction for easier mounting and dismounting
• doubles your pedal power with up to 240 watts of assistance
• capacity is expandable to 480 Wh with a Range Extender (not included in the delivery), for 190 km range
• high-quality, lightweight E5 aluminium frame
• Specialized Turbo SL rack, Racktime-compatible, 15 kg load capacity
• high-quality hydraulic disc brakes for maximum braking power
• bright integrated front and rear lighting
• protective plates against water and dirt splashes
• 11-speed SRAM NX shifting for reliable performance
• durable, lightweight aluminium wheels with fast-rolling, grippy Nimbus tyres with BlackBelt puncture protection and reflective strips
• Specialized Body Geometry Women's Contour Handlebar Grips
• tubes with 40 mm SV/Presta valve, 700x32-50
• internal cable routing
• reflective details
• Mission Control 2.0 App is available on the App Store or Google Play Store
• Turbo Control Display (TCD) bicycle computer for mounting on the stem is available as an optional accessory

Technology:

E-Bikes by Specialized
Specialized e-bikes are designed in California and developed with Swiss technology. They take the " It's you, only faster" approach, which means that you have the impression of riding a " normal" bike without motor assistance, but with at least twice as much power. Specialized e-bikes are characterised by a particularly quiet, smooth running electric drive. Due to two special freehub bodies, the crankset and motor shaft are decoupled from each other in such a way that no additional pedalling resistance occurs when the motor is switched off (at speeds above 25 km/h). The battery of Specialized electric bikes is aesthetically and well protected integrated in the down tube. An innovative Battery Management System (BMS) is used to maximise battery life and protect the cell structure. The bike communicates with the rider via the Turbo Connect Unit (TCU), which connects via Bluetooth and ANT+ to a Turbo Connect display, third-party devices and/or the Specialized Mission Control app. This offers additional options such as route planning, route recording or automatic capacity management.

Geometry:

S:

Recommended Height:

158 - 165 cm

Stack:

542 mm

Reach:

397 mm

Seat Tube Length:

405 mm

Effective Top Tube Length:

558 mm

Head Tube Length:

130 mm

Chainstay Length:

445 mm

Wheelbase:

1062 mm

Bottom Bracket Height:

291 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70°

Standover Height:

616 mm

Stem Length:

60 mm

Handlebar Width:

680 mm

Crank Arm Length:

170 mm

M:

Recommended Height:

165 - 178 cm

Stack:

574 mm

Reach:

419 mm

Seat Tube Length:

431.5 mm

Effective Top Tube Length:

587 mm

Head Tube Length:

161.5 mm

Chainstay Length:

445 mm

Wheelbase:

1091 mm

Bottom Bracket Height:

291 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

631 mm

Stem Length:

75 mm

Handlebar Width:

680 mm

Crank Arm Length:

172.5 mm

L:

Recommended Height:

178 - 185 cm

Stack:

607 mm

Reach:

433 mm

Seat Tube Length:

469.5 mm

Effective Top Tube Length:

610 mm

Head Tube Length:

194.5 mm

Chainstay Length:

445 mm

Wheelbase:

1110 mm

Bottom Bracket Height:

291 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71°

Standover Height:

655 mm

Stem Length:

75 mm

Handlebar Width:

680 mm

Crank Arm Length:

172.5 mm

XL:

Recommended Height:

185 - 193 cm

Stack:

643 mm

Reach:

442 mm

Seat Tube Length:

510 mm

Effective Top Tube Length:

630 mm

Head Tube Length:

230 mm

Chainstay Length:

445 mm

Wheelbase:

1126 mm

Bottom Bracket Height:

291 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

71.5°

Standover Height:

688 mm

Stem Length:

90 mm

Handlebar Width:

680 mm

Crank Arm Length:

175.0 mm

Manufacturer Number:

93921-520

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Specialized Turbo Vado SL 4.0 Step-Through EQ E-Touring Bike
• 1 x 48 V charger
