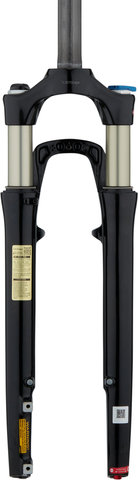

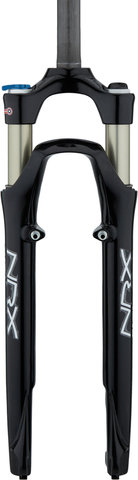

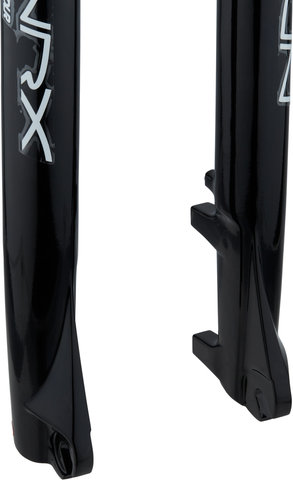

Suntour NRX-E SF13 LO R Lite 700c 1 1/8" Canti/Disc Suspension Fork

Is comfort an important aspect for you on bike tours or rides to work? Then the NRX, with its 63 mm suspension travel, will bring you comfortably to your destination.

Specifications:

Application:

City & Touring

Wheel Size:

28"

Suspension Type:

air

Travel:

63 mm

Steerer Tube:

1 1/8"

Axle Type:

quick release (9 x 100 mm)

Brake Mount:

disc PM6 (direct mount 160 mm), cantilever

Technical Information:

Steerer Tube Length:

255 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

30 mm

Axle to Crown:

480 mm

Over Locknut Dimension:

100 mm

Stanchion Tube Diameter:

30 mm

Steerer Tube Material:

steel (CrMo)

Crown Material:

aluminium

Stanchion Tube Material:

aluminium (6061)

Lower Tube Material:

magnesium monocoque

Approved For:

Tyre Size (max.):

28 x 2.0"

Rotor Size (max.):

180 mm

Adjustment Options:

Compression:

low-speed (Lockout)

Rebound:

yes

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Technology:

• R = rebound adjust
• LO = speed lockout

Models:

63 mm / 1 1/8" / 9 x 100 mm:

• Suspension Travel: 63 mm
• Steerer Tube: 1 1/8"
• Brake Mount: disc PM6 (direct mount 160 mm), cantilever
• Axle Type: quick release (9 x 100 mm)
• Manufacturer Number: SF13 NRX E LO-R lite " P"

Contents:

• 1 x SR SUNTOUR NRX SF13 LO R Lite suspension fork
