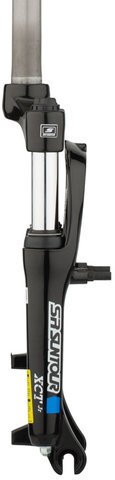

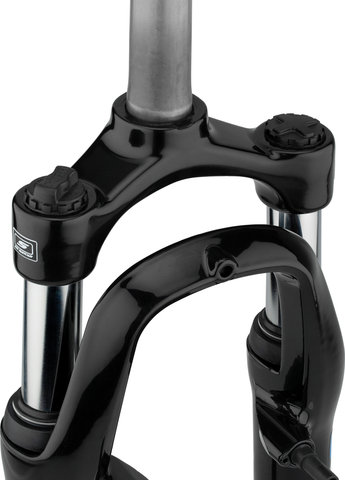

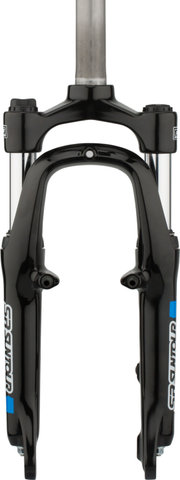

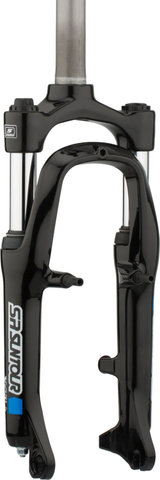

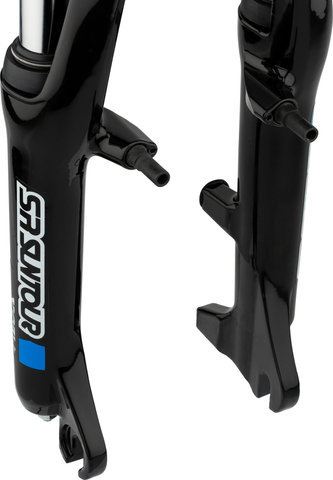

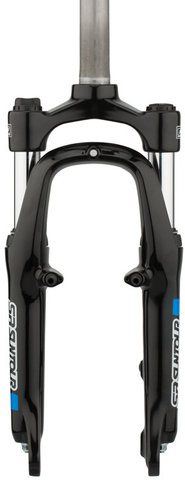

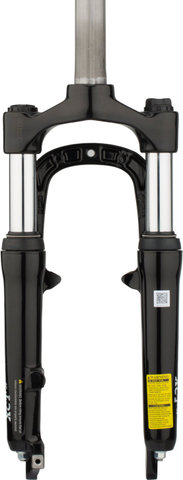

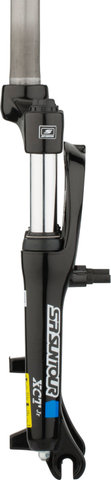

Suntour XCT JR 20" Suspension Fork

Even the little ones can now easily get over hill and dale.

Specifications:

Application:

Cross Country

Wheel Size:

20"

Suspension Type:

steel coil

Travel:

40 mm

Steerer Tube:

1 1/8"

Axle Type:

quick release (9 x 100 mm)

Brake Mount:

disc PM6 (direct mount 160 mm), rim brake

Technical Information:

Offset:

40 mm

Steerer Tube Length:

255 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

30 mm

Axle to Crown:

351 mm

Over Locknut Dimension:

100 mm

Stanchion Tube Diameter:

25 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium (AC4C)

Stanchion Tube Material:

steel (STKM)

Lower Tube Material:

aluminium

Approved For:

Rotor Size (max.):

160 mm

Adjustment Options:

Compression:

no

Rebound:

yes

Suspension Stiffness:

steel coil adjust

Remote:

no

Travel Adjustment:

no

Models:

40 mm / 1 1/8" / 9 x 100 mm:

• Suspension Travel: 40 mm
• Steerer Tube: 1 1/8"
• Brake Mount: disc PM6 (direct mount 160 mm), rim brake
• Axle Type: quick release (9 x 100 mm)
• Manufacturer Number: AHEAD255BKPIVDISC

Contents:

• 1 x SR SUNTOUR XCT JR 20 suspension fork
• not incl. quick releases

• black/40 mm/40 mm/1 1/8"/20"/100 mm/12 mm Thru Axle: 1940 g
