TRP Disc Brake Adapter for 180 mm Rotors

The disc brake adapter from TRP for a brake rotor with 180 mm diameter

With the TRP disc brake adapter, you can mount the brake caliper on your bike to fit a 180 mm brake rotor. Please note the mounting standards of your components.

Technical Information:

Adapter Material:

aluminium

Rotor Size:

180 mm

Models:

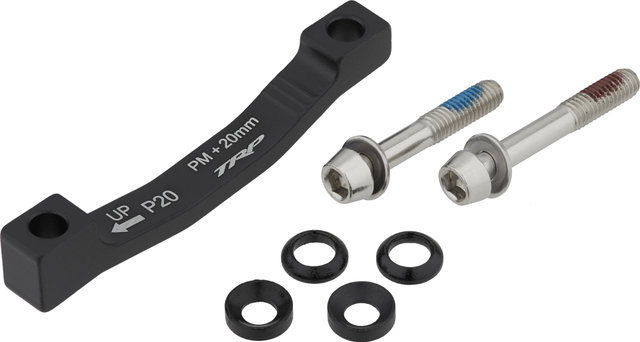

PM 6" to PM +20 mm:

Manufacturer Designation:

P20

Frame Mount:

post mount 6"

Fork Mount:

post mount 6"

Caliper Mount:

post mount

Increased Height:

20 mm

Manufacturer Number:

ABAD000143

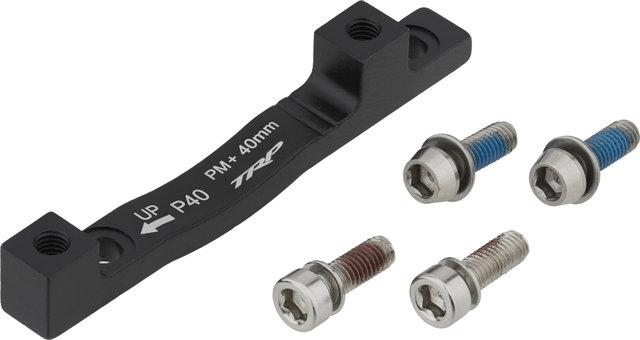

PM 5" to PM +40 mm:

Manufacturer Designation:

P40

Frame Mount:

post mount 5"

Fork Mount:

post mount 5"

Caliper Mount:

post mount

Increased Height:

40 mm

Manufacturer Number:

ABAD000145

Contents:

• 1 x TRP disc brake adapter
• 2 x bolts (for PM 6" to PM +20 mm)
• 4 x washers concave / convex (for PM 6" to PM +20 mm)
• 4 x bolts (for PM 5" to PM +40 mm)
