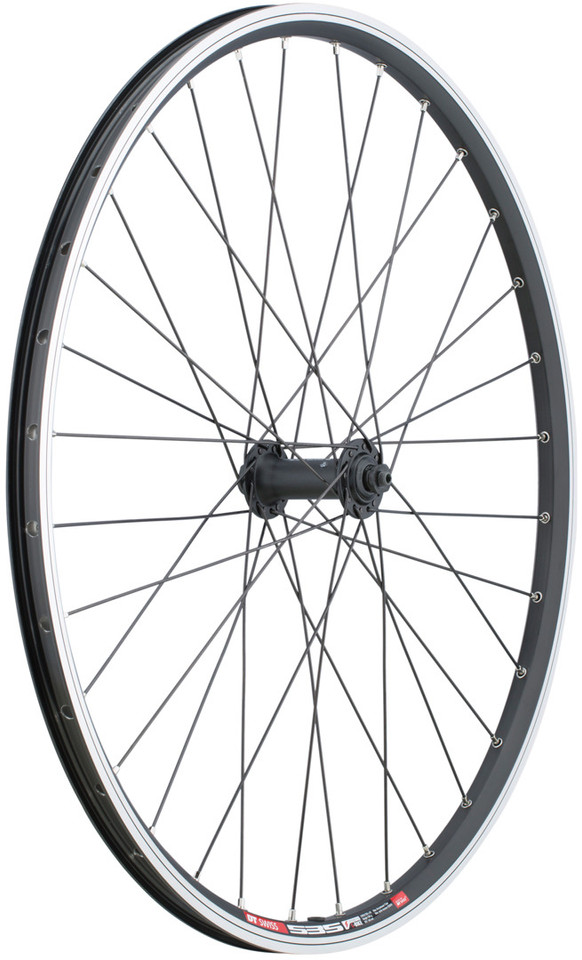

bc basic 26" wheel with DT Swiss 535 rim, Shimano Deore T610 hub and DT Swiss Competition spokes

Specifications:

Application:

City & Touring

Wheel Size:

26"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

rim brake

Tubeless System:

none

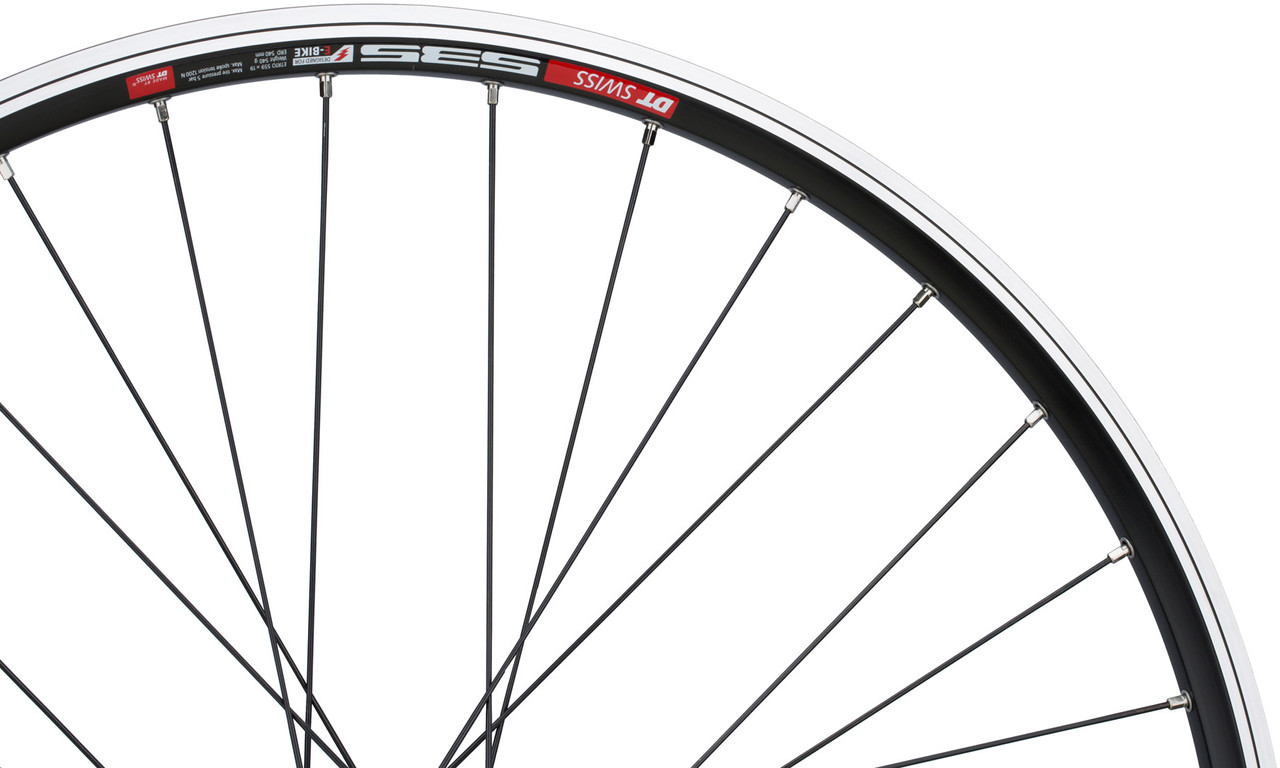

Technical Information - Rim:

Type:

DT Swiss 535

Rim Flange:

with hook

Dimensions (ETRTO):

19-559

Inner Width:

19 mm

Outer Width:

24 mm

Depth:

20 mm

ERD:

540 mm (nipple slot)

Valve Hole Diameter:

Schrader/Dunlop (8.5 mm), incl. Presta reducer

Rim Material:

aluminium

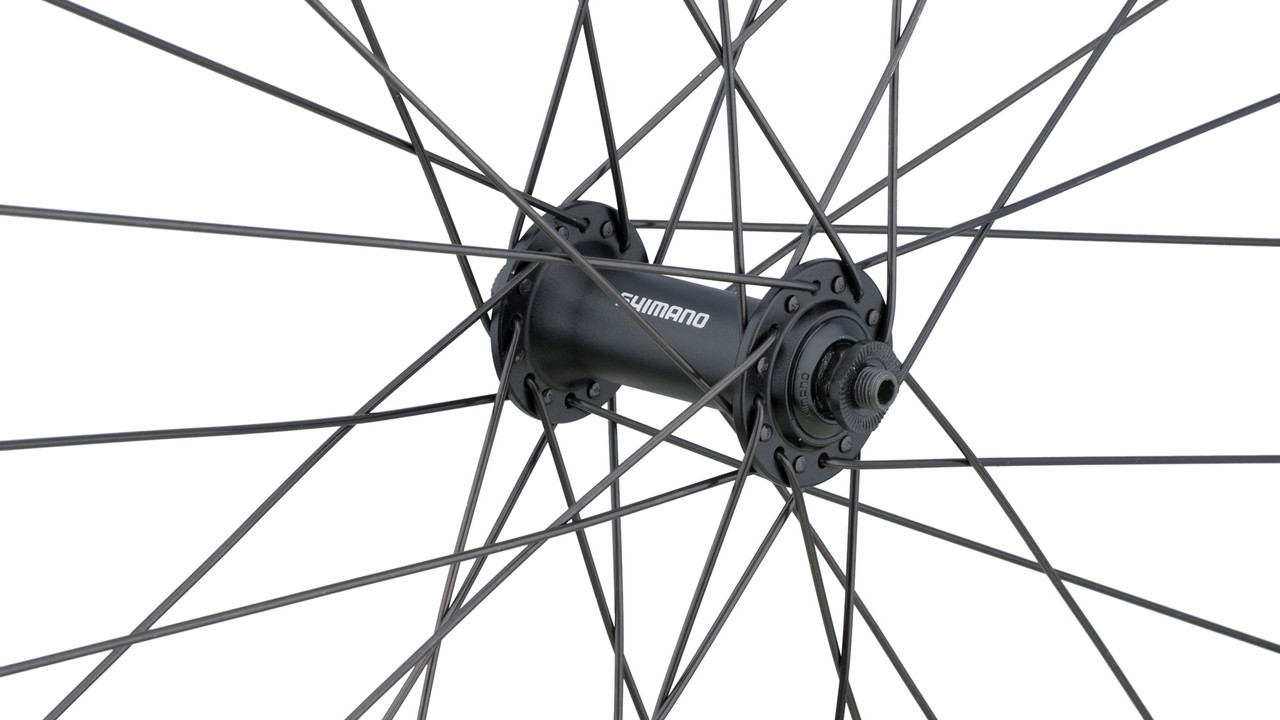

Technical Information - Front Hub:

Type:

Shimano Deore HB-T610

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

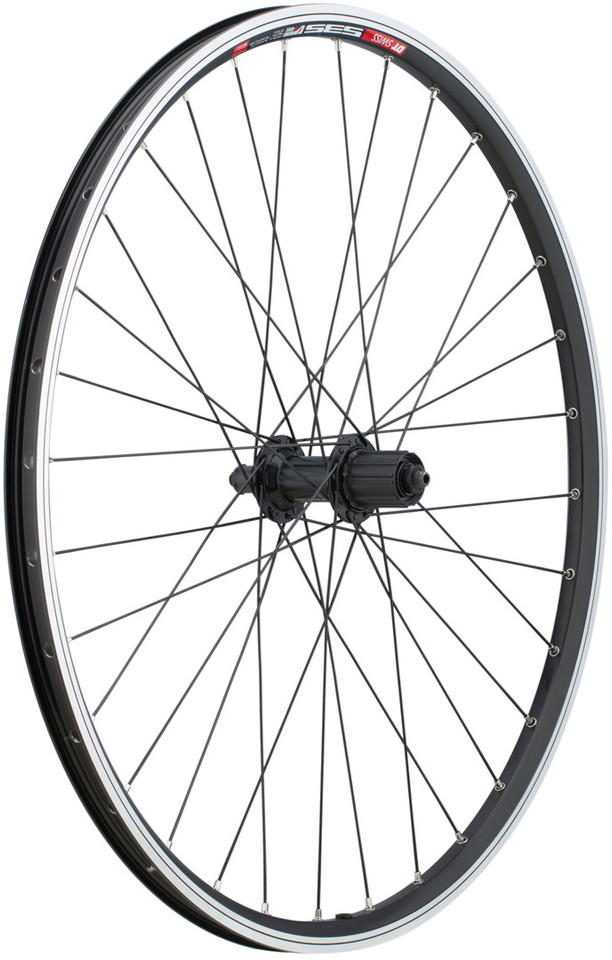

Technical Information - Rear Hub:

Type:

Shimano Deore FH-T610

Over Locknut Dimension:

10 x 135 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Competition / double butted (2.0-1.8-2.0)

Spoke Size:

264 mm (front), 264 mm/262 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

DT Swiss

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

140 kg system weight (rider + bike + gear)

Features:

• pin joint rim
• single eyelets
• 1200 N maximum spoke tension
• anodised hub shell
• steel axles
• labyrinth and contact hub seals
• double butted technology

Colour Index:

black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

Models:

26" front 9x100:

Manufacturer Number:

70925-2-10052

26" rear 10x135 Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

70925-2-10053

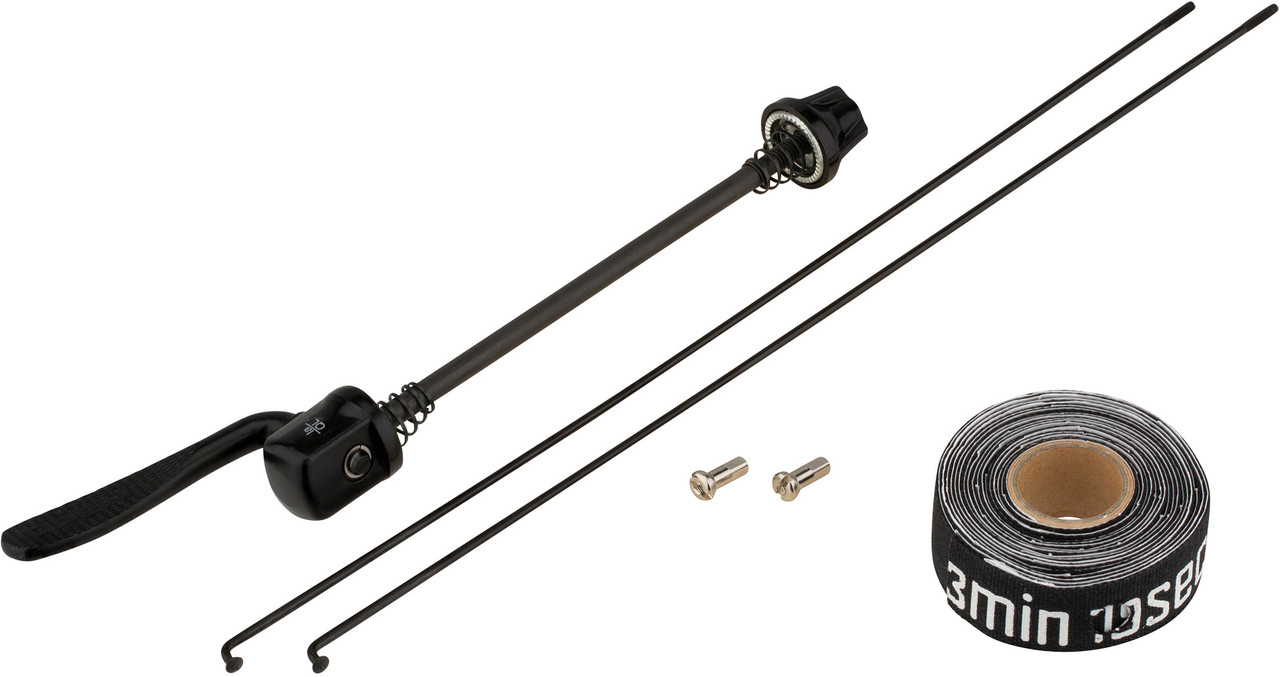

Contents:

• 1 x bc basic DT Swiss 535 + Shimano Deore T610 wheel (front or rear, laced and trued)
• 1 x Shimano quick release
• 1 x roll of rim tape
• 2 x spare spokes with nipples
