bc basic Mountain Deore Center Lock Disc DT Swiss 533D 29" Wheel
Item number: 83688
- 100 day return period
- Online since 1998
- Trusted Shop 4.91 / 5.00

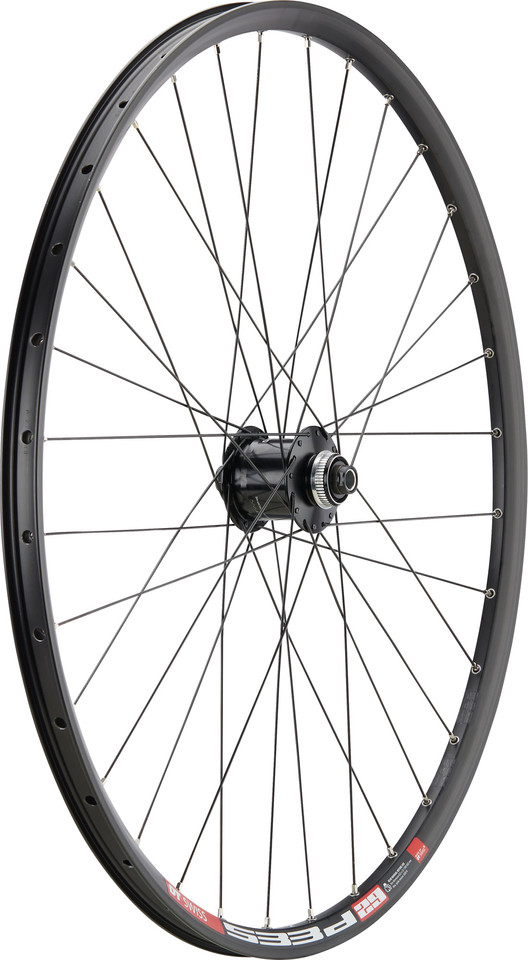

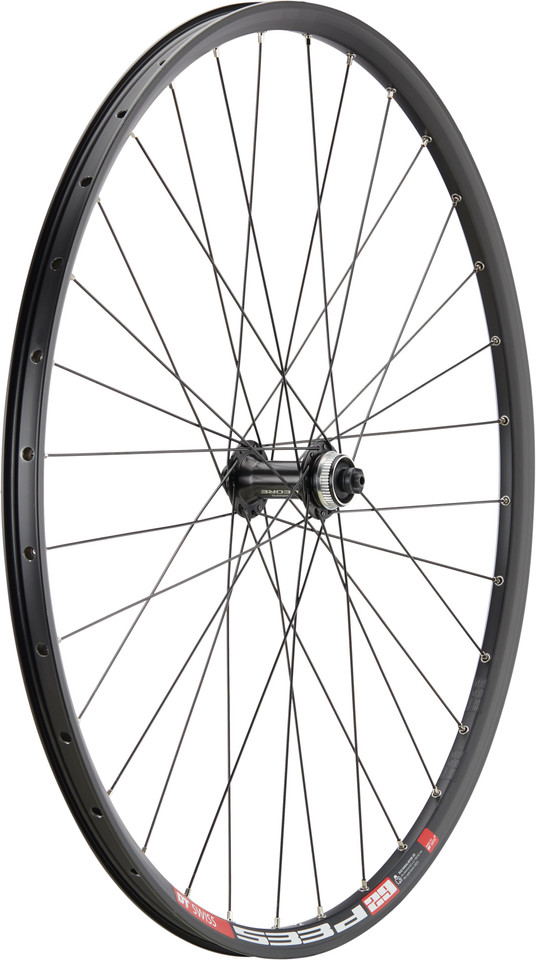

The bc basic Mountain Wheel in 29" with DT 533 Disc Rim and Shimano Deore Hub
This bc basic 29" wheel for all-mountain and enduro use has Shimano Center Lock Disc quick release or thru-axle hubs with standard over locknut dimensions of 100 and 135 or 142 mm. They ensure reliable function at the Deore level. You can choose between different hub dynamo options for the front wheel. The rear wheel is available with a Micro-Spline freehub body for MTB 12-speed cassettes as well as with a conventional Shimano freehub. The aluminium rim is the model 533D from DT Swiss with 22 mm jaw width. It stands out for its durability and is suitable for even the most demanding trails. Tubeless installation is possible. The whole thing was spoked with round DT Factory spokes.
Information regarding the return of batteries and electrical equipment:
Information on the return and disposal of used batteries and electrical equipment can be found here.
Specifications:
Application: All Mountain, Enduro
Wheel Size: 29"
Tyre Type: clincher tyre
Number of Spokes: 32
Brake Type: Center Lock Disc
Tubeless System: Tubeless Ready
Technical Information - Rim:

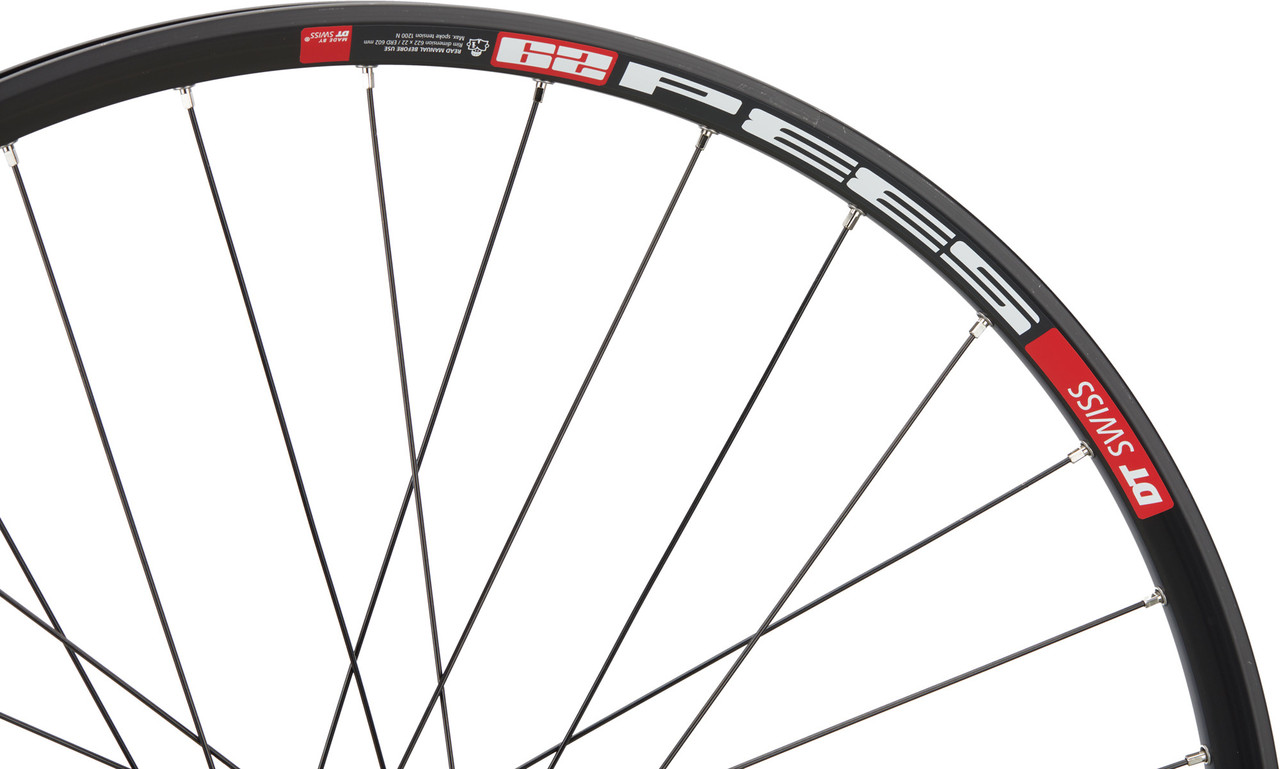

Type: DT Swiss 533D
Rim Flange: with hook
Dimensions (ETRTO): 22-622
Inner Width: 22 mm
Outer Width: 28 mm
Depth: 20.5 mm
ERD: 602 mm (nipple slot)
Valve Hole Diameter: SV / Presta (6.5 mm)
Rim Material: Aluminium

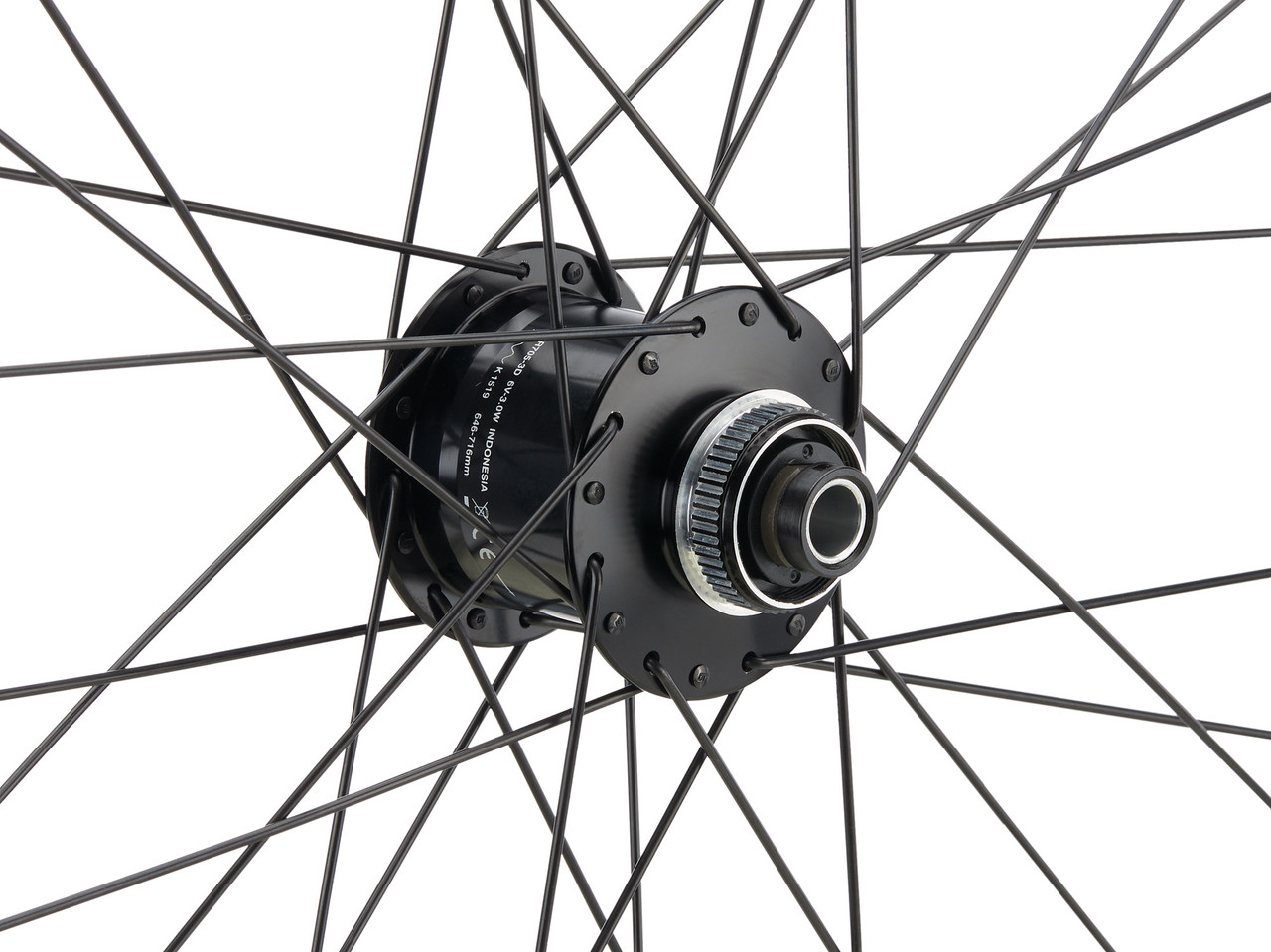

Technical Information - Front Hub:

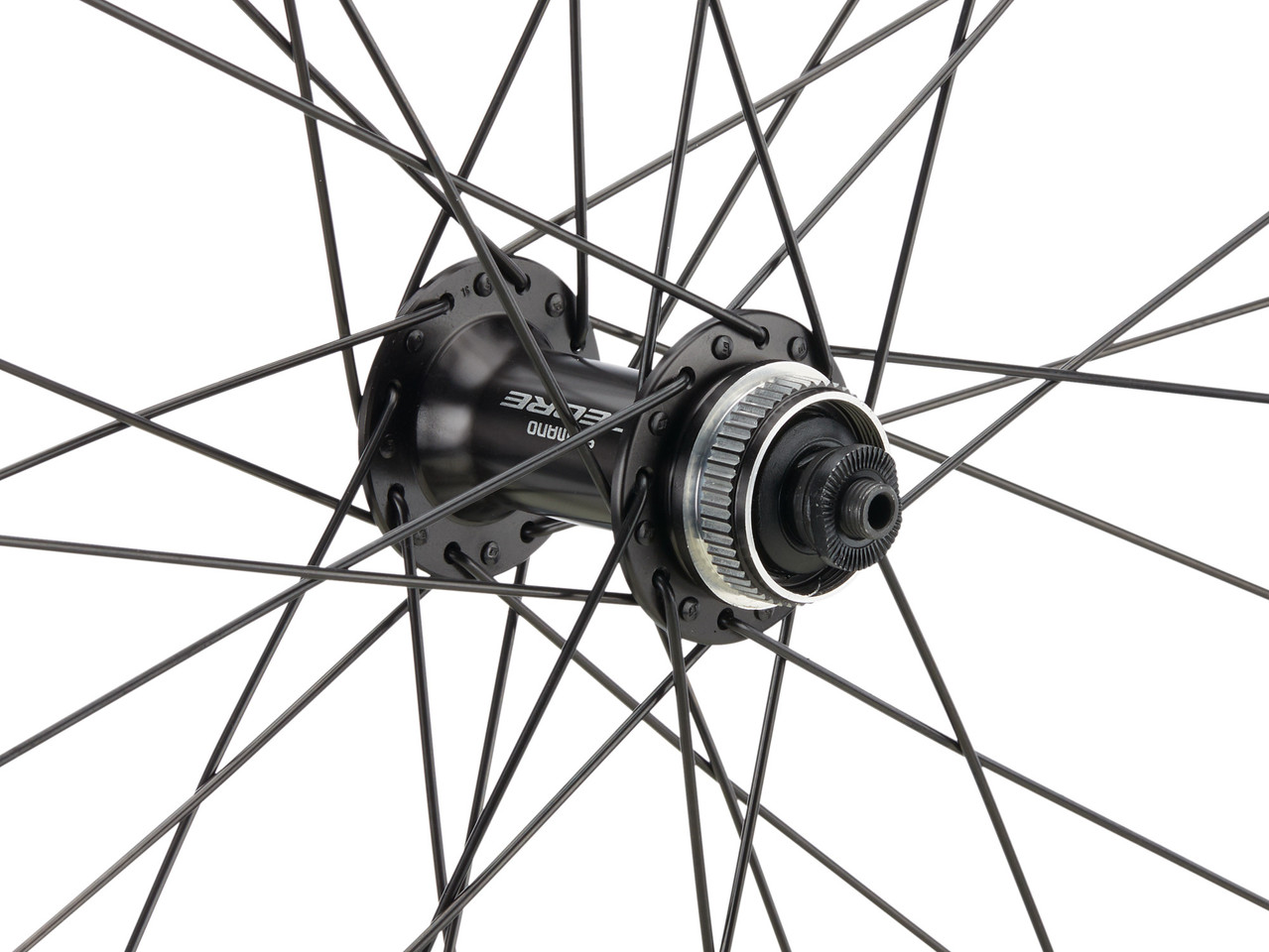

Type: Shimano Deore HB-M6000 or HB-MT400
Over Locknut Dimension: 9 x 100 mm quick release or 15 x 100 mm thru-axle
Bearings: Cone bearing (HB-M6000 only)
Body Material: Aluminium

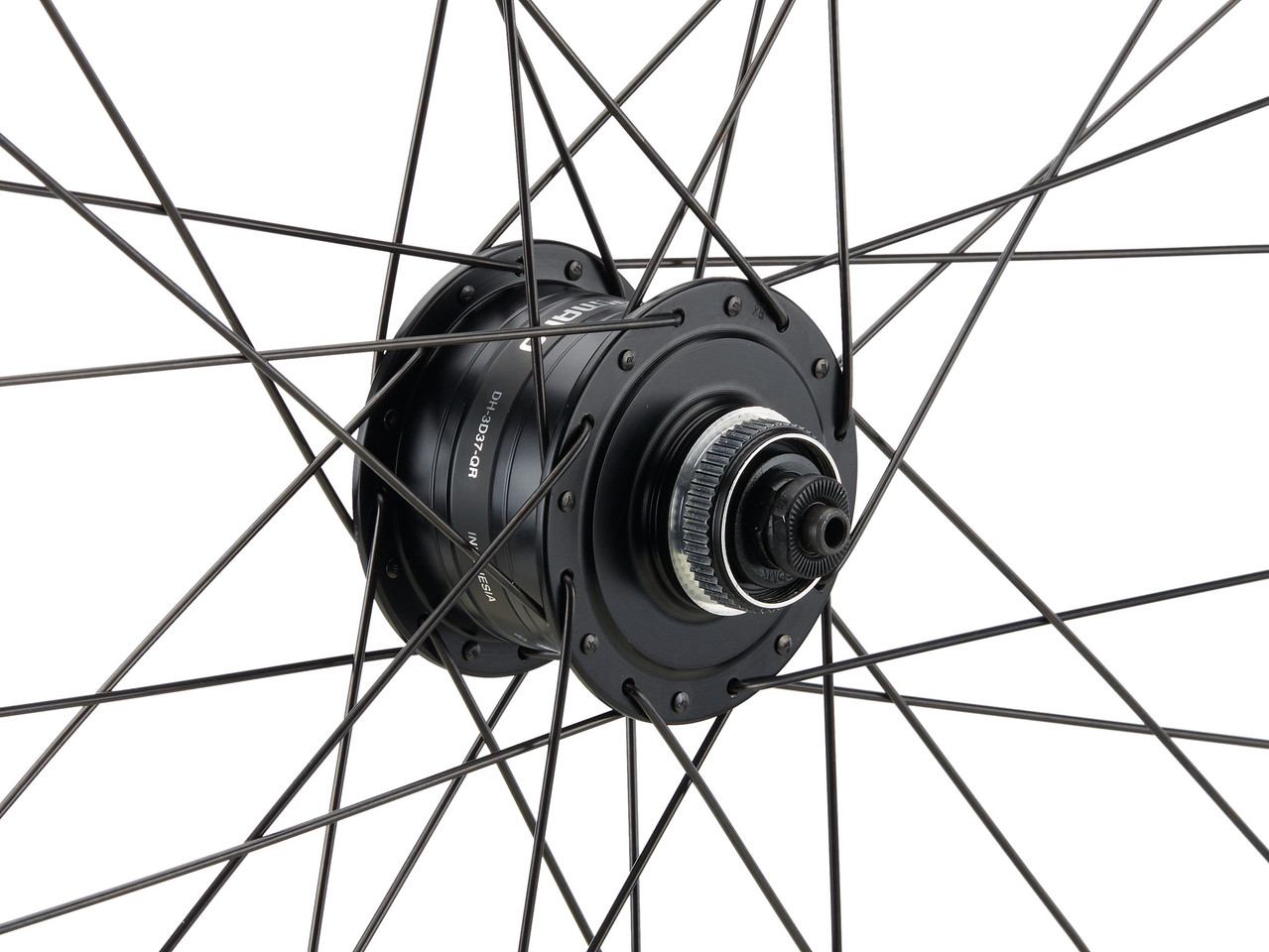

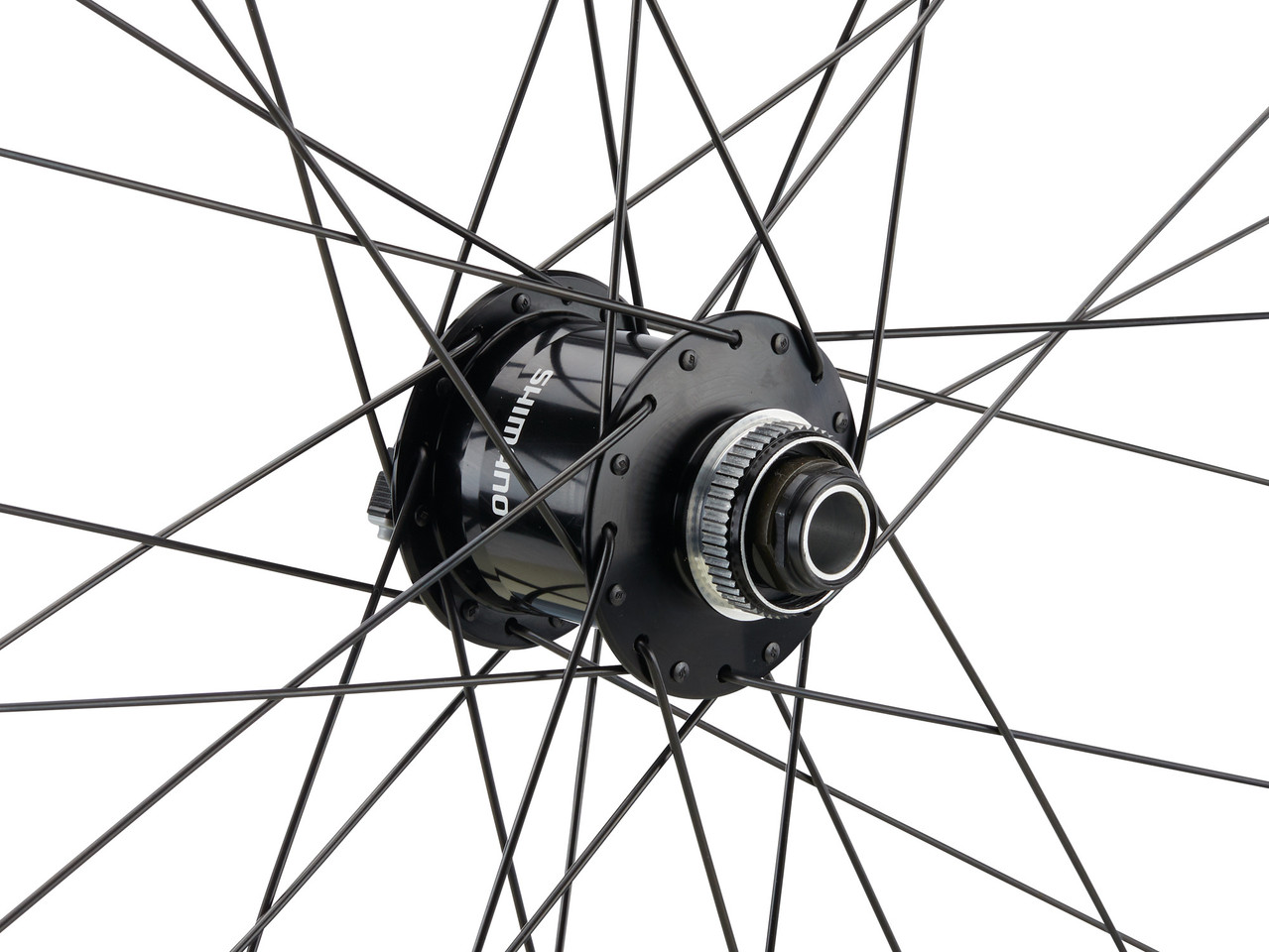

Technical Information - Front Dynamo Hub:
Type: Shimano DH-3D37-QR or DH-UR708-3D or DH-UR705-3D
Over Locknut Dimension: 9 x 100 mm quick release or 15 x 100 mm thru-axle or 12 x 100 mm thru-axle
Output: 6V/3W (according to StVZO)
Efficiency: min. 30 %
Body Material: Aluminium
Seals: contact
Wire Connector: E2-TYP (= meets current European standards for two lights)
Street Use in Germany: yes
Check Number: K~~912 (DH-3D37), K~~1684 (DH-UR708), K~~1519 (DH-UR705)

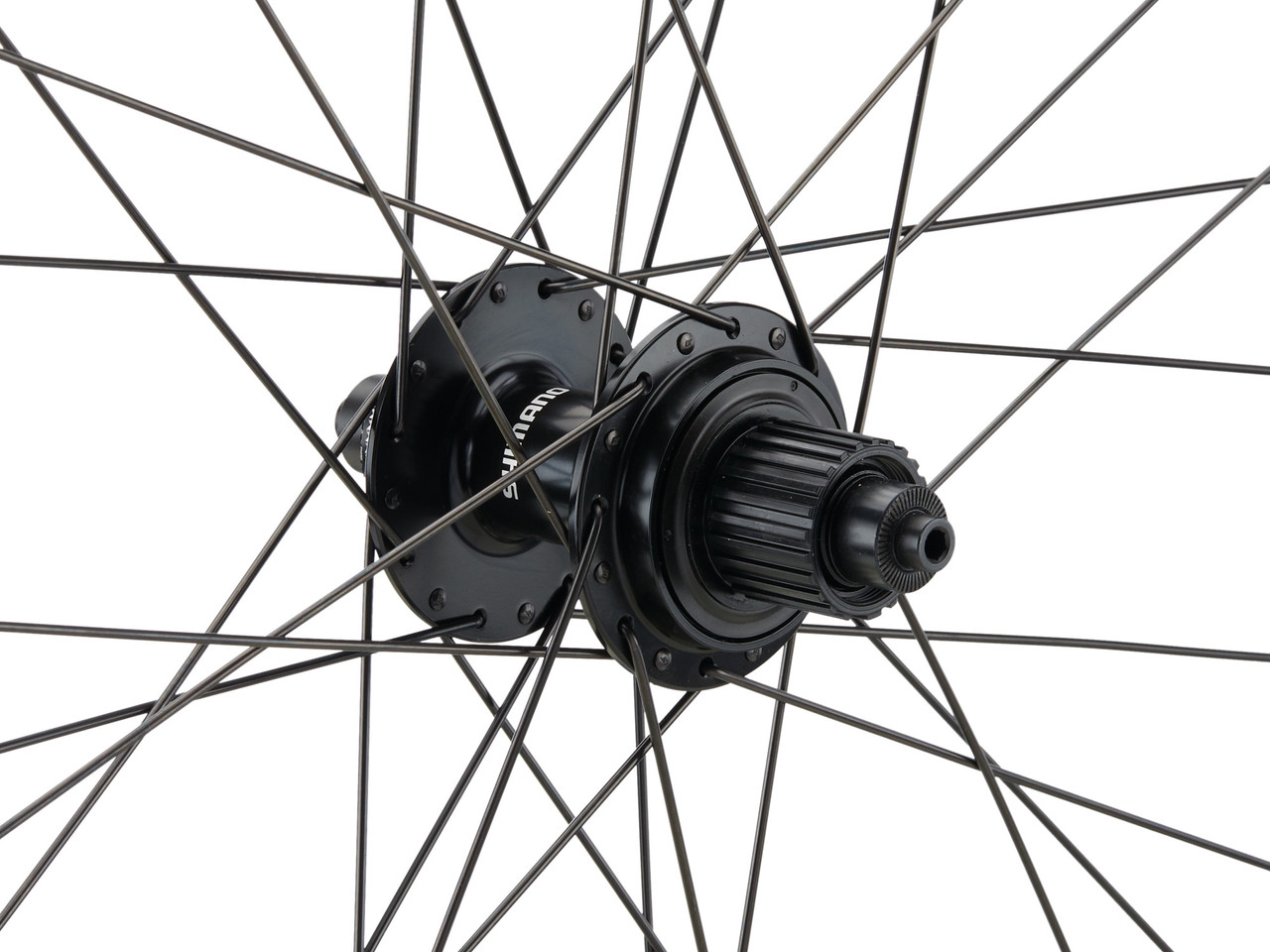

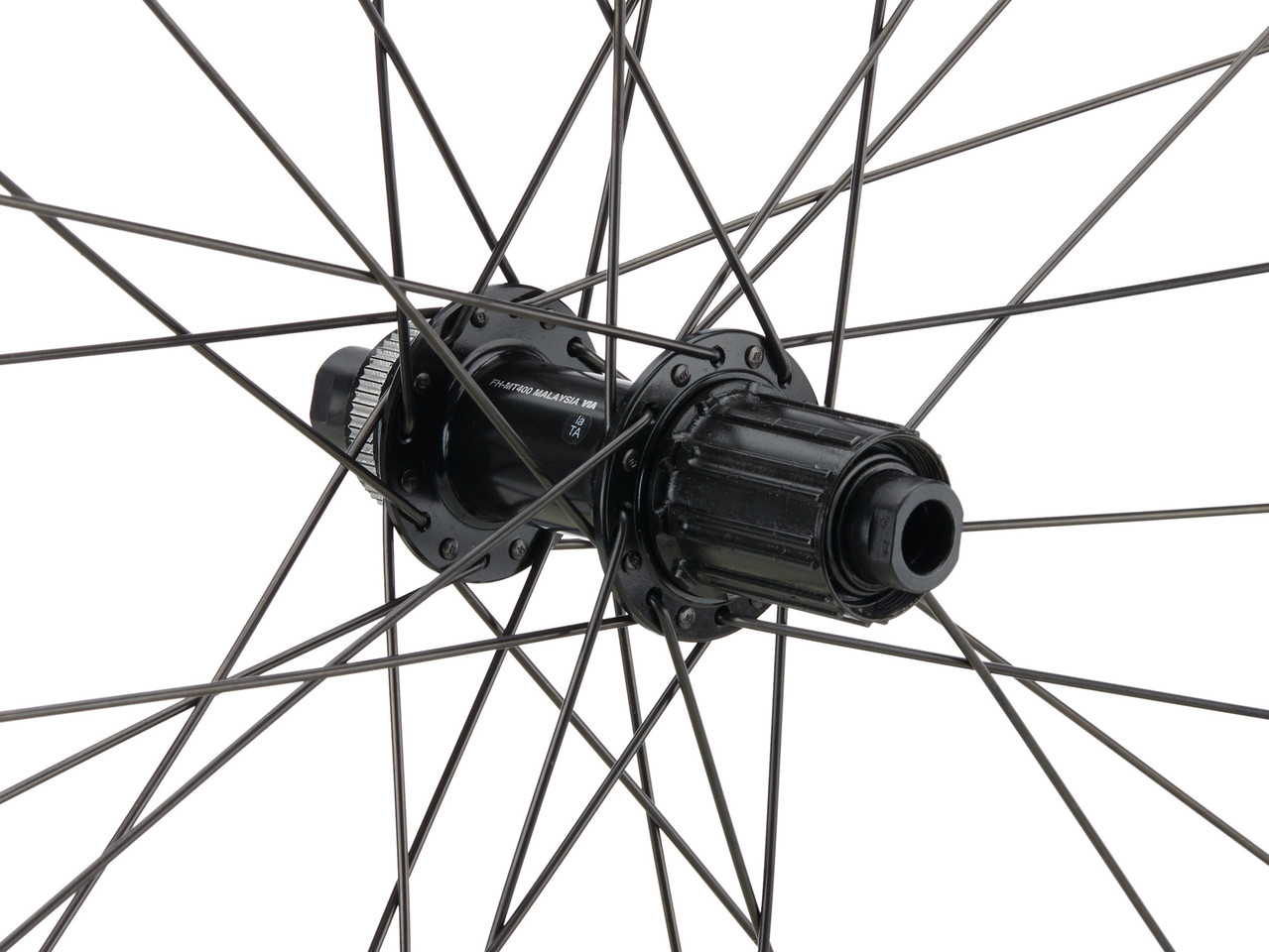

Technical Information - Rear Hub:
Type: Shimano FH-MT401 or FH-MT400 or FH-MT410
Over Locknut Dimension: 10 x 135 mm quick release or 12 x 142 mm thru-axle
Bearings: cartridge
Body Material: Aluminium
Freehub Body Material: steel
Freehub Body: Pawls (Quick Engagement: 36 engagement points / 360°)
Technical Information - Lacing:
Front Lacing Pattern: 3-cross
Rear Lacing Pattern: 3-cross
Spoke Type: DT Swiss Factory / round (2.0 mm)
Spoke Size:
- front 9 mm: 292 mm
- front 15 mm: 292 mm/294 mm (l/r)
- front 9 mm ND: 288 mm
- front 15 mm ND: 290 mm
- front 12 mm ND: 288 mm/290 mm (l/r)
- rear 142 mm Shimano: 294 mm/292 mm (l/r)
- rear 142 mm Shimano MS: 292 mm/290 mm (l/r)
- rear 135 mm Shimano MS: 290 mm/288 mm (l/r)
Spoke Material: stainless steel
Nipple Size: 12 mm (length)
Nipple Material: brass
Approved For:
Weight Limit (Rim): 130 kg system weight (rider + bike + gear)
Features:
- resistant rim for the most demanding trails
- pin joint rim joint
- rim holes silver eyeleted
- lacquered hub shell (HB-M6000: anodised)
- steel axle (HB-MT400: aluminium)
Colour info:
black:
- Rim: black
- Hub: black
- Spokes: black
- Nipples: silver
Models:

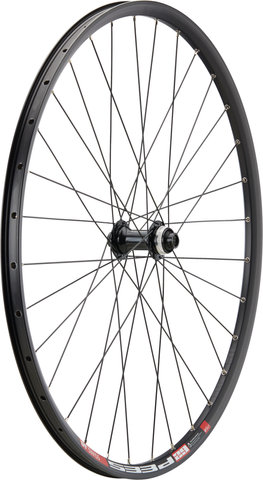

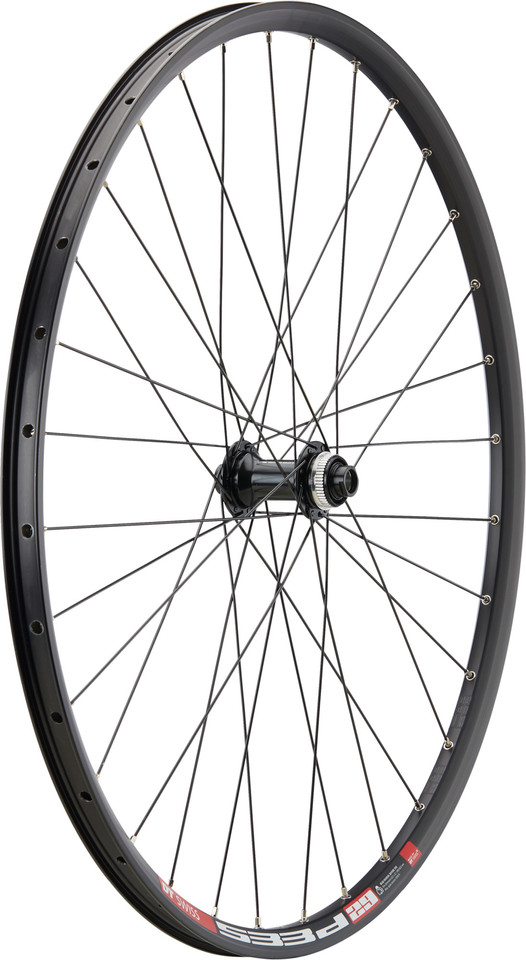

29" front 9x100:
Over Locknut Dimension: 9 x 100 mm quick release (HB-M6000)
Manufacturer Number: 83688-2-10025

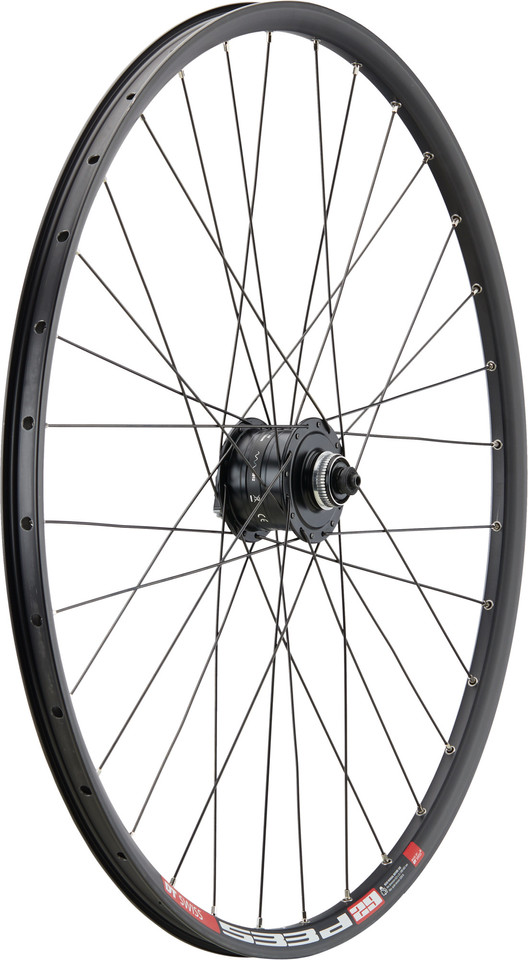

29" front 9x100 dynamo:
Over Locknut Dimension: 9 x 100 mm quick release (DH-3D37-QR)
Manufacturer Number: 83688-2-10472

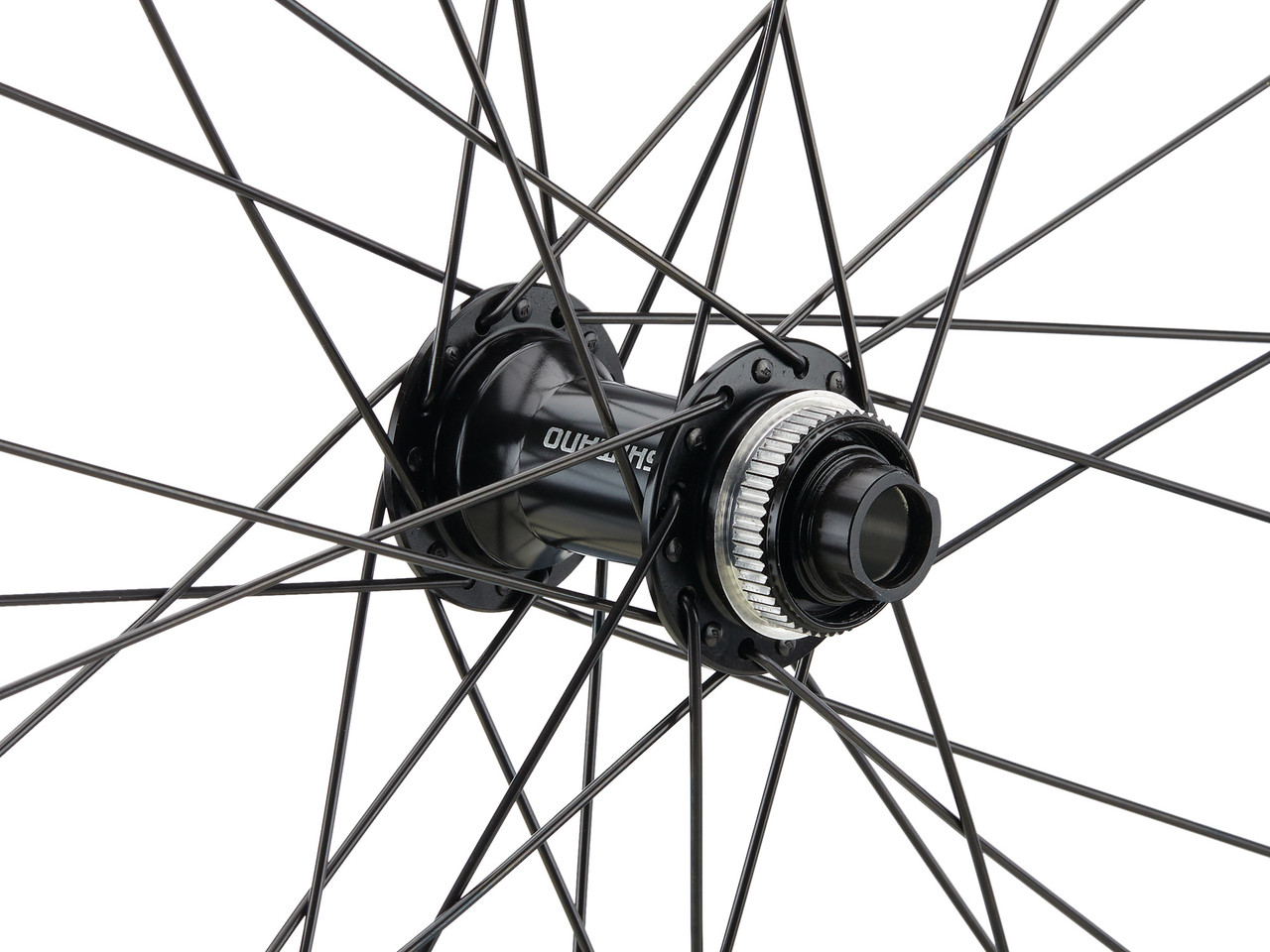

29" front 15x100:
Over Locknut Dimension: 15 x 100 mm thru-axle (HB-MT400)
Manufacturer Number: 83688-2-8851
29" front 15x100 dynamo:
Over Locknut Dimension: 15 x 100 mm thru-axle (DH-UR708-3D)
Manufacturer Number: 83688-2-13344
29" front 12x100 dynamo:
Over Locknut Dimension: 12 x 100 mm thru-axle (DH-UR705-3D)
Manufacturer Number: 83688-2-13345

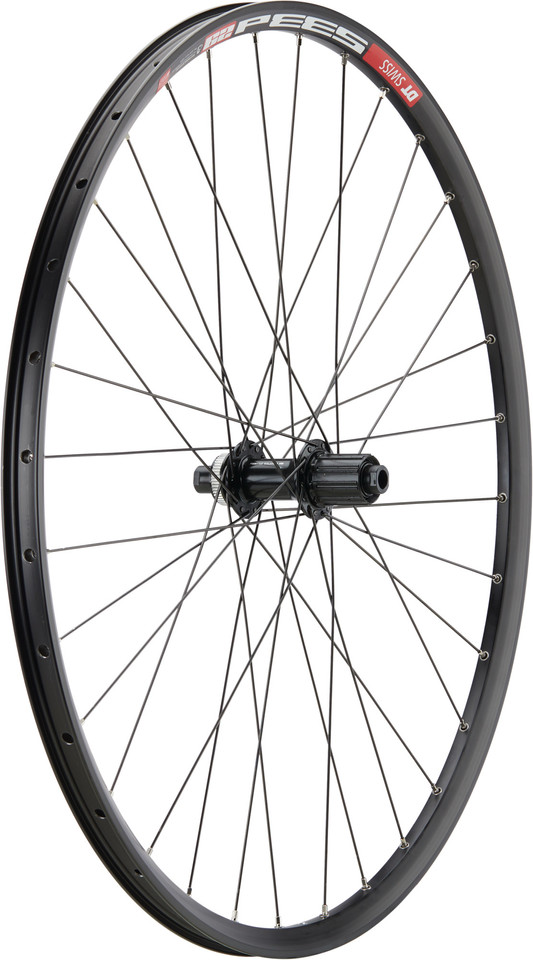

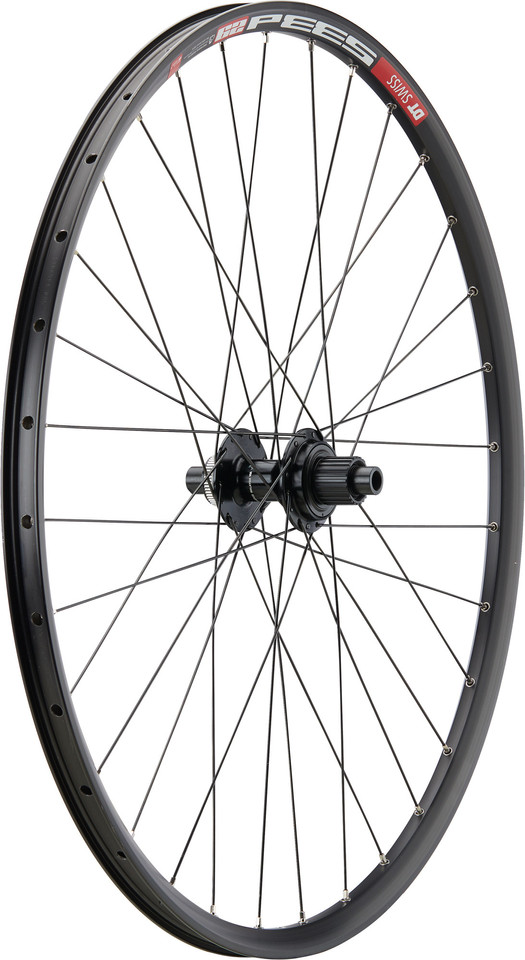

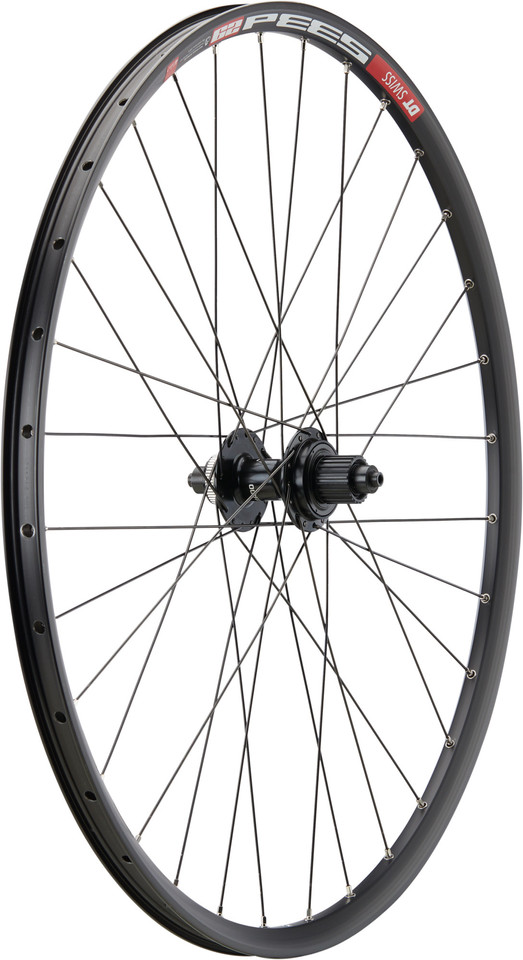

29" rear 12x142 Shimano:
Over Locknut Dimension: 12 x 142 mm thru-axle (FH-MT400)
Freehub: Shimano MTB
Gearing: 8-/9-/10-/11-speed
Manufacturer Number: 83688-2-8038
29" rear 10x135 Shimano Micro Spline:
Over Locknut Dimension: 10 x 135 mm quick release (FH-MT401)
Freehub: Shimano Micro Spline
Gearing: 12-speed
Manufacturer Number: 83688-2-13343
29" rear 12x142 Shimano Micro Spline:
Over Locknut Dimension: 12 x 142 mm thru-axle (FH-MT410)
Freehub: Shimano Micro Spline
Gearing: 12-speed
Manufacturer Number: 83688-2-13346

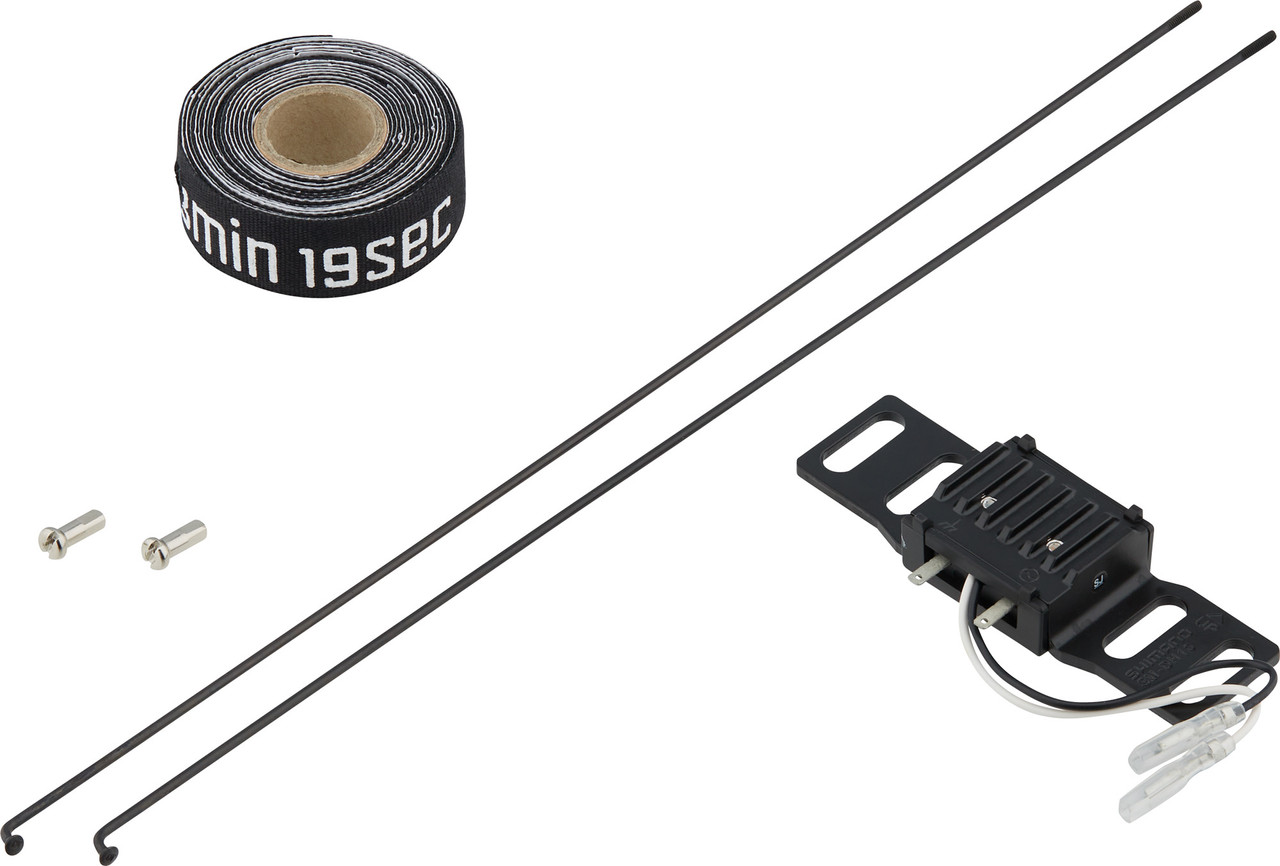

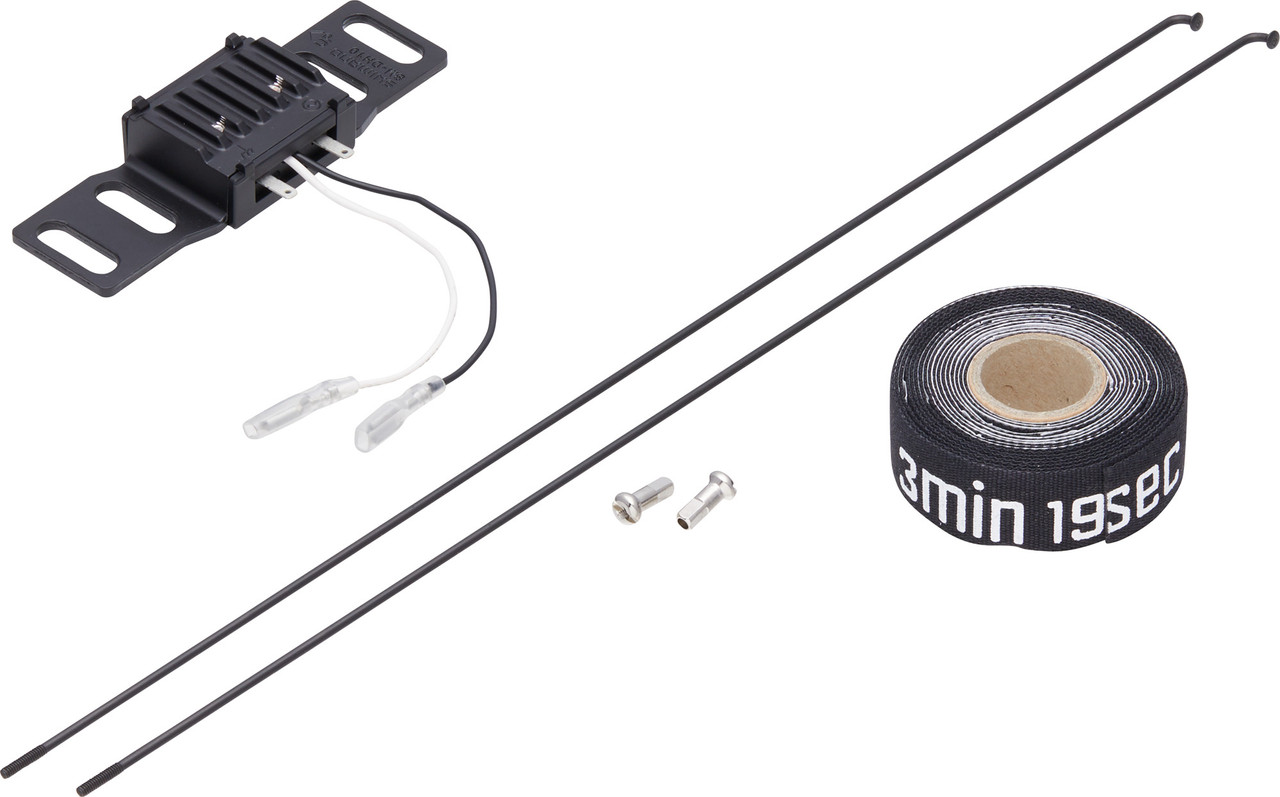

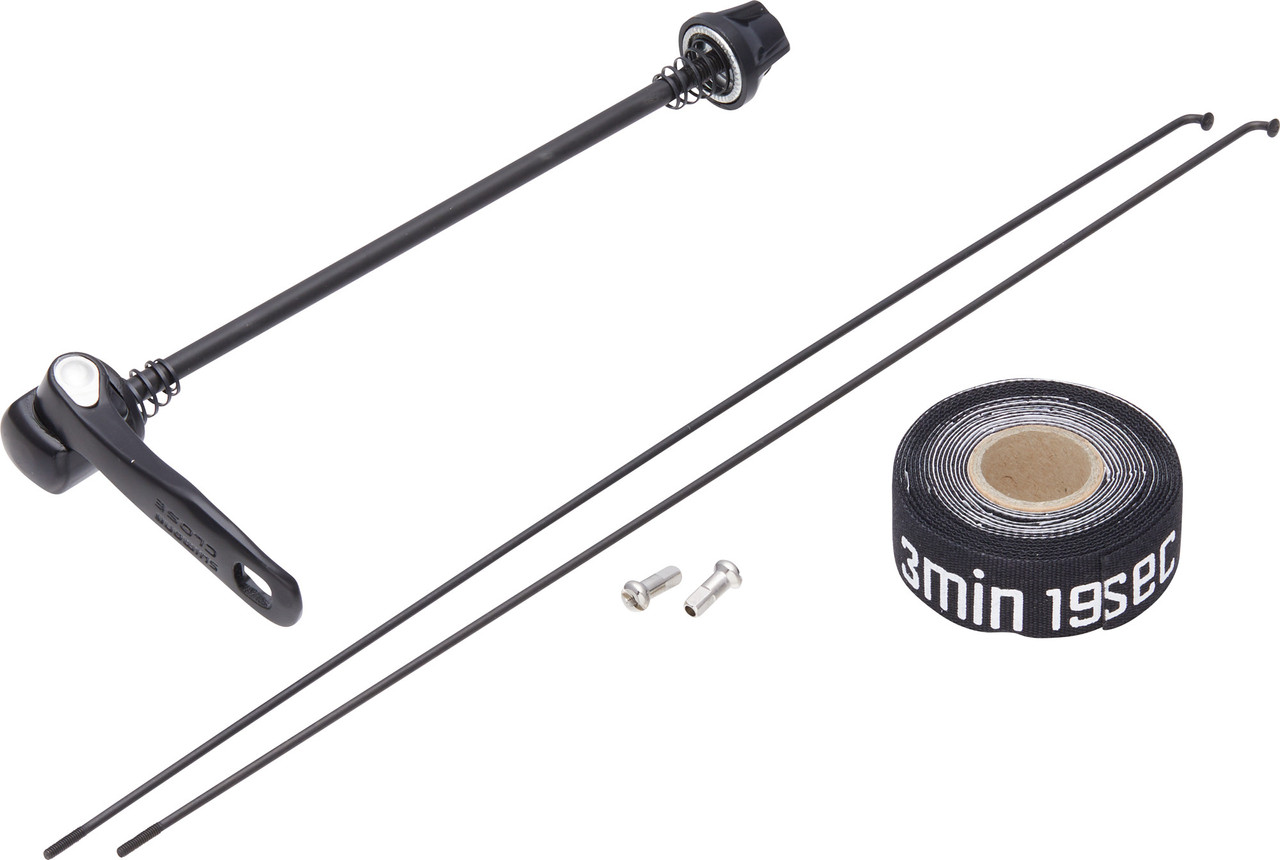

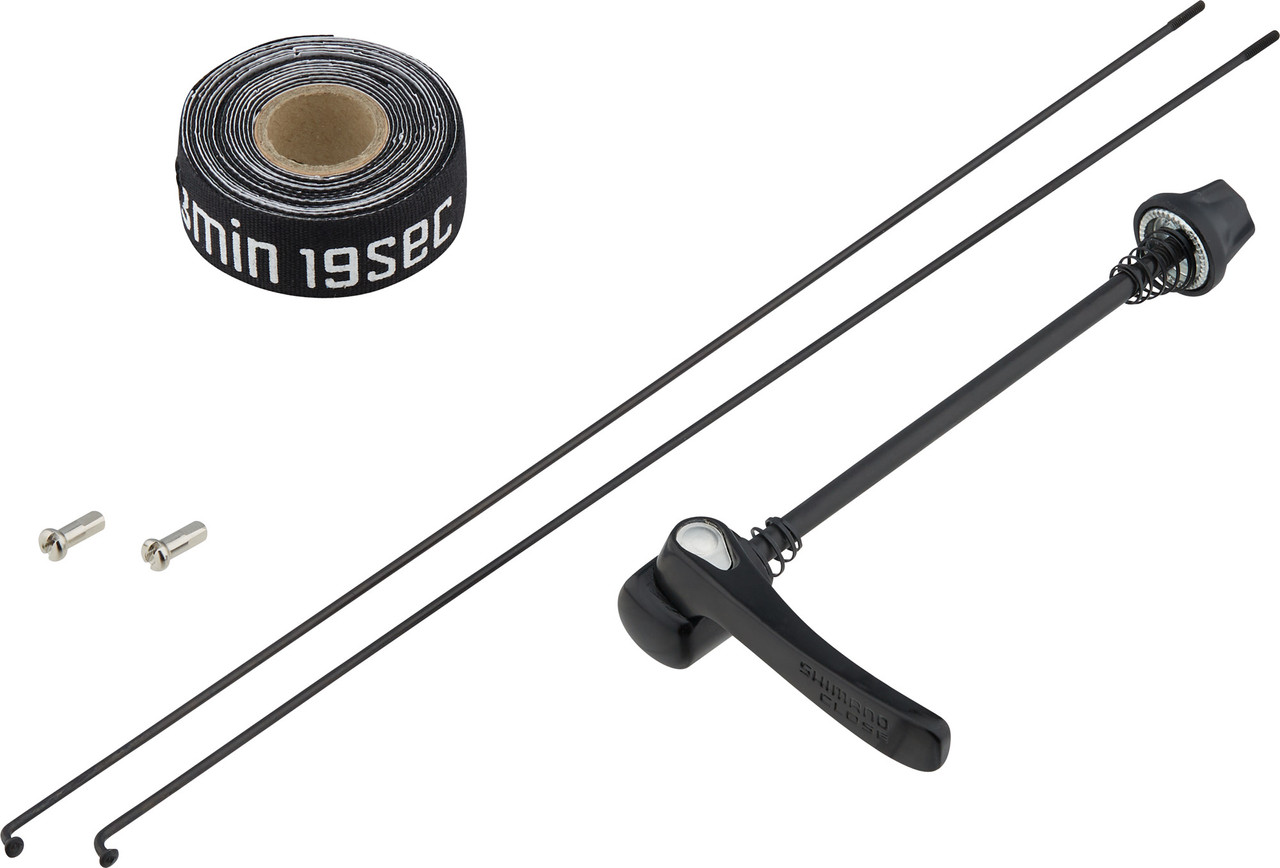

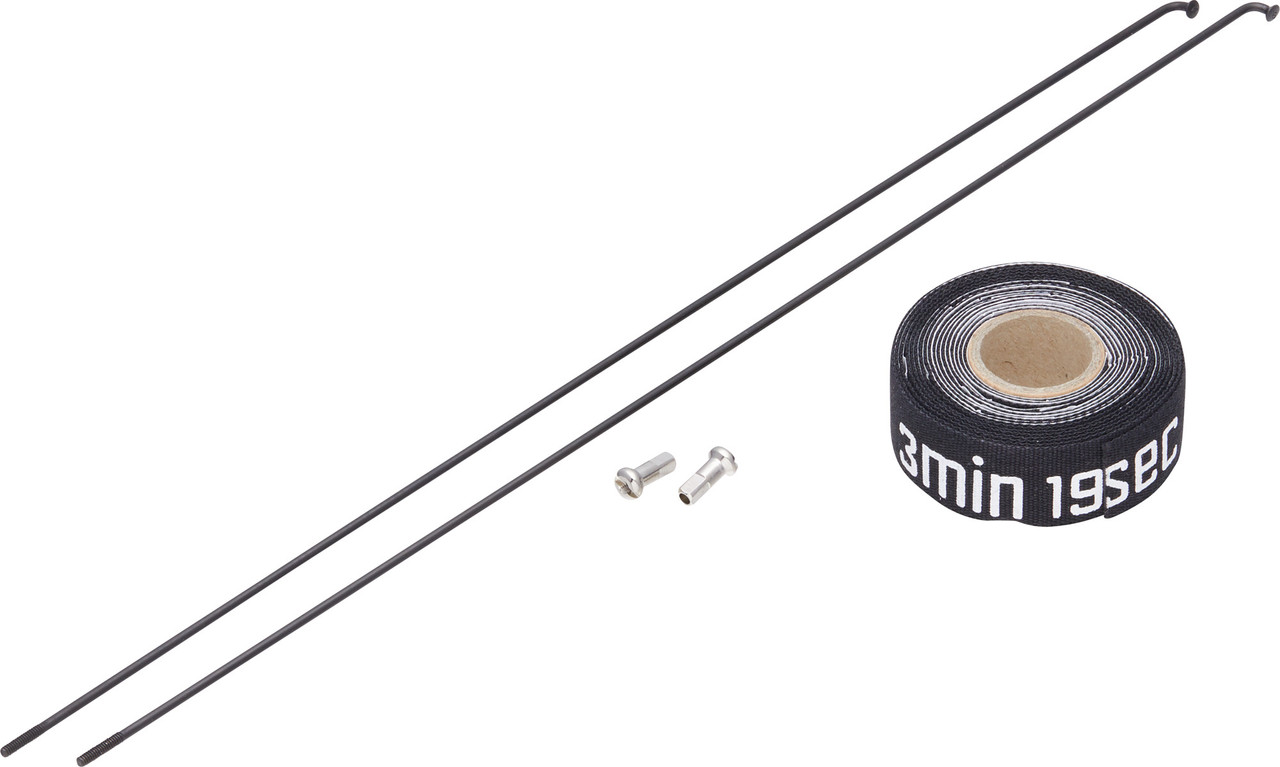

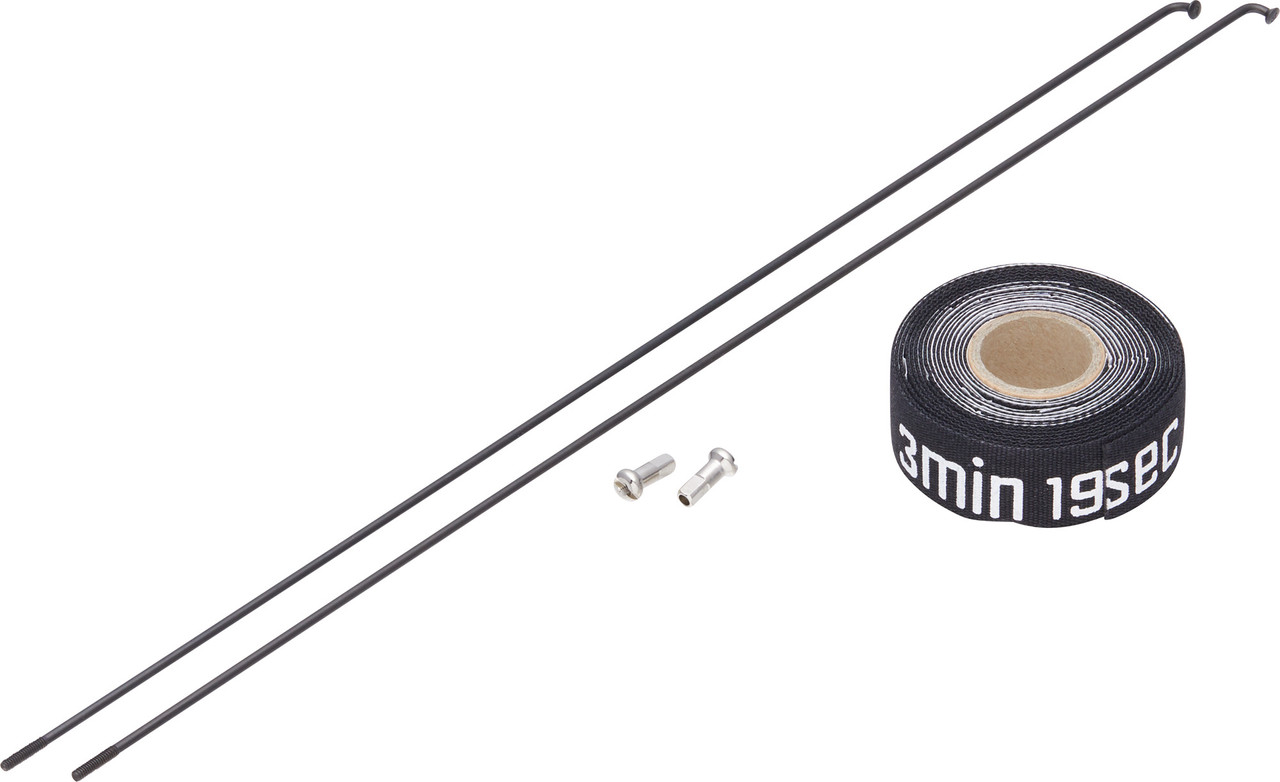

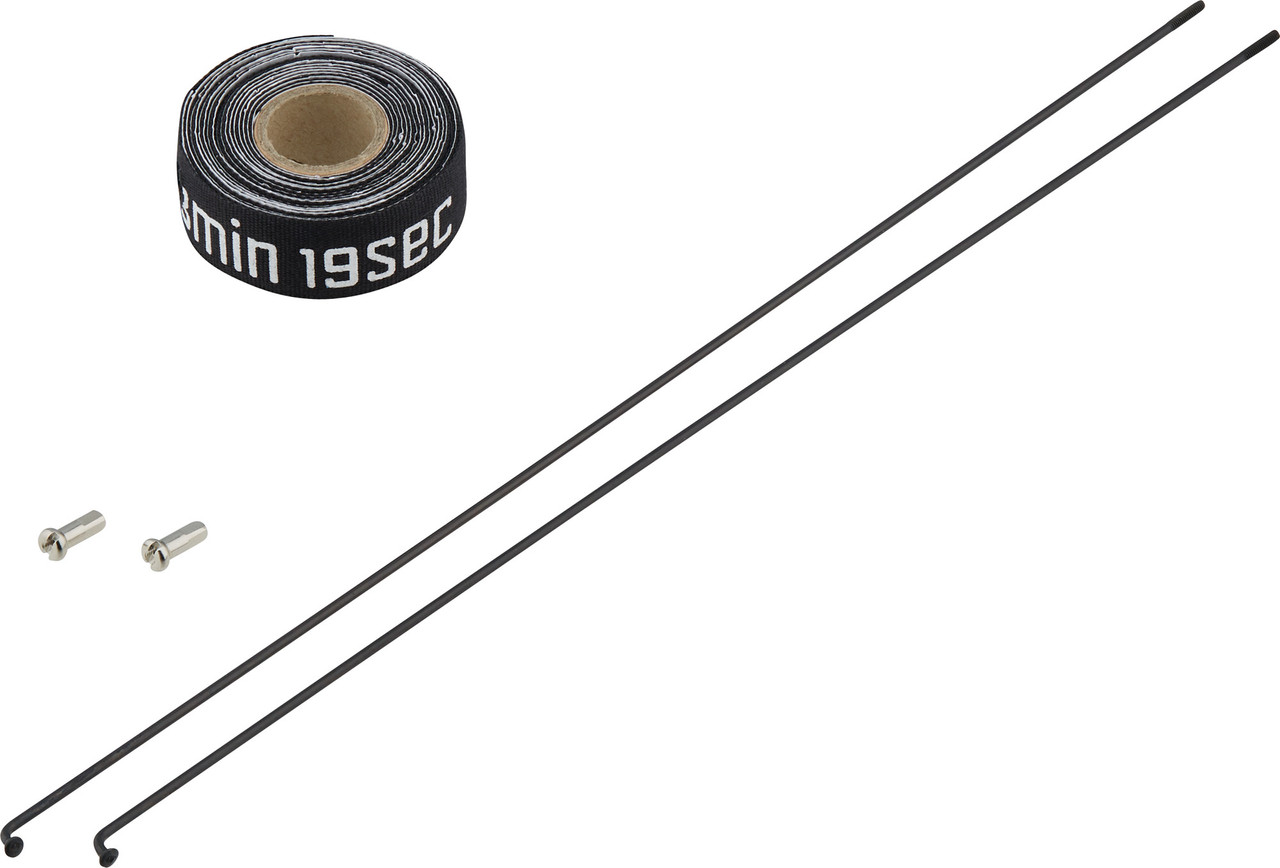

Contents:
- 1 x bc basic Mountain Deore Disc Center Lock DT Swiss 533D wheel (front or front dynamo hub or rear, laced and trued)
- 1 x quick release (only for front 9x100 and rear 10x135)
- 1 x roll of rim tape
- 2 x spare spokes with nipples
- 1 x connector (front dynamo hub only)
- 1 x overvoltage protection (front dynamo hub only)
Gewicht:
- black/29" front 9x100: 1230 g
- black/29" front 15x100: 1160 g
- black/29" rear 9x100 dynamo: 1800 g
- black/29" Front 15x100 Dynamo: 1500 g
- black/29" rear 12x142 Shimano: 1380 g
- black/29" Rear 10x135 Shimano Micro Spline: 1580 g
- black/29" Rear 12x142 Shimano Micro Spline: 1350 g
