crankbrothers Double Shot 3 is a trail hybrid pedal that allows an aggressive riding style.

Specifications:

Application:

Cross Country, All Mountain, City & Touring

Type:

hybrid pedals (one side clipless, one side platform)

Pedal System:

crankbrothers

Cleat Mount:

2-bolt

Technical Information:

Body Material:

aluminium (A380)

Axle Material:

steel (scm435 CrMo)

Bearings:

Igus LL bushings (inner), Enduro cartdige (outer)

Release Angle:

15° or 20° (depending how the cleats are mounted)

Recommended Cleats:

crankbrothers Premium Cleats

Number of Pins per Pedal:

8

Pedal Centre to Crank Arm Distance:

57 mm

Features:

• level code 3 (= elite level)
• forged steel axle
• wings made of cast stainless steel
• 300 stainless steel spring
• pins and grooves for more grip (platform side)
• diamond sheet for more traction (click side)
• click in from two sides
• mud repellent
• high-quality, double-sealed bearing system
• 57 mm Q-factor for more shoe freedom and control
• replaceable pins
• no rider weight limit

Manufacturer Numbers:

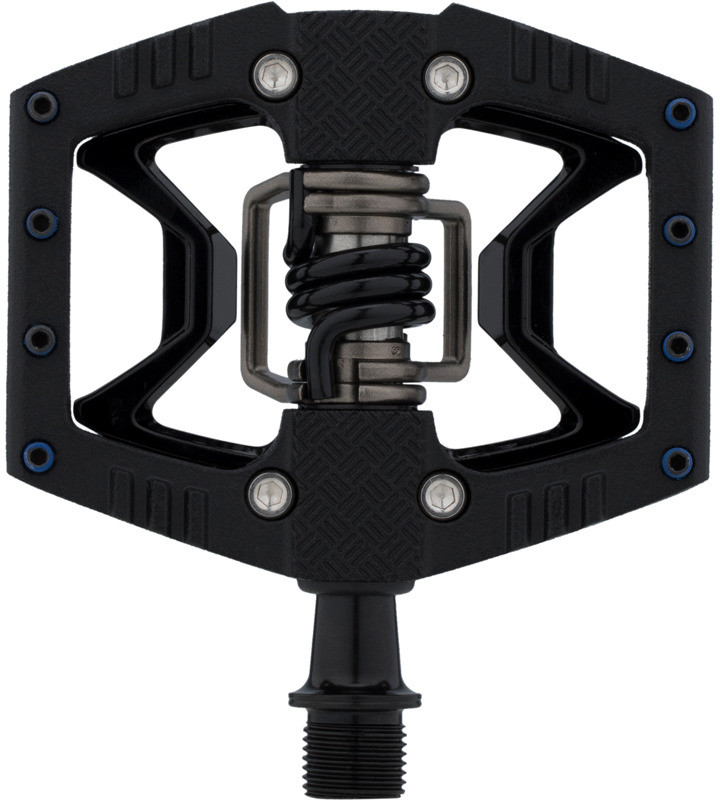

black-black:

16111

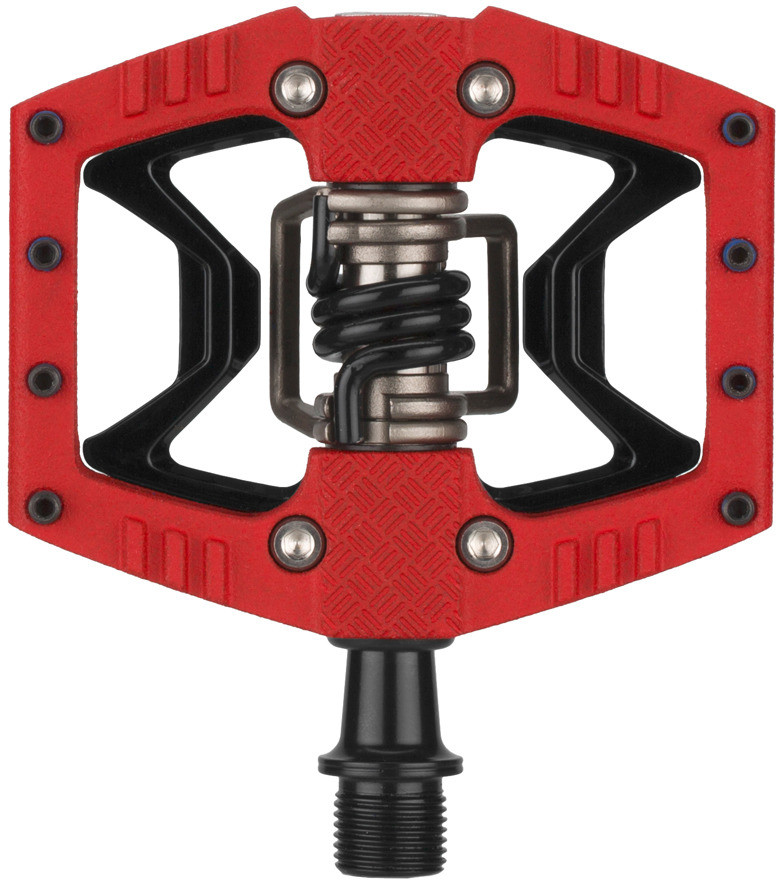

black-red:

16110

Contents:

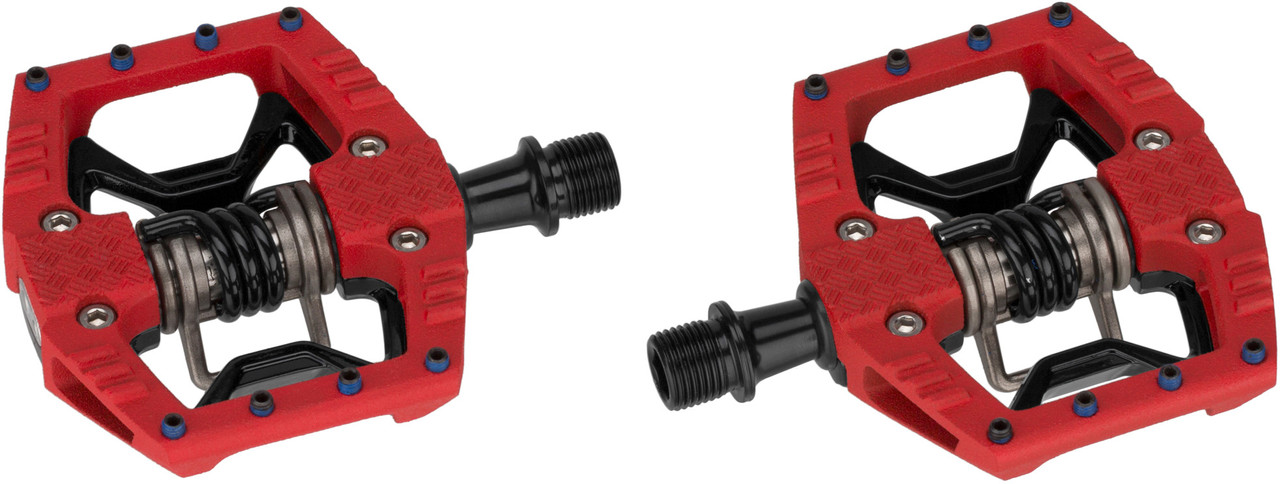

• 1 x pair crankbrothers Double Shot 3 pedals

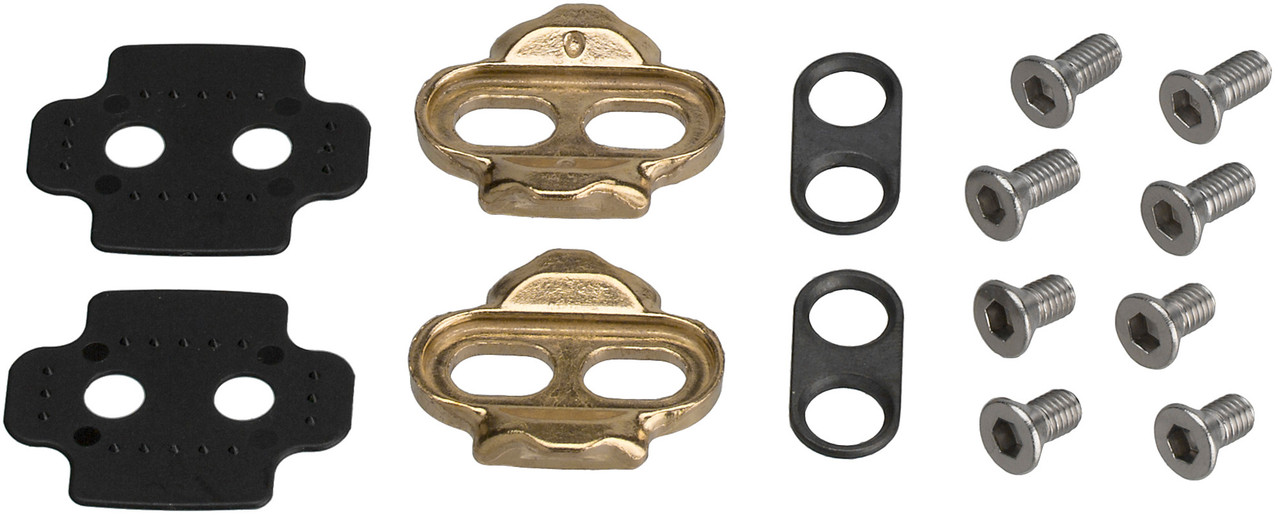

• 1 x pair crankbrothers Premium Cleats (brass)
