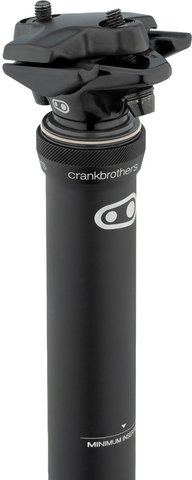

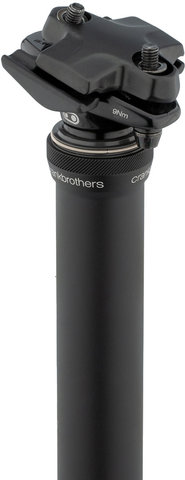

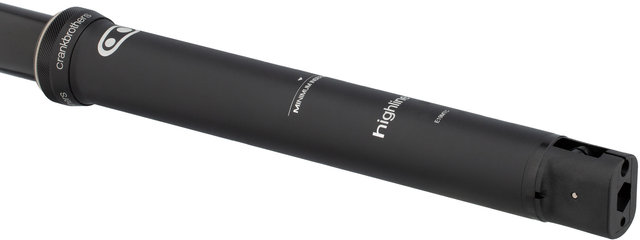

crankbrothers Highline 3 125 mm Dropper Post

crankbrothers Highline 3 125 mm dropper post - smooth, reliable operation

The crankbrothers Highline 3 seatpost with 125 mm travel is a dropper post with stepless adjustment, which scores with its smooth function, quick return to the starting position and simple assembly. Its core is a self-contained hydraulic gas-oil cartridge of the highest reliability. The Jagwire cable, Igus bearings and Trelleborg seals stand for top quality. With its remarkably low profile and clean internal cable routing, the Highline 3 will also help cross-country racers and enduro specialists, trailriders and all-mountain kings to have more fun on their bikes.

Specifications:

Application:

Cross Country, Enduro, All Mountain

Travel:

125 mm

Diameter:

30.9 mm, 31.6 mm, 34.9 mm

Length:

421 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard)

Material:

aluminium (7075-T6)

Approved For:

Insertion Depth (max.):

245 mm

Insertion Depth (min.):

100 mm

Features:

• lower insertion depth suitable for many frames
• premium seals by Trelleborg
• exclusive plain bearings by Igus
• Jagwire cable and cable housing
• encapsulated hydraulic cartridge (gas-oil mixture) of high industrial quality and reliability
• internal cable routing
• quick connection mechanism for easy cable installation
• linear actuator for quick return
• aluminium quill
• standard 2-bolt clamp
• 47 mm minimum construction height
• 290 mm maximum extension length
• 172 mm minimum extension length
• remote with especially flexible mount system available separately

Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.

Models:

30.9 mm / 421 mm / SB 0 mm:

Diameter:

30.9 mm

Length:

421 mm

Setback:

0 mm

Manufacturer Number:

16372

31.6 mm / 421 mm / SB 0 mm:

Diameter:

31.6 mm

Length:

421 mm

Setback:

0 mm

Manufacturer Number:

16373

34.9 mm / 421 mm / SB 0 mm:

Diameter:

34.9 mm

Length:

421 mm

Setback:

0 mm

Manufacturer Number:

16471

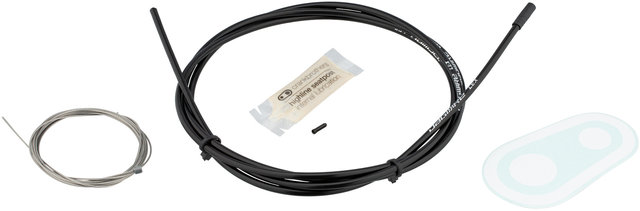

Contents:

• 1 x crankbrothers Highline 3 125 mm dropper post
• 1 x Jagwire cable
• 1 x Jagwire cable housing

Order Together:

The remote kit is required for use.
