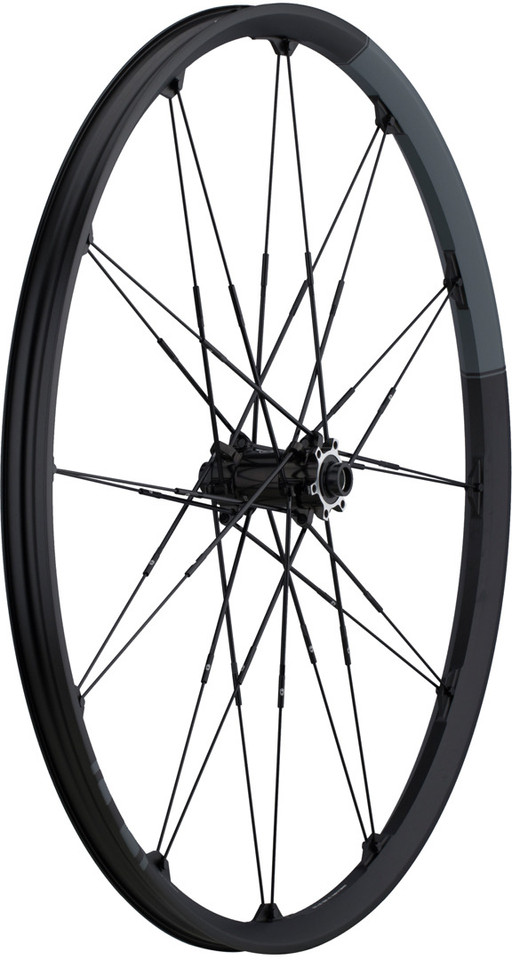

The crankbrothers Iodine 2 wheel now has wider rims, lighter hubs and an optimised tread.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

27.5" (650B)

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

6-bolt disc

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Dimensions (ETRTO):

28-584

Inner Width:

28 mm

Outer Width:

32.5 mm

Depth:

20 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium (6061-T6)

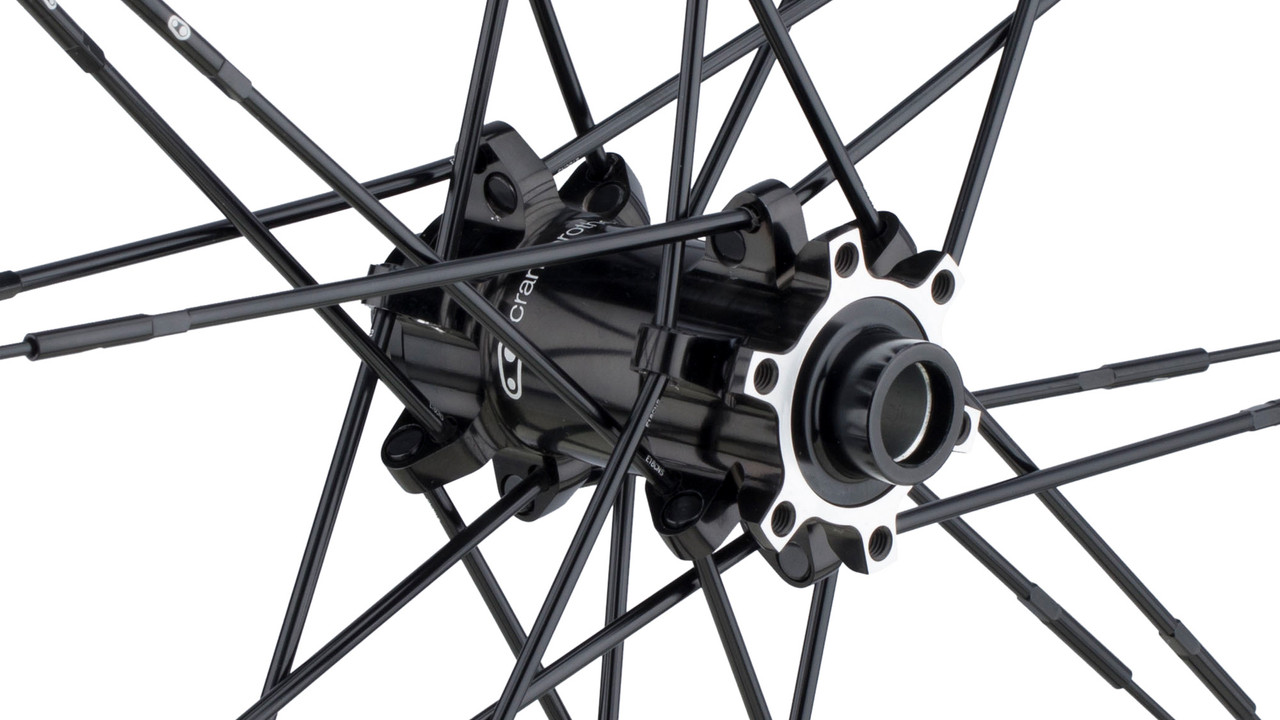

Technical Information - Front Hub:

Type:

iodine

Over Locknut Dimension:

15 x 100 mm thru-axle

Body Material:

aluminium (6061-T6)

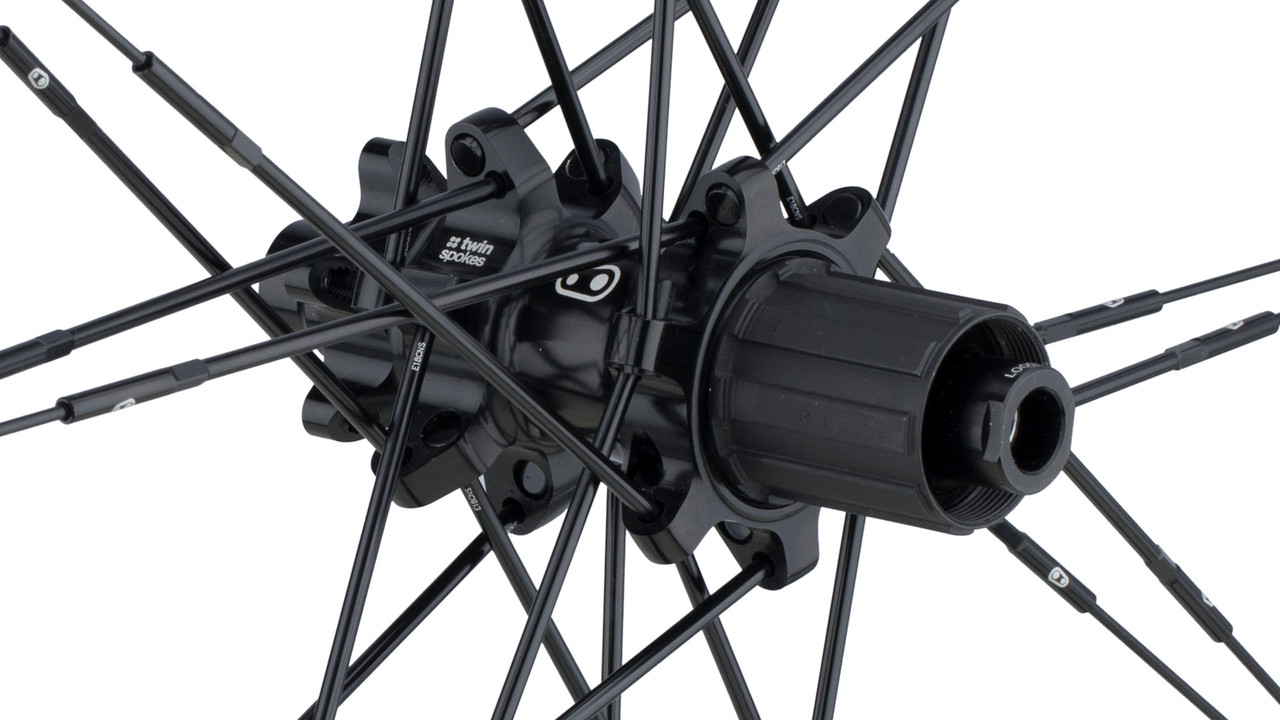

Technical Information - Rear Hub:

Type:

iodine

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

aluminium (6061-T6)

Freehub Body Material:

steel

Freehub Body:

3 pawls, 21 teeth

Technical Information - Lacing:

Front Lacing Pattern:

Twinpair

Rear Lacing Pattern:

Twinpair

Spoke Size:

147 mm

Spoke Material:

stainless steel

Approved For:

Recommended Tyre Width:

2.1" -2.6"

Features:

• level code 2 (= enthusiast level)

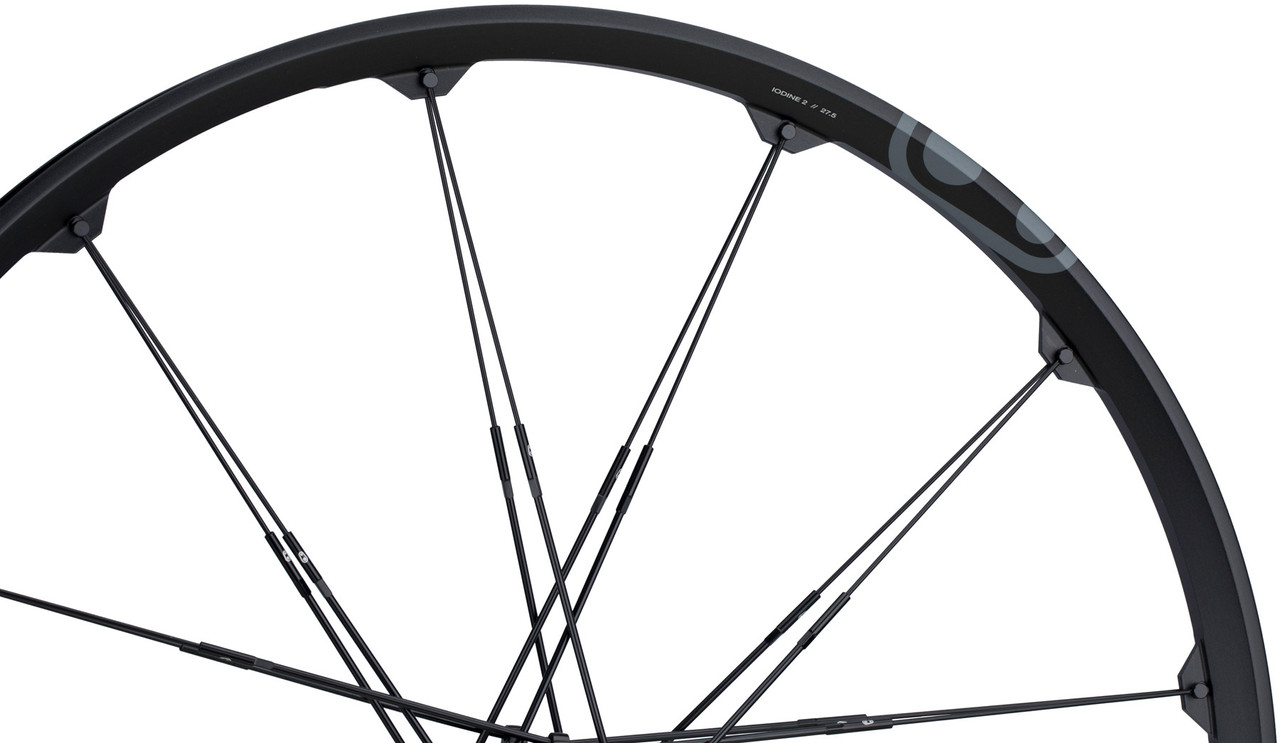

• wider rims for more tyre compatibility, maximum traction and damping
• low inertia, faster acceleration thanks to weight shift to the hub
• no rim holes: no rim tape necessary for tubeless setup
• Twinpair Spoke Technology for maximised rigidity
• only one spoke length: easy to replace and center
• weight reduction of at least 20 g on bearings, hub body, axles, end caps and freehub
• welded rim joint
• shot peened, black anodised
• aluminium 7075-T6 spoke pins
• no weight limit*
• compatible with Trail/All Mountain e-bikes up to a maximum of 350 watts
• front can be converted to 9 x 100 mm quick release, rear to 10 x 135 mm quick release

*Note from the manufacturer:

If the rider weighs more than 90 kg, special attention should be paid when inspection the wheels, as they are subject to greater constraint due to the heavier weight.

Models:

27.5" set (front 15x100 + rear 12x142) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

16144

Conversion Options:

To convert to SRAM XD, a XD freehub body is required.

Contents:

• 1 x crankbrothers Iodine 2 27.5" wheelset (front & rear)
• 2 x tubeless valves
