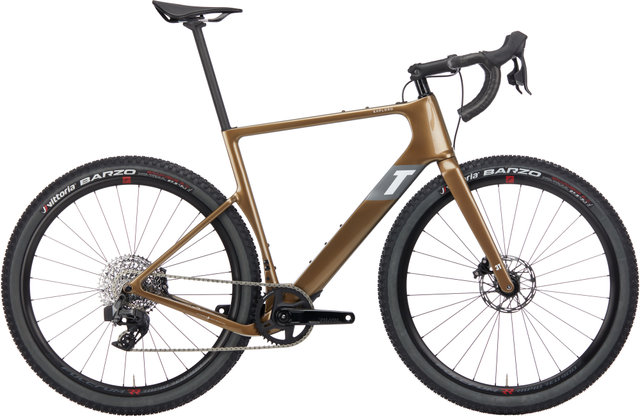

3T Exploro Ultra Rival AXS 1x Carbon Gravel Bike - coffee/M

3T Exploro Ultra Rival AXS 1x Carbon Gravel Bike

Item number: 85777

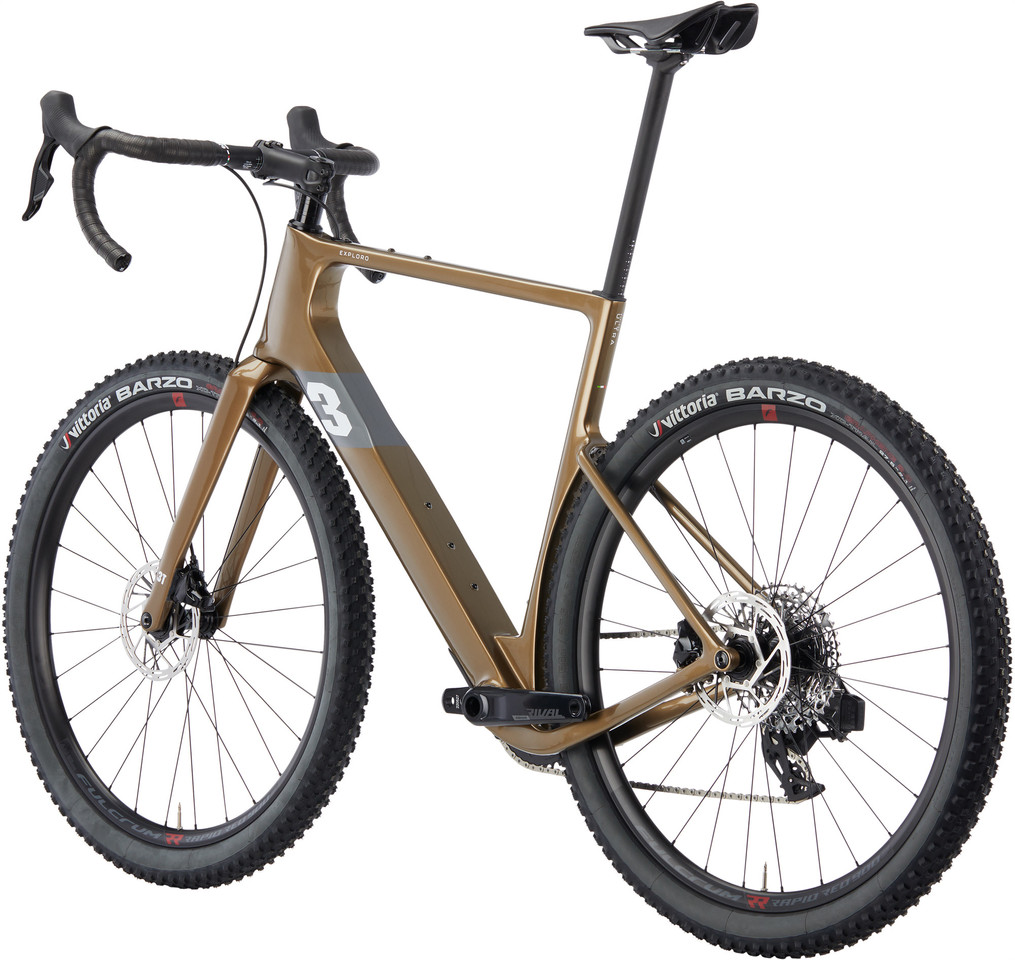

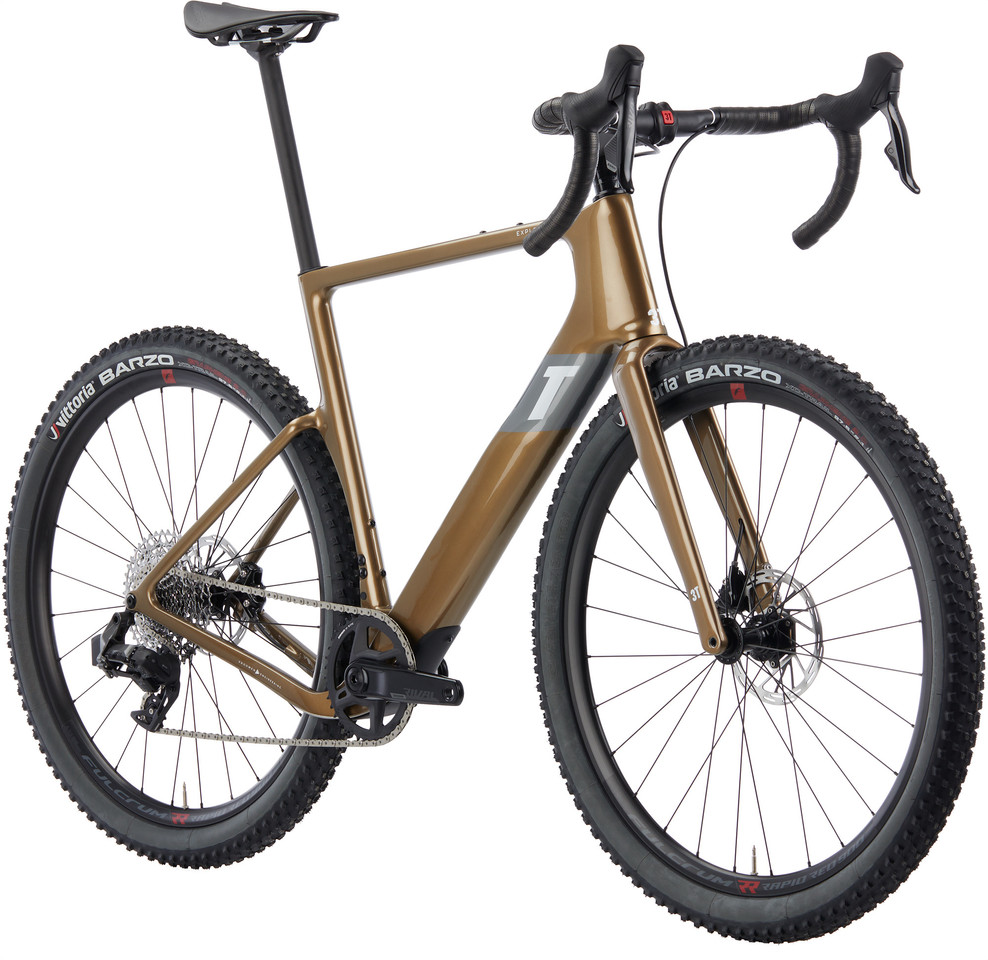

The 3T Exploro Ultra Rival AXS 1x Carbon Gravel Bike - With electronic gears for gravel adventures


The Exploro Ultra Carbon gravel bike from 3T is equipped with a SRAM Rival AXS XPLR 1x12-speed drivetrain and is suitable for demanding, fast gravel tours. The electronic gears are uncomplicated and there is no need for tedious adjustment of the rear derailleur. The frame forms the link between aerodynamically optimised, fast road bike frames and trail-tested MTB frames. The Exploro Ultra carbon fork and the down tube, which tapers from the bottom bracket to the head tube, have been aerodynamically-optimised. The seat tube also has a profile designed for aerodynamics. However, the carbon seatpost is round as standard. The chassis consists of the proven Fulcrum Rapid Red 900 Gravel wheels and fast Pirelli Cinturato tyres.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of batteries and electrical equipment can be found here.

Specifications:

Application:
Gravel
Wheel Size:
27.5" (650B)
Sizes:
XS, S, M, L, XL
Frame Material:
carbon
Fork Material:
carbon

Components:

Frame:
3T Exploro Ultra
Fork:
Fango Ultra
Stem:
Apto Stealth
Handlebars:

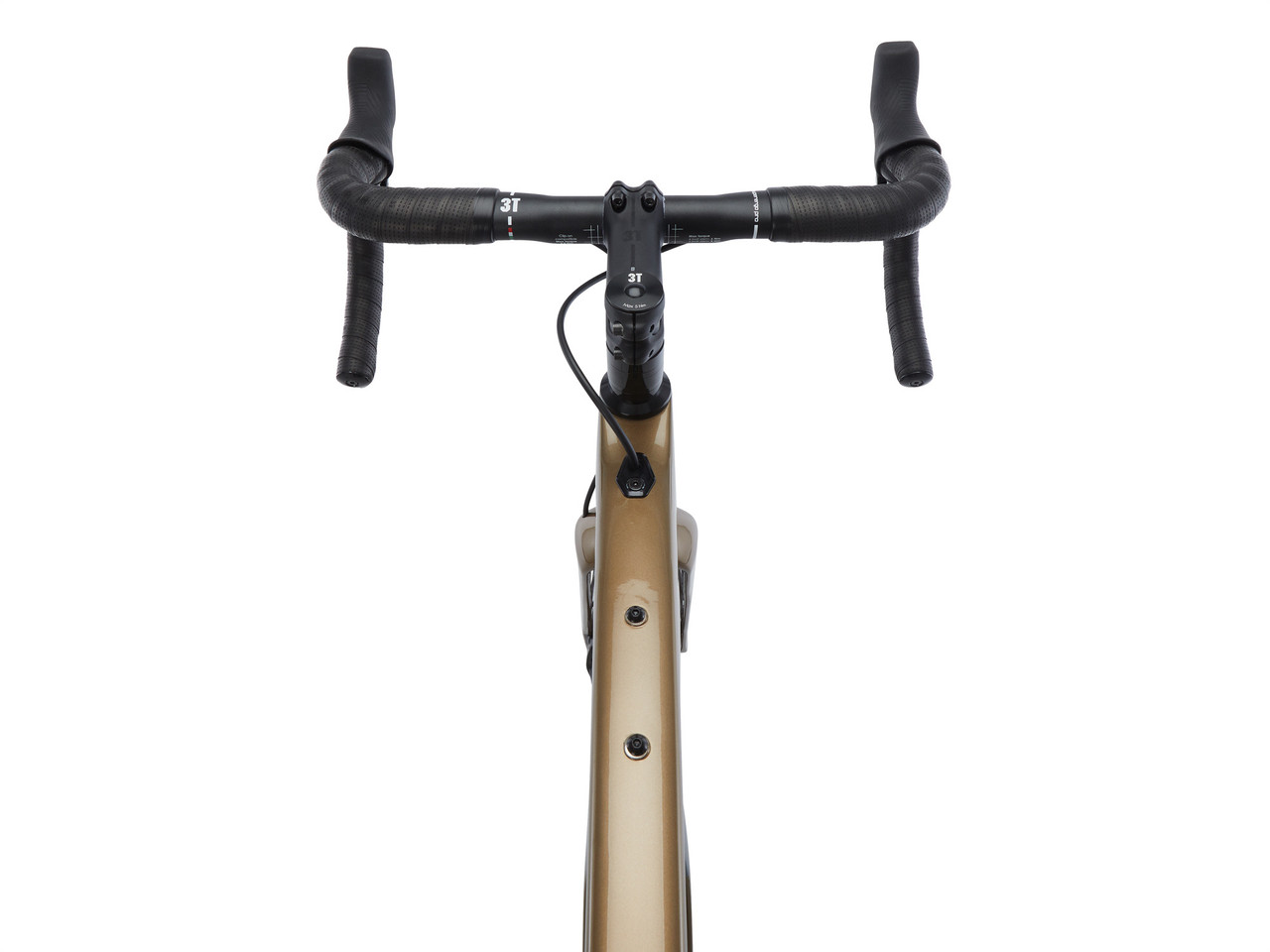

Superergo Pro
Headset:
IS44/28.6- IS47/38, sealed
Seatpost:
27.2 mm x 350 mm, carbon
Saddle:
Selle Italia Model X Superflow
Crank:
SRAM Rival XPLR, 40 T
Pedals:
none
Brakes:

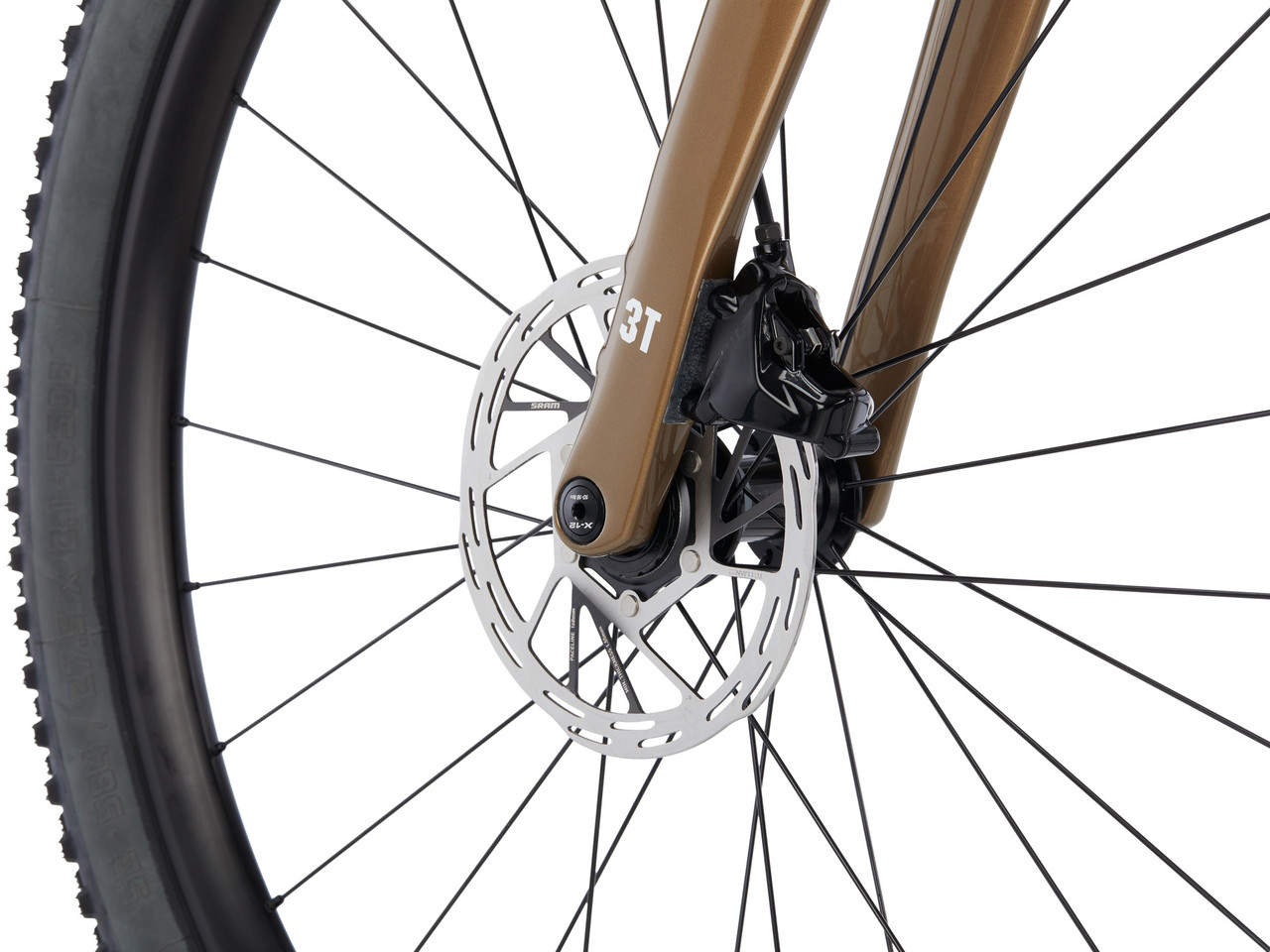

SRAM Rival, Flat Mount, hydraulic, Center Lock Disc, 160 mm
Shift/Brake lever:

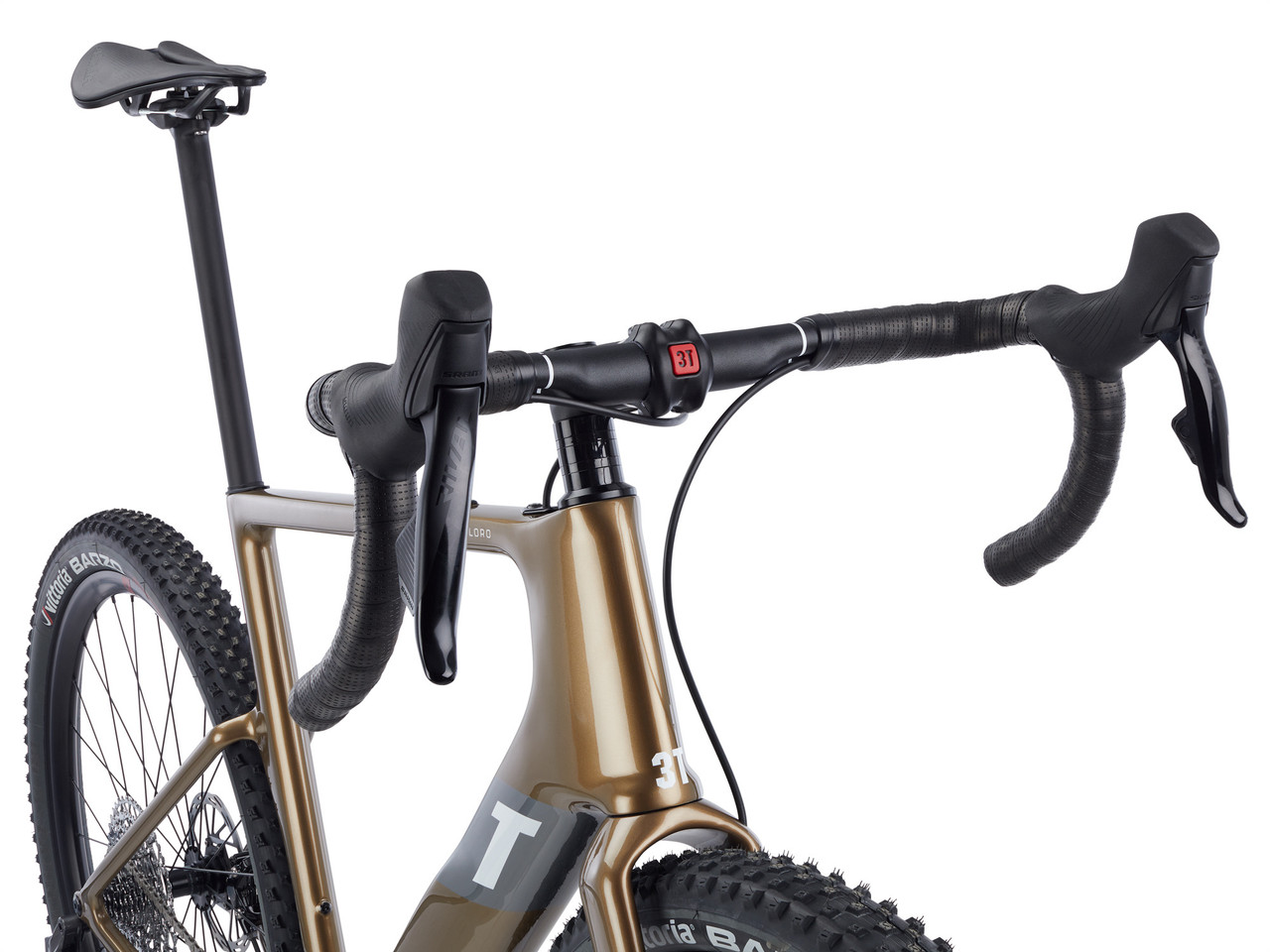

SRAM Rival eTap AXS
Rear Derailleur:

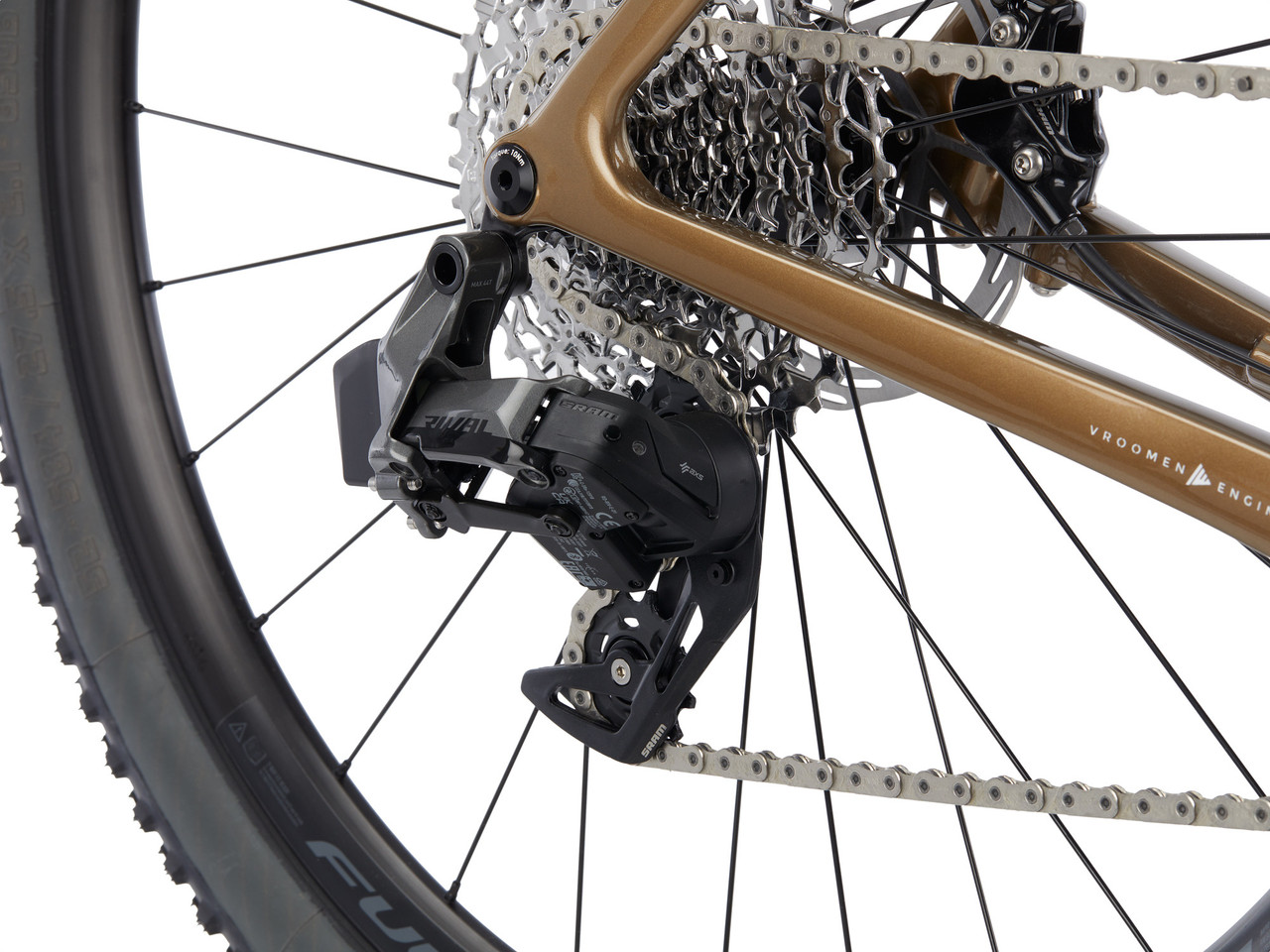

SRAM Rival XPLR, medium cage
Cassette:
SRAM 12-speed PowerGlide, 10-44 T
Chain:
SRAM PC-1130
Wheels:
Fulcrum Rapid Red 900, Disc Brake, 700C, Tubeless Ready
Tyres:
Vittoria Barzo

Approved For:

Rotor Size (max.):
160 mm
Tyre Size (max.):
700C x 45 mm, 650B x 61 mm
Chainrings:
1x

Features:

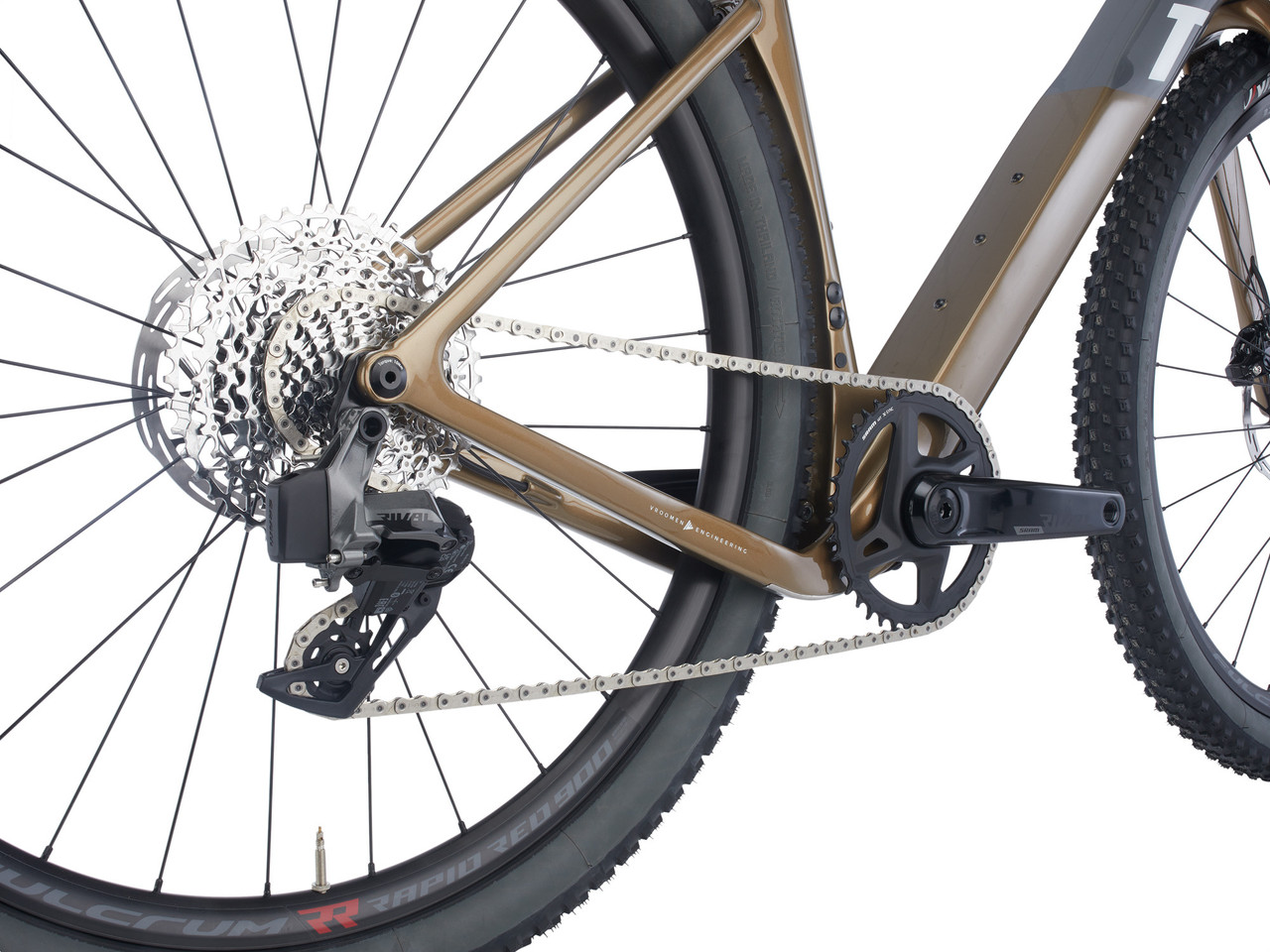

  • gravel bike with SRAM Rival 1 XPLR eTap AXS drivetrain

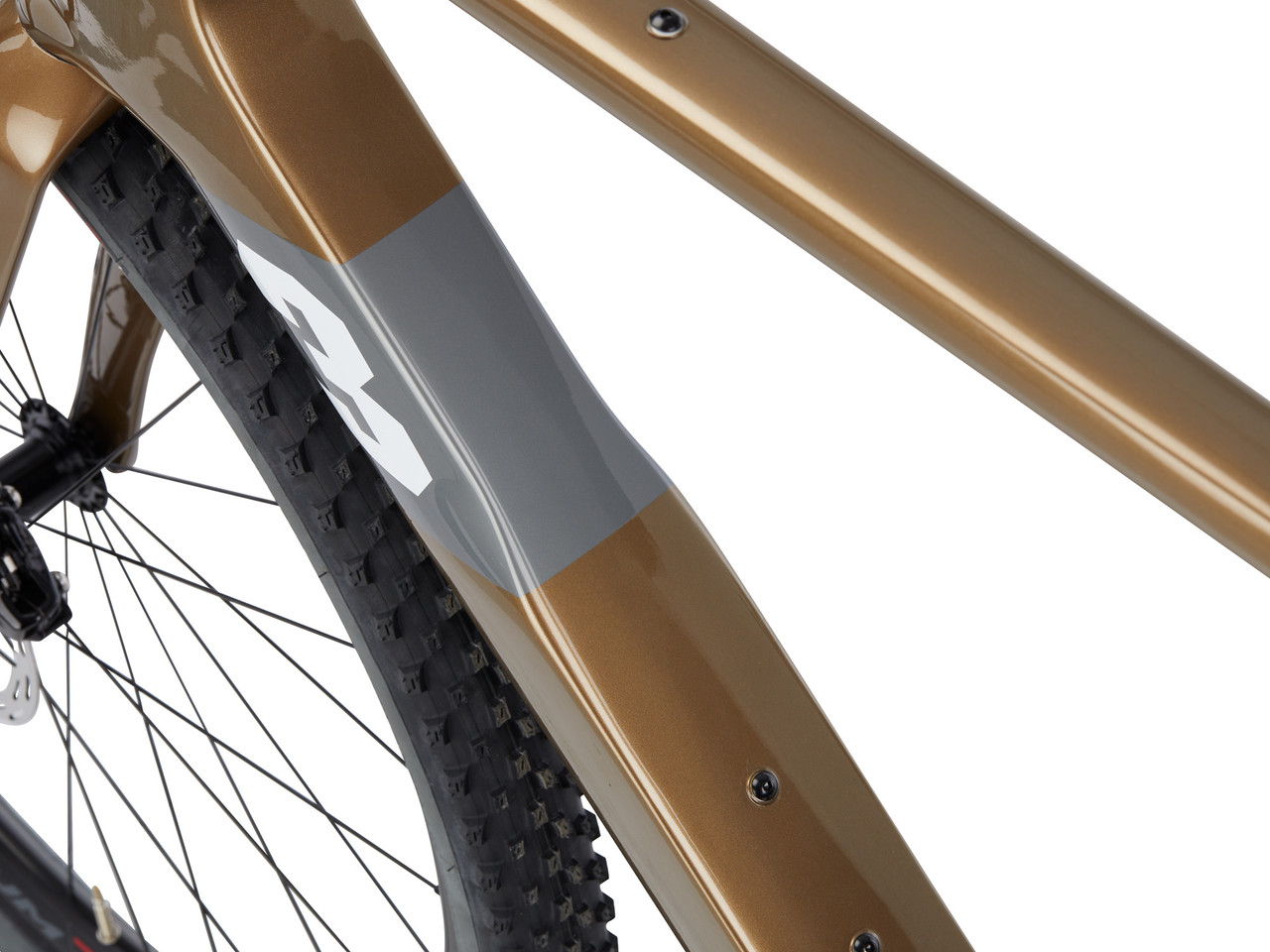

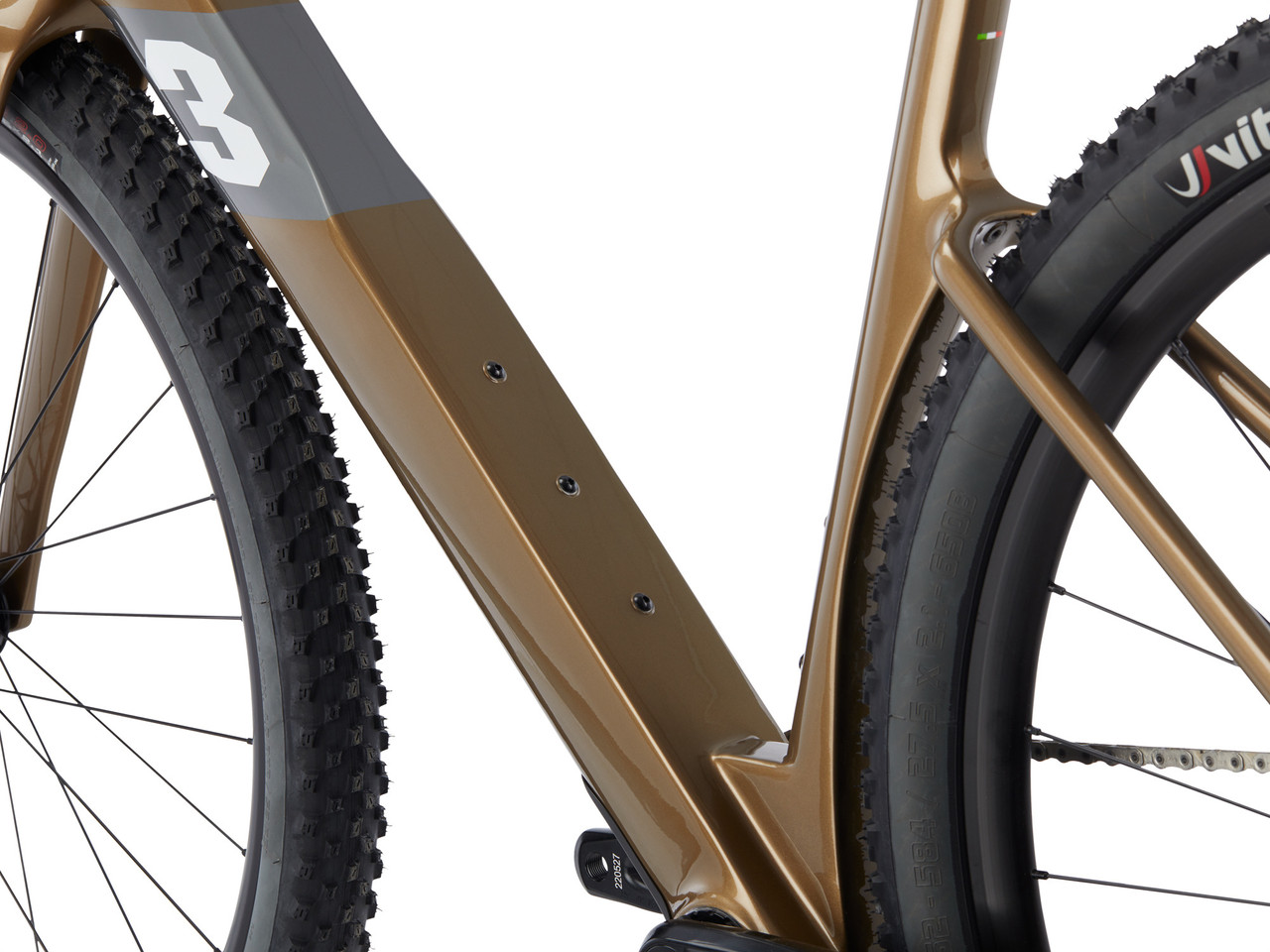

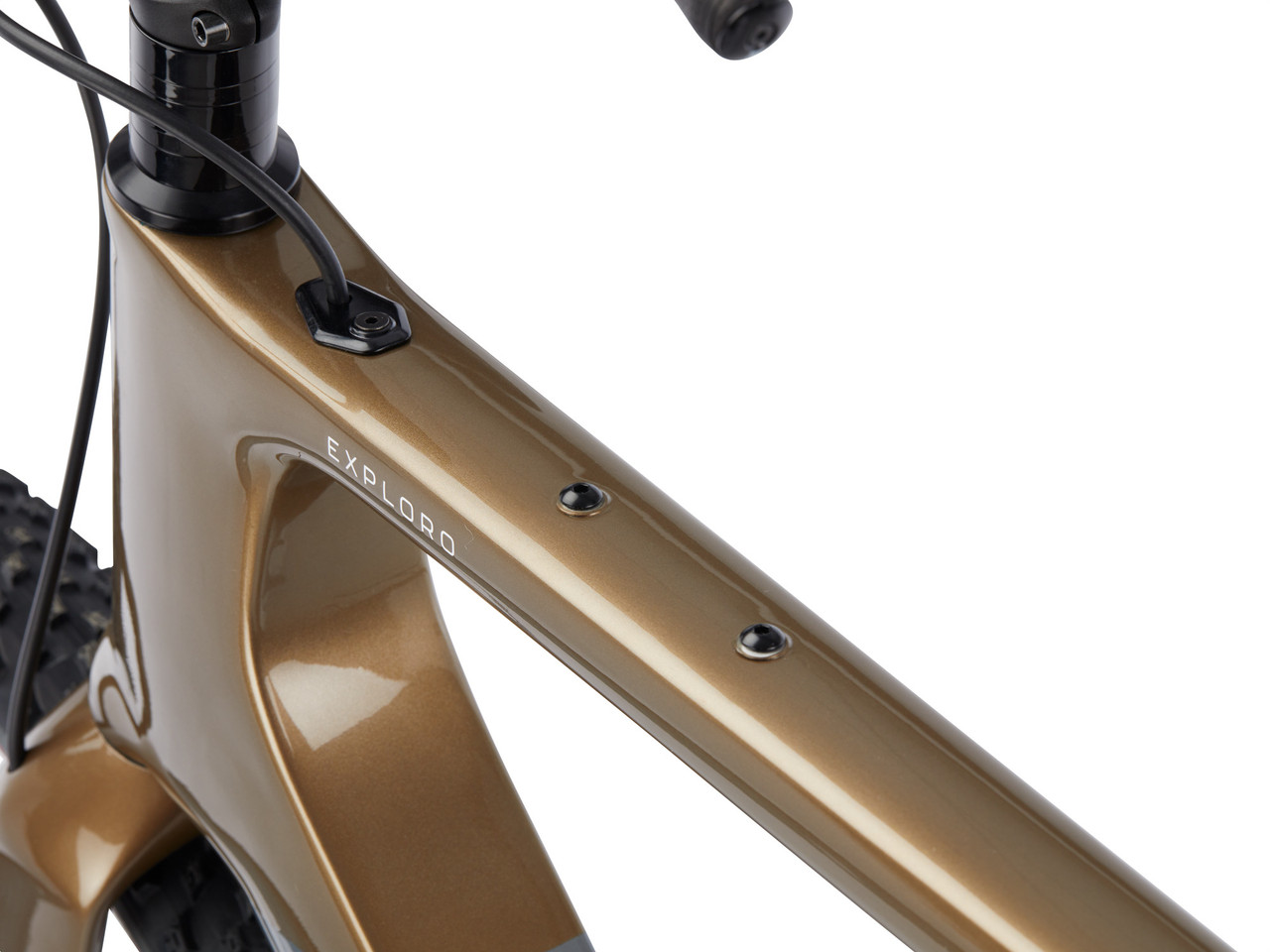

  • carbon frame with extra stable down tube (75 mm at the base, 60 mm at the head tube)
  • aerodynamic seat tube with round carbon seatpost
  • reduced fork crown for less weight and better aerodynamics

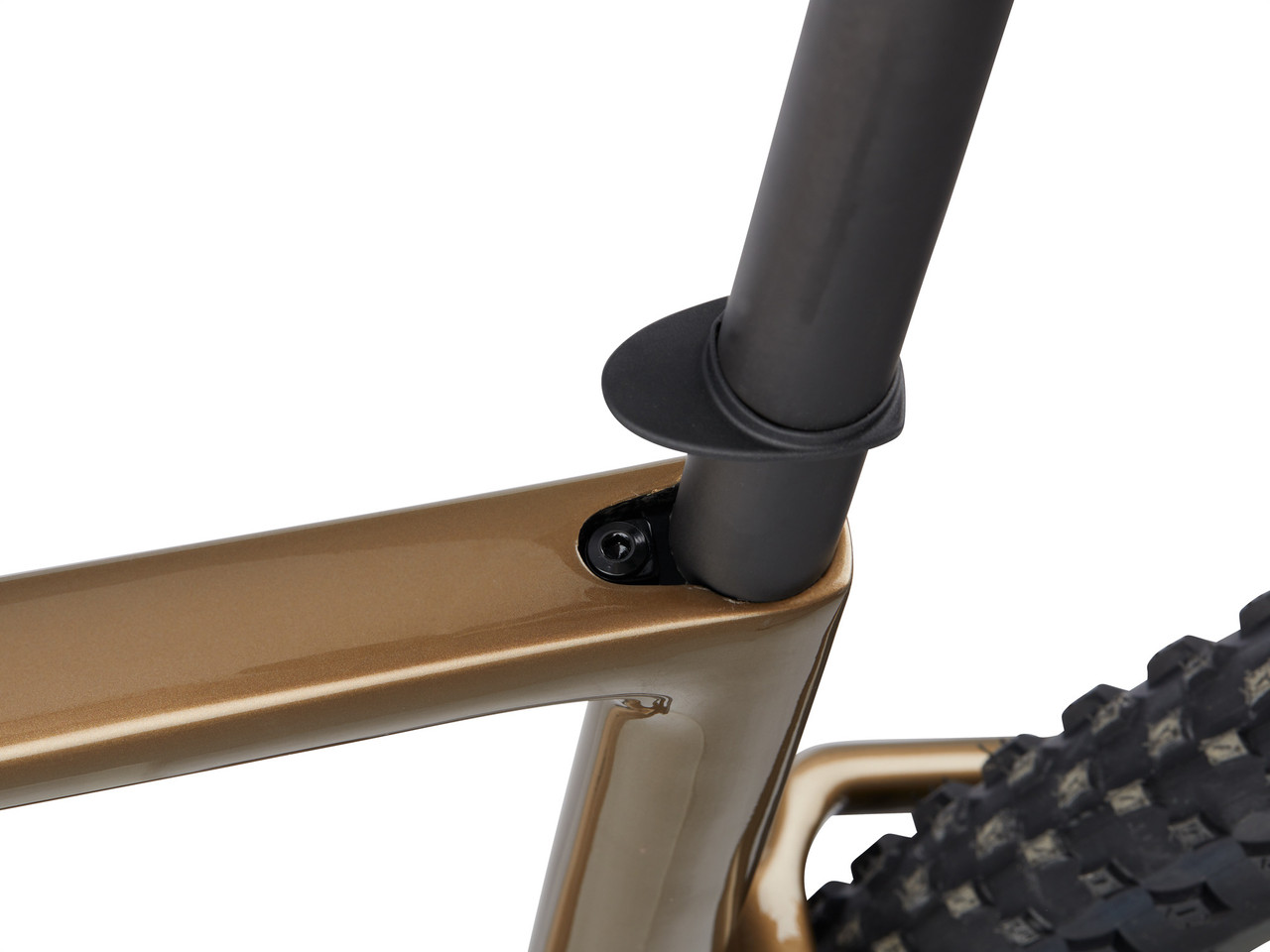

  • integrated, self-aligning seatpost clamp
  • integrated fender mounts
  • Fulcrum Rapid Red 900 wheels with 22 mm jaw width

Geometry:

XS:
Recommended Height:
157 - 171 cm
Stack:
542 mm
Reach:
362 mm
Seat Tube Length:
463 mm
Effective Top Tube Length:
526 mm
Head Tube Length:
147 mm
Chainstay Length:
419 mm
Wheelbase:
1008 mm
BB Drop:
79 mm
Seat Tube Angle:
74°
Head Tube Angle:
69.5°
Stem Length:
80 mm
Handlebar Width:
400 mm
Crank Arm Length:
170.0 mm

S:
Recommended Height:
168 - 180 cm
Stack:
564 mm
Reach:
373 mm
Seat Tube Length:
490 mm
Effective Top Tube Length:
546 mm
Head Tube Length:
161 mm
Chainstay Length:
419 mm
Wheelbase:
1012 mm
BB Drop:
79 mm
Seat Tube Angle:
73.5°
Head Tube Angle:
71°
Stem Length:
90 mm
Handlebar Width:
420 mm
Crank Arm Length:
172.5 mm

M:
Recommended Height:
176 - 186 cm
Stack:
584 mm
Reach:
381 mm
Seat Tube Length:
520 mm
Effective Top Tube Length:
566 mm
Head Tube Length:
180 mm
Chainstay Length:
419 mm
Wheelbase:
1014 mm
BB Drop:
79 mm
Seat Tube Angle:
73°
Head Tube Angle:
72°
Stem Length:
100 mm
Handlebar Width:
420 mm
Crank Arm Length:
172.5 mm

L:
Recommended Height:
183 - 195 cm
Stack:
604 mm
Reach:
388 mm
Seat Tube Length:
549 mm
Effective Top Tube Length:
586 mm
Head Tube Length:
201 mm
Chainstay Length:
419 mm
Wheelbase:
1024 mm
BB Drop:
79 mm
Seat Tube Angle:
73°
Head Tube Angle:
72.5°
Stem Length:
110 mm
Handlebar Width:
440 mm
Crank Arm Length:
175.0 mm

XL:
Recommended Height:
from 192 cm
Stack:
632 mm
Reach:
393 mm
Seat Tube Length:
576 mm
Effective Top Tube Length:
606 mm
Head Tube Length:
232 mm
Chainstay Length:
419 mm
Wheelbase:
1044 mm
BB Drop:
79 mm
Seat Tube Angle:
72.5°
Head Tube Angle:
72.5°
Stem Length:
120 mm
Handlebar Width:
440 mm
Crank Arm Length:
175.0 mm

Manufacturer Numbers:

XS:
9205CVDJ16W
S:
9205CVDK16W
M:
9205CVDL16W
L:
9205CVDM16W
XL:
9205CVDN16W

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent. The delivery time is extended by 2-5 days, depending on the overall volume of orders. For individual consultation, please contact our customer service team.

Contents:

  • 1 x 3T Exploro Ultra Rival AXS 1x Carbon gravel bike

  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Models:

  • coffee/XS, in stock
    3,713.19€
  • coffee/S, in stock
    3,713.19€
  • coffee/M, in stock
    3,713.19€
  • coffee/L, in stock
    3,713.19€
  • coffee/XL, in stock
    3,713.19€
