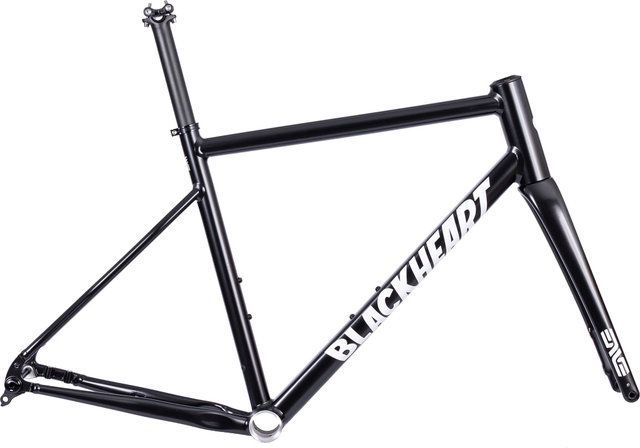

Blackheart Road AL frame kit

Road AL Frame Kit by Blackheart – Lightweight Aluminum Frame for Road Cycling

The Road AL Frame Kit by Blackheart is designed for road cycling enthusiasts who want a reliable and versatile frame. This frame features a durable aluminum construction paired with a carbon fork, providing a balanced ride with responsive handling. It supports a maximum tire size of 700 x 34C on both front and rear, allowing you to tackle varied road conditions comfortably. The frame accommodates a 31.6 mm seatpost diameter and uses a bolt-type seat clamp for secure positioning. Equipped with flat mount disc brake compatibility, it ensures effective stopping power in all weather conditions. The frame supports a T47 bottom bracket standard and fits 28" wheels with 12 x 100 mm front and 12 x 142 mm rear thru-axles, adding stiffness and precision to your ride. You can choose between single or double chainring setups, with compatibility for 1x50T or 2x39-53T configurations. The front derailleur mount is braze-on, making it easy to install your preferred shifting setup. This frame kit is perfect for riders who want a solid foundation to build their ideal road bike.

dark magic | 28" | L | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Wheel size:

28"

Setback:

0 mm

dark magic | 28" | XL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Wheel size:

28"

Setback:

0 mm

dark magic | 28" | XXL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Wheel size:

28"

Setback:

0 mm

dark magic | 28" | XXXL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Wheel size:

28"

Setback:

0 mm

dark magic | 28" | L | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Fork Offset:

43 mm

Clamp Diameter:

34,9 mm

Steerer Tube:

1 1/8" - 1,5" tapered

dark magic | 28" | XL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Steerer Tube:

1 1/8" - 1,5" tapered

Clamp Diameter:

34,9 mm

Fork Offset:

43 mm

dark magic | 28" | XXL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Steerer Tube:

1 1/8" - 1,5" tapered

Fork Offset:

43 mm

Clamp Diameter:

34,9 mm

dark magic | 28" | XXXL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Fork Offset:

43 mm

Clamp Diameter:

34,9 mm

Steerer Tube:

1 1/8" - 1,5" tapered

• Lightweight aluminum Road AL Frame Kit designed for road cycling with disc brakes, compatible with 28" wheels and up to 34C tires for versatile performance
• Carbon fork with 371 mm max length enhances ride comfort and precise handling on varied road surfaces
• Supports 1x and 2x chainring setups with max sizes of 50T and 53T respectively, ideal for customizable gearing options
• Equipped with standard 12x100 mm front and 12x142 mm rear thru-axles for improved stiffness and secure wheel fit
• Features a 31.6 mm seatpost diameter and bolt-type seat clamp for easy saddle adjustments and reliable fitment

dark magic | 28" | L | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Head Tube Angle:

736

Stack:

567 mm

Standover Height:

775 mm

Wheelbase:

987 mm

Reach:

387 mm

Seat Tube Angle:

73.5

BB Drop:

73 mm

Frame Size:

56 cm

Top Tube Length:

555 mm

Seat Tube Length:

515 mm

Head Tube Length:

160 mm

Effective Top Tube Length:

555 mm

dark magic | 28" | XL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Head Tube Angle:

73.5

Stack:

583 mm

Standover Height:

800 mm

Wheelbase:

992 mm

Reach:

392 mm

Seat Tube Angle:

73.5

BB Drop:

73 mm

Frame Size:

58 cm

Seat Tube Length:

530 mm

Head Tube Length:

175 mm

Top Tube Length:

565 mm

Effective Top Tube Length:

565 mm

dark magic | 28" | XXL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Head Tube Angle:

73.5

Stack:

596 mm

Standover Height:

825 mm

Wheelbase:

1007 mm

Reach:

403 mm

Seat Tube Angle:

73.5

BB Drop:

72 mm

Frame Size:

60 cm

Seat Tube Length:

545 mm

Head Tube Length:

190 mm

Top Tube Length:

585 mm

Effective Top Tube Length:

580 mm

dark magic | 28" | XXXL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm:

Head Tube Angle:

74

Stack:

617 mm

Standover Height:

850 mm

Wheelbase:

1016 mm

Reach:

411 mm

Seat Tube Angle:

73

BB Drop:

72 mm

Frame Size:

62 cm

Seat Tube Length:

565 mm

Head Tube Length:

210 mm

Top Tube Length:

600 mm

Effective Top Tube Length:

600 mm

• dark magic | 28" | L | 43 mm | 1 1/8" - 1,5" tapered | 0 mm: 26BHRADM56
• dark magic | 28" | XL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm: 26BHRADM58
• dark magic | 28" | XXL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm: 26BHRADM60
• dark magic | 28" | XXXL | 43 mm | 1 1/8" - 1,5" tapered | 0 mm: 26BHRADM62

• 1 x BlackHeart Road AL frame


• 1 x ENVE All-Road Carbon fork


• 1 x BlackHeart Carbon SL 0 mm seatpost


• 1 x   BlackHeart for 12 x 142 mm thru axle


• 1 x   ENVE for 12 x 100 mm thru axle


• 1 x   BlackHeart aluminum seat clamp


• 1 x headset
