Cinelli Zydeco Frameset

Cinelli Zydeco frame with Columbus Futura fork - Designed entirely for gravel riding

The Cinelli Zydeco aluminium frame gives you the perfect base for a true gravel bike. Its geometry is designed for performance and comfort on changing surfaces. A thru-axle system, disc brake compatibility and tyre clearance for up to 40 mm wide 28" tyres ensure stability and safety. Accessory mounts allow you to carry equipment on longer tours. The carbon fork from Columbus included in the set has a robust tapered steerer tube and a low axle to crown length, which lowers your centre of gravity and helps you in demanding terrain.

Specifications:

Application:

Gravel

Wheel Size:

28"

Size:

51 cm, 54 cm, 56 cm, 59 cm

Frame Material:

aluminium

Fork Material:

Carbon

Technical Information - Frame:

Wheel Standard:

12 x 142 mm (standard)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

31.6 mm

Seatpost Clamp(Ø):

34.9 mm

Headset:

IS42/28.6-IS47/33

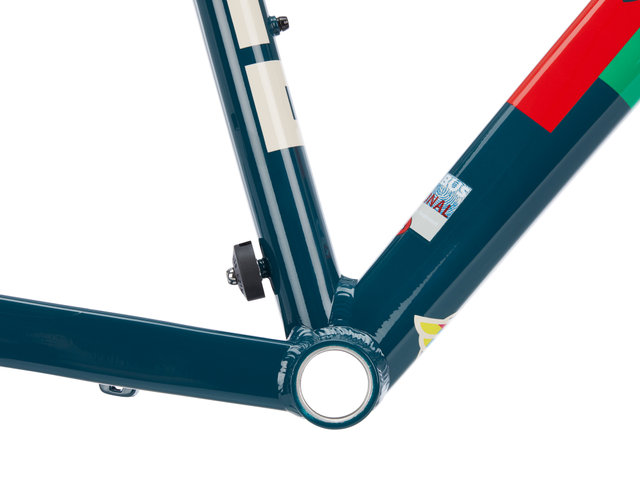

Bottom Bracket Standard:

BSA

Shell Width:

68 mm

Brake Mount:

flat mount

Front Derailleur Mount:

high clamp (34.9 mm)

Cable Routing:

internal, mechanical / electrical

Bottle Cage Mounts:

2

Technical Information - Fork:

Steerer Tube:

1 1/8" - 1 1/4" tapered

Wheel Standard:

12 x 100 mm (standard)

Axle Type:

12 mm thru-axle

Brake Mount:

flat mount

Offset:

47 mm

Steerer Tube Length:

300 mm

Axle to Crown:

382 mm

Over Locknut Dimension:

100 mm

Crown Race Diameter:

52 mm

Steerer Tube Material:

Carbon

Blade Material:

Carbon

Dropout Material:

carbon, aluminium

Approved For:

Rotor Size (max.):

160 mm

Tyre Size (max.):

40-622 (700x40C), with fenders: 35-622 (700x35C)

Chainrings:

2-speed

Features:

• aluminium frame made of triple-butted Columbus Zonal tubing for gravel use
• Columbus Futura gravel fork made from T700S HFM carbon monocoque

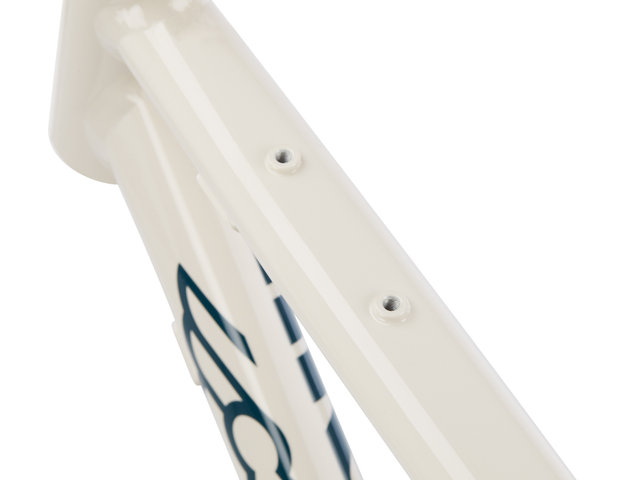

• accessory mounts for bikepacking
• mounts for front and rear fenders

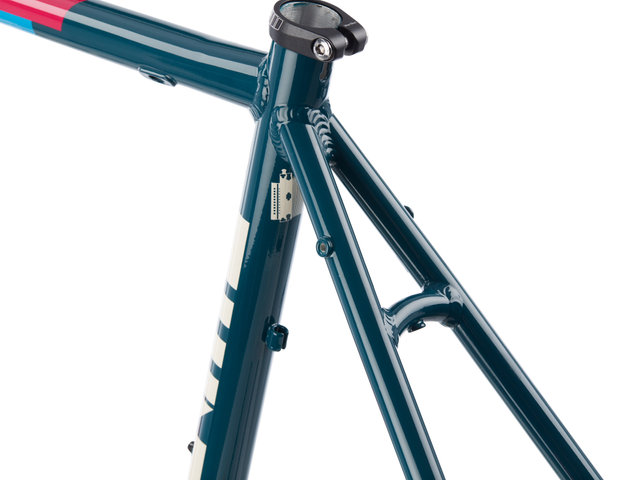

• mount for rear pannier rack
• fork dropouts made of carbon with aluminium inserts
• Characteristics: Performance 4 out of 6, Gravel 6 out of 6, Trail 4 out of 6, Comfort 5 out of 6

Geometry:

51 cm:

Frame Size:

S

Stack:

530 mm

Reach:

375 mm

Seat Tube Length:

510 mm

Top Tube Length:

514 mm

Effective Top Tube Length:

520 mm

Head Tube Length:

120 mm

Chainstay Length:

440 mm

Wheelbase:

1017 mm

BB Drop:

70 mm

Seat Tube Angle:

74.5°

Head Tube Angle:

71°

Standover Height:

765 mm

54 cm:

Frame Size:

M

Stack:

551 mm

Reach:

380 mm

Seat Tube Length:

540 mm

Top Tube Length:

530 mm

Effective Top Tube Length:

539 mm

Head Tube Length:

140 mm

Chainstay Length:

440 mm

Wheelbase:

1025 mm

BB Drop:

70 mm

Seat Tube Angle:

74°

Head Tube Angle:

71.5°

Standover Height:

791 mm

56 cm:

Frame Size:

L

Stack:

572 mm

Reach:

390 mm

Seat Tube Length:

560 mm

Top Tube Length:

549 mm

Effective Top Tube Length:

560 mm

Head Tube Length:

160 mm

Chainstay Length:

440 mm

Wheelbase:

1037 mm

BB Drop:

70 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

72°

Standover Height:

810 mm

59 cm:

Frame Size:

XL

Stack:

592 mm

Reach:

399 mm

Seat Tube Length:

580 mm

Top Tube Length:

570 mm

Effective Top Tube Length:

580 mm

Head Tube Length:

180 mm

Chainstay Length:

440 mm

Wheelbase:

1047 mm

BB Drop:

70 mm

Seat Tube Angle:

73°

Head Tube Angle:

72.5°

Standover Height:

835 mm

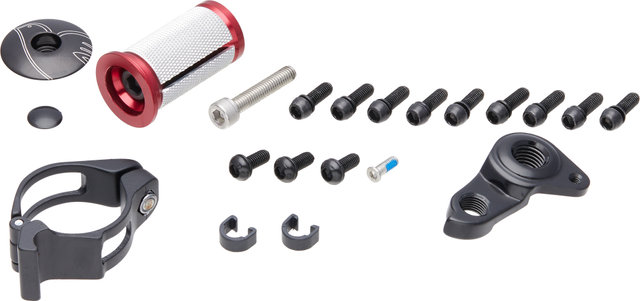

Contents:

• 1 x Cinelli Zydeco frame
• 1 x Columbus Futura Gravel fork
• 1 x headset
• 1 x rear thru-axle M12 x 1.5, 165 mm
• 1 x front thru-axle M12 x 1.5, 119 mm
• 1 x seatpost clamp
• 1 x headset expander
• 1 x spare derailleur hanger with bolt
