DT Swiss EX 511 Disc 29" Rim

A real Enduro rim: the EX 511 Disc rim from DT Swiss

Enduro may be a newer discipline, but at its core is the rider's inner desire to face challenging terrain with ever-increasing speed. When you think about it, that is what mountain biking was all about from the start. The EX 511 is exactly the right rim for this: it has exactly the technology that has already delivered numerous EWS victories and packs them into a 30 mm-wide profile. What are you waiting for? Let's go!

Specifications:

Application:

Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28, 32

Brake Type:

disc

Tubeless System:

Tubeless Ready

Technical Information:

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Outer Width:

35 mm

Depth:

21 mm

ERD:

601 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

Approved For:

Weight Limit:

130 kg (system weight)

Air Pressure (max.):

4.7 bars

Recommended Tyre Width:

1.85 - 3.5" / 47 - 89 mm

Features:

• no eyelets
• 1200 N max. spoke tension
• rim tape: 622x32 mm
• recommended spokes: DT Competition®

Technology:

SBWT®:
In the SBWT® (Strength Boost Welding Technology) process, a block is pressed into both profile ends for stabilisation during welding. After welding, the seam is CNC processed.

Manufacturer Numbers:

29" / 28 hole:

RDEX51CDPW28SA6296

29" / 32 hole:

RDEX51CDPW32SA6298

Contents:

• 1 x DT Swiss EX 511 rim

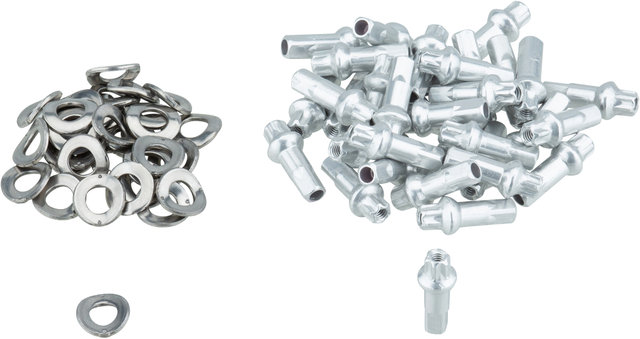

• incl. DT Swiss Pro Lock Squorx Pro Head aluminium 2.0 mm nipples (silver)
• incl. DT Swiss PHR washers
