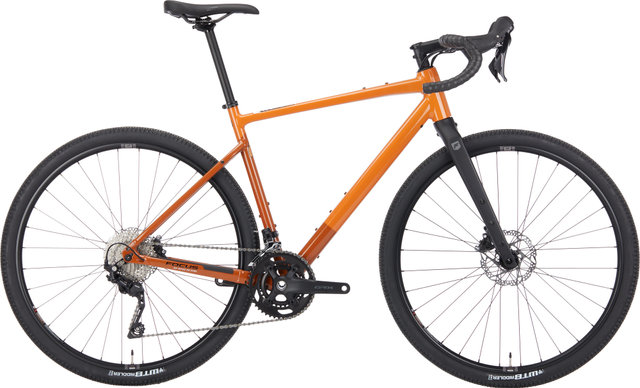

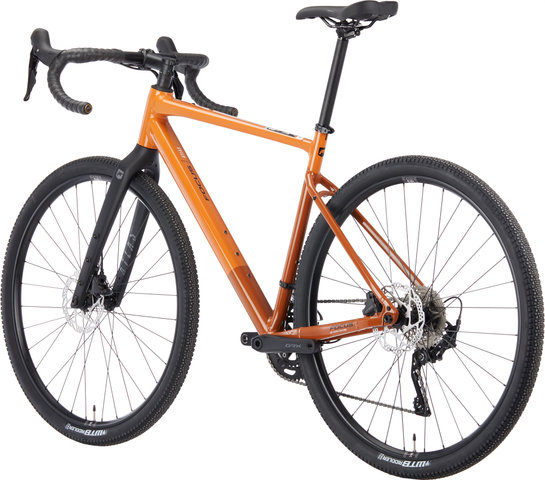

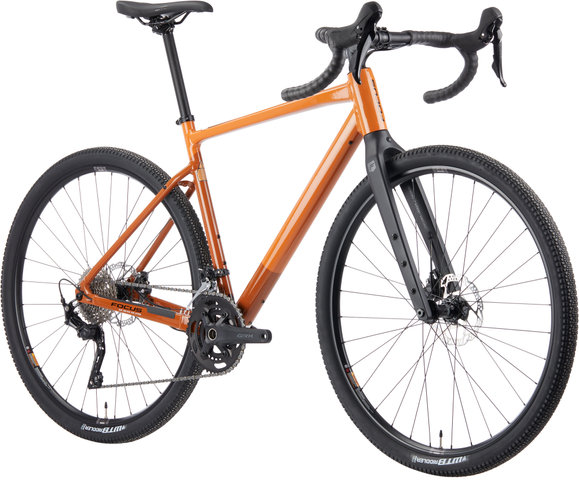

The FOCUS ATLAS 6.7 28" gravel bike for limitless gravel adventures

The ATLAS 6.7 is a versatile gravel bike with an aluminium frame and carbon fork, equipped by FOCUS with a Shimano GRX 2x10-speed groupset. Disc brakes, Boost hubs, the 45 mm-wide tyres and handlebars with 10° flare ensure full control during gravel road adventures. The extensive mounting options also make the ATLAS great for bikepacking.

Specifications:

Application:

Gravel

Wheel Size:

28"

Sizes:

XS, S, M, L, XL

Frame Material:

aluminium

Fork Material:

Carbon

Components:

Frame:

FOCUS ATLAS, aluminium, flat mount disc, BSA, 12 x 148 mm thru-axle (Boost), internal cable routing

Fork:

FOCUS ATLAS Carbon, flat mount disc, 12 x 110 mm thru-axle (Boost), 425 mm axle to crown length, 50 mm offset, internal brake hose guide, with mounting points

Stem:

FOCUS, aluminium, 31.8 mm, 6°

Handlebars:

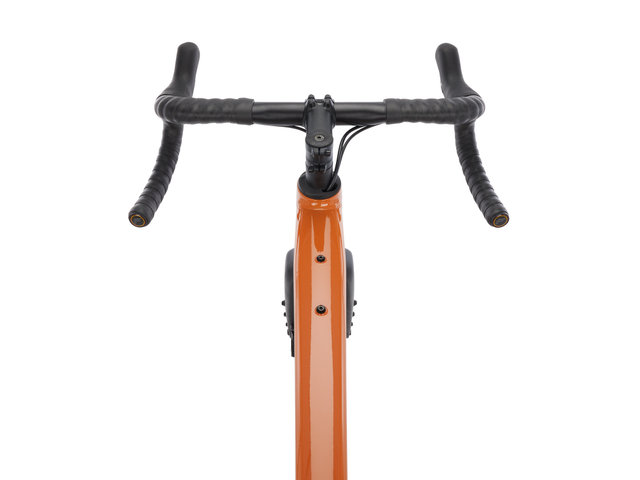

FOCUS JD RA85, 31.8 mm, 116 mm drop, 74 mm reach, 10° flare

Headset:

Acros IS52/28,6-IS52/40 (ICR), FOCUS integrated C.I.S.

Seatpost:

FOCUS, aluminium, 27.2 mm, 350 mm, 0 mm setback

Saddle:

WTB SL8

Crank:

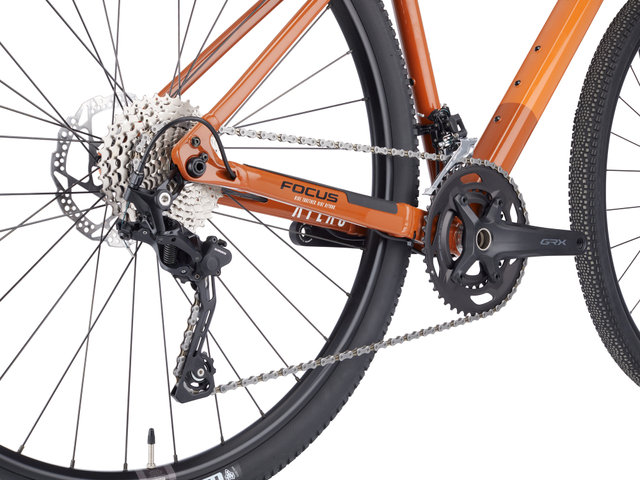

Shimano GRX FC-RX600, 10-speed, 30-46 T, BSA bottom bracket

Pedals:

none

Brakes:

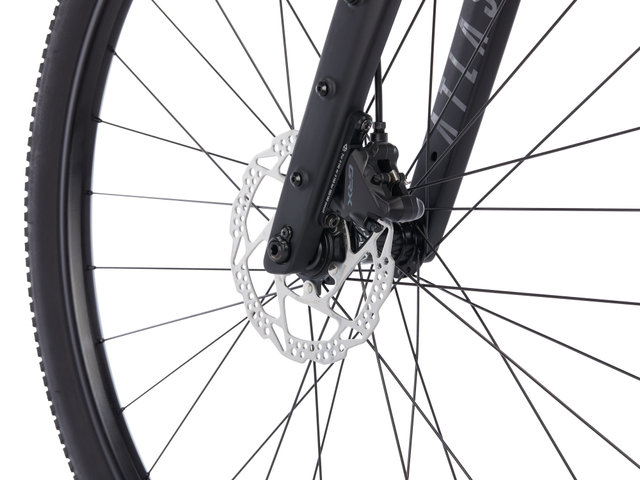

Shimano GRX BR-RX400, 160 mm/160 mm

Shift/Brake lever:

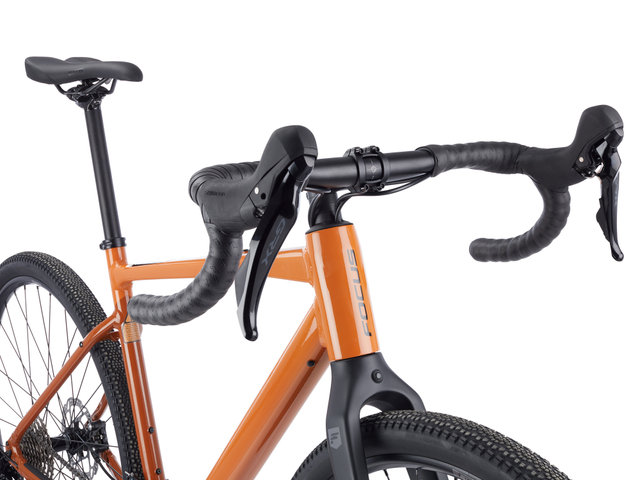

Shimano GRX ST-RX400

Rear Derailleur:

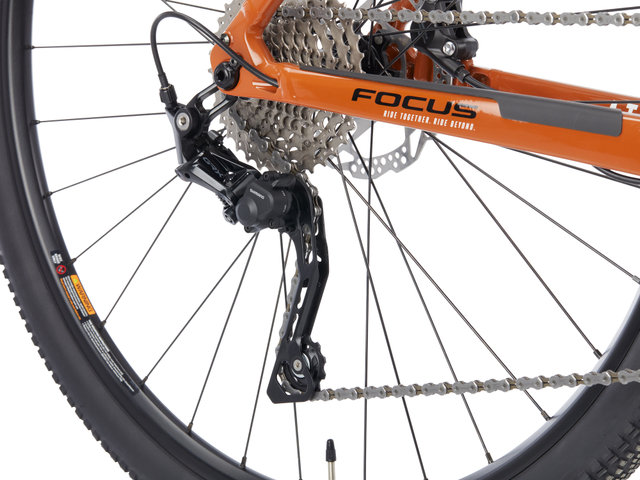

Shimano GRX RD-RX400

Front Derailleur:

Shimano GRX FD-RX400

Cassette:

Shimano CS-HG50-10, 10-speed, 11-34 tooth

Chain:

Shimano Tiagra CN-4601, 10-speed

Wheels:

WTB ST i23 TCS rims, Tubeless Ready, Novatec D041 front hub, 12 x 110 mm, Novatec D982TSB rear hub, 12 x 148 mm

Tyres:

WTB Riddler, 700 x 45C

Approved For:

Weight Limit:

120 kg (system weight)

Rotor Size (max.):

180 mm

Tyre Size (max.):

27.5" : 53-584, 28" : 47-622, with fenders 28" : 40-622

Chainrings:

2-speed, 1-speed

Chainring Size (max.):

1-speed 42 T (chainline 49.7 mm (Shimano)), 1-speed 40 T (chainline 45 mm (SRAM)), 2-speed 30-46 T (chainline 47 mm (Shimano)), 2-speed 30-43 T (chainline 47.5 mm (SRAM))

Features:

• fast gravel bike with aluminium frame for adventures and bikepacking
• Endurance geometry
• numerous mounting options for equipment
• extremely large tyre clearance of up to 47 mm
• 650B compatible
• Shimano GRX 2x10-speed gears, Novatec hubs and WTB rims
• affords you control on different surfaces and in all weather conditions
• wide flared handlebars and disc brakes offer a high degree of safety and comfort
• EN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/h

Technology:

Road Boost
The FOCUS hub standard Road Boost ensures optimum shifting characteristics thanks to a perfect chainline and a minimum level of wear and noise. At the same time, the wider hubs increase the rigidity of the wheels, resulting in reliable handling characteristics and high durability.

Geometry:

XS:

Frame Size:

48 cm

Stack:

568 mm

Reach:

370 mm

Seat Tube Length:

450 mm

Effective Top Tube Length:

532 mm

Head Tube Length:

114 mm

Chainstay Length:

425 mm

Wheelbase:

1015 mm

BB Drop:

75 mm

Seat Tube Angle:

74°

Head Tube Angle:

70.5°

Standover Height:

765 mm

Stem Length:

70 mm

Handlebar Width:

42 cm

Crank Arm Length:

170.0 mm

S:

Frame Size:

51 cm

Stack:

582 mm

Reach:

380 mm

Seat Tube Length:

490 mm

Effective Top Tube Length:

552 mm

Head Tube Length:

129 mm

Chainstay Length:

425 mm

Wheelbase:

1030 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

789 mm

Stem Length:

70 mm

Handlebar Width:

42 cm

Crank Arm Length:

170.0 mm

M:

Frame Size:

54 cm

Stack:

596 mm

Reach:

395 mm

Seat Tube Length:

520 mm

Effective Top Tube Length:

571 mm

Head Tube Length:

144 mm

Chainstay Length:

425 mm

Wheelbase:

1051 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

809 mm

Stem Length:

80 mm

Handlebar Width:

44 cm

Crank Arm Length:

172.5 mm

L:

Frame Size:

57 cm

Stack:

615 mm

Reach:

410 mm

Seat Tube Length:

550 mm

Effective Top Tube Length:

592 mm

Head Tube Length:

164 mm

Chainstay Length:

425 mm

Wheelbase:

1072 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

830 mm

Stem Length:

90 mm

Handlebar Width:

44 cm

Crank Arm Length:

172.5 mm

XL:

Frame Size:

60 cm

Stack:

643 mm

Reach:

420 mm

Seat Tube Length:

577 mm

Effective Top Tube Length:

610 mm

Head Tube Length:

194 mm

Chainstay Length:

425 mm

Wheelbase:

1092 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

862 mm

Stem Length:

90 mm

Handlebar Width:

44 cm

Crank Arm Length:

175.0 mm

Manufacturer Numbers:

XS:

663019420

S:

663019421

M:

663019422

L:

663019423

XL:

663019424

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x FOCUS ATLAS 6.7 Gravel Bike
