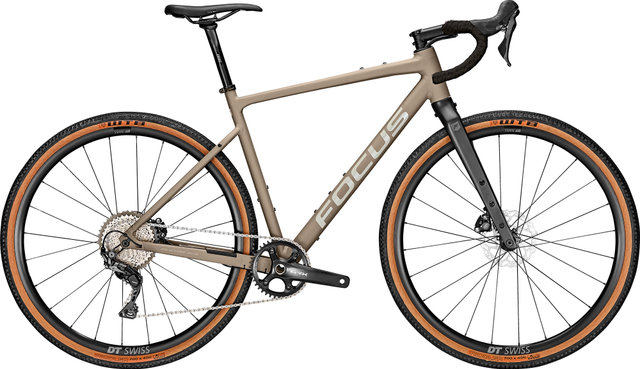

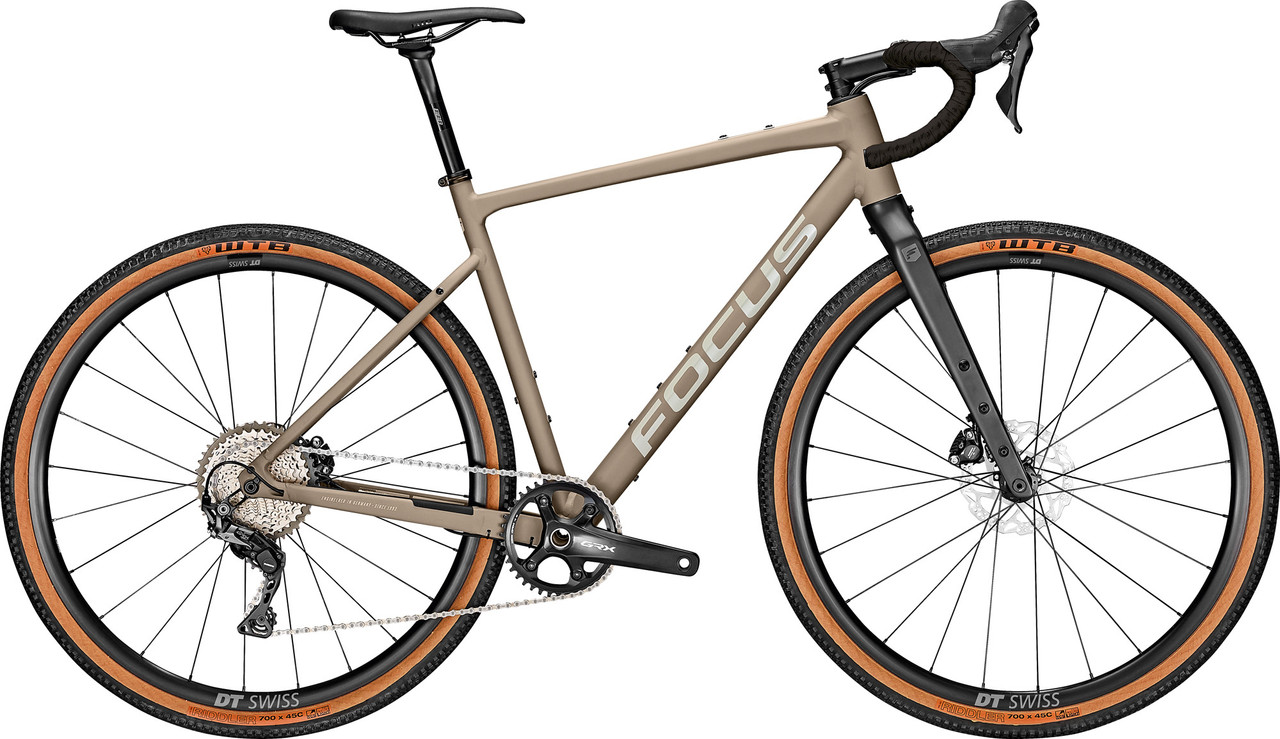

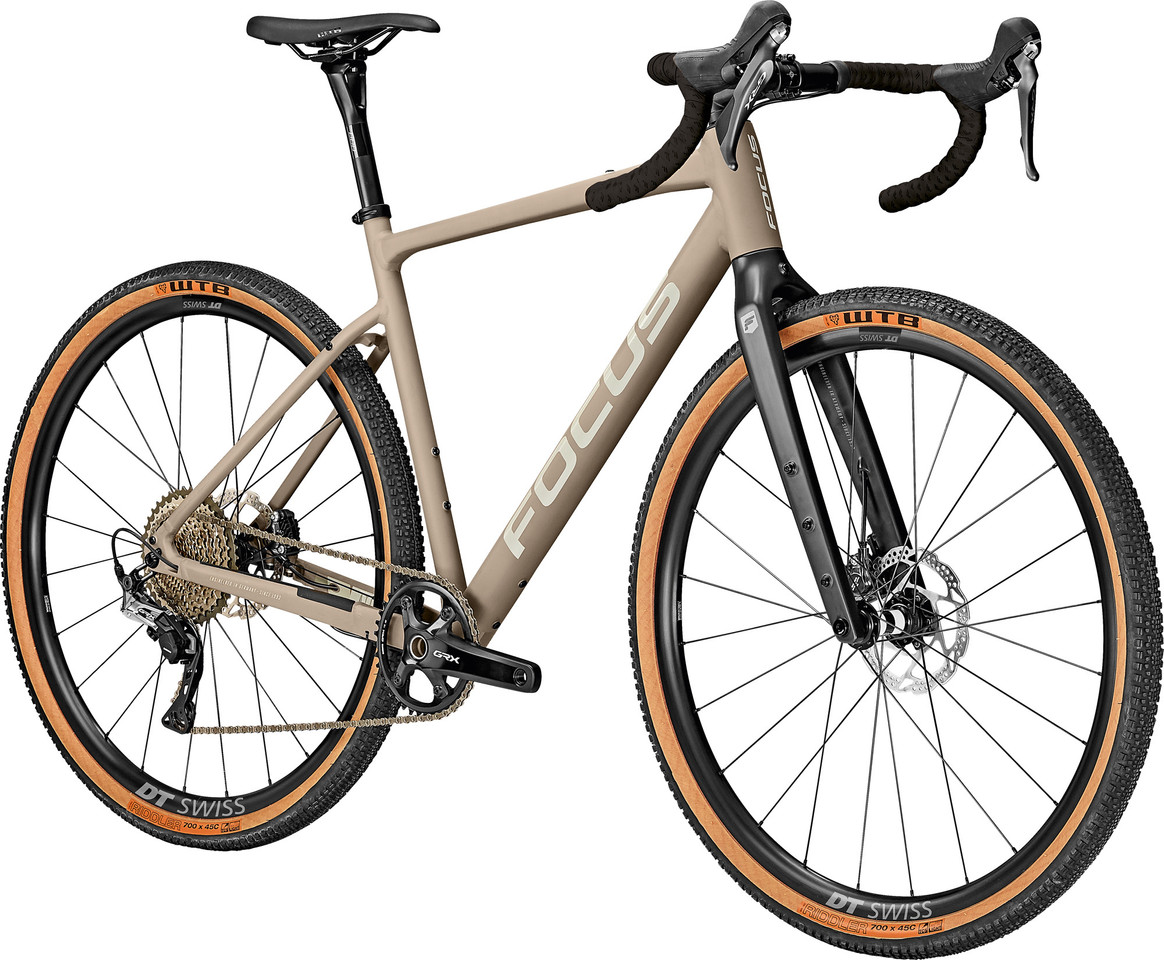

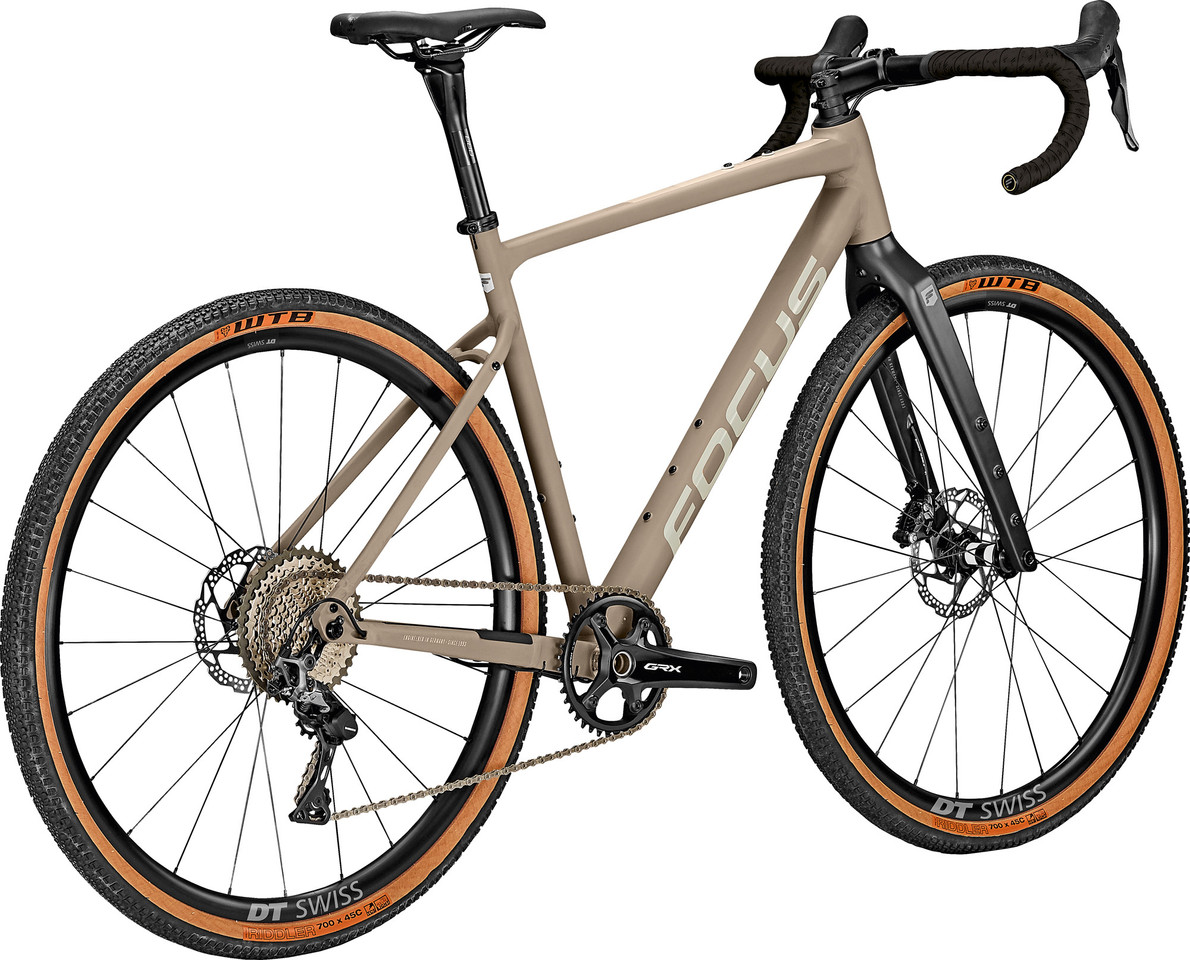

The ATLAS 6.9 is a versatile gravel bike with an aluminium frame and carbon fork, equipped by FOCUS with a Shimano GRX 1x11-speed groupset including MTB cassette and DT Swiss Gravel LN 28" wheels. Its Endurance geometry, disc brakes, 45 mm wide tyres and 10° flare handlebars ensure full control on gravel road adventures. The extensive mounting options also make the ATLAS great for bikepacking.

Specifications:

Application:

Gravel

Wheel Size:

28"

Sizes:

XS, S, M

Frame Material:

aluminium

Fork Material:

Carbon

Components:

Frame:

FOCUS ATLAS, aluminium, flat mount disc, 12 x 148 mm thru-axle (Boost)

Fork:

FOCUS ATLAS, Carbon, Disc Flat Mount, 425 mm axle to crown length, 50 mm offset, 12 x 110 mm thru-axle (Boost)

Stem:

FOCUS, aluminium, 6°, 31.8 mm

Handlebars:

FOCUS JD RA85, 116 mm drop, 74 mm reach, 10° flare, 31.8 mm

Headset:

Acros IS52/28.6-IS52/40, FOCUS integrated C.I.S.

Seatpost:

BBB FlyPost SP-135, carbon, 27.2 mm, 350 mm, 0 mm setback, insertion depth min. 100 mm

Saddle:

WTB SL8

Crank:

Shimano GRX 810, BSA bottom bracket, 40 T chainring

Pedals:

none

Brakes:

Shimano GRX 810, 160 mm/160 mm

Shift/Brake lever:

Shimano GRX 800

Rear Derailleur:

Shimano GRX 812

Cassette:

Shimano SLX, 11-42 T

Chain:

Shimano CN-HG601

Wheels:

DT Swiss LN Gravel, 24-622, Center Lock Disc, 12 x 110 mm / 12 x 148 mm

Tyres:

WTB Riddler, 700 x 45C, folding tyre

Approved For:

Weight Limit:

120 kg

Rotor Size (max.):

180 mm

Tyre Size (max.):

27.5 x 2.0" , 47-622 (700 x 47C), with fenders: 40-622 (700 x 40C)

Chainrings:

1-speed, 2-speed

Chainring Size (max.):

1-speed 42 T with chainline 49.7 mm (Shimano), 1-speed 40 T with chainline 45 mm (SRAM), 2-speed 30-46 T with chainline 47 mm (Shimano), 2-speed 30-43 T with chainline 47.5 mm (SRAM)

Features:

• fast gravel bike with aluminium frame for adventures and bikepacking
• Endurance geometry for comfort and control on changing surfaces and in all weather conditions
• extremely large tyre clearance up to 47 mm, 650B compatible
• Shimano GRX 810 1x11-speed groupset and disc brakes
• DT Swiss Gravel LN wheels with 24 mm wide rims
• wide handlebars with flare
• internal cable routing
• numerous mounting options
• includes top tube bag
• EN classification 2: Bicycle for leisure riding with moderate effort, for paved surfaces and unpaved roads or gravel roads of moderate classification, drops of no more than 15 cm, average speed 15 to 25 km/h

Technology:

C.I.S.
Fully-integrated C.I.S. cable routing ensures a tidy cockpit. All cables run through the special stem and headset directly into the frame. Perfect braking and shifting is guaranteed at all times.

Road Boost
The FOCUS hub standard Road Boost ensures optimum shifting characteristics thanks to a perfect chainline and a minimum level of wear and noise. At the same time, the wider hubs increase the rigidity of the wheels, resulting in reliable handling characteristics and high durability.

Geometry:

XS:

Frame Size:

48 cm

Recommended Height:

160 - 170 cm

Stack:

568 mm

Reach:

370 mm

Seat Tube Length:

450 mm

Effective Top Tube Length:

532 mm

Head Tube Length:

114 mm

Chainstay Length:

425 mm

Wheelbase:

1015 mm

BB Drop:

75 mm

Seat Tube Angle:

74°

Head Tube Angle:

70.5°

Standover Height:

765 mm

Stem Length:

70 mm

Handlebar Width:

42 cm

Crank Arm Length:

170.0 mm

Seatpost Insertion Depth (max.):

220 mm

S:

Frame Size:

51 cm

Recommended Height:

171 - 175 cm

Stack:

582 mm

Reach:

380 mm

Seat Tube Length:

490 mm

Effective Top Tube Length:

552 mm

Head Tube Length:

129 mm

Chainstay Length:

425 mm

Wheelbase:

1030 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

789 mm

Stem Length:

70 mm

Handlebar Width:

42 cm

Crank Arm Length:

170.0 mm

Seatpost Insertion Depth (max.):

250 mm

M:

Frame Size:

54 cm

Recommended Height:

176 - 185 cm

Stack:

596 mm

Reach:

395 mm

Seat Tube Length:

520 mm

Effective Top Tube Length:

571 mm

Head Tube Length:

144 mm

Chainstay Length:

425 mm

Wheelbase:

1051 mm

BB Drop:

75 mm

Seat Tube Angle:

73.5°

Head Tube Angle:

70.5°

Standover Height:

809 mm

Stem Length:

80 mm

Handlebar Width:

44 cm

Crank Arm Length:

172.5 mm

Seatpost Insertion Depth (max.):

285 mm

Manufacturer Numbers:

XS:

641019440

S:

641019441

M:

641019442

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x FOCUS ATLAS 6.9 28" Gravel Bike
• 1 x FOCUS top tube bag
