FSA Energy Modular BB386EVO Crankset - 2023 Model

FSA Energy Modular aluminium crankset - Direct Mount and BB386EVO for road bikes

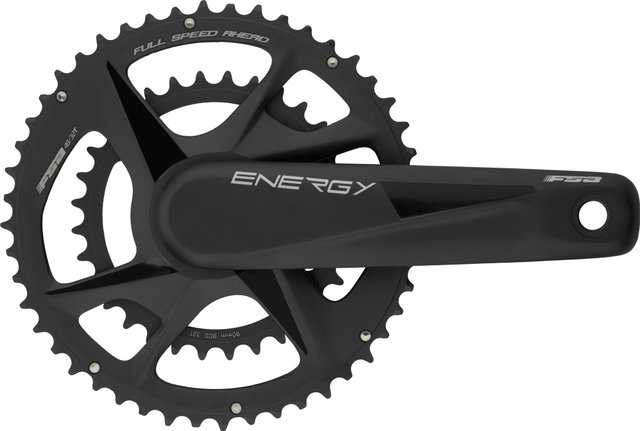

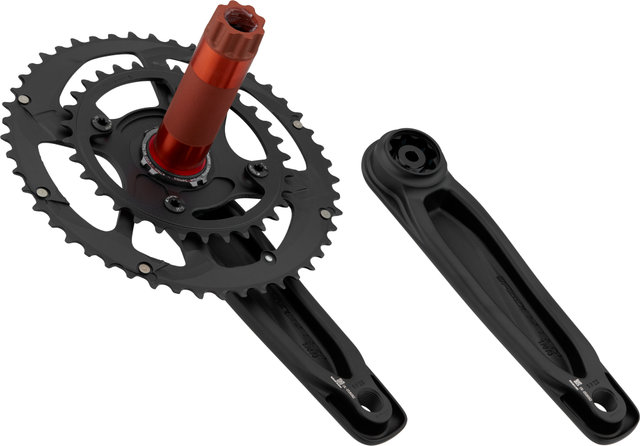

The Energy Modular by FSA is a crankset for gravel, adventure and road bike use. It combines hollow-forged aluminium crank arms with a lightweight aluminium axle and CNC-machined chainrings also made of aluminium. The large chainring is mounted via Direct Mount, the small chainring with 90 mm bolt circle is attached to it. Thanks to its BB386EVO axle, the Energy Modular crank is suitable for numerous bottom bracket standards.

Specifications:

Application:

Gravel, Road

Compatibility:

Shimano 2x10-speed, Shimano 2x11-speed, SRAM 2x10-speed, SRAM 2x11-speed, FSA 2x11-speed

Chainring Mount:

FSA Direct Mount (outer), 90 mm bolt circle diameter, 4-arm (inner)

Technical Information:

Series:

Energy

Crank Arm Material:

aluminium (7050-T6)

Chainring Material:

aluminium (7050)

Axle Material:

aluminium (7050)

Gradation:

32-48 T, 30-46 T

Crank Arm Length:

170.0 mm, 172.5 mm, 175.0 mm

Chainline:

43.5 mm

Axle Diameter:

30 mm

Recommended Bottom Bracket:

MegaEvo (BSA 30), BB86, BB30, PF30

Features:

• 2-speed aluminium crankset for gravel, adventure and road use

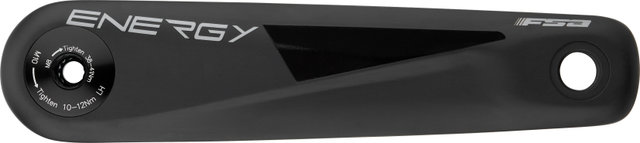

• hollow crank arms, cold forged
• forged crank axle
• chainrings cold forged and CNC machined
• Direct Mount attachment for outer chainring
• flexible BB386EVO standard
• polished and black anodised
• 2-tone laser graphics

Manufacturer Numbers:

170.0 mm 30-46:

336-0375BJ3870

172.5 mm 30-46:

336-0375BJ4870

175.0 mm 30-46:

336-0375BJ5870

170.0 mm 32-48:

336-0375AJ3870

172.5 mm 32-48:

336-0375AJ4870

175.0 mm 32-48:

336-0375AJ5870

Contents:

• 1 x FSA Energy Modular BB386EVO crankset (30-46 or 32-48 tooth)

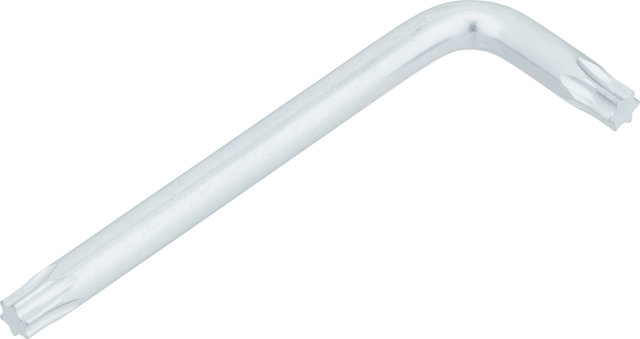

• 1 x Torx key
