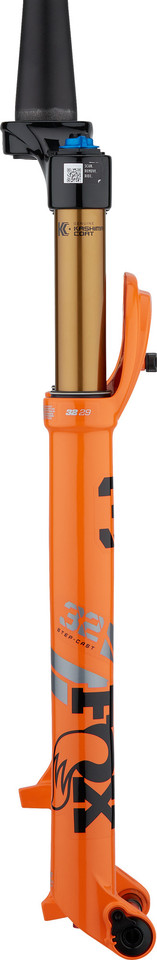

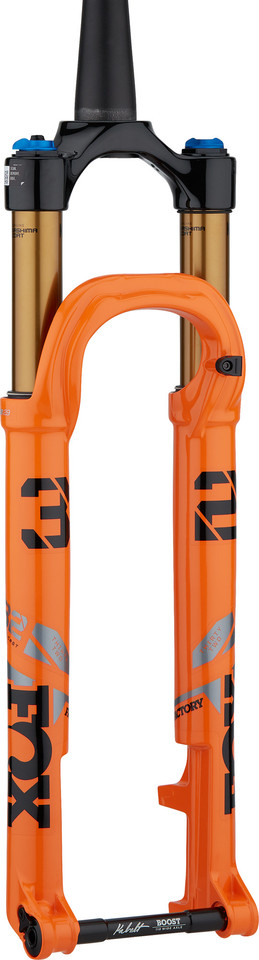

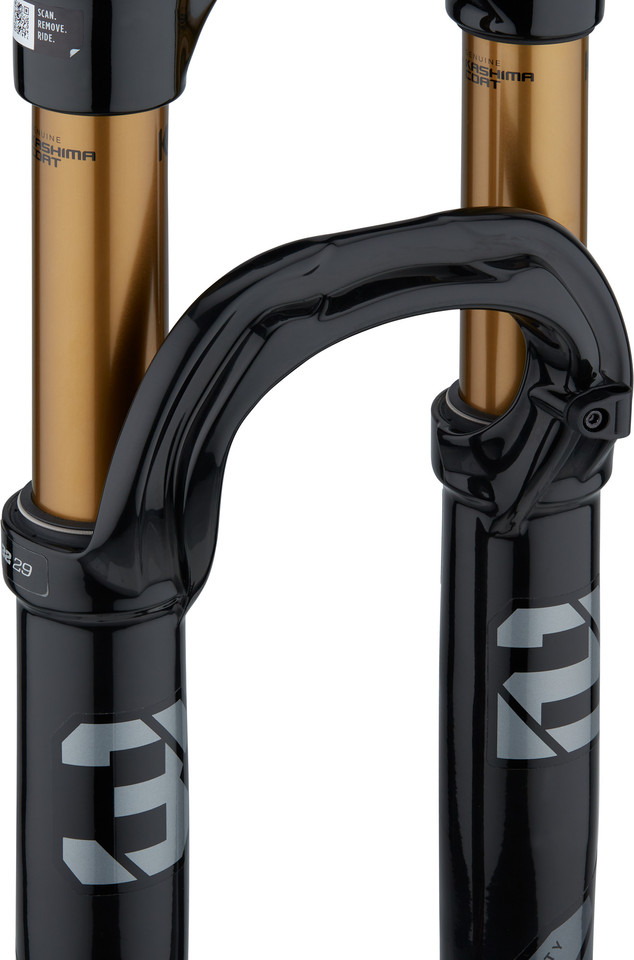

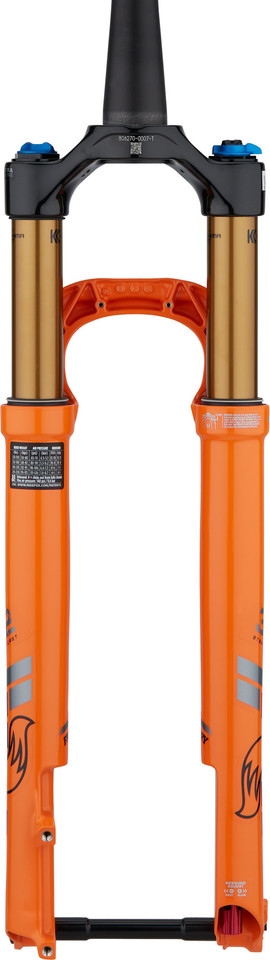

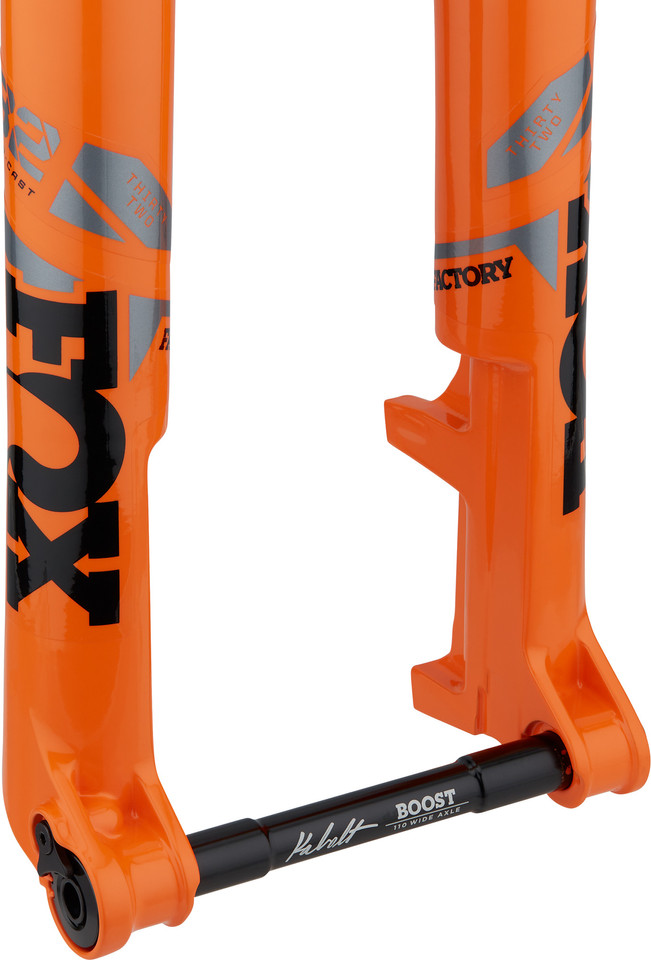

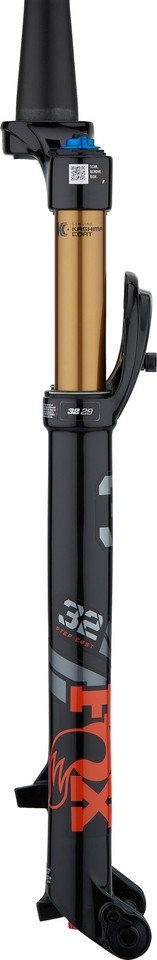

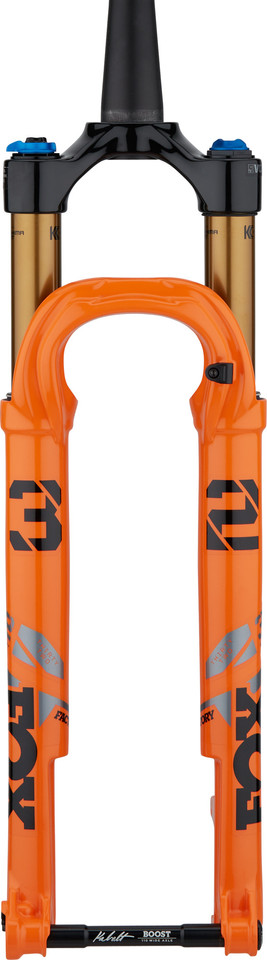

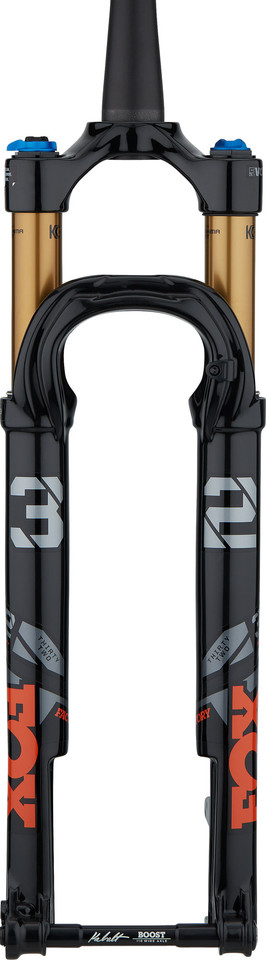

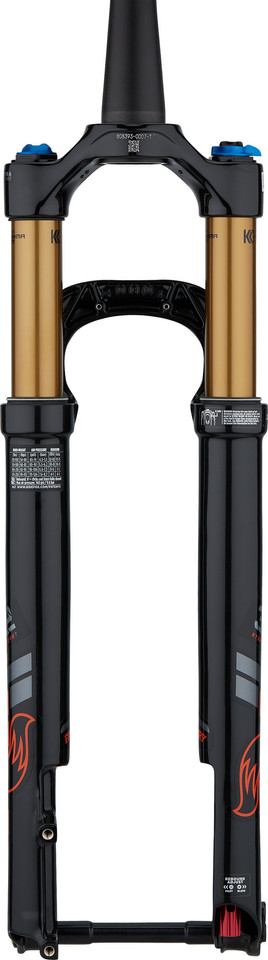

Fox Racing Shox 32 Float SC 29" FIT4 Factory Boost Suspension Fork - 2022 Model

Specifications:

Application:

Cross Country

Wheel Size:

29"

Suspension Type:

air

Travel:

100 mm

Steerer Tube:

1 1/8" - 1.5" tapered

Axle Type:

thru-axle

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM6 (direct mount 160 mm)

Technical Information:

Offset:

44 mm, 51 mm

Steerer Tube Length:

264 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

503.7 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

32 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

3-position lever (Open / Medium / Firm) with low-speed setting (22 steps) in Open mode

Rebound:

yes (10 levels)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

203 mm

Weight Limit:

121 kg (system weight)

Air Pressure (max.):

140 psi (9.6 bar)

Features:

• FIT4 damping cartridge with 3-position lever and fine adjustment of low speed compression damping in open mode

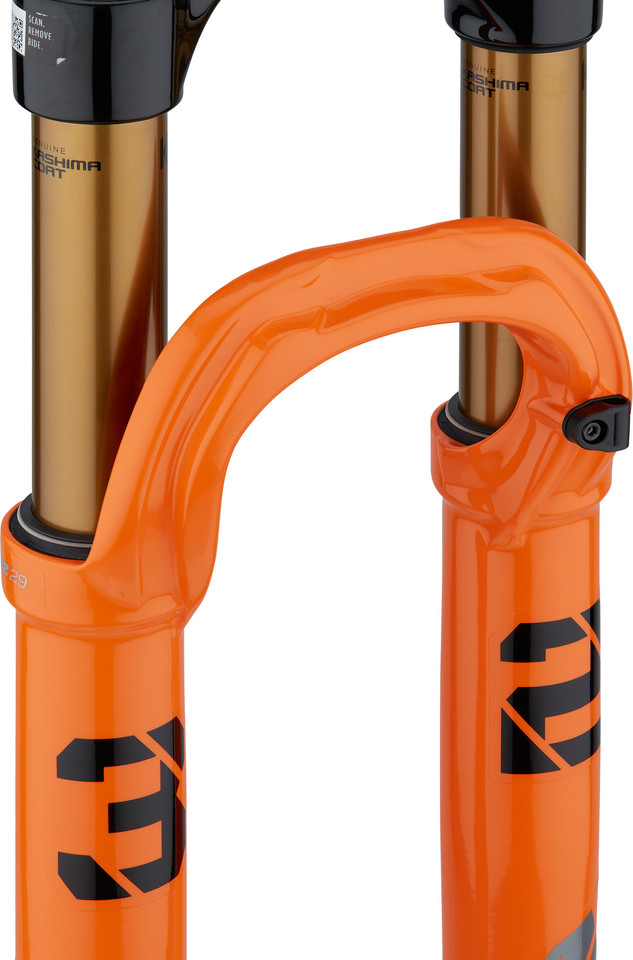

• narrow, weight-saving step-cast design with recesses above the axle for brake rotor and spokes

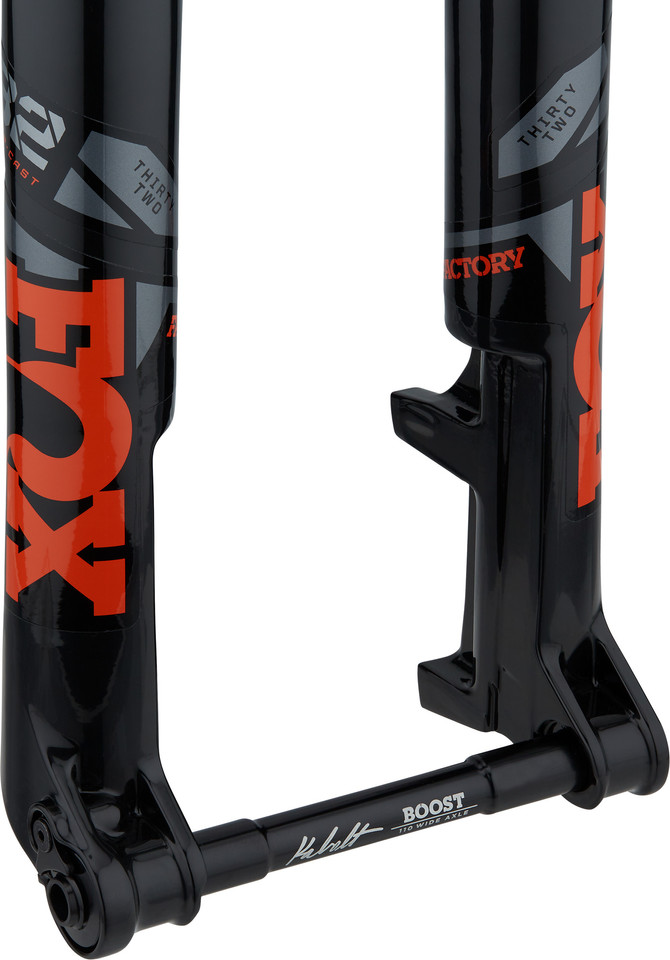

• with light Kabolt thru-axle

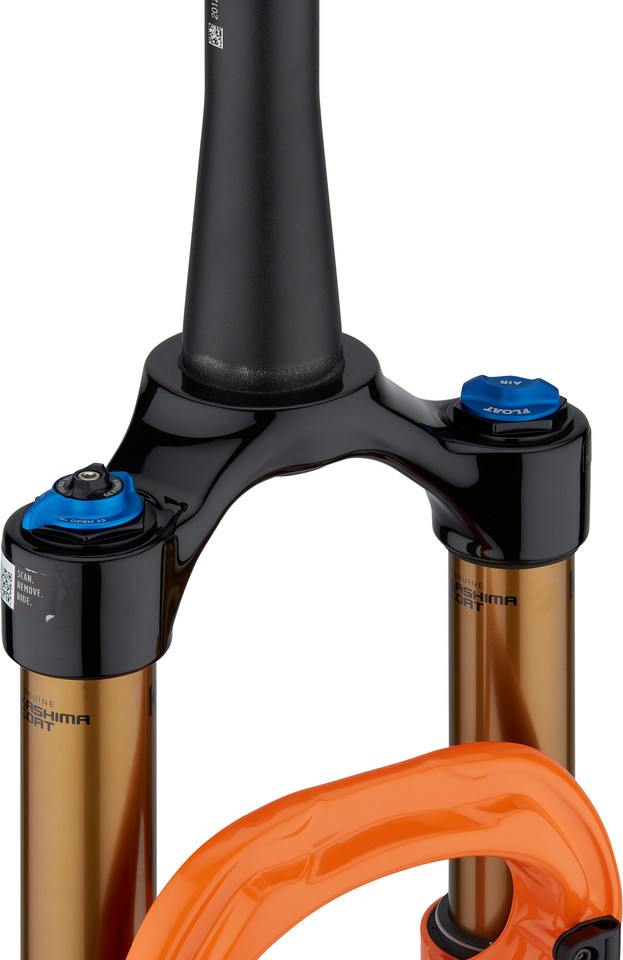

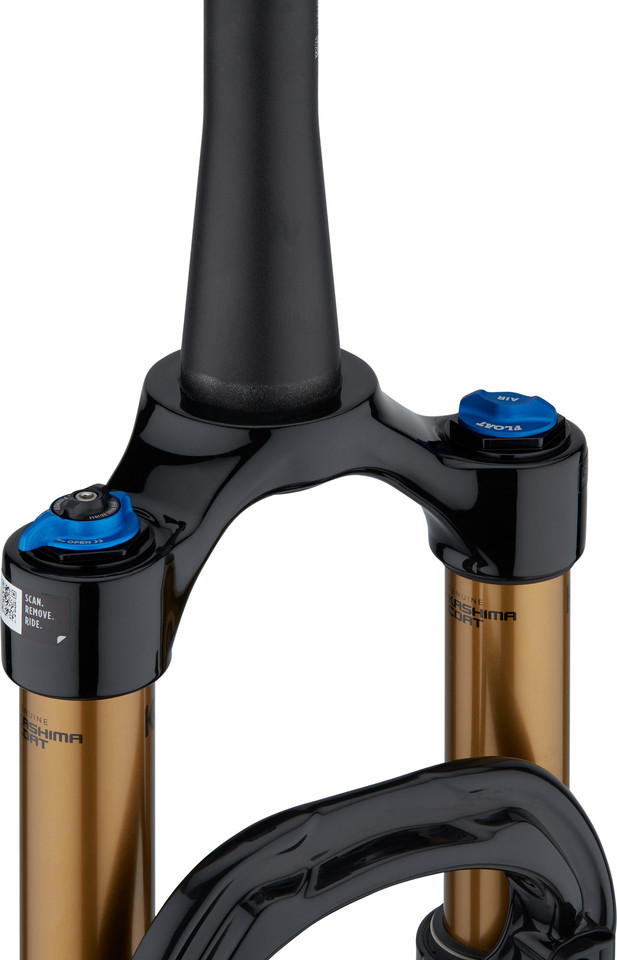

• Factory series with Kashima coating for minimised friction and optimised responsiveness

Technology:

Kashima Coat
The distinctive golden Genuine Kashima Coat offers superior overall performance and ensures minimum friction and optimum response with maximum durability.

Models:

100 mm / 1.5 tapered / 15 x 110 mm / 44 mm

Travel:

100 mm

Offset:

44 mm

Manufacturer Number:

910-20-222 (shiny black), 910-20-219 (shiny orange)

100 mm / 1.5 tapered / 15 x 110 mm / 51 mm

Travel:

100 mm

Offset:

51 mm

Manufacturer Number:

910-20-220 (shiny black), 910-20-218 (shiny orange)

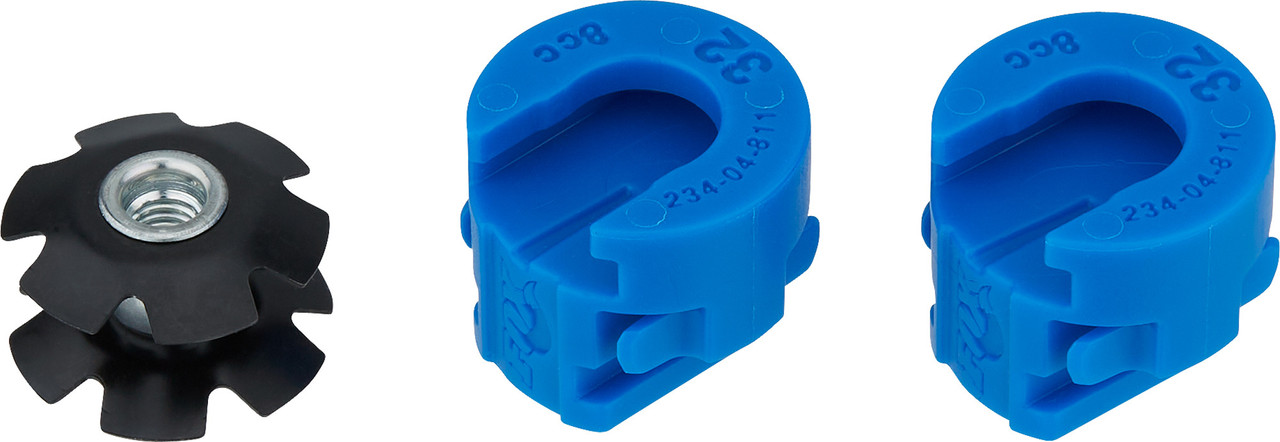

Contents:

• 1 x Fox Racing Shox 32 Float SC 29" FIT4 Factory Boost suspension fork
• 1 x Fox Racing Shox Kabolt thru-axle
• 3 x Fox Racing Shox volume spacers
• 1 x hose guides
• 1 x star nut
