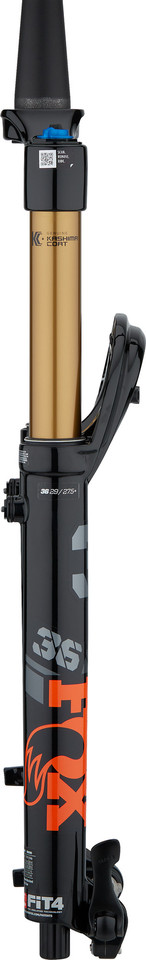

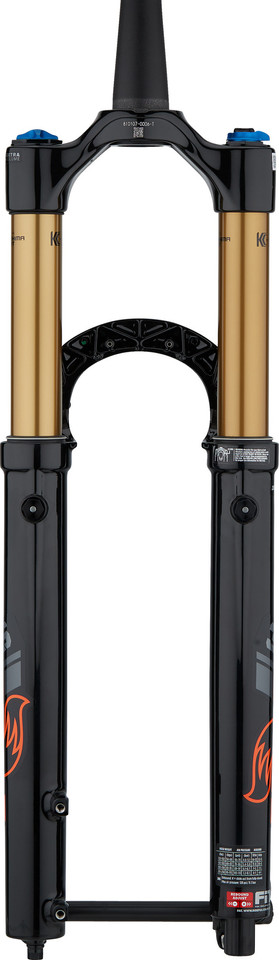

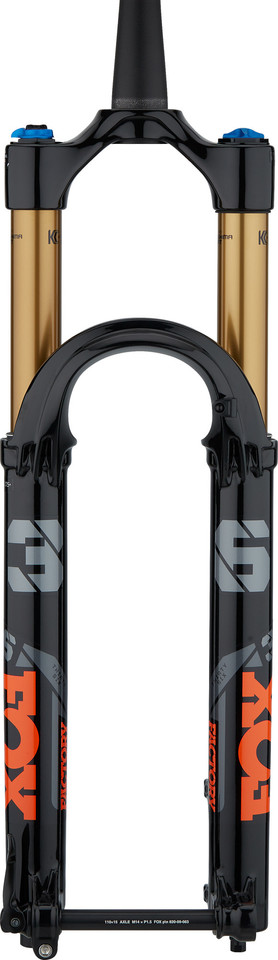

Fox Racing Shox 36 Float 29" FIT4 Factory Boost Suspension Fork - 2022 Model

Specifications:

Application:

All Mountain, Enduro

Wheel Size:

29"

Suspension Type:

air

Travel:

150 mm

Steerer Tube:

1 1/8" - 1.5" tapered

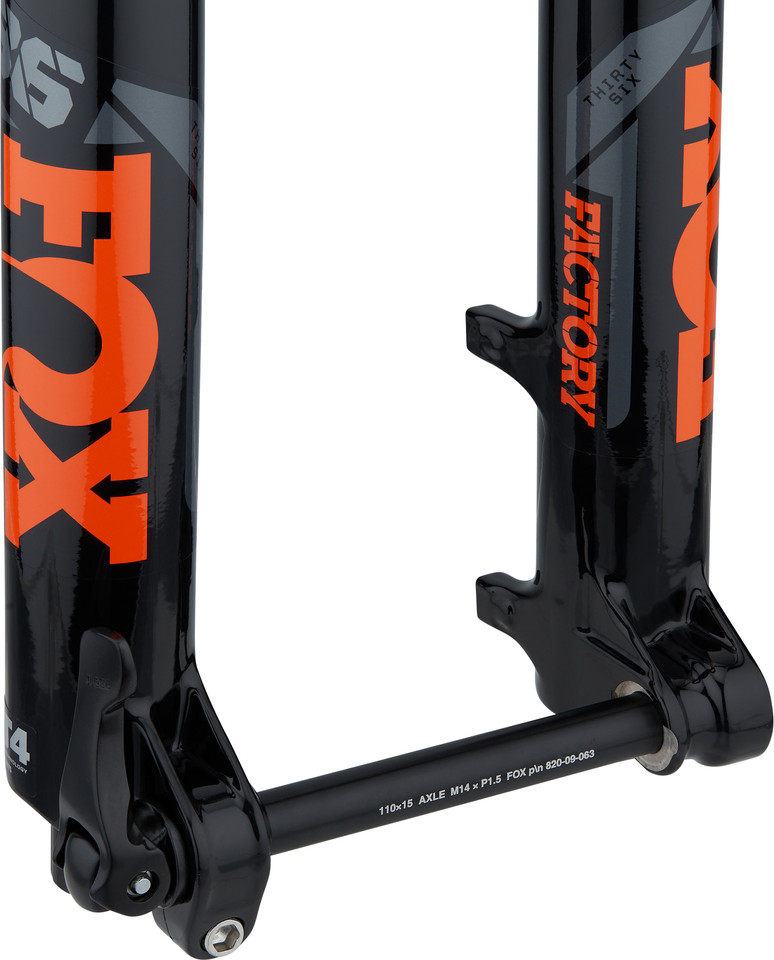

Axle Type:

thru-axle with quick release lever

Wheel Standard:

15 x 110 mm (Boost)

Brake Mount:

disc PM7 (direct mount 180 mm)

Technical Information:

Offset:

44 mm

Steerer Tube Length:

263 mm

Steerer Tube Diameter (Stem):

28.6 mm

Steerer Tube Diameter (Crown Race):

40 mm

Axle to Crown:

561 mm

Over Locknut Dimension:

110 mm

Stanchion Tube Diameter:

36 mm

Steerer Tube Material:

aluminium

Crown Material:

aluminium

Stanchion Tube Material:

aluminium

Lower Tube Material:

magnesium

Adjustment Options:

Compression:

3-position lever (Open / Medium / Firm) with low-speed setting (22 steps) in Open mode

Rebound:

yes (10 levels)

Suspension Stiffness:

air pressure adjust

Remote:

no

Travel Adjustment:

no

Approved For:

Tyre Size (max.):

29 x 2.6"

Note:

The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.

Rotor Size (max.):

230 mm

Weight Limit:

140 kg (system weight)

Air Pressure (max.):

120 psi (8.3 bar)

Features:

• FIT4 damping cartridge with 3-position lever and fine adjustment of low speed compression damping in open mode
• floating axle for optimal alignment of hub and suspension fork
• with bleed valves for quick, uncomplicated adjustment of the ambient air pressure

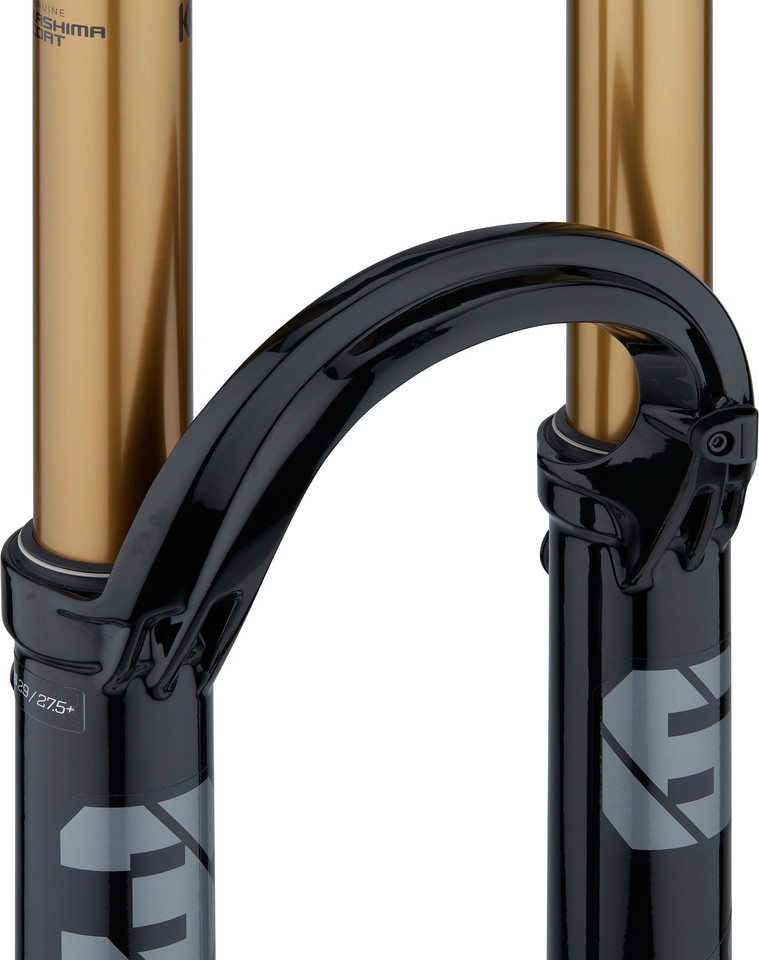

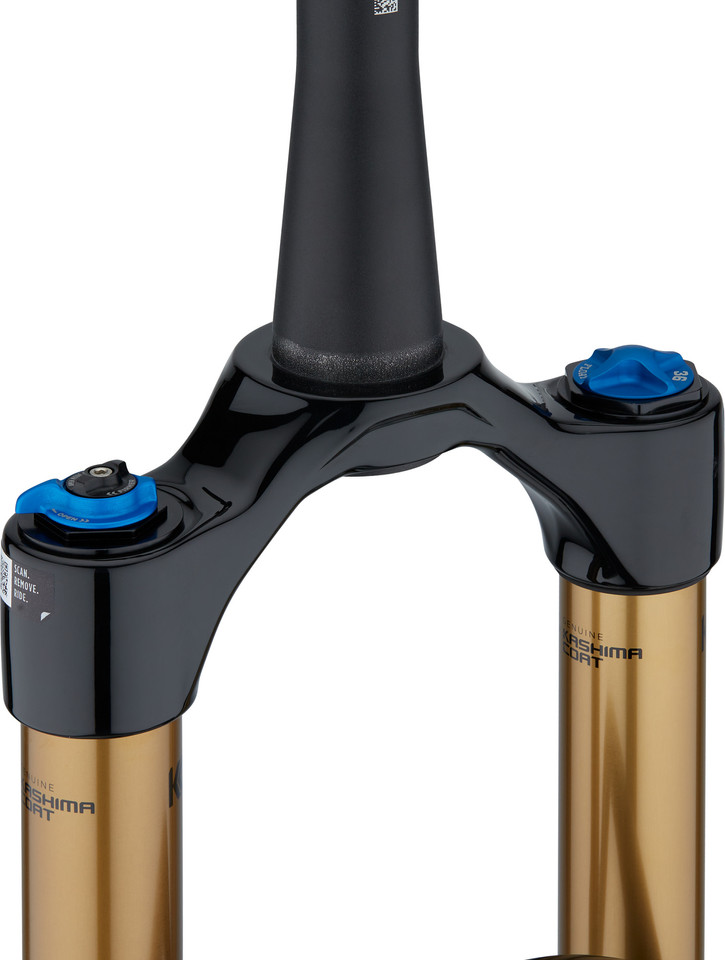

• fork crown design optimised for more stiffness, more space in the head tube area and shorter offset
• air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase
• Factory series with Kashima coating for minimised friction and optimised responsiveness
• Float EVOL air suspension for sensitive response, more linear spring characteristics and optimum support through the entire spring travel

Technology:

Kashima Coat
The distinctive golden Genuine Kashima Coat offers superior overall performance and ensures minimum friction and optimum response with maximum durability.

Manufacturer Number:

910-20-237

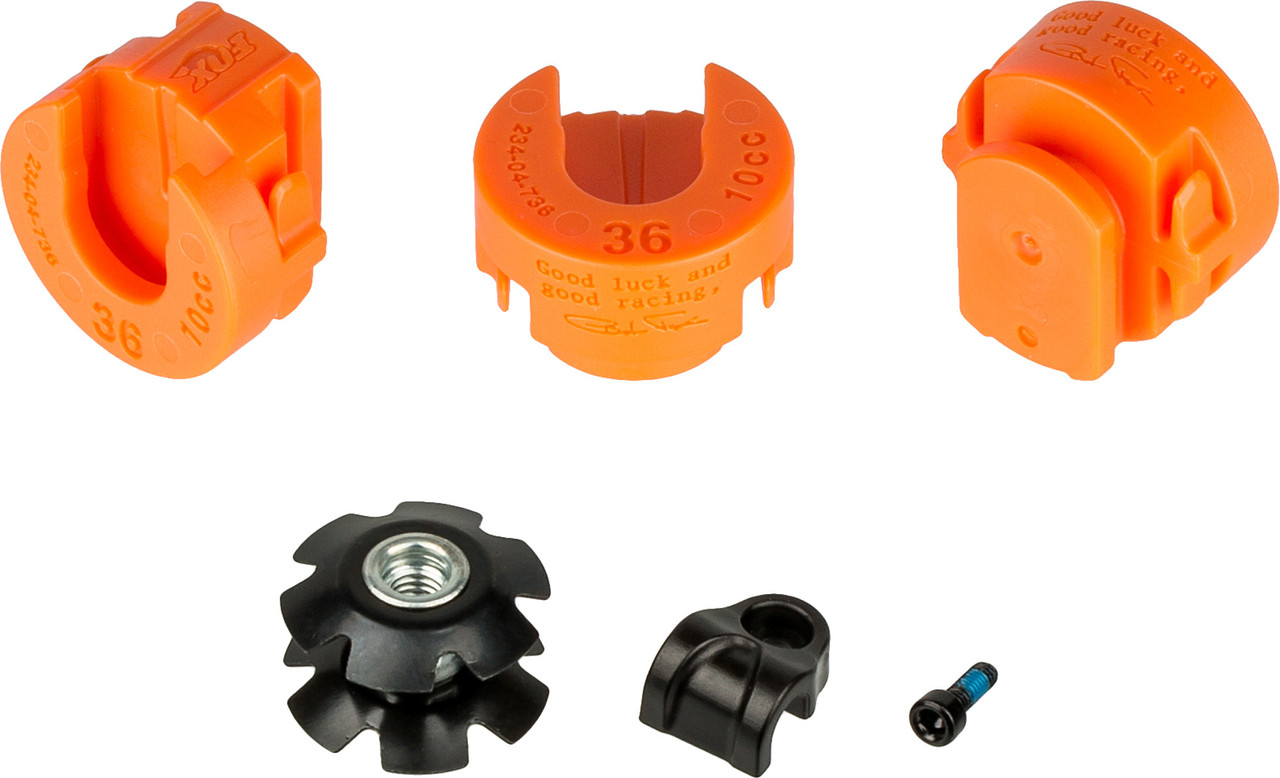

Contents:

• 1 x Fox Racing Shox 36 Float 29" FIT4 Factory Boost suspension fork
• 1 x Fox Racing Shox thru-axle with quick release
• 3 x Fox Racing Shox volume spacers
• 1 x hose guides
• 1 x star nut

Order Together:

Optional accessories:

• Stanchion Tube Mudguard for 36 / 38
