Item number: 88744
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Specifications:

Application:
All Mountain
Wheel Size:
29"
Suspension Type:
air
Travel:
150 mm, 160 mm
Steerer Tube:
1 1/8" - 1.5" tapered
Axle Type:

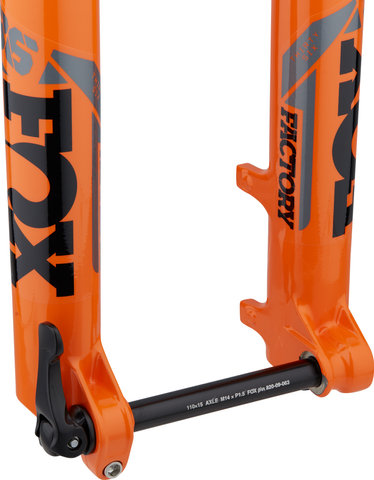

thru-axle with quick release lever
Wheel Standard:
15 x 110 mm (Boost)
Brake Mount:
disc PM7 (direct mount 180 mm)

Technical Information:

Offset:
44 mm, 51 mm
Steerer Tube Length:
263 mm
Steerer Tube Diameter (Stem):
28.6 mm
Steerer Tube Diameter (Crown Race):
40 mm
Over Locknut Dimension:
110 mm
Stanchion Tube Diameter:
36 mm
Steerer Tube Material:
Aluminium
Crown Material:
Aluminium
Stanchion Tube Material:
Aluminium
Lower Tube Material:
magnesium

Adjustment Options:

Compression:
High-Speed, Low-Speed
Rebound:
High-Speed, Low-Speed
Suspension Stiffness:
air pressure adjust
Remote:
no
Travel Adjustment:
no

Approved For:

Note:
The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.
Rotor Size (max.):
230 mm
Air Pressure (max.):
120 psi (8.3 bar)

Features:

  • suspension fork with Boost installation width for all-mountain bikes
  • GRIP2 damping cartridge with maximum adjustment possibilities
  • setting high-speed compression and rebound
  • fork crown with larger overlap to the head tube, thus more durable and also 20 g lighter than last year's model
  • floating axle for optimal alignment of hub and suspension fork
  • with bleed valves for quick, uncomplicated adjustment of the ambient air pressure
  • fork crown design optimised for high stiffness, plenty of space in the head tube area and short leading edge
  • air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase
  • Factory series with Kashima coating for minimised friction and optimised responsiveness
  • Float EVOL air suspension for sensitive response, linear spring characteristics and optimum support through the entire travel

Technology:

Kashima Coat
The distinctive golden Genuine Kashima Coat offers superior overall performance and ensures minimum friction and optimum response with maximum durability.

Models:

150 mm / 1.5 tapered / 15 x 110 mm / 44 mm:
Travel:
150 mm
Offset:
44 mm
Axle to Crown:
561 mm
Manufacturer Number:
910-21-115

160 mm / 1.5 tapered / 15 x 110 mm / 44 mm:
Travel:
160 mm
Offset:
44 mm
Axle to Crown:
571 mm
Manufacturer Number:
910-21-113 (shiny orange), 910-21-111 (shiny black)

160 mm / 1.5 tapered / 15 x 110 mm / 51 mm:
Travel:
160 mm
Offset:
51 mm
Axle to Crown:
571 mm
Manufacturer Number:
910-21-114

Contents:

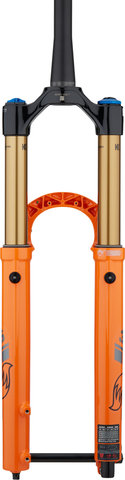

  • 1 x Fox Racing Shox 36 Float 29" GRIP2 Factory Boost suspension fork
  • 1 x Fox Racing Shox thru-axle with quick release

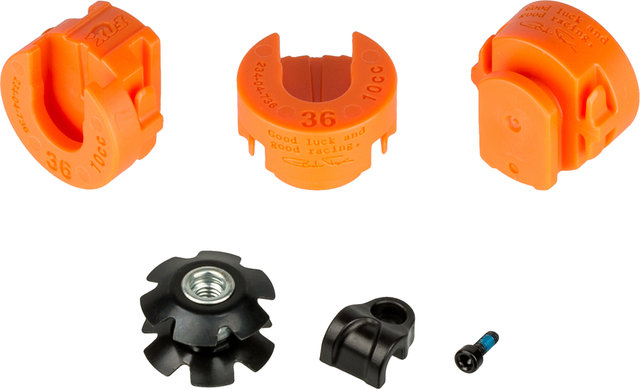

  • 3 x Fox Racing Shox volume spacers
  • 1 x hose guides
  • 1 x star nut

Order Together:

Optional Accessories:

Models:

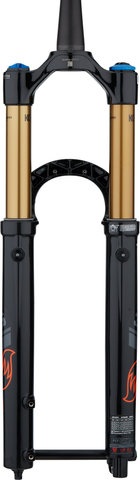

  • shiny black/150 mm / 1.5 tapered / 15 x 110 mm / 44 mm, in stock
    1,350.25€
  • shiny black/160 mm / 1.5 tapered / 15 x 110 mm / 44 mm, in stock
    1,350.25€
  • shiny black/160 mm / 1.5 tapered / 15 x 110 mm / 51 mm, out of stock
    1,349.39€

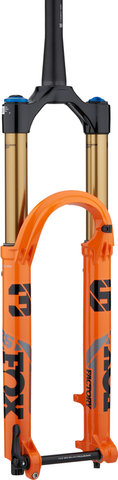

  • shiny orange/160 mm / 1.5 tapered / 15 x 110 mm / 44 mm, in stock
    1,350.25€
