Fox Racing Shox 38 Float 29" GRIP Performance Boost Suspension Fork - 2022 Model - matte black/170 mm / 1.5 tapered / 15 x 110 mm / 44 mm

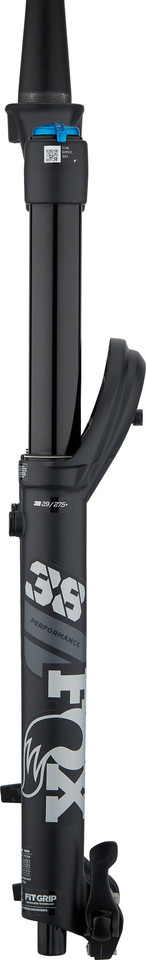

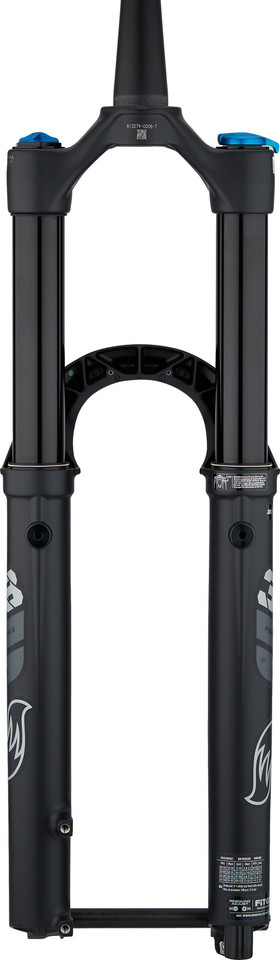

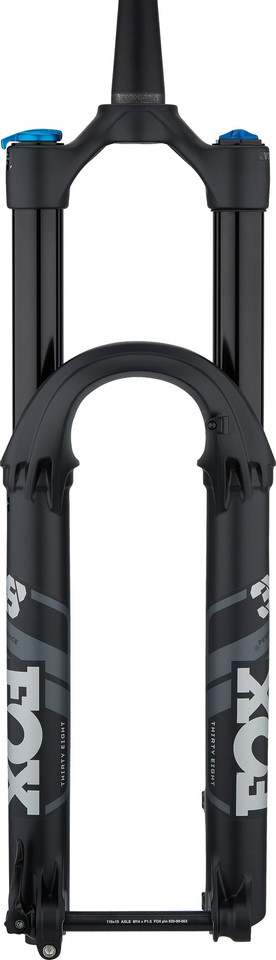

Fox Racing Shox 38 Float 29" GRIP Performance Boost Suspension Fork - 2022 Model

Item number: 83108

Specifications:

Application:
Enduro
Wheel Size:
29"
Suspension Type:
air
Travel:
170 mm
Steerer Tube:
1 1/8" - 1.5" tapered
Axle Type:
thru-axle with quick release lever
Wheel Standard:
15 x 110 mm (Boost)
Brake Mount:
disc PM7 (direct mount 180 mm)

Technical Information:

Offset:
44 mm
Steerer Tube Length:
264 mm
Steerer Tube Diameter (Stem):
28.6 mm
Steerer Tube Diameter (Crown Race):
40 mm
Axle to Crown:
583.7 mm
Over Locknut Dimension:
110 mm
Stanchion Tube Diameter:
38 mm
Steerer Tube Material:
aluminium
Crown Material:
aluminium
Stanchion Tube Material:
aluminium
Lower Tube Material:
magnesium

Adjustment Options:

Compression:
3-position lever (Open / Medium / Firm) with Micro Adjust
Rebound:
yes (10 levels)
Suspension Stiffness:
air pressure adjust
Remote:
no
Travel Adjustment:
no

Approved For:

Tyre Size (max.):
29 x 2.6"
Note:
The tyre clearance must be checked with the fork fully compressed every time you change the tyre or the rim. It should be at least 8.5 mm all around.
Rotor Size (max.):
230 mm
Weight Limit:
169 kg (system weight)
Air Pressure (max.):
140 psi (9.6 bar)

Features:

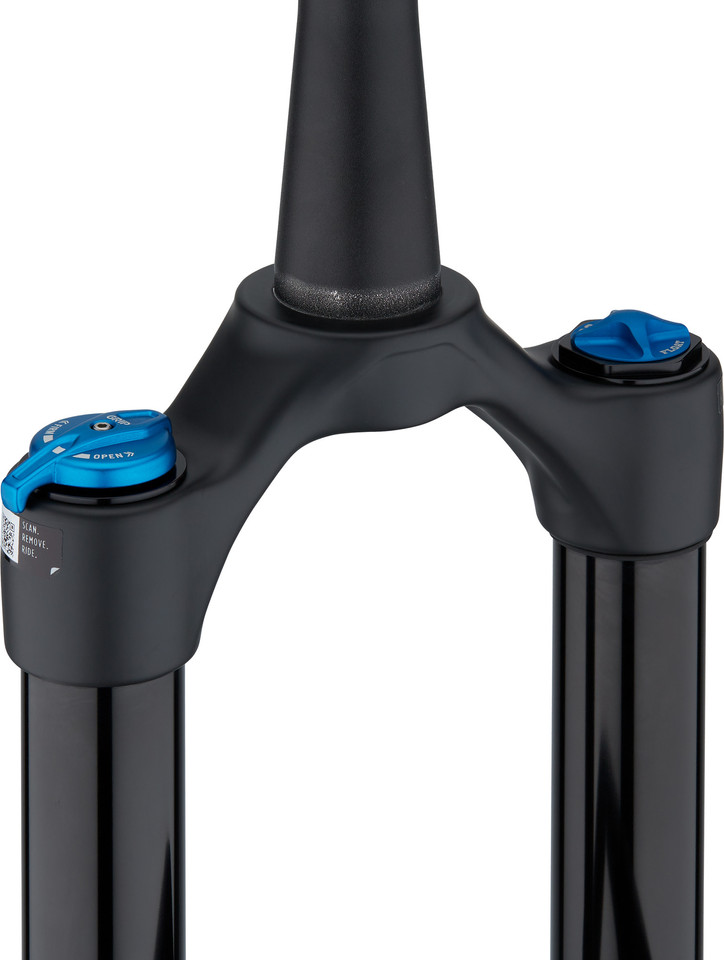

  • GRIP damping cartridge with three-position lever
  • Micro Adjust: rasters between Open, Medium and Firm mode allow for intermediate settings

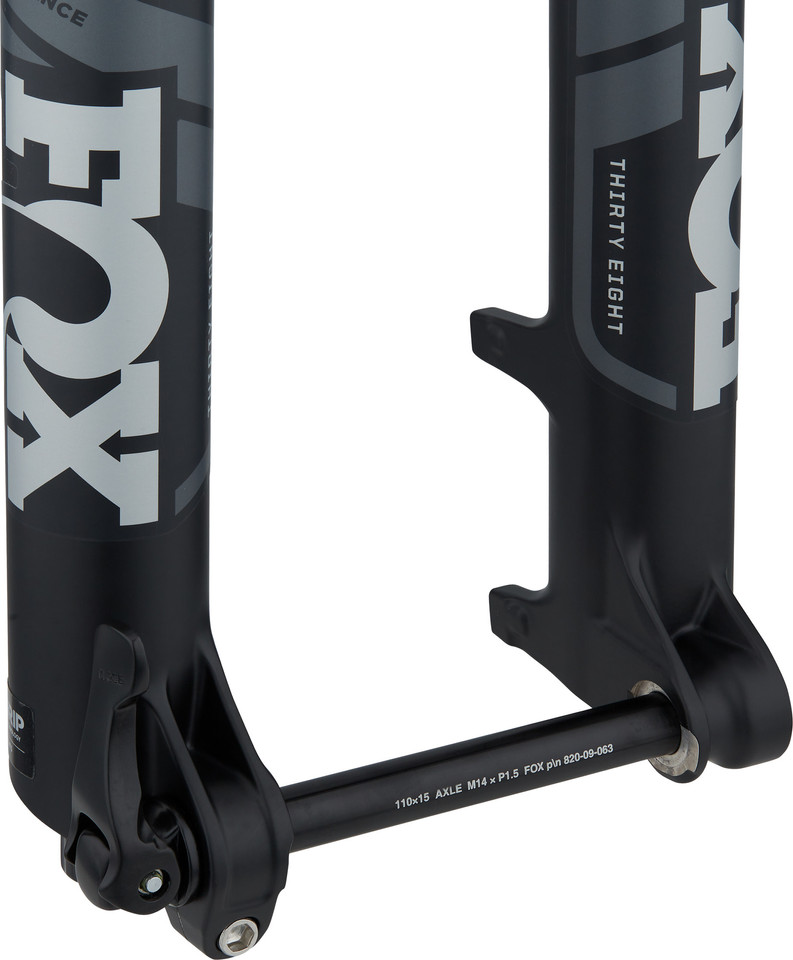

  • floating axle for optimal alignment of hub and suspension fork
  • with bleed valves for quick, uncomplicated adjustment of the ambient air pressure

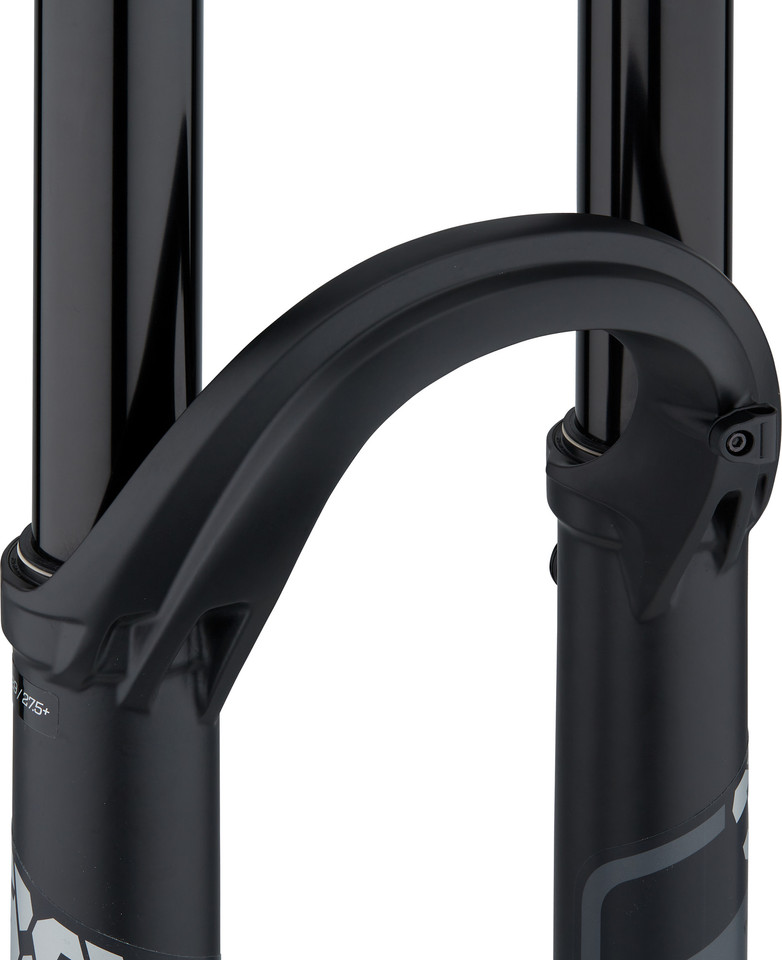

  • fork crown design optimised for more stiffness, more space in the head tube area and shorter offset
  • air and oil channels in the dip tubes for continuous lubrication of the foam rings and prevention of excessive pressure increase
  • performance series with black anodised uprights
  • Float EVOL air suspension for sensitive response, more linear spring characteristics and optimum support through the entire spring travel

Manufacturer Number:

910-21-021

Contents:

  • 1 x Fox Racing Shox 38 Float 29" GRIP Performance Boost suspension fork
  • 1 x Fox Racing Shox thru-axle with quick release

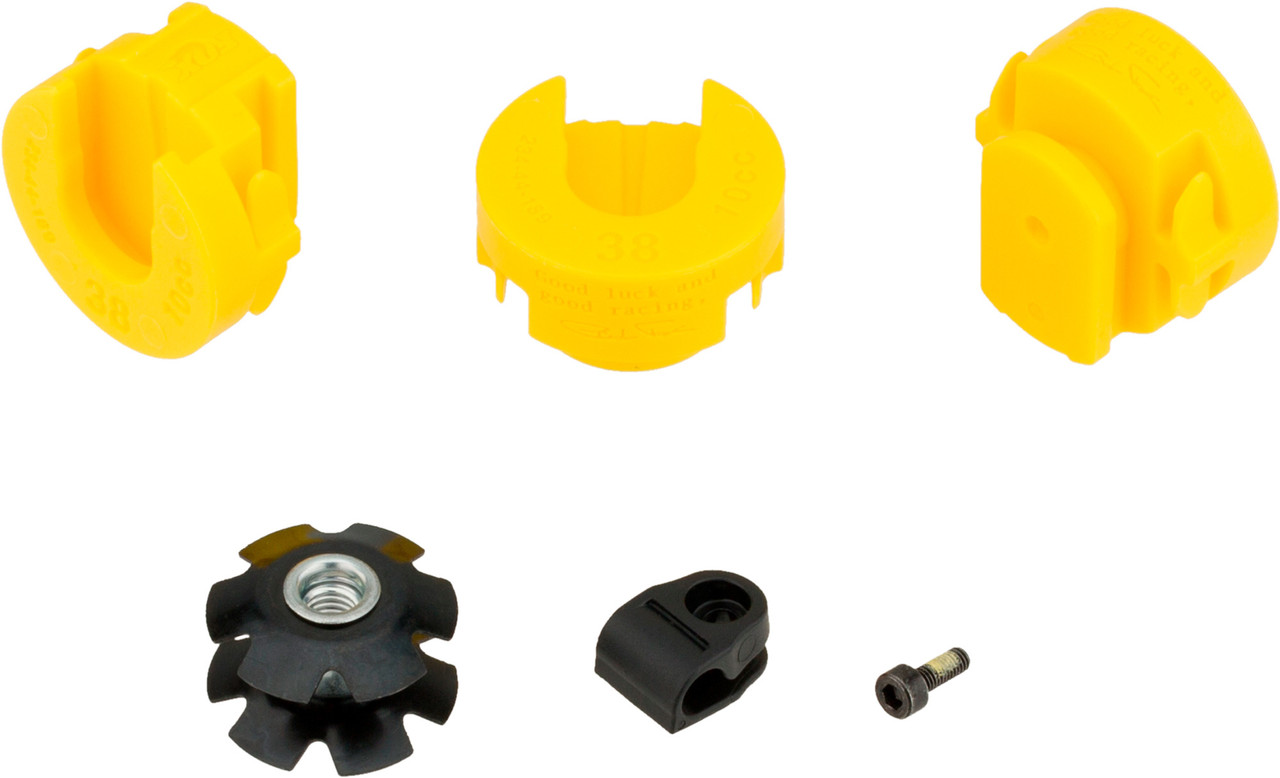

  • 3 x Fox Racing Shox volume spacers
  • 1 x hose guides
  • 1 x star nut

Order Together:

Optional accessories:

  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.89 / 5.00

Models:

  • matte black/170 mm / 1.5 tapered / 15 x 110 mm / 44 mm, in stock
    882.86€
