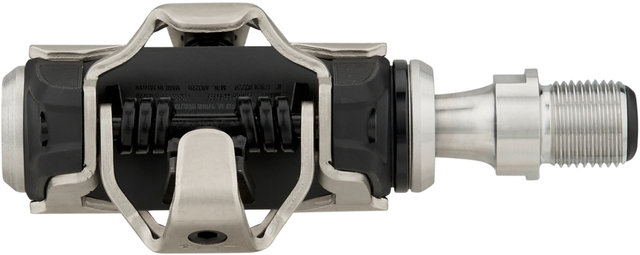

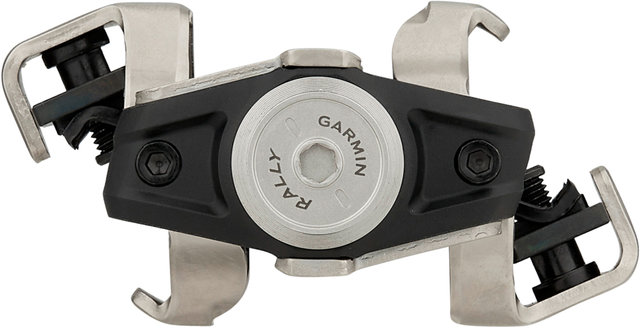

Garmin Rally XC100 Upgrade Power Meter Pedal

The Rally XC100 Upgrade is an SPD compatible power meter pedal for use on the right side, which, when used together with an existing left XC100 pedal, provides bilateral power measurement.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Application:

Cross Country, Gravel, Cyclocross

Type:

power meter clipless pedal (right)

Technical Information:

Body Material:

composite, metal

Axle Material:

steel

Seals:

double

Height:

13.5 mm

Pedal Centre to Crank Arm Distance:

53 mm

Tolerance:

+/- 1%

Power Source:

Lithium battery CR1/3N (1 x) or lithium battery LR44/SR44 (2 x)

Battery Life:

max. 120 h

Data Collected:

Power (right side), cadence

Waterproof:

IPX7

Data Transfer:

ANT+, Bluetooth

Approved For:

Weight Limit:

105 kg total weight

Compatibility:

• Rally XC100, left
• Rally XC Cleats (recommended)
• Shimano SPD Cleats from the original manufacturer
• Garmin watches, Edge bike computers, Garmin Connect app for data analysis, software and settings updates
• Garmin Connect app for training analysis or sharing training data with third-party platforms such as Strava, TrainingPeaks or TrainerRoad

Features:

• provides bilateral power measurement combined with a left Rally XC100, with full access to Cycling Dynamics (including Right-Left Balance, Power Phase, Platform Center Offset) for advanced power analysis
• robust design for mountain biking or gravel riding
• slim profile with fully-integrated battery housing and low profile for better ergonomics
• easy mounting lets you swap out pedals between several bikes
• easily replaceable batteries
• on-site calibration
• adjustable tension
• operating temperature range -10 °C to 50 °C

Technology:

How Garmin Rally Power Meters Work
Garmin Rally pedals measure the force applied to the pedal during 360° pedalling cycles and the direction of the force. Based on this, the force that causes the propulsion (tangential vector) and the force that acts on the crank in the form of compression or elongation (radial vector) are considered equally. This results in a more realistic measurement in comparison to relying solely on the tangential vector, and gives you a better overall picture of pedalling forces.

Manufacturer Number:

010-12987-02

Contents:

• 1 x Garmin Rally XC100 Upgrade Pedal with Power Meter Axle (right)
• 1 x CR1/3N batteries (installed)
