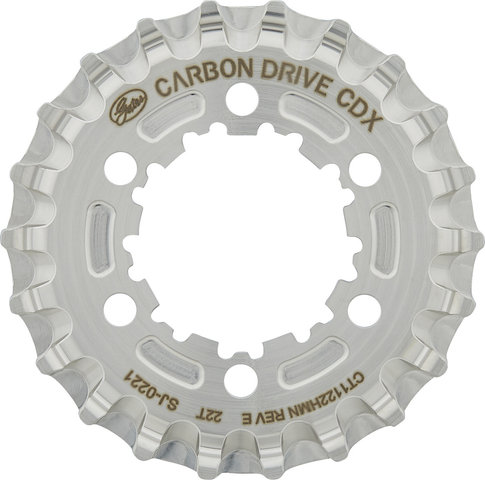

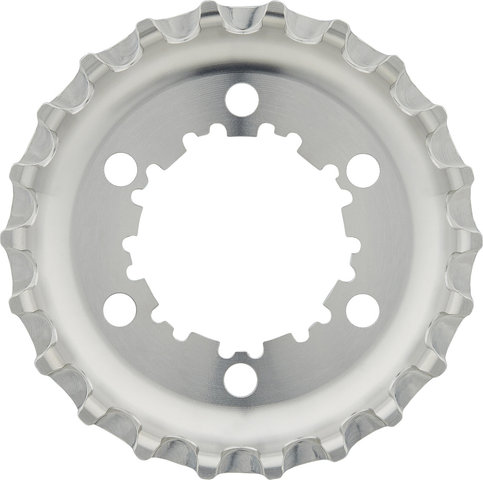

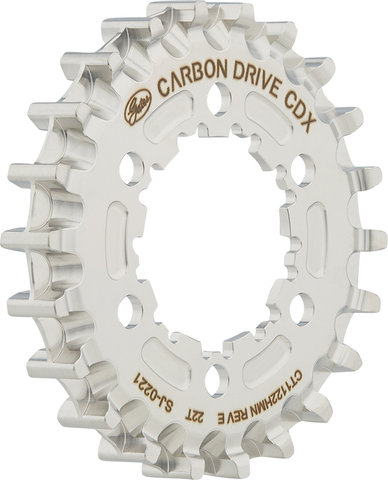

Gates CDX 9-Spline 6-Bolt Disc Rear Belt Drive Sprocket

This Gates CDX rear belt drive sprocket for touring and off-road use has a 9-spline mount with nine grooves that is narrower than the standard version. This makes it suitable for very short Shimano HG freehub bodies (e.g. DX). The sprocket also has six bolt holes, making it compatible with 6-bolt disc brakes.

Specifications:

Application:

All Mountain, City & Touring

Teeth:

22 T

Mount:

9-Spline

Technical Information:

Width of the teeth:

11 mm

Tooth division:

11 mm

Mounting web thickness:

2.35 mm

Offset:

2.1 mm (assembly surface), 2.25 mm (centre line)

Outer Diameter:

75.3 mm

Material:

stainless steel

Compatibility:

• Shimano HG standard freehub body with nine notches (Shimano MTB, Shimano Road)
• 6-bolt disc brake systems

Features:

• CDX: high-end version for high loads and best performance
• suitable for mud, sand, snow and ice as well as all roads
• middle guide groove (CenterTrack)
• high mileage
• robust stainless steel
• narrower attachment than standard version, therefore also suitable for very short freehubs

Technology:

Gates Carbon Drive System
The main advantages of the Gates Carbon Drive system are cleanliness, smoothness and robustness. Urban commuters as well as mountain bikers, E-bike users or leisure riders benefit from the high mileage. Oil-stained or rusty chains are a thing of the past.
Clean: No lubricant means no accumulation of grease and dirt.
Smooth and silent operation: no metal-to-metal contact of the chains.
Light: The whole system weighs less than a standard bicycle chain.
No elongation: Belt does not need to be re-tensioned or replaced.
Self-cleaning: CenterTrack and MudPort profiles are specially designed to repel mud, dirt, snow or other contaminants.
Consistent efficiency: The drive boasts a long service life compared to that of a conventional chain, where efficiency is significantly reduced by wear or dirt.
Installing a Gates Carbon Drive Belt Drive requires a specially-made frame, therefore we strongly advise against using one to modify a conventional framework.

Manufacturer Number:

CT1122HMN

Contents:

• 1 x Gates CDX 9-Spline Disc 6-bolt rear belt drive sprocket

Order Together:

• Strap Wrench for dismantling the belt drive sprocket
