Lupine C14 E-Bike Rear Light - StVZO Approved

The C14 E-Bike rear light with StVZO approval by Lupine becomes an integral part of your E-Bike

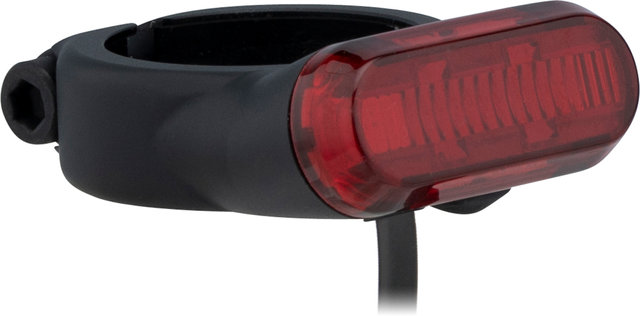

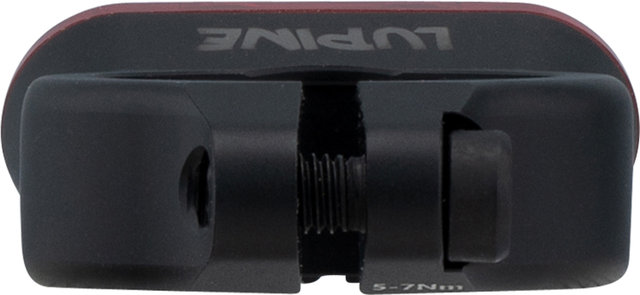

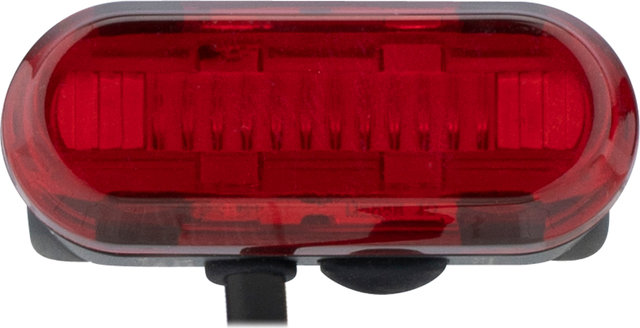

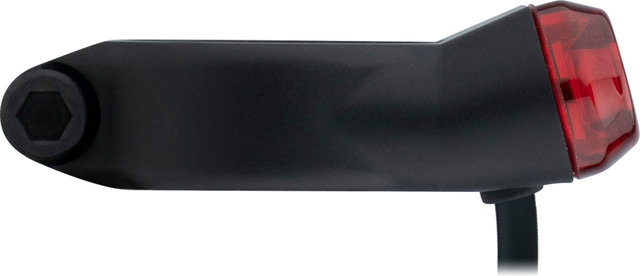

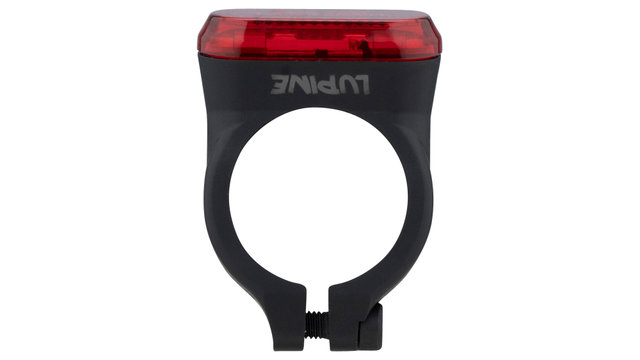

The Lupine C14 E-Bike rear light with StVZO approval is saddle clamp and rear light in one. With the latest COB technology and powerful Fresnel lenses, the rear light has 240-degree visibility with reduced glare. The special arrangement of the LEDs together with an ingenious lens system ensures a homogeneous light characteristic. With an additional button you can switch off the rear light, e.g. when you are riding in a group or through the forest. An integrated stop lip ensures simple, defined assembly. Every seatpost can be reliably fixed in the seat tube with up to 7 NM. The C14 can be connected directly to the E-bike motor and is compatible with all current E-MTBs, whether Bosch, Shimano, Brose or Yamaha.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for replacing E-bike components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Type:

rear light (red)

Mount:

seatpost clamp

Diameter:

31.8 mm, 34.9 mm, 35.6 mm, 36.4 mm

Light Source:

14 x LED

Power Source:

E-bike battery

Technical Information:

Protection Rating:

IPX6

Material:

aluminium, polycarbonate

Switch:

on / off button underneath

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1660

Features:

• impact and water resistant according to IPX6
• 45 lumens bright
• integration into the seatpost clamp
• compatible with all current E-MTBs

Manufacturer Numbers:

31.8 mm:

d795-318

34.9 mm:

d795-349

35.6 mm:

d795-356

36.4 mm:

d795-364

Contents:

• 1 x Lupine C14 rear light with integrated connecting cable

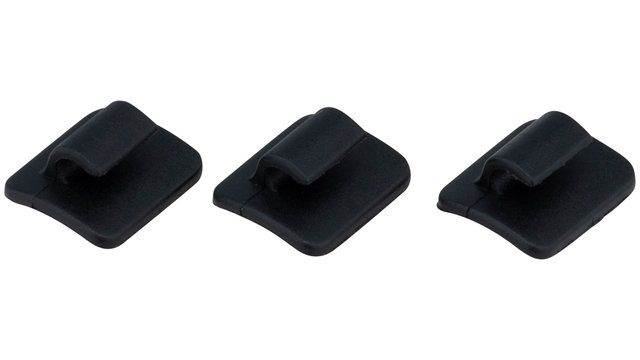

• 3 x Lupine cable guides
