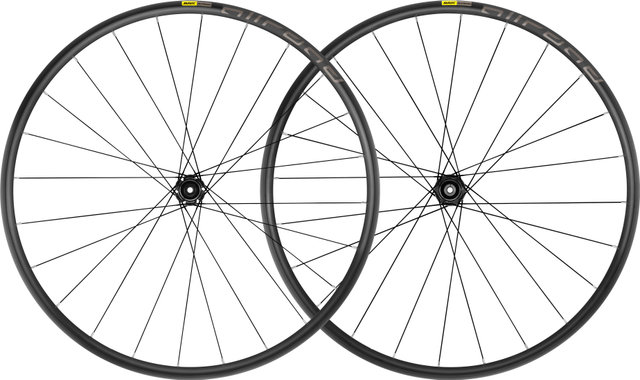

Mavic Allroad Center Lock Disc Wheelset

Item number: 66682

excl. shipping cost
to the delivery destination: USA

black/28" set (front 12x100 + rear 12x142) Shimano
Out of stock

Delivery to USA is not possible.

No picture available for the chosen product version.

Out of stock
Allroad Center Lock Disc Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano
Allroad Center Lock Disc Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano
Allroad Center Lock Disc Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano
Allroad Center Lock Disc Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano
Allroad Center Lock Disc Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano
Allroad Center Lock Disc Wheelset - black/28" set (front 12x100 + rear 12x142) Shimano
  • 100 day return period
  • Online since 1998
  • Trusted Shop 4.9 / 5.00
Due to unknown delivery times, certain varieties of this article are currently not available. More information about the current situation

Reliability, confidence and smooth control: the Mavic Allroad Disc wheelset

With 22 mm inner rim width optimised for large volume tyres, this UST Road Tubeless wheel is made for your next adventure on 2 wheels. On bumpy roads and gravel tracks, it offers you the smooth performance typical of tubeless systems and is also particularly user-friendly and easy to handle. The low rolling resistance and the reduced risk of punctures contribute to increased riding pleasure, especially on poorer road conditions. The wheel is designed for the special requirements of disc brakes, with 24 straight spokes each it is more stable than with curved ones. No matter where you turn and how bumpy it is there, with this wheel you won't know how to stop.


Application: Gravel
Wheel Size: 28"
Tyre Type: clincher
Number of Spokes: 24
Brake Type: Center Lock disc
Tubeless System: Road UST

Technical Information - Rim:

Dimensions (ETRTO): 23-622
Inner Width: 23 mm
Outer Width: 27 mm
Depth: 22 mm
Valve Hole Diameter: Presta (6.5 mm)
Rim Material: aluminium (S6000)

Technical Information - Front Hub:

Over Locknut Dimension: 12 x 100 mm thru-axle, convertible to 9 x 100 mm quick release
Bearings: cartridge bearings (sealed)
Body Material: aluminium

Technical Information - Rear Hub:

Over Locknut Dimension: 12 x 142 mm thru-axle, convertible to 10 x 135 mm quick release
Bearings: cartridge bearings (sealed)
Body Material: aluminium
Freehub Body Material: steel
Freehub Body: Instant Drive 360

Technical Information - Lacing:

Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: straight / round
Spoke Size: 296 mm (front), 296 mm/293 mm (rear l/r)
Spoke Material: steel
Nipple Type: self-locking
Nipple Material: steel

Approved For:

Weight Limit: 120 kg total weight* (rider, gear & bike)
Air Pressure (max.): 5.8 bar (30 mm), 5.1 bar (35 mm), 4.5 bar (40 mm)
Recommended Tyre Width: 28 - 64 mm

* recommended for increased durability


- specially designed for bumpy roads and gravel tracks
- proven performance and reliability at an entry-level price
- high rolling efficiency and agility
- self-aligning sealed cartridge bearings
- especially for disc brake Road bikes: rim profile optimised for disc brakes
- sleeved rim joint
- aluminium axles
- front can be converted to quick release (with supplied adapters), conversion to 15 x 100 mm thru-axle possible by exchanging the complete axle
- rear can be converted to quick release (with included adapters) or to 12 x 135 mm thru-axle (with separate adapter)
- ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm


QRM Auto
Qualité de Roulements Mavic Auto. The latest bearing innovation by Mavic. These cartridge bearings (bearing clearance: C3) are of course double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.

Instant Drive 360
The Instant Drive 360 freehub system is super-lightweight and provides a fast frictional connection with an engagement angle of only 9°. A large, non-contact rubber seal reduces friction. And a wide selection of axle caps ensure compatibility with many standards.

Road UST
UST means Universal Standard for Tubeless and is compatible with UST Tubeless Ready tyres. The UST technology improves traction, control and riding comfort with reduced inertia and reduced risk of punctures.


28" set (front 12x100 + rear 12x142) Shimano:
Freehub: Shimano Road
Gearing: 8-/9-/10-/11-speed
Note: Installing 8-/9-/10-speed cassettes on Shimano freehub bodies requires a 1.85 mm spacer.
Manufacturer Part Number: LP8699100
Conversion Options: To convert to Campagnolo, a Campagnolo freehub body is required. To convert to SRAM XDR, an XDR freehub body is required.


- 1 x Mavic Allroad Center Lock disc wheelset (front and rear)
- 1 x cassette spacer (rear)
- 2 x axle end caps for front quick release
- 2 x 9.5 mm reducers for rear quick release
- 2 x tubeless rim tape
- 2 x UST valves with accessories


  • black/28" set (front 12x100 + rear 12x142) Shimano: 1890 g (Satz)


in stock 2 to 7 days up to 10 days Out of stock inform me
  • black/28" set (front 12x100 + rear 12x142) Shimano

Customer Reviews (3)


Customer Reviews (3)


Give us your opinion on this product.

by Muharrem D.  on 03.04.2021 (modified on 03.04.2021)
verified purchase

Habe den Laufradsatz seit 08/2020 und bin ca. 1000km damit gefahren,
viel Wald und Schotterwege.
Das Freilaufgeräusch ist nicht so laut wie bei den aktuellen Mountainbikes o.ä. finde das sehr gut.
Ich muss sagen die Felgen sind top und sehen auch sehr schick aus.
Würde das Produkt jedem weiterempfehlen.

Die Felgen sind Tubeless kompatibel, es sind 2 Tublessventile dabei.
Auch die Möglichkeit, dass man entweder für Rahmen/ Gabel mit Steckachse oder Schnellspanner montieren zu können, macht das Laufrad sehr vielseitig, daher ist meine Entscheidung auf diese gefallen und ich bereue es nicht.

Is this review helpful?
by SYLVAIN C.  on 03.03.2021
verified purchase

Bonne roue, sobre et résistantes pour me 90 kgs en gravel.
Le bruit de la roue libre est discret.
Mais le diamètre extérieur est un problème car les pneus sont pour certains impossible a monter..
Des schwalbe marathon, la galère, des hutchinson en 622-40 souples que je n'ai jamais réussi à monter.. Jamais rencontrer une roue aussi compliquée voire impossible a chausser de pneus.
C'est vraiment dommage car elles ont une belle gueule.

Is this review helpful?
by Henk V.  on 10.02.2020 (modified on 10.02.2020)
verified purchase

Bis jetzt immer dtSwiss gefahren und auch sehr zufrieden. Nur für mein Gravelbike suchte ich Laufräder mit breiterer Tubeless-Ready Felge (möchte 28 zoll bis 42 mm Reifen fahren). Gewicht hatte nicht absolute Priorität, deshalb war eine Gewichtsangaben > 1,5 kg kein Problem.
Laufräder jetzt schon verschiedene Wochen im Einsatz (tubeless mit Panaracer 38 mm) und ich muss sagen für diesen Preis eine absolute Wucht.
Ganz normale runde Speichen mit normalen Nippeln lassen eine Reparatur mit normalen Werkzeug zu.
Freilauf hat keine Klinken sondern ein Ratched-System (wie die teuren dtSwiss 350/240 Naben)!!
Austausch Freilauf von Shimano nach Campa kinderleicht.
Auch der Tausch von Quick-Release nach Thru-Axl kinderleicht. Felgen schon Tubeless-Ready und Ventile sind auch dabei!
Nur Schade das die Laufräder Standard mit einem Shimano-Freilauf ausgeliefert werden. Campa-Freilauf muss hinzu gekauft werden. Leider bei BC kein Tausch möglich....
Sonnst aber absolute Kaufempfehlung für diesen Laufradsatz.
